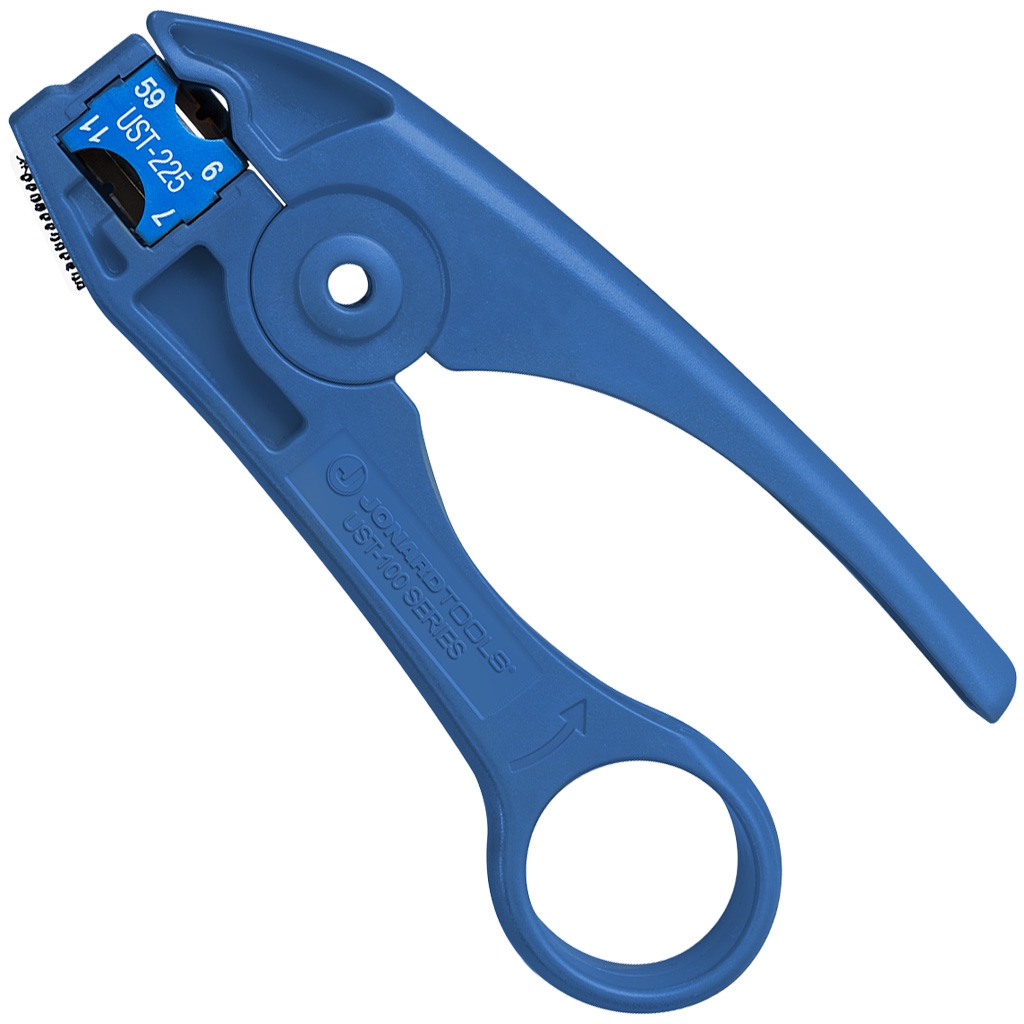

Jonard UST-125 Coax Stripping Tool with Cable Stop - RG59, RG6, RG7 & RG11
Designed to strip RG59, RG6, RG6 Tri & Quad, N48, RG7 & RG11 coaxial cables for CATV. The UST 100 Series from Jonard strips a multitude of cables. The included UST-225 cartridge has a cable stop on both sides for precise stripping with no adjustment, and gives a 2-level strip for F, BNC and RCA connector termination.
Features:
Capable of making over 5,000 cuts
Stopper attached - cable stop on both sides of the cartridge
Cartridge is reversible for ambidextrous use
Hook and loop strip on the bottom folds back the braided shield
Includes:
1 x UST-225 blade cartridge (installed)
Specifications:
CIFA#: 11471
Strips: RG59, RG6, RG6 Tri & Quad, N48, RG7 & RG11 coaxial cables for CATV
Cable Size: RG59/6/N48 & RG7/11
Strip Length: Jacket 0.25" (6.35 mm), Shield & Dielectric 0.3125" (7.94 mm)
Blade: UST-225
Dimensions: 4.98" x 2.63" x 1" (12.65 x 6.68 x 2.54 cm)
Weight: 0.11 lb (48 g)
Model: UST-125
Available Models:
| Part # | Jonard # | Description | Cable Size |
|---|
| JON-UST-100 | UST-100 | COAX Stripping Tool for RG59, RG6, RG7, RG11 Cables | RG59/6/N48 & RG7/11 |
| JON-UST-125 | UST-125 (this item) | COAX Stripping Tool for RG59, RG6, RG7, RG11 Cables with Cable Stop | RG59/6/N48 & RG7/11 |
| JON-UST-150 | UST-150 | Cable Stripping Tool for RG59, RG6 Cables and CAT/TP Twisted Pair Cables | RG59/6/N48, UTP |
Replacement Parts:
| Part # | Jonard # | Description |
|---|
| JON-UST-225 | UST-225 | Replacement blade cartridge with cable stop - RG59/6 & RG7/11 |
Data Sheet - Coax Stripping Tools
|
|
|
