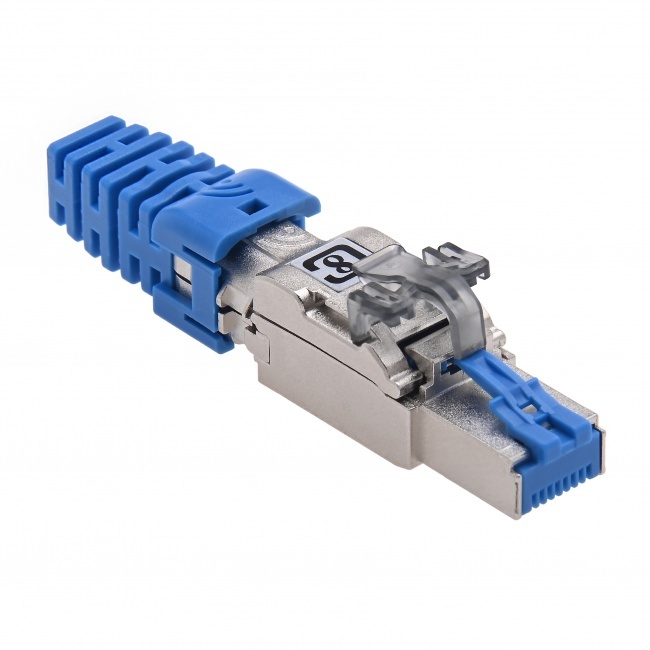

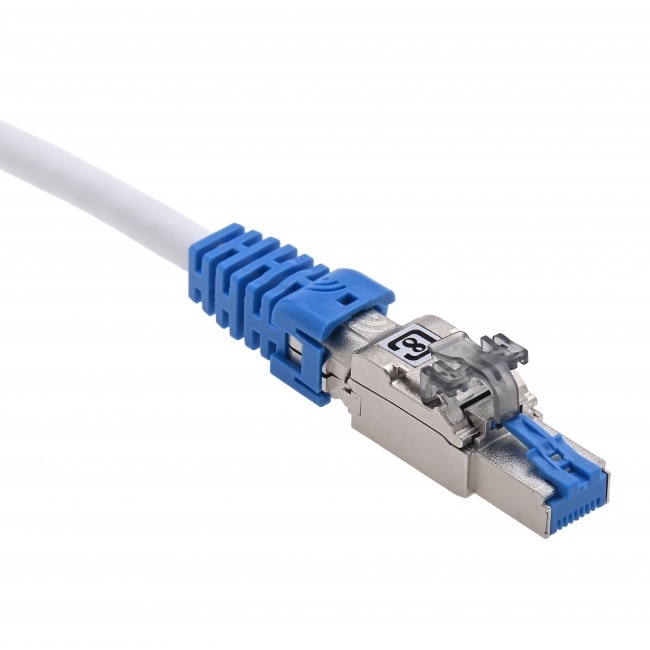

The Platinum Tools Cat8 Toolless Connector offers a faster, more efficient way to terminate high-performance Ethernet cables — no crimp tool required. Designed for Cat8, Cat7, Cat6A, Cat6, and Cat5e cables, this innovative connector simplifies installation while maintaining superior electrical performance.

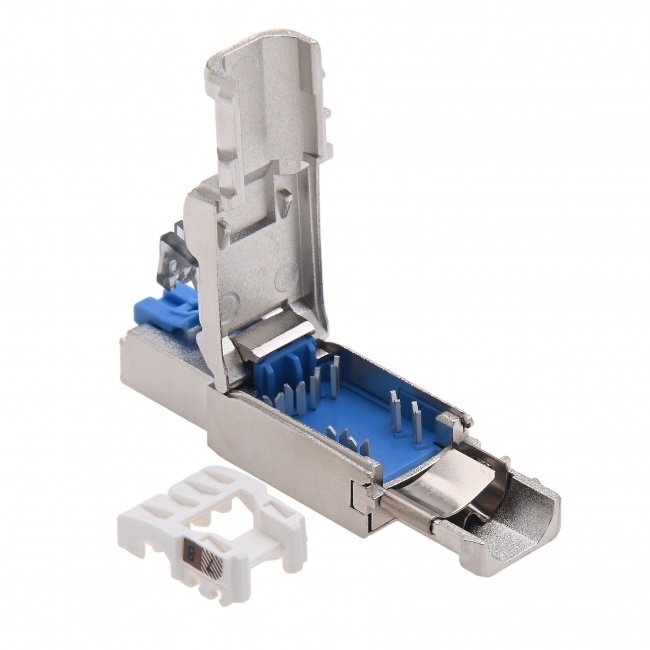

With its simple snap-close termination system, you can strip, align, and terminate cables in seconds. Perfect for oversized or shielded cables, these connectors ensure strong, reliable connections that meet the latest networking standards.
Features:
- Toolless design — simply snap closed to terminate, no special crimp tool required
- Compatible with Cat8, Cat7, Cat6A, Cat6, and Cat5e cables
- Supports solid or stranded conductors (26-23 AWG)
- 50-micron gold-plated contacts ensure corrosion resistance and signal integrity
- Plenum rated, UL listed, and RoHS compliant for safety and performance
- Perfect for oversized or shielded cable terminations
Specifications:
- Insulation Diameter: 0.032" – 0.057" (0.8 mm – 1.47 mm)
- Cable Outer Diameter: 0.197" – 0.390" (5.0 mm – 9.9 mm)
- Conductor Type: Solid or Stranded
- Wire Gauge: 26 – 23 AWG
- Country of Origin: Taiwan
