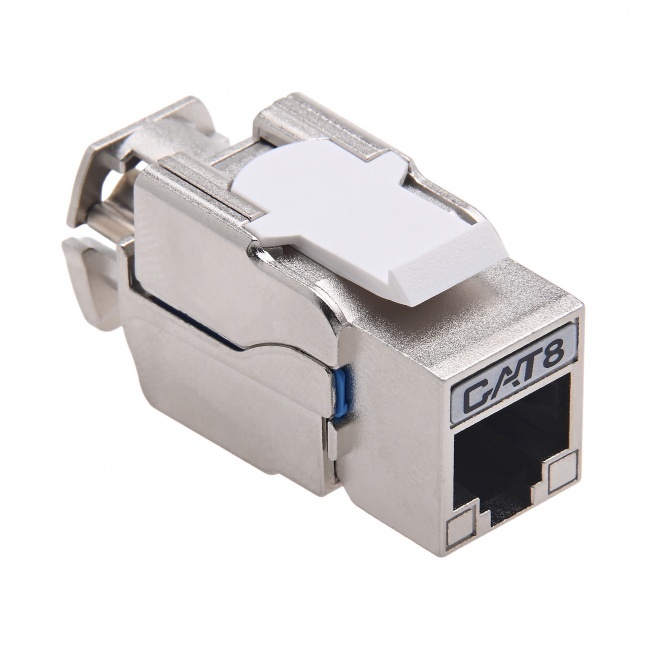

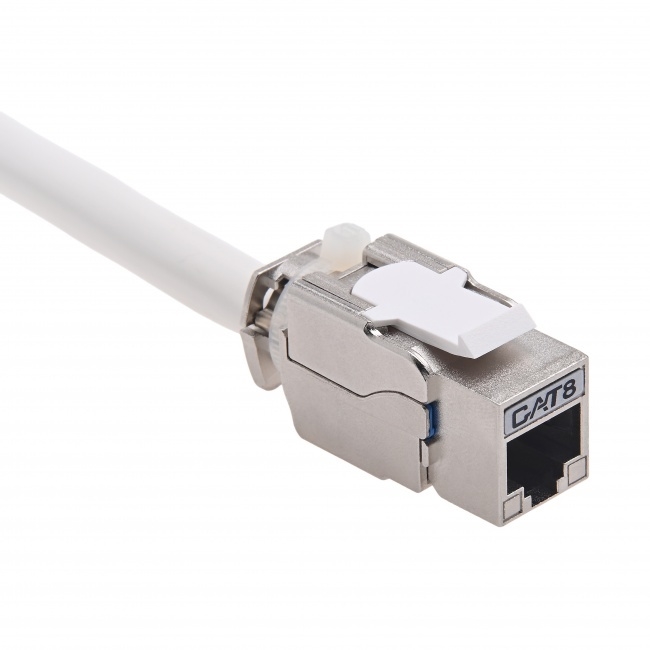

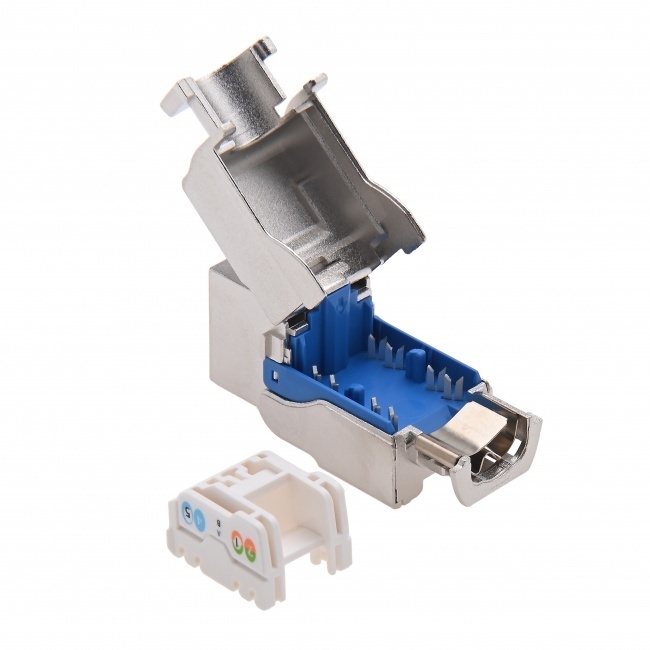

The Platinum Tools Cat8 Keystone Jack provides a fast, easy, and reliable way to terminate high-speed Ethernet cables — without the need for a punchdown or crimp tool. Featuring a simple toolless snap-close design, this keystone is perfect for oversized and shielded cables used in demanding data environments. Just strip the jacket, arrange the pairs, trim the excess, and snap closed for a secure, professional-grade termination.
Compatible with Cat8, Cat7, Cat6A, Cat6, and Cat5e cabling, this connector ensures exceptional performance and long-term reliability in network racks, patch panels, and wall plates. Built to meet strict electrical and mechanical standards, it delivers consistent high-speed signal transmission across a wide range of applications.
Features:
- Toolless design — simply snap closed to terminate, no crimp or punchdown tool required
- Compatible with Cat8, Cat7, Cat6A, Cat6, and Cat5e cables
- Supports solid or stranded conductors (26–23 AWG)
- 50-micron gold-plated contacts ensure corrosion resistance and superior connectivity
- Plenum rated, UL listed, and RoHS compliant for safety and performance
- Perfect for oversized or shielded Ethernet cable terminations
Specifications:
- Insulation Diameter: 0.032" – 0.057" (0.8 mm – 1.47 mm)
- Cable Outer Diameter: 0.197" – 0.390" (5.0 mm – 9.9 mm)
- Conductor Type: Solid or Stranded
- Wire Gauge: 26 – 23 AWG
- Country of Origin: Taiwan
