Ripley Cablematic QCST-875T Coring Tool

TTS PRICE: $242.99

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 9-11 DAYS

PRODUCT CODE: QCST-875T

QUANTITY:

PRODUCT DESCRIPTION

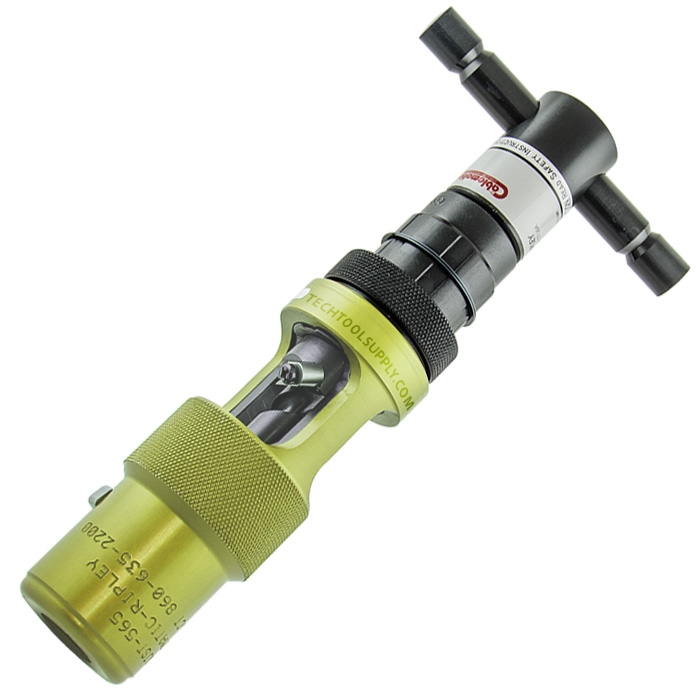

Ripley Cablematic QCST 875T Quick-Change Coring & Stripping Tool - 875 kcmil, Yellow

An All-In-One Coring and Stripping tool from Ripley ensures you accurately strip the jacket, core out the dielectric, strip and bevel the aluminum sheath, all in one! The QCST-875T conveniently attaches the jacket stripper body (QJST) to the main body of the coring and stripping tool by means of a "quick-change" rotating body ring. Use this trunk tool on CommScope® P3 and Times Fiber T10 cables.

The QJST color coded jacket stripping body is removed and used in a 2 step operation when using flooded cables: STEP 1 - Remove the jacket with the removable QJST. STEP 2 - Remove flooding compound from cable and use the QCST coring and stripping tool body to complete the preparation.

Features:

All-In-One Jacket stripping body (QJST), when used separately to remove the jacket on flooded cable, is uniquely designed to automatically provide 3.50" (88.9mm) of jacket removal when rotated to the end of the body

Jacket stripper body and coring / stripping tool guide sleeve are all color coded for easy cable identification

Pre-set jacket blade assures no scoring or nicking of aluminum sheath

Chamfered strip stop is factory installed and set to a 1-1/16" (27 mm) strip length

Rugged, durable, all-metal construction

Heat treated sheath cutting blade produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit

Spiral-fluted, heat treated steel bit

Specifications:

Model Name: QCST 875T

Cable Size: 875 kcmil

Cable Compatibility: CommScope® P3; Times Fiber T10

Body Color: Yellow

Handle: Standard "T" handle with a built-in 3/8" (9.5 mm) drill adapter for manual or drill operation

Strip Length: 1-1/16" (27 mm)

Cable Access: End

Material: Aluminum

Length: 8.1" (206 mm)

Weight: 1 lb 4 oz (525 g)

Patent: U.S. Patent No. D431,441

Model: 36897

Available Sizes:

Part #	Model	Ripley #	Cable Size (kcmil)	Color	Guide Sleeve	Coring Bit Kit	Chamfered Strip Stop
QCST-840	QCST 840	36896	840	Green	29109	31531	34927
QCST-875T	QCST 875T (this item)	36897	875	Yellow	29112	31620	34927
RIP-QCST-21000T	QCST 21000T	36898	1000	Orange	29113	31720	34927
RIP-QCST-412T	QCST 412T	36890	412	Black	29104	31220	34942
QCST-500T	QCST 500T	36891	500	Red	29105	31320	34942
QCST-565	QCST 565	36894	565	Red	29108	31325	34942
RIP-QCST-625	QCST 625T	36892	625	Blue	29106	31420	34942
QCST-750T	QCST 750T	36893	750	Green	29111	31520	34943

Replacement Parts:

Part #	Ripley #	Description
RIP-34927	34927	Chamfered strip stop, 1-1/16" (27 mm) strip length
RIP-29112	29112	Guide sleeve
RIP-31620	31620	Coring bit kit
RIP-CB-60	14907	Sheath cutting blade

Accessories:

Part #	Ripley #	Description
CC100	16710	CC-100 center conductor cleaner/scraper, V-notch type - removes residual dielectric left on the conductor after coring and stripping
CC200	16730	CC-200 center conductor cleaner/scraper, flat type - removes residual dielectric left on the conductor after coring and stripping

Feature Sheet & Sizing Info QCST Instruction Sheet
