In commercial and MDU DIRECTV installations, the LNBs can't rely on receivers for power and polarity control — the dish feeds a distribution system, not a set-top box.

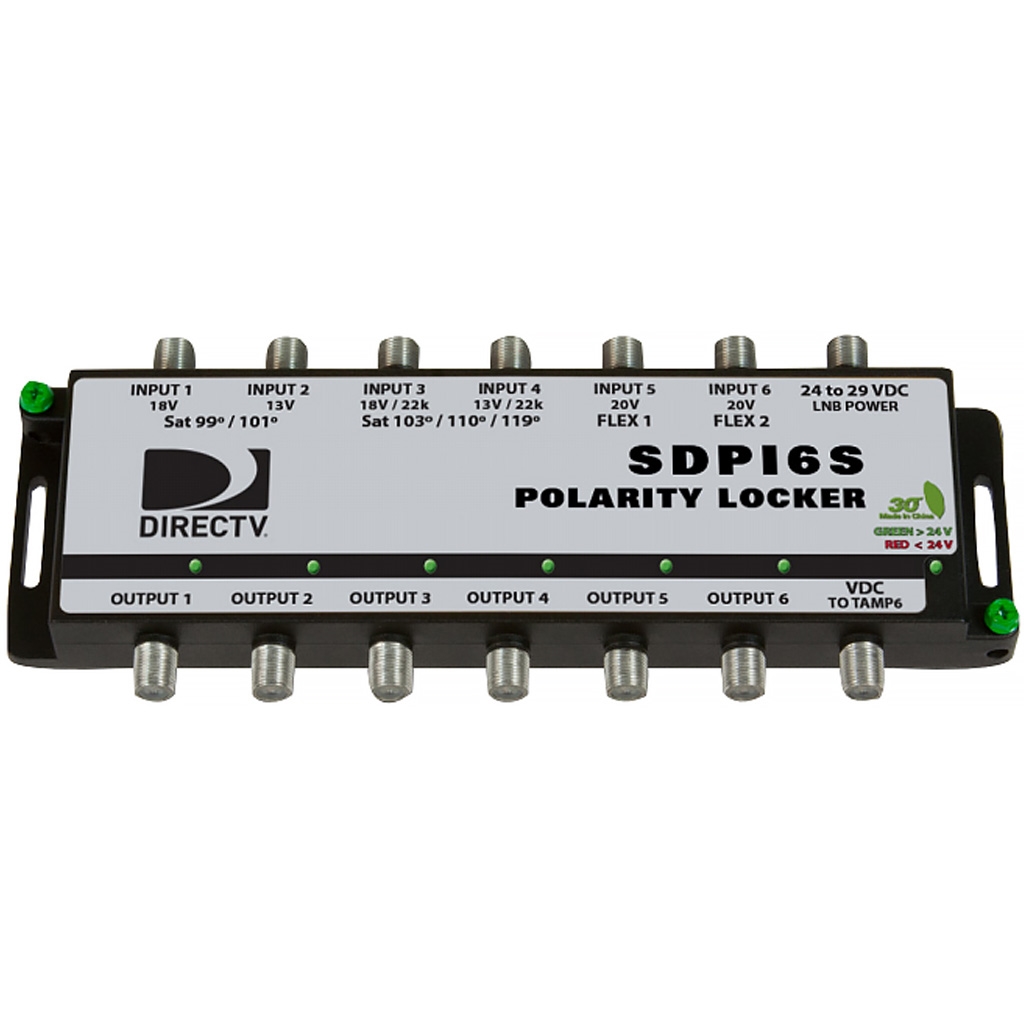

The Holland SD-PI6S solves both problems in one 6-port unit: it supplies the voltages and control signals to power a DIRECTV SL5 SlimLine LNB and locks each of the four dish outputs to a fixed polarity, so every downstream multiswitch and tap sees a stable, predictable stack.
Two additional FLEX ports extend the system: 20 V on FLEX1 and 13 V on FLEX2 to power the 95-degree LNB on a DTV66E dish or other auxiliary LNBs.

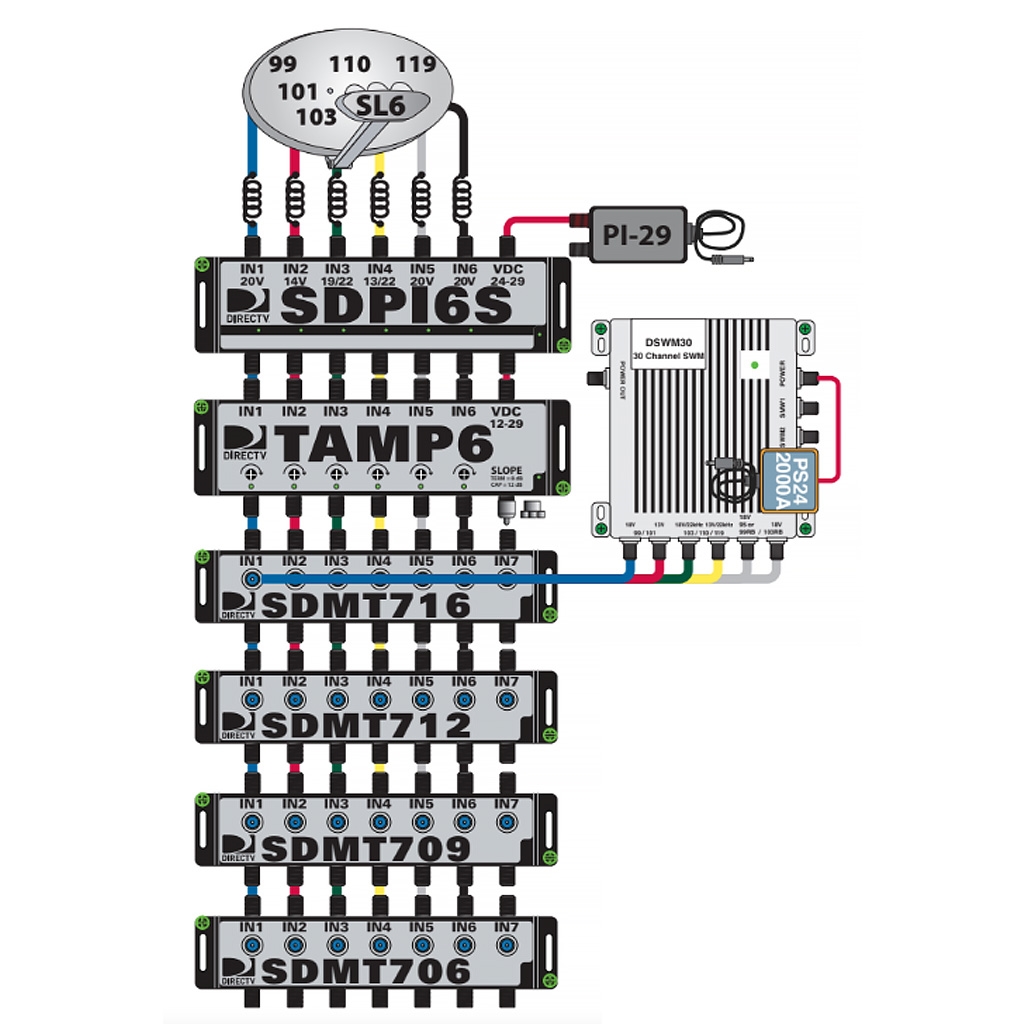

That covers the full SL5-plus-international-dish headend on one chassis, and DC also passes through to power downstream line amplification — such as the TAM P6R 03 amplifier — from the same 2-amp supply.
Diagnostics are built into the face of the unit.
The DC input indicator glows green above 24 volts and red below 23 volts, and a single unlit LED flags a short circuit on that input — a nighttime service call starts with a glance at the LEDs instead of a meter on every port. All six ports pass 5-2400 MHz with low insertion loss (0.5 dB typical), and the unit runs from a 24 VDC, 2 A supply (Holland PS242000-style transformer, sold separately — or see the SD-PI6S-T version which includes it).
Features:
- Powers and polarity-locks a DIRECTV SL5 SlimLine LNB across four dish outputs
- FLEX1 (20 V) and FLEX2 (13 V) ports power the 95-degree LNB on a DTV66E or other LNBs
- DC pass-through powers downstream amplifiers (e.g., TAM P6R 03) from the 2 A supply
- LED diagnostics: green above 24 V, red below 23 V, unlit indicates input short circuit
- 6 ports, 5-2400 MHz passband; 0.5 dB typical insertion loss
- For commercial, MDU, and multi-switch DIRECTV distribution
Specifications:
- Model: Holland SD-PI6S
- Ports: 6 @ 5-2400 MHz
- Insertion Loss: 0.5 dB typical (1 dB QC limit)
- Isolation: >40 dB typical, input to adjacent output
- LNB Support: DIRECTV SL5; 95-deg LNB via FLEX ports (20 V / 13 V)
- Input Voltage: 23-29 VDC (24 VDC 2 A transformer sold separately)
- Indicators: Dual-color LED per input, short-circuit indication
