Eclipse Fiber Optic Laser Tester

Eclipse Fiber Optic Laser Tester


Alternative Views:
TTS PRICE: $120.99

STATUS:  IN STOCK

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: 902-186
QUANTITY:

PRODUCT DESCRIPTION

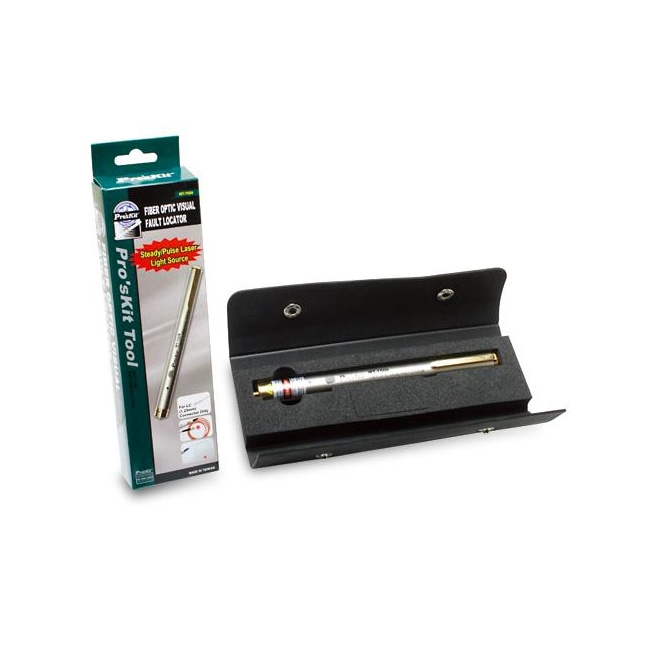

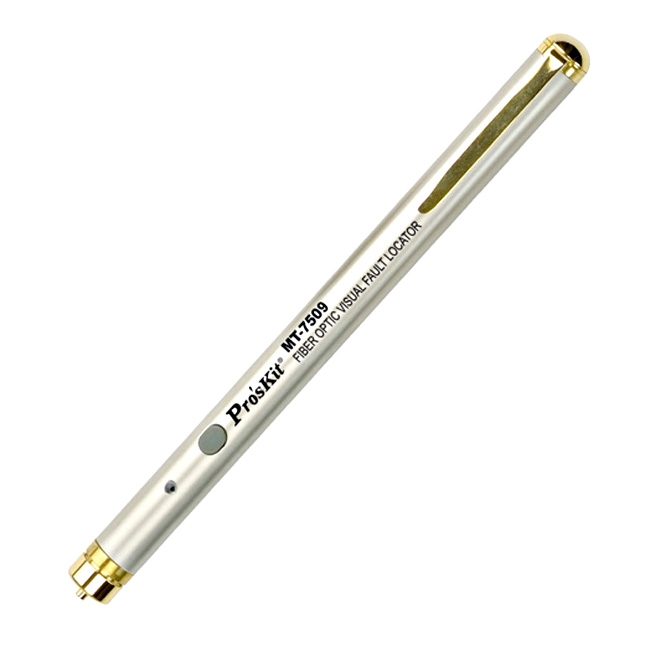

The Pro's Kit 902-186N is utilized to test and locate any breaks, faults, splices and crimps of the fiber optic cable.

Features:
  • Simple, versatile, and user friendly design
  • Rugged, compact, and splash proof copper housing
  • Three operation modes available: "CW" (Continuous Wave output), "Pulse" and "Off" modes
  • Continuous Wave output mode (CW) for steady fault illumination
  • Pulse mode helps to locate faults under high ambient light conditions
  • Supports 2.5mm connectors (for ST, FC/PC, SC connectors only)
  • The button witch permits easy one handed operation
  • Handy, pocket pen design

    • Specifications:
  • Body: Copper
  • Laser Class: Class 3A laser diode
  • Nominal Wavelength: 650nm +/- 10nm
  • Operating Temperature: 0~40 degrees Celsius
  • Storage Temperature: 0-50 degrees Celsius
  • Length: 160mm
  • Diameter: 13.5mm
  • Batteries: 2 x AAA (not included)
    •
