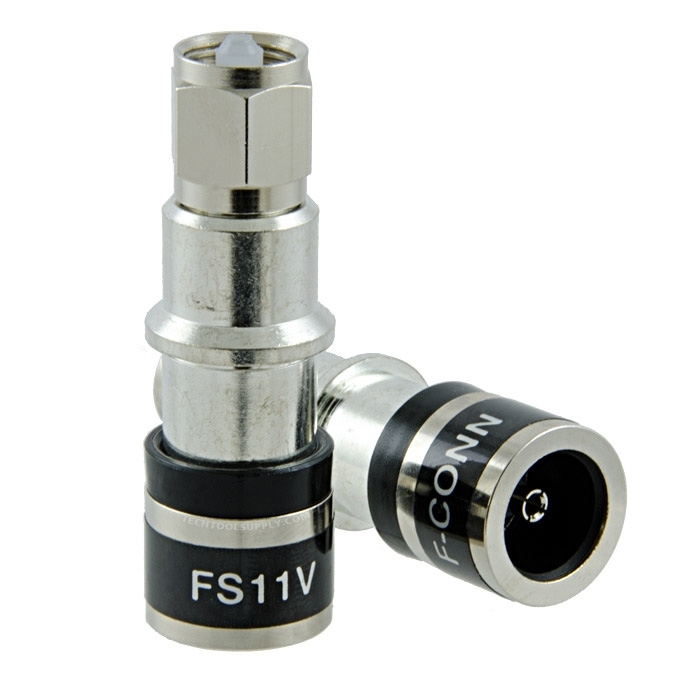

FS11 F-Conn Compression Connector For RG11 - Bag of 25

FS11 F-Conn Compression Connector For RG11 - Bag of 25

Alternative Views:

TTS PRICE: $82.99


Normally Ships Same Day


Quantity: 25

The F-Conn FS11V connectors were designed using a patented guide and pin basket design. The major advantage is the position of the center pins 360 degree basket which is aligned to the back end of the compression ring. This makes it very easy to insert the center conductor. The connector utilizes a standard quarter/quarter prep. While designing the connector, a pin carrier and compression ring were added which are not normally seen in a conventional pin type connector.

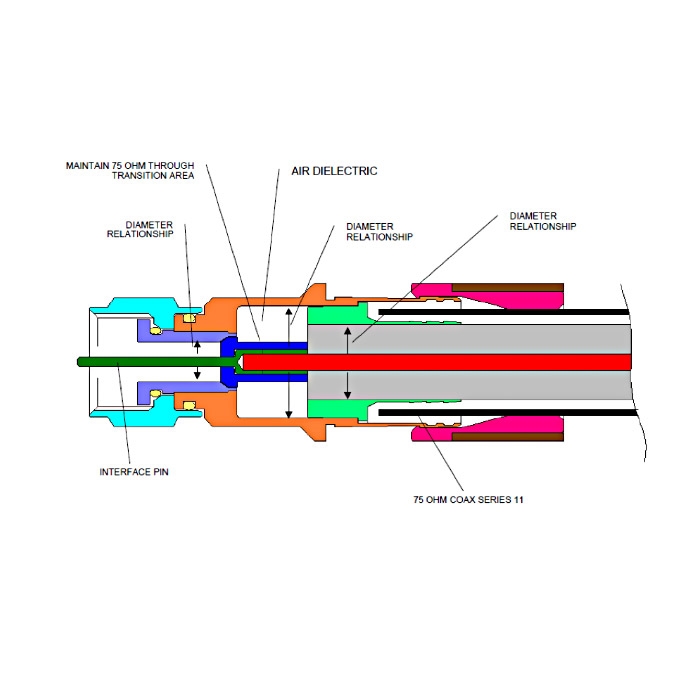

Full advantage was taken of the frequency matching and time domain studies completed on the FS11V connector in order to achieve a pin type connector with excellent return loss. Air is an excellent dielectric so the connector was hollowed out in the area behind the nut adjacent to the pin carrier, as well as the area in the post below the contact area.

  • High performance sealed F-connector
  • Exceeds SCTE and Telcordia specifications
  • Conical, 360 Degree compression sleeve provides a superior environmental seal
  • Connectors provides superior pullout strength

  • Specifications:
  • Quantity: 25
  • Cable Type: Standard or Quad-Shield RG-11 (underground / burial applications)

  • Physical Specifications:
  • Nut and Collar: NiTin Plated Brass
  • Post: Tin Plated Brass
  • O-Rings: Ethylene Propylene

  • Electrical Specifications:

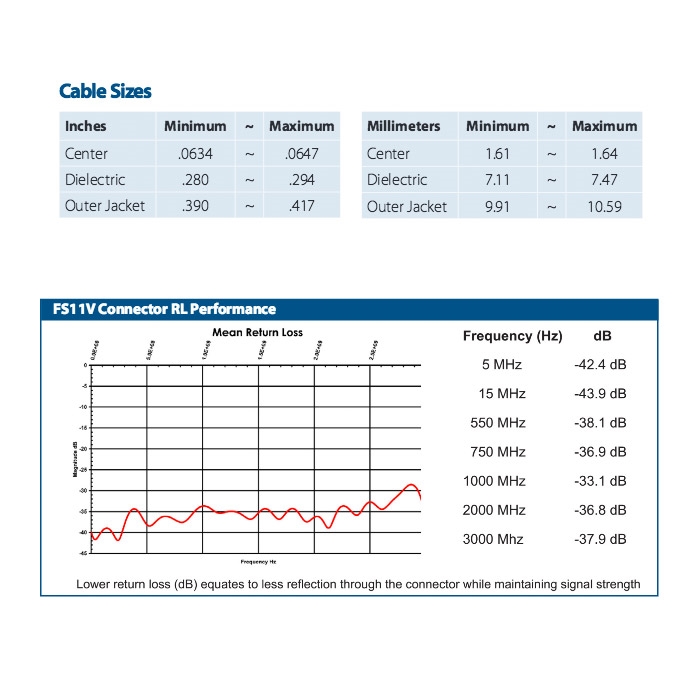

  • Return Loss: ≥-30dB up to 1 GHz typical
  • Insertion Loss: ≤-0.2dB up to 1 GHz typical
  • RFI Shielding: -85 dB typical (60% bonded foil)

  • Mechanical Specifications:
  • Cable Insertion Force: 20 lbs maximum
  • Cable Retention Force: 40 lbs minimum per SCTE IPS SP-401

  • Environmental Specifications:
  • Temperature Rating: -40F (-40C) to 140F (60C)
  • Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007
  • Moiture Migration: Pass ANSI/SCTE 60 2010

  • The Belden Name now encompasses the PPC, ICM Corp, Cable Pro, and Thomas & Betts names.
