Quantity: 50
Need only 25 FS11V connectors? Find them here: BEL-FS11V-25

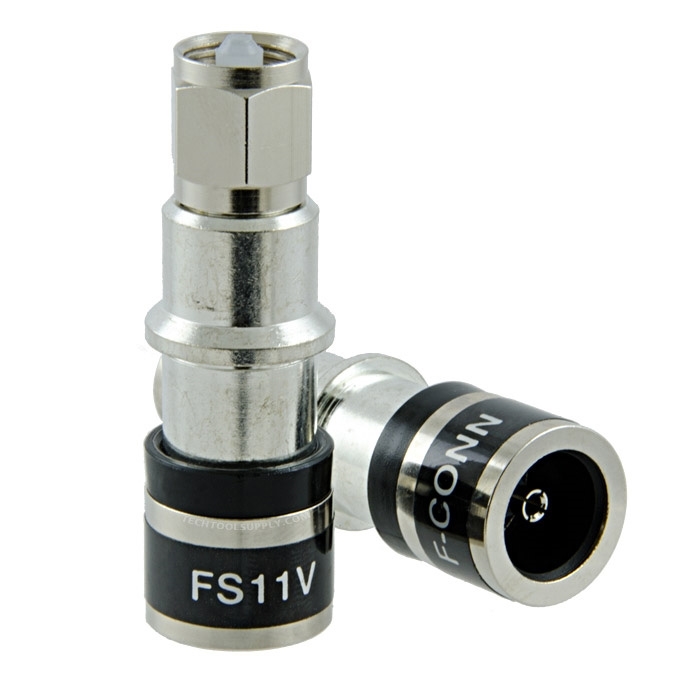

The F-Conn FS11V connectors were designed using a patented guide and pin basket design. The major advantage is the position of the center pin’s 360 degree basket which is aligned to the back end of the compression ring. This makes it very easy to insert the center conductor. The connector utilizes a standard quarter/quarter prep. While designing the connector, a pin carrier and compression ring were added which are not normally seen in a conventional pin type connector.

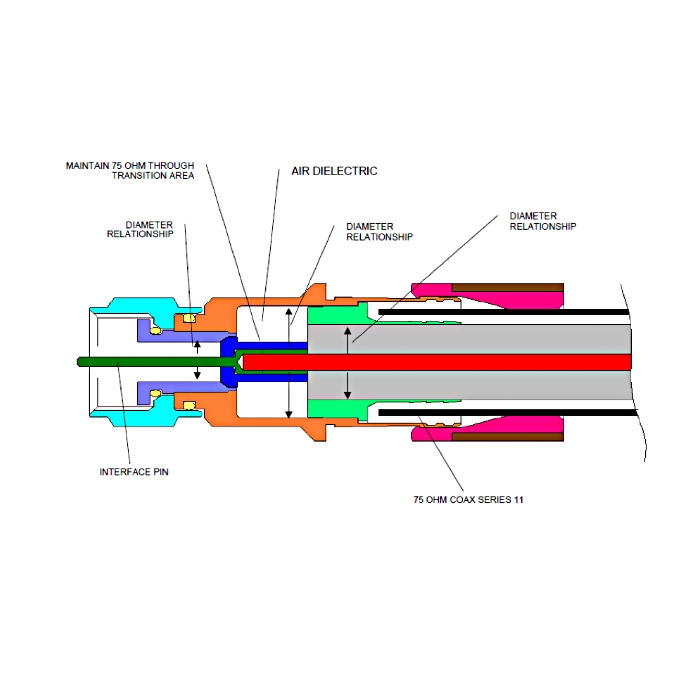

Full advantage was taken of the frequency matching and time domain studies completed on the FS11V connector in order to achieve a pin type connector with excellent return loss. Air is an excellent dielectric so the connector was hollowed out in the area behind the nut adjacent to the pin carrier, as well as the area in the post below the contact area.
Features:
High performance sealed F-connector
Exceeds SCTE and Telcordia specifications
Conical, 360 Degree compression sleeve provides a superior environmental seal
Connectors provides superior pullout strength
Specifications:
Quantity: 50
Cable Type: Standard or Quad-Shield RG-11 (underground / burial applications)
Physical Specifications:
Nut and Collar: NiTin Plated Brass
Post: Tin Plated Brass
O-Rings: Ethylene Propylene
Electrical Specifications:

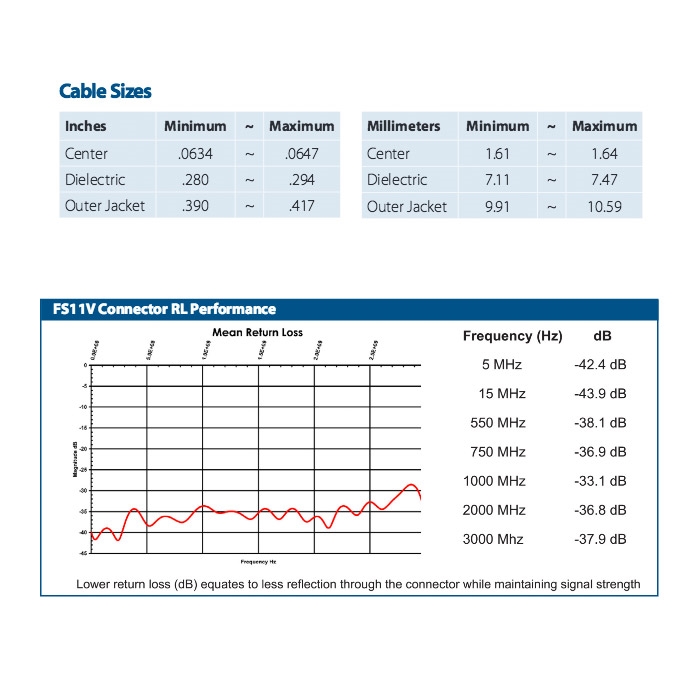

Return Loss: ≥-30dB up to 1 GHz typical
Insertion Loss: ≤-0.2dB up to 1 GHz typical
RFI Shielding: -85 dB typical (60% bonded foil)
Mechanical Specifications:
Cable Insertion Force: 20 lbs maximum
Cable Retention Force: 40 lbs minimum per SCTE IPS SP-401
Environmental Specifications:
Temperature Rating: -40°F (-40°C) to 140°F (60°C)
Salt Fog: Passes 1000 hours ANSI/SCTE 143 2007
Moiture Migration: Pass ANSI/SCTE 60 2010
