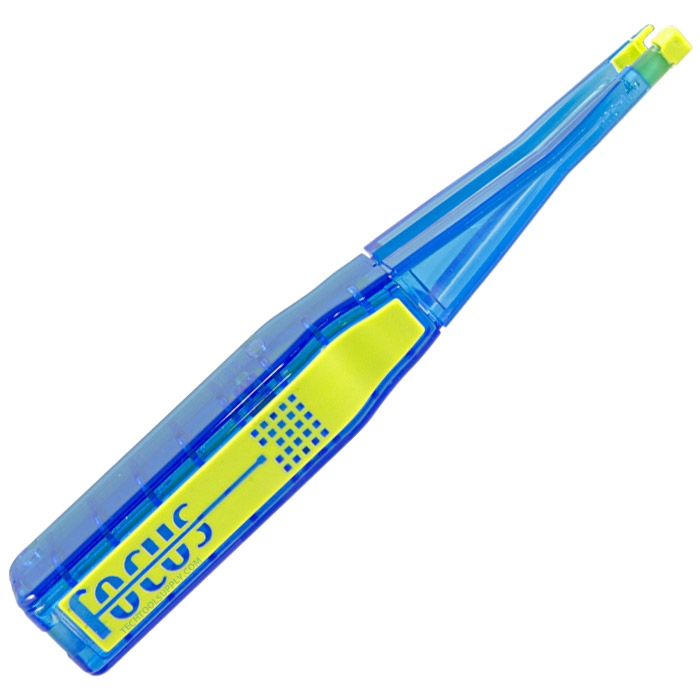

Fiber Optic Connector Insertion & Removal Tool (FOCUS)

Fiber Optic Connector Insertion & Removal Tool (FOCUS)




Alternative Views:


TTS PRICE: $56.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: CPR-FOC-100
QUANTITY:

PRODUCT DESCRIPTION


The FOCUS tool from Cable Prep is specially designed for servicing fiber optic cable connectors in high-density patch panels in Central Office, FTTP, and OSP applications, the FOC-100 makes it easy to insert and remove a small-form-factor (SFF) connector without disturbing adjacent connections. Its patented design makes it truly unique in the industry. The FOC-100 works with the follow fiber optic connector types: SC, SC2, MU, LC, and MTRJ connectors and different cables, including 2mm, 3mm, 1.6mm, jacketed, and 900um buffered cables. It is designed for accessing high-density patch panels including those having 144 or more ports and SFF connectors.

Features:

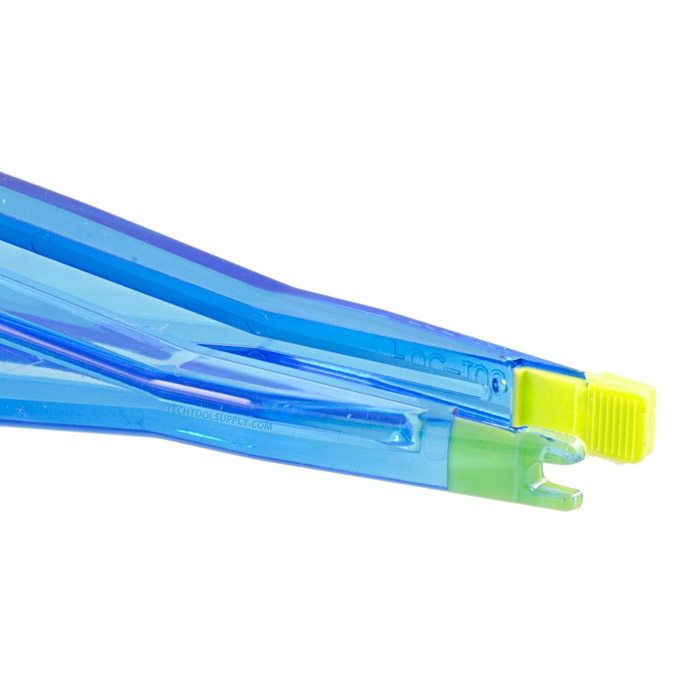

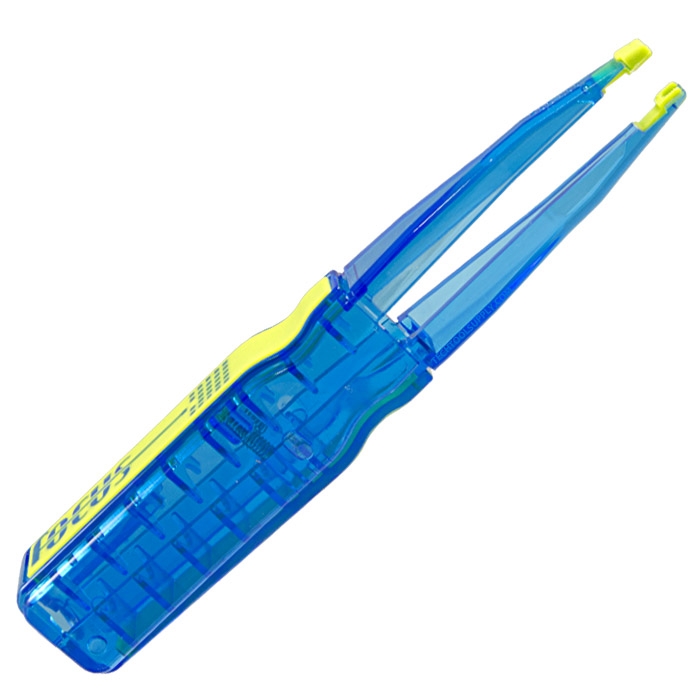

  • Long, narrow patented jaws facilitate insertion and removal of connectors without disturbing adjacent cables

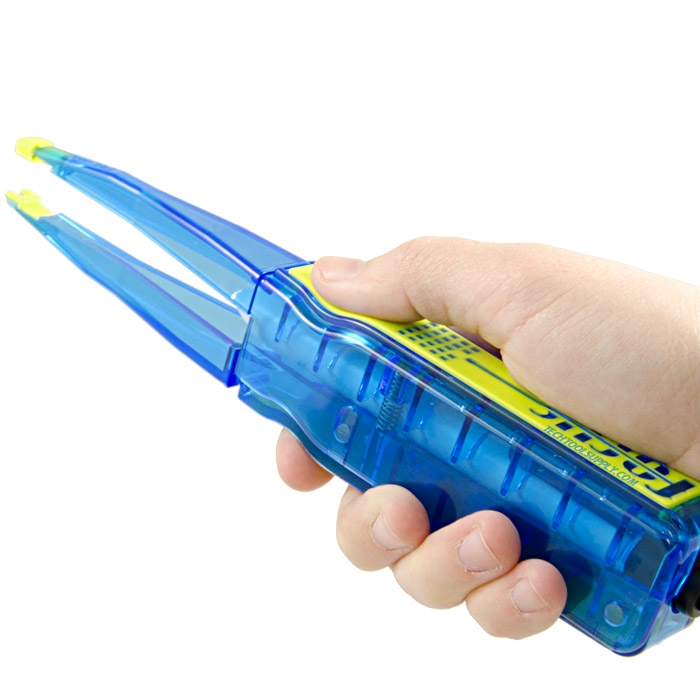

  • Comfortable to hold and easy to navigate with either hand

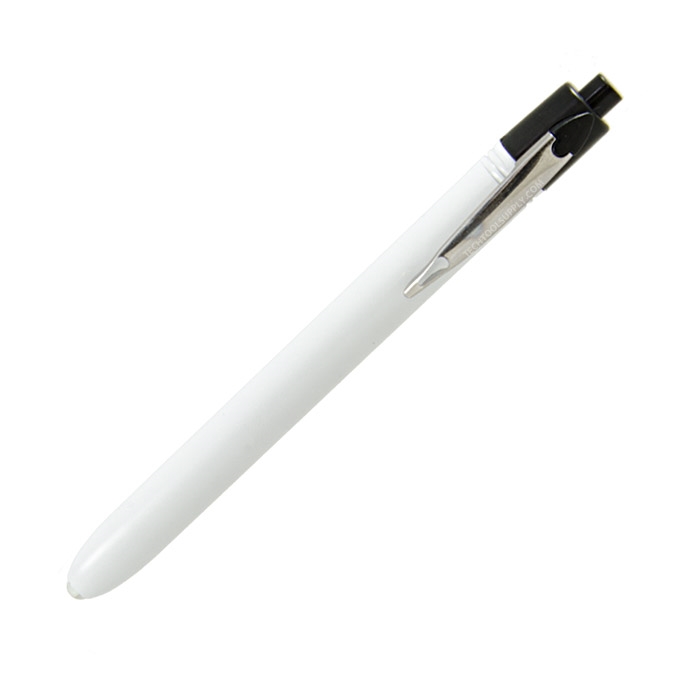

  • Patented removable flashlight improves visibility while navigating through a congested enclosure

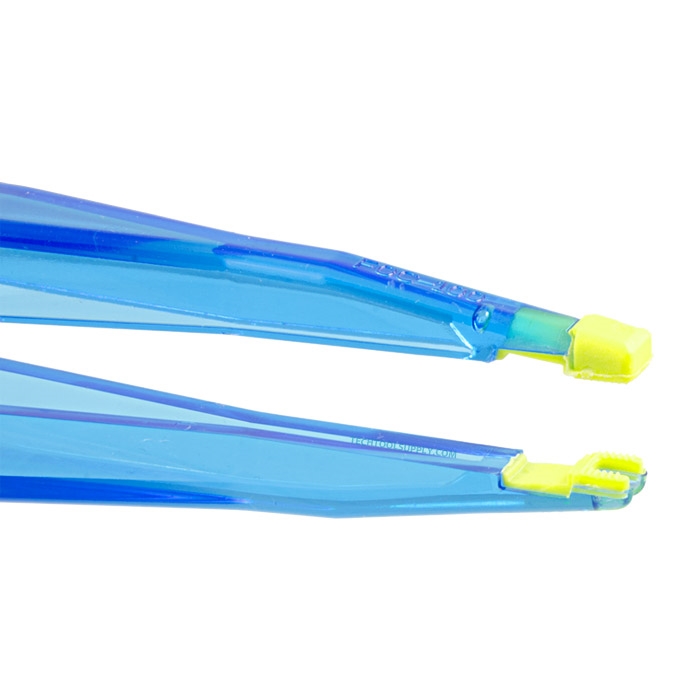

  • Made of specially formulated material, the patented tips of the tool provide a firm grasp on small-form-factor connectors
  • Non-conducting, dielectric plastic materials that eliminate the potential for shorts during use

  • Specifications:
  • Tool Weight (includes installed flashlight): 5.9 oz
  • Replacement Light Assembly Weight: 2.1 oz

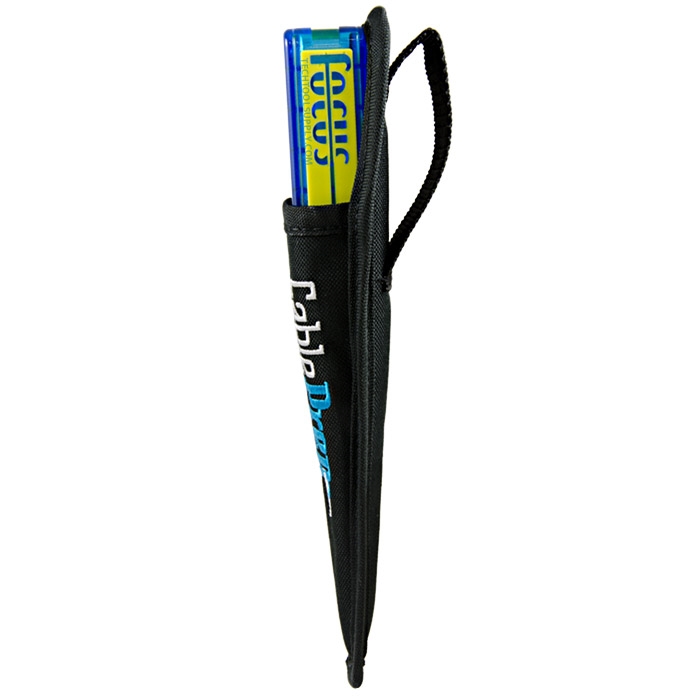

  • Holster Weight : 1.2 oz
  • Tool Length: 8.436 in / 214.2 mm
  • Tool Width: 1.170 in / 29.7 mm
  • Tip Width: 0.309 in / 7.8 mm
  • Product Instruction Sheet

    Product Specification Sheet

    Verizon # 11072068, CIFA# 33138
