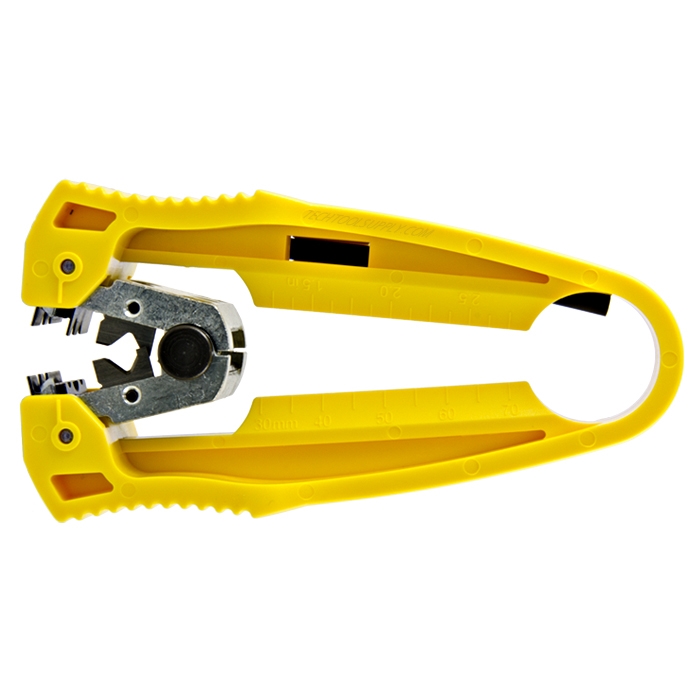

The new FO-CF from Ripley Miller is a fiber stripper with a center feed design which allows for a longitudinal approach of fiber stripping. The fiber is fully supported in the stripping process of 900 micron buffer coating to 250 micron and standard 250 micron coating to 125 micron stripping.
With the side mounted stripper blades providing convenient stripping of 1.6 mm to 3 mm cable jackets, the FO-CF is factory set and requires no adjustment.
Measurement scale in inches/mm built into the tool jaw and body up to 2 3/4 in. (70 mm) for ease of proper cable preparation
Compact, lightweight and ergonomically designed for ease of use
All cutting surfaces are precision formed, hardened, tempered and ground assuring precise cable jacket, buffer and acrylate removal with no scratching or nicking of the fiber
Removable cleaning brush is conveniently attached to the stripper for periodic cleaning of stripping jaws
Tool supplied with its own individual protective polymer tool case for clean and safe storage
Three fiber stripping stations: Jacket, 900 micron, and 250 micron
Dimensions: 1.17 x 2.19 x 4.08 in. (29.7 x 55.6 x 103.6 mm)
Weight: 2.8 oz (79 g)
Made in the U.S.A.
Ripley Miller FO-CF Instruction Sheet
