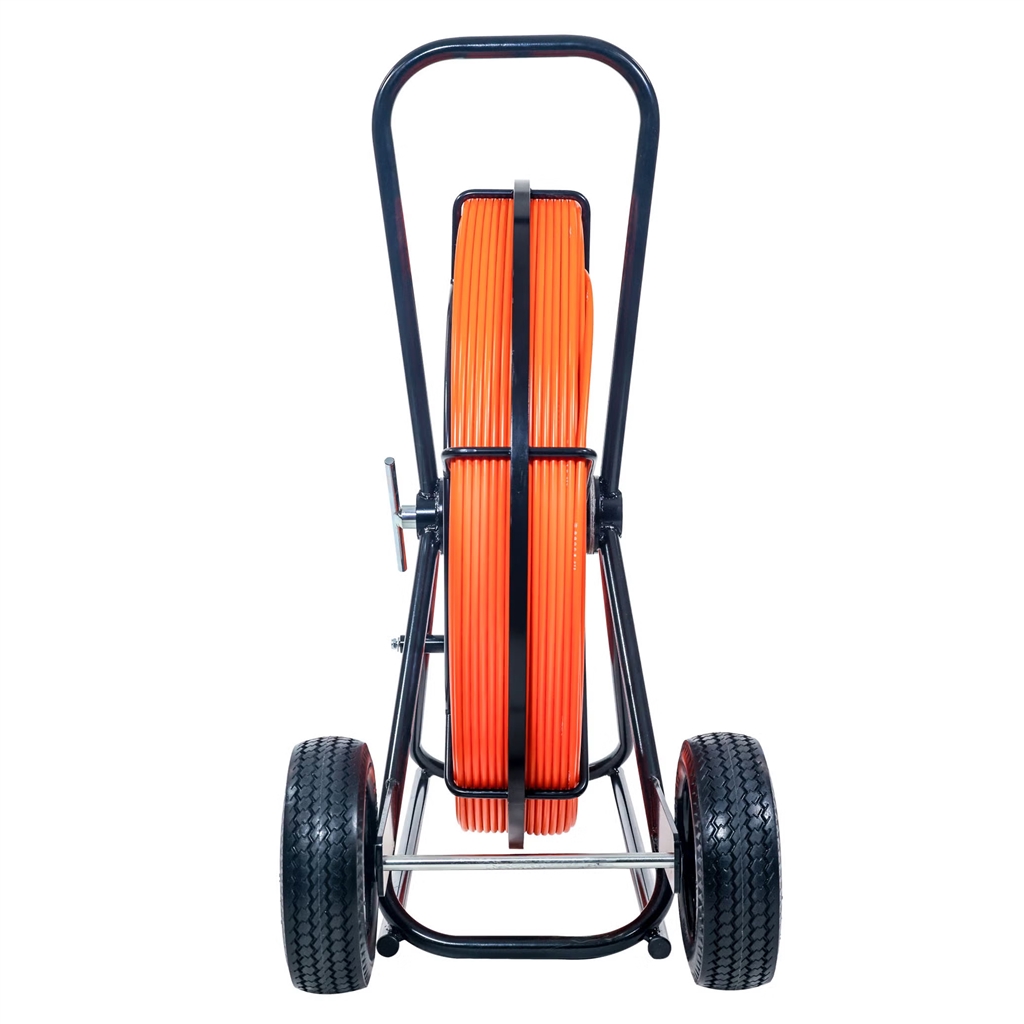

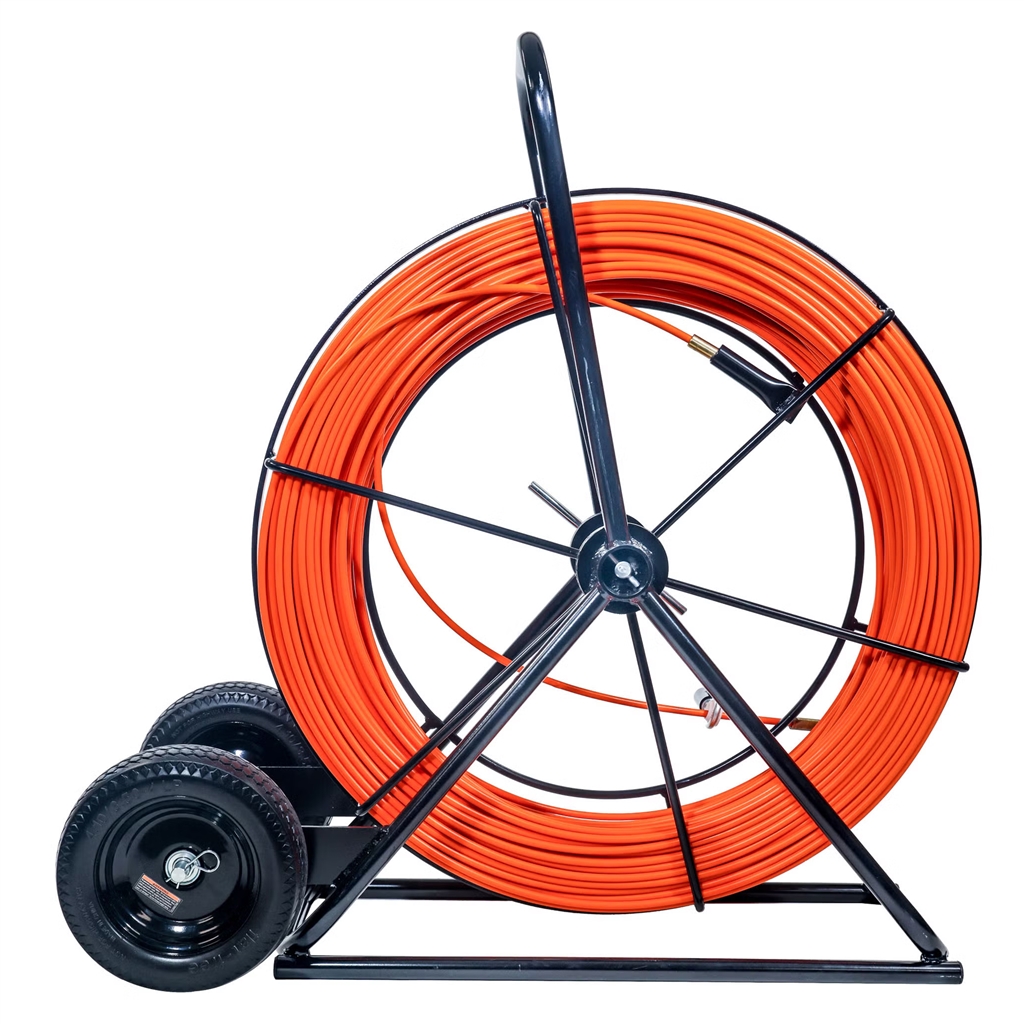

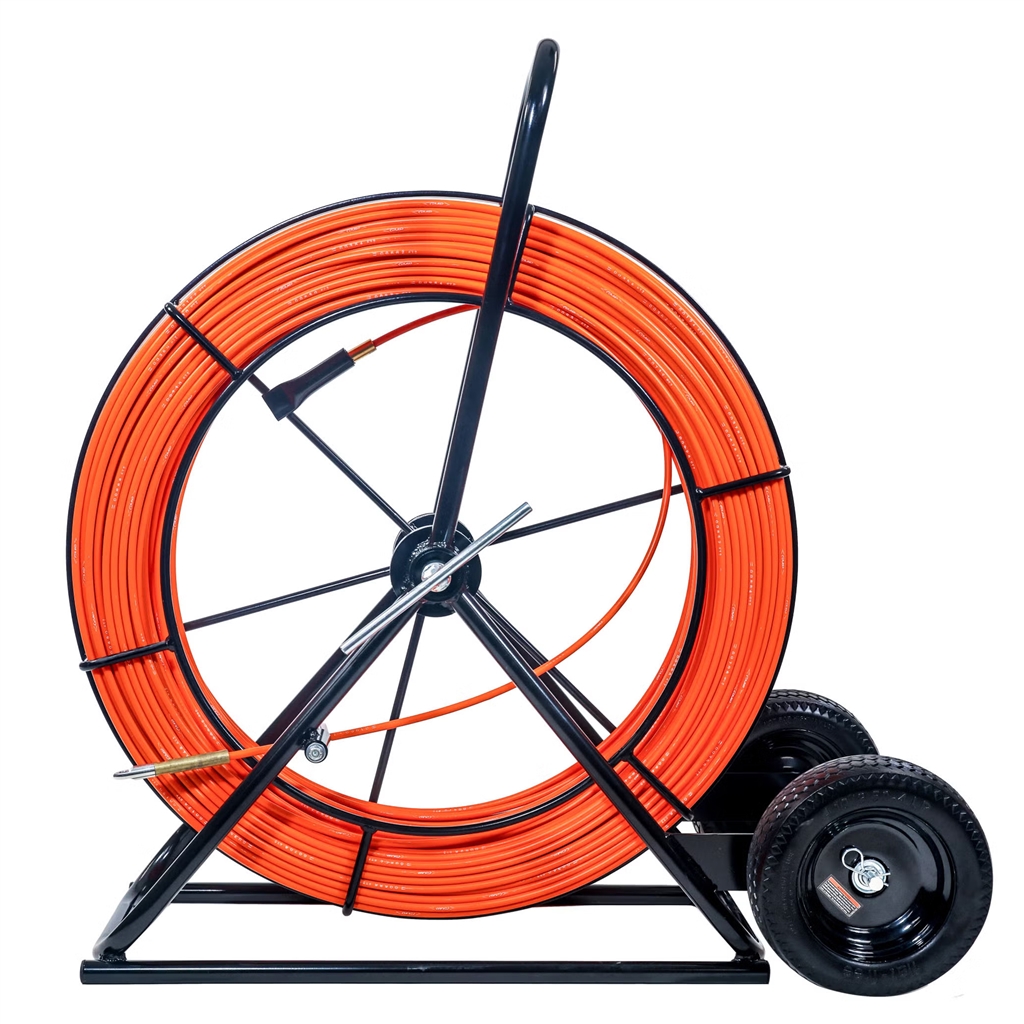

The GMP 91268 Toneable Continuous Duct Rodder is engineered for high-performance duct locating, tracing, and cable installation across long conduit runs. Featuring a 1/2 inch (12 mm) fiberglass rod embedded with an 18 AWG copper conductor, this rodder provides continuous tone transmission when used with standard signal transmitters and receivers — eliminating the need for digging or trenching. With a 1000 ft (305 m) reach, it’s an essential tool for fiber optic, telecom, and power utility professionals.

Built for durability and reliability, the 91268 combines a high-visibility orange fiberglass rod with a rugged tubular steel carrier, powder-coated for superior corrosion resistance. Large, airless tires ensure easy transport over rough jobsite terrain, while the integrated hand-operated brake provides full control during payout and retrieval. With precise 2 ft length markings and a sturdy frame design, this toneable rodder delivers unmatched accuracy, convenience, and field performance.

• 1/2 in. (12 mm) toneable fiberglass rod with embedded 18 AWG copper conductor
• 1000 ft (305 m) rod length ideal for long-distance conduit runs

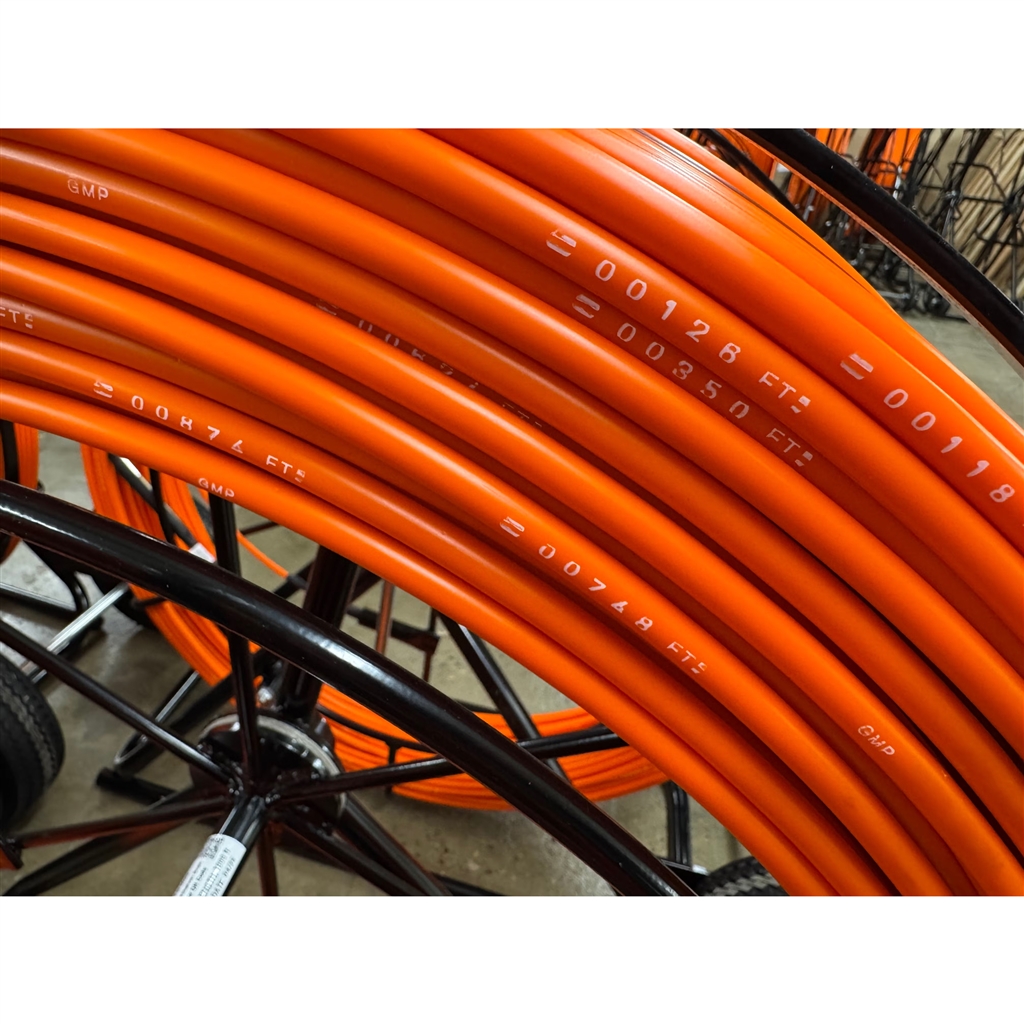

• Marked every 2 ft for quick and accurate distance measurement
• Compatible with standard signal transmitters and receivers for precise duct tracing
• High-visibility orange rod ensures superior visibility on the jobsite
• Rugged, powder-coated tubular steel carrier for long-lasting durability

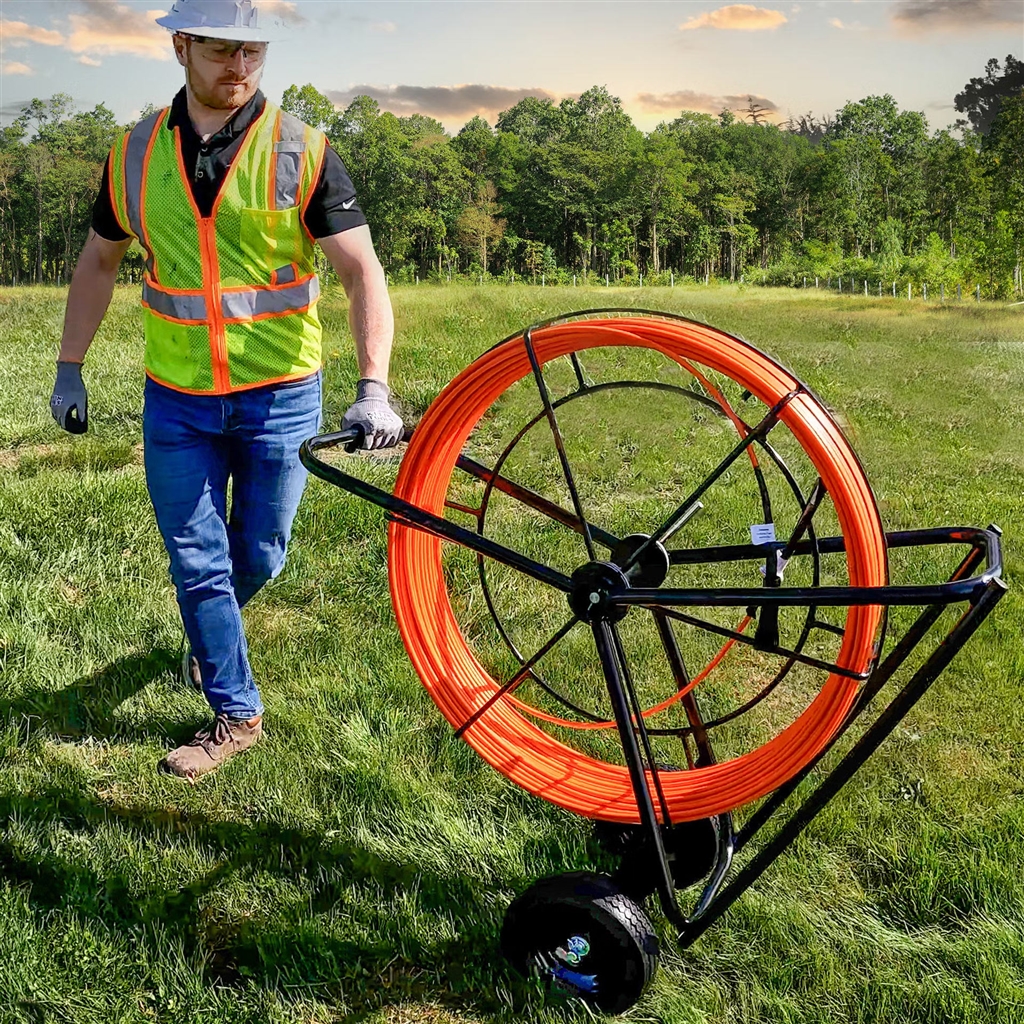

• Large, airless tires for easy mobility on uneven or rough surfaces
• Hand-operated brake for controlled payout and retrieval
• Includes male threaded end fitting with tapered head and female threaded rear fitting
• Perfect for conduit mapping, route tracing, and fiber or electrical cable installation

• Part Number: 91268
• Rod Diameter: 1/2 in. (12 mm)
• Rod Length: 1000 ft. (305 m)
• Weight: 177 lbs. (80 kg)
• Rod Material: High-visibility fiberglass with embedded 18 AWG copper conductor
• Markings: Length marked every 2 ft
• Carrier Construction: Powder-coated tubular steel alloy
• Brake Type: Hand-operated manual brake
• Wheel Type: Large, maintenance-free airless tires
• End Fittings: Male threaded end with tapered head; female threaded rear fitting
• Rated Tensile Strength: 21,000 lbs.-f (95.2 kN)
• Rated Pull Strength: 1,800 lbs.-f (8.0 kN)
• Minimum Bend Diameter: 18 in. (450 mm)
• Carrier Dimensions: 45 in. Dia × 46 in. L × 18.5 in. W × 52.75 in. H (1143 × 1168 × 470 × 1340 mm)
