New!  GMP 91228 3/8" Toneable Continuous Duct Rodder – 500 ft (152 m)

GMP 91228 3/8" Toneable Continuous Duct Rodder – 500 ft (152 m)


Alternative Views:
TTS PRICE: $1,793.99


STATUS: ON ORDER


Availability:
SHIP ESTIMATE 7-9 DAYS

PRODUCT CODE: GMP-91228
QUANTITY:

PRODUCT DESCRIPTION


GMP 91228 3/8" Toneable Continuous Duct Rodder - 500 ft (152 m), 18 AWG Copper Core

The GMP 91228 Toneable Continuous Duct Rodder is built for professionals who need to accurately trace and locate underground ducts without excavation. This 3/8 inch (9 mm) fiberglass rod features an integrated 18 AWG copper conductor that carries a detectable signal when connected to standard signal transmitters and receivers, enabling quick and precise. With a 500 ft (152 m) rod length, it's ideal for medium to long conduit runs in telecommunications, fiber optic, and power utility applications.

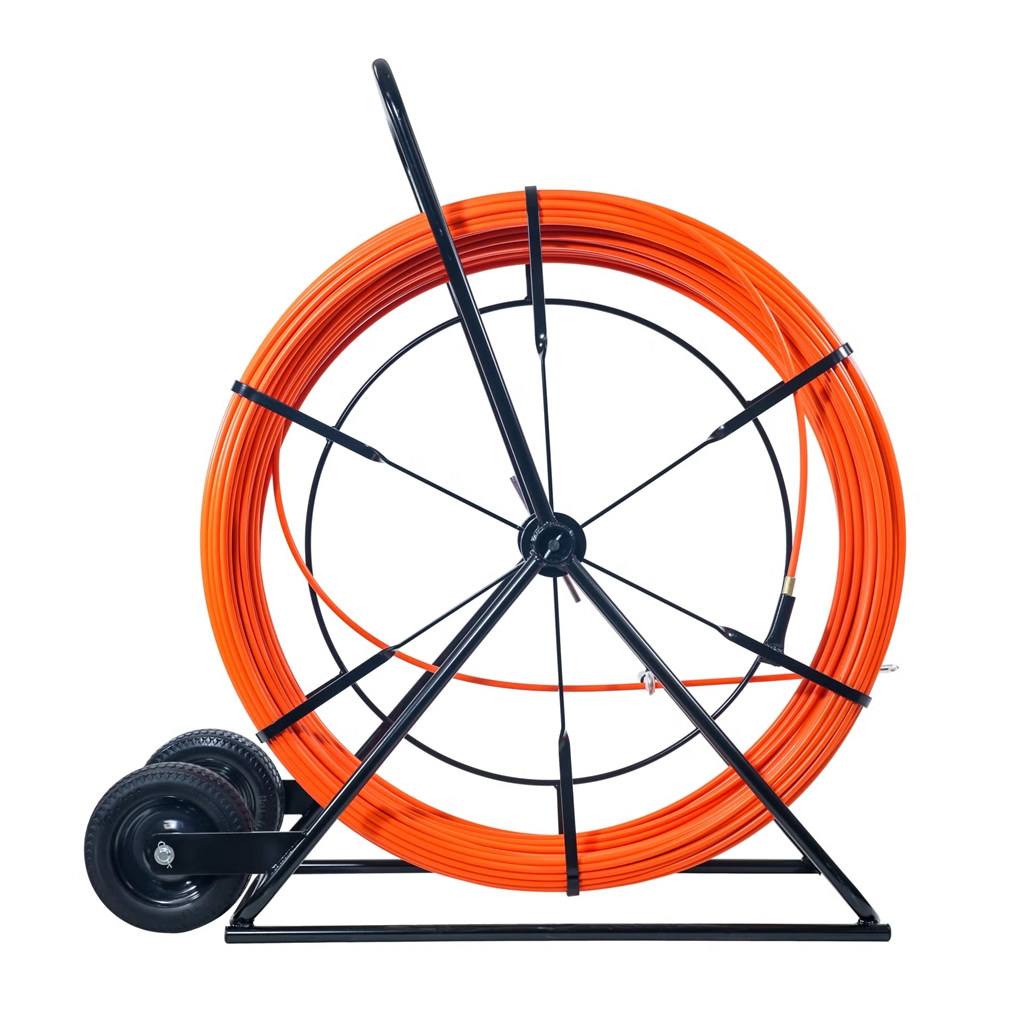

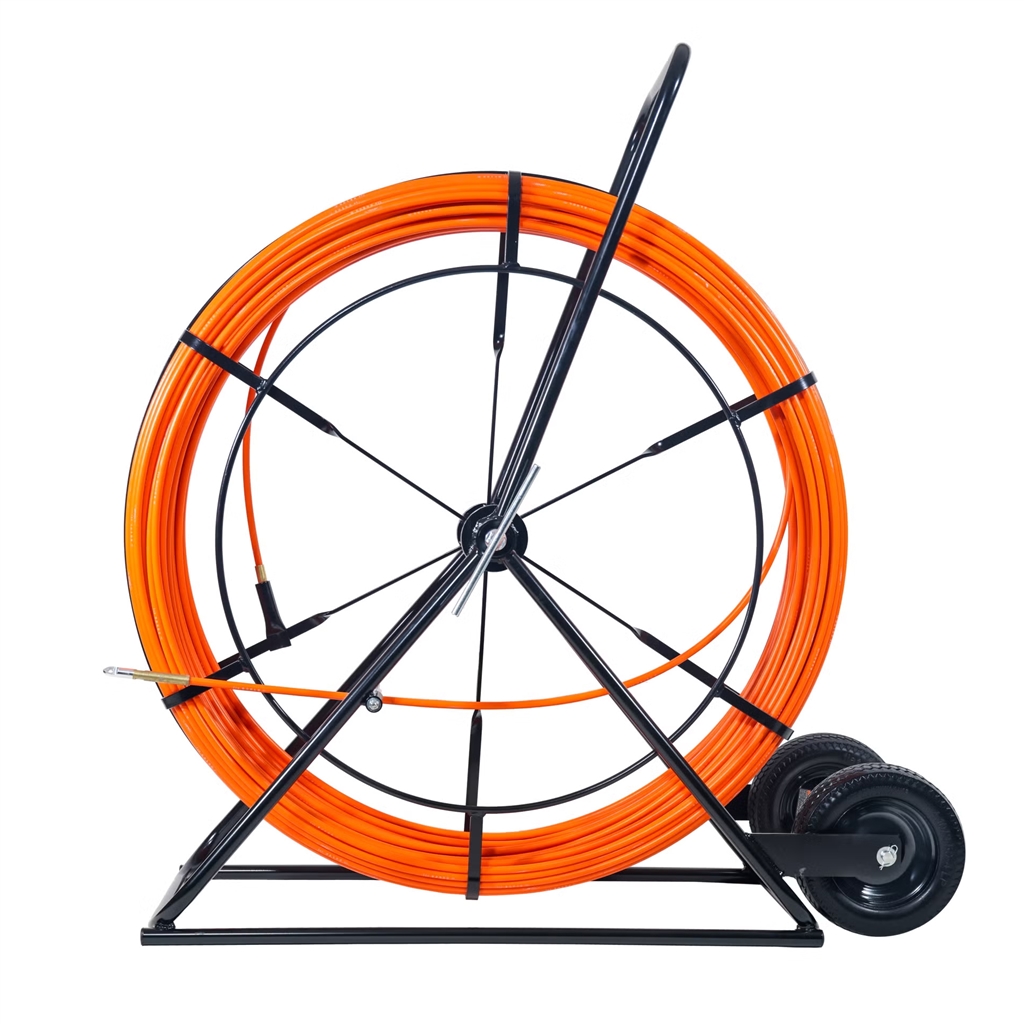

Engineered for rugged performance, the 91228 features a high-visibility orange rod housed in a durable, powder-coated tubular steel carrier. Its large airless tires provide excellent stability on uneven surfaces, and the integrated hand-operated brake offers smooth payout and retrieval control. Designed for long-term field reliability, this toneable duct rodder combines strength, flexibility, and precision for demanding underground locating operations.

Features:
  • 3/8 in. (9 mm) toneable fiberglass rod with integrated 18 AWG copper conductor
  • 18 AWG copper wire runs inside the fiberglass core and connects directly to the end fittings; clip the transmitter lead to the female end fitting and run the other lead to a ground stake
  • Toneable (detectable) rod lets you trace and map duct routes with a signal transmitter and receiver, without digging or trenching; also compatible with a sonde
  • 500 ft (152 m) rod length ideal for medium to long conduit applications

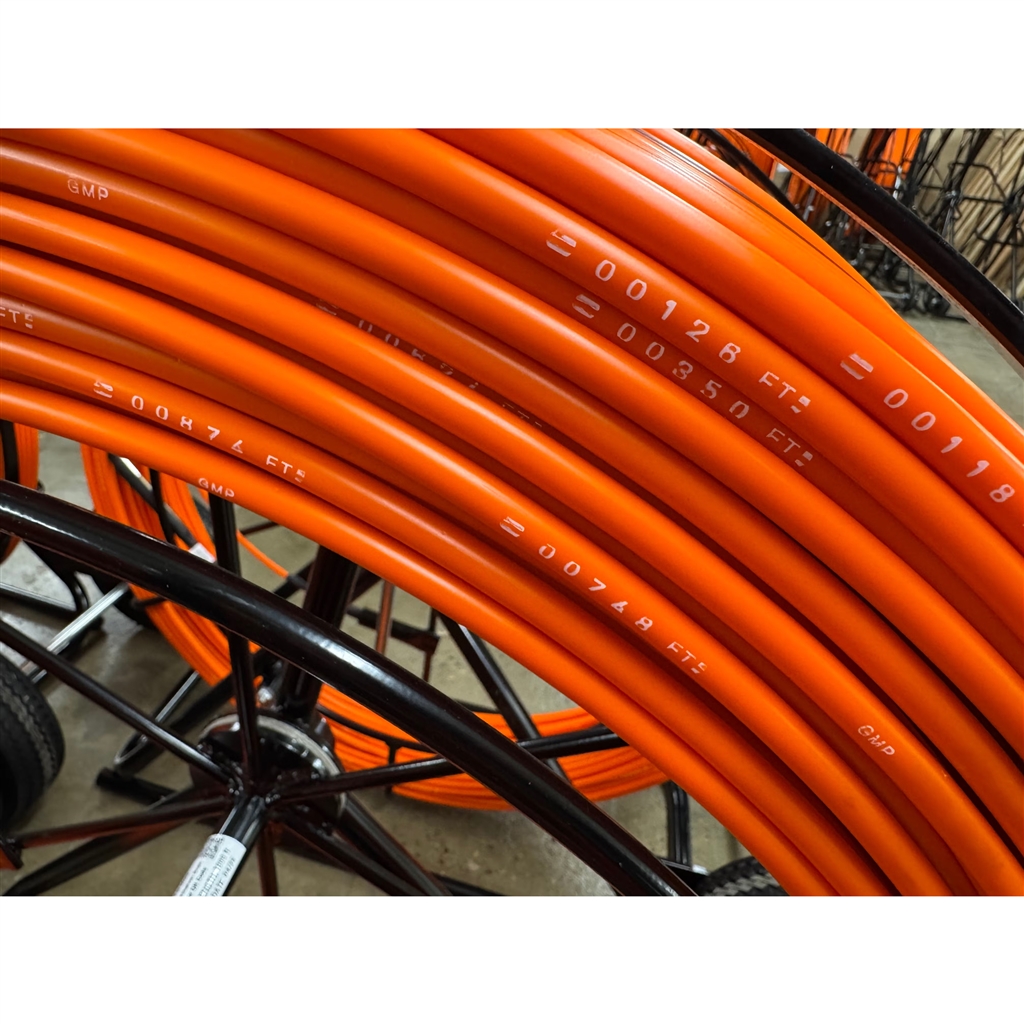

  • Rod marked every 2 ft for accurate measurement and distance tracking
  • Works seamlessly with most signal transmitters and receivers for accurate duct tracing
  • Rugged powder-coated tubular steel carrier for corrosion resistance and durability

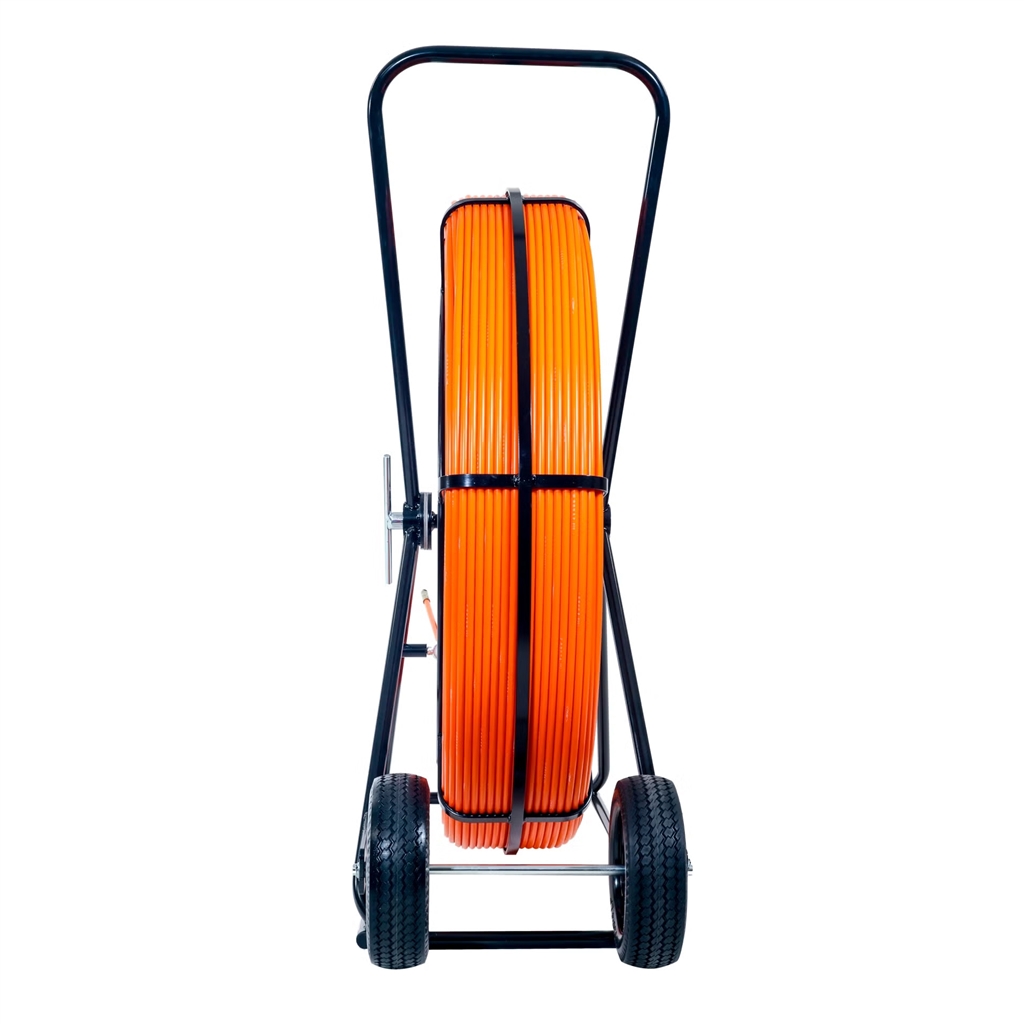

  • Large airless tires ensure excellent balance and mobility on job sites
  • Hand-operated brake provides smooth, controlled payout and retrieval
  • Includes male threaded end fitting with tapered head and female threaded rear fitting
  • Perfect for mapping, verifying, and locating buried conduit paths

    • Specifications:
  • Rod Diameter: 3/8 in. (9 mm)
  • Rod Length: 500 ft. (152 m)
  • Weight: 82 lbs.
  • Rod Material: High-visibility fiberglass with 18 AWG copper conductor
  • Conductor: 18 AWG copper wire, connected to the end fittings
  • Markings: Length marked every 2 ft
  • Carrier Construction: Tubular steel alloy, powder-coated for corrosion resistance
  • Brake Type: Hand-operated manual brake
  • Wheel Type: Large, maintenance-free airless tires
  • End Fittings: Male threaded end with tapered head; female threaded rear fitting
  • End Fitting Threads: 3/8-16
  • Rated Tensile Strength: 10,000 lbs.-f (45.2 kN)
  • Rated Pull Strength: 1,400 lbs.-f (6.2 kN)
  • Minimum Bend Diameter: 12.2 in. (310 mm)
  • Carrier Dimensions: 33.5 in. Dia x 35 in. L x 13.5 in. W x 40.5 in. H (851 x 889 x 343 x 1029 mm)
  • Model: 91228

    • Available Lengths:
    Part #GMP #RodLength
    GMP-9122891228 (this item)3/8 in. (9mm) toneable500 ft (152m)
    GMP-91234912343/8 in. (9mm) toneable800 ft (244m)
    GMP-91238912383/8 in. (9mm) toneable1000 ft (305m)

    Replacement Parts:
    Part #GMP #Description
    -88323Replacement 3/8 in. toneable rod, 500 ft

    Accessories:
    Part #GMP #Description
    GMP-8842588425Duct rodder accessory kit for 3/8 in. toneable rod, with canvas pouch
    -88418Splice repair kit for 3/8 in. toneable rod

    Related Products:
    Part #GMP #Description
    GMP-90228902283/8 in. x 500 ft standard (orange, non-toneable) duct rodder
    How to Service a Broken Toneable Rod (Splice) How to Service a Broken Toneable Rod Male Fitting How to Service a Broken Toneable Rod Female Fitting
