The GMP 90268 Continuous Duct Rodder is the ultimate solution for long-distance conduit work, providing exceptional reach, control, and durability for professional-grade cable installation, cleaning, and pulling applications. Built with a heavy-duty 1/2 inch (12 mm) high-visibility fiberglass rod, this 1000 ft (305 m) model is designed to handle the toughest jobs while maintaining flexibility and superior bending characteristics. Each rod is marked every 2 feet, ensuring precise length tracking and reducing guesswork during field operations.

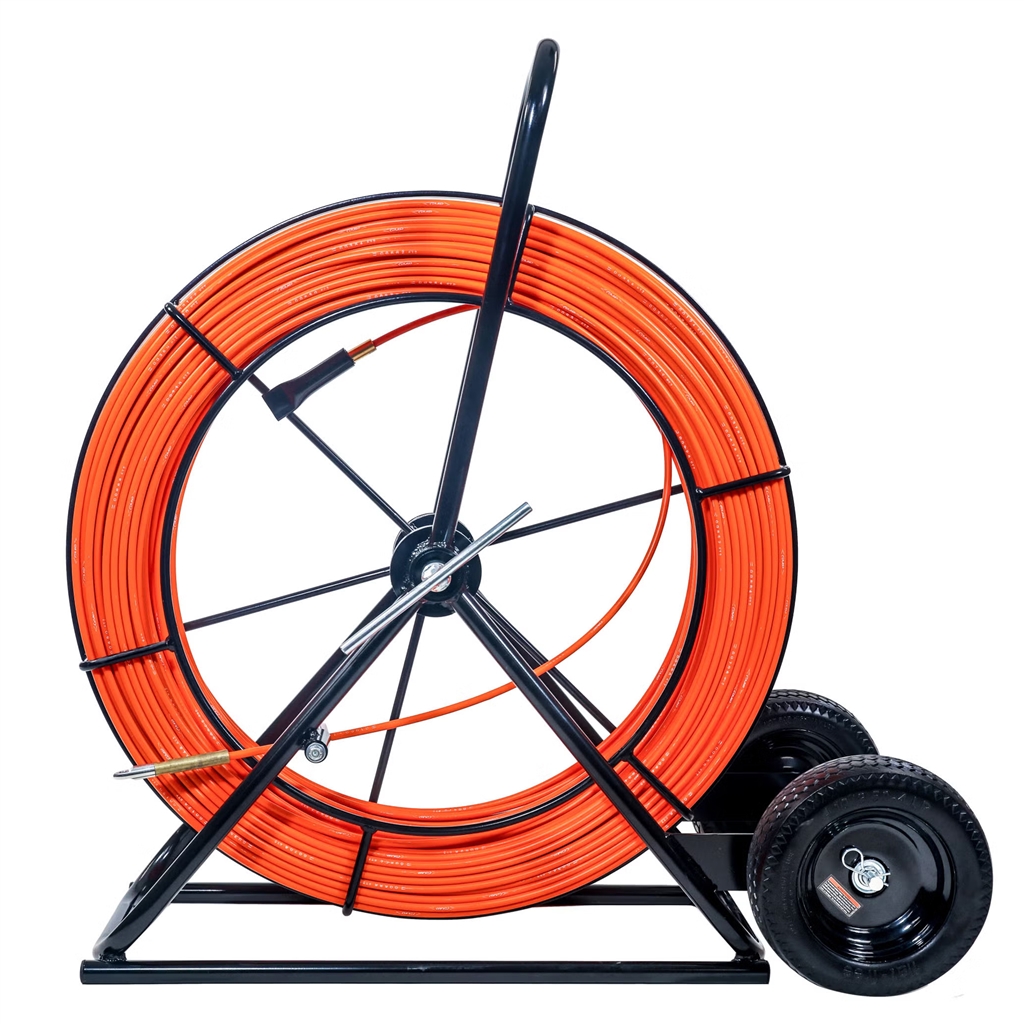

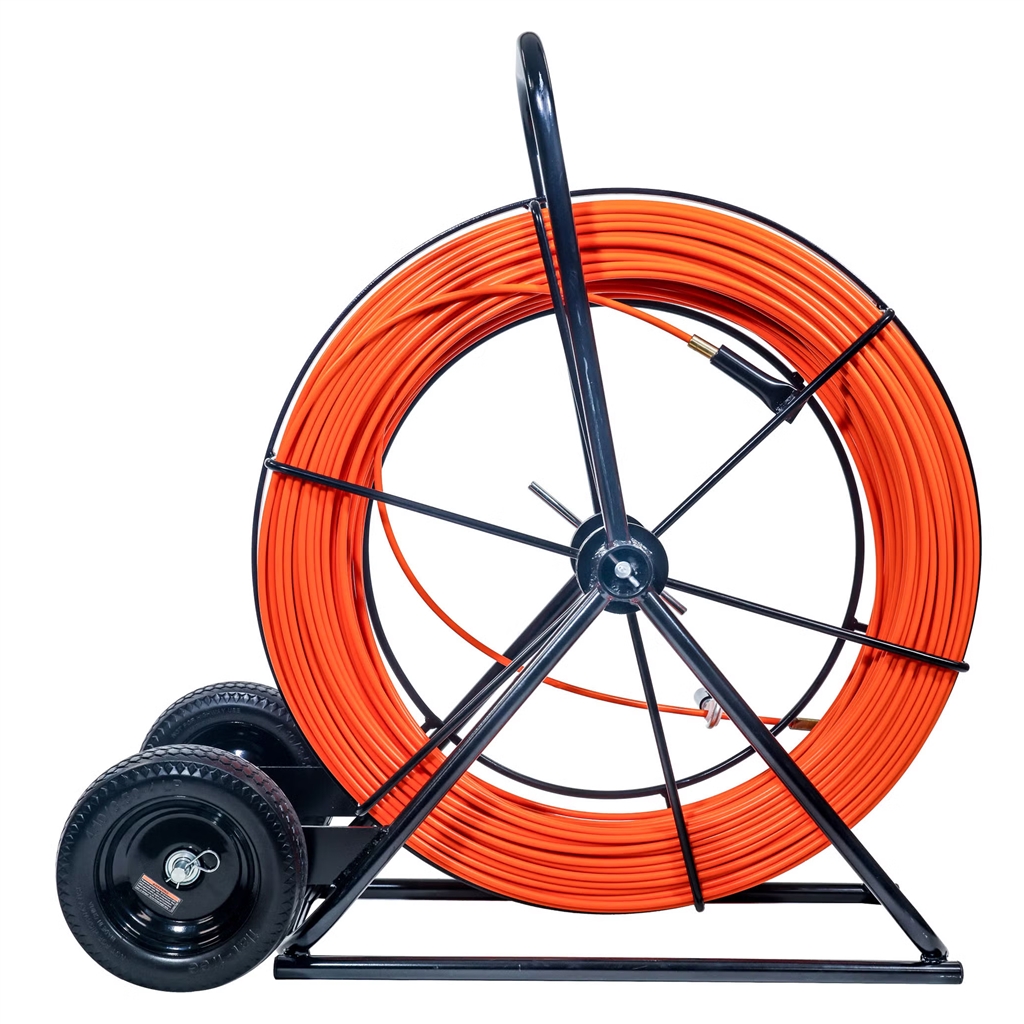

Housed in a rugged, powder-coated tubular steel carrier, the 90268 is built for demanding environments. Its large airless tires deliver unmatched stability and mobility across uneven terrain, while the hand-operated brake offers smooth and accurate control over rod payout and retrieval. This model is a trusted choice among telecom, utility, and electrical professionals for high-performance conduit management that stands up to years of heavy use.

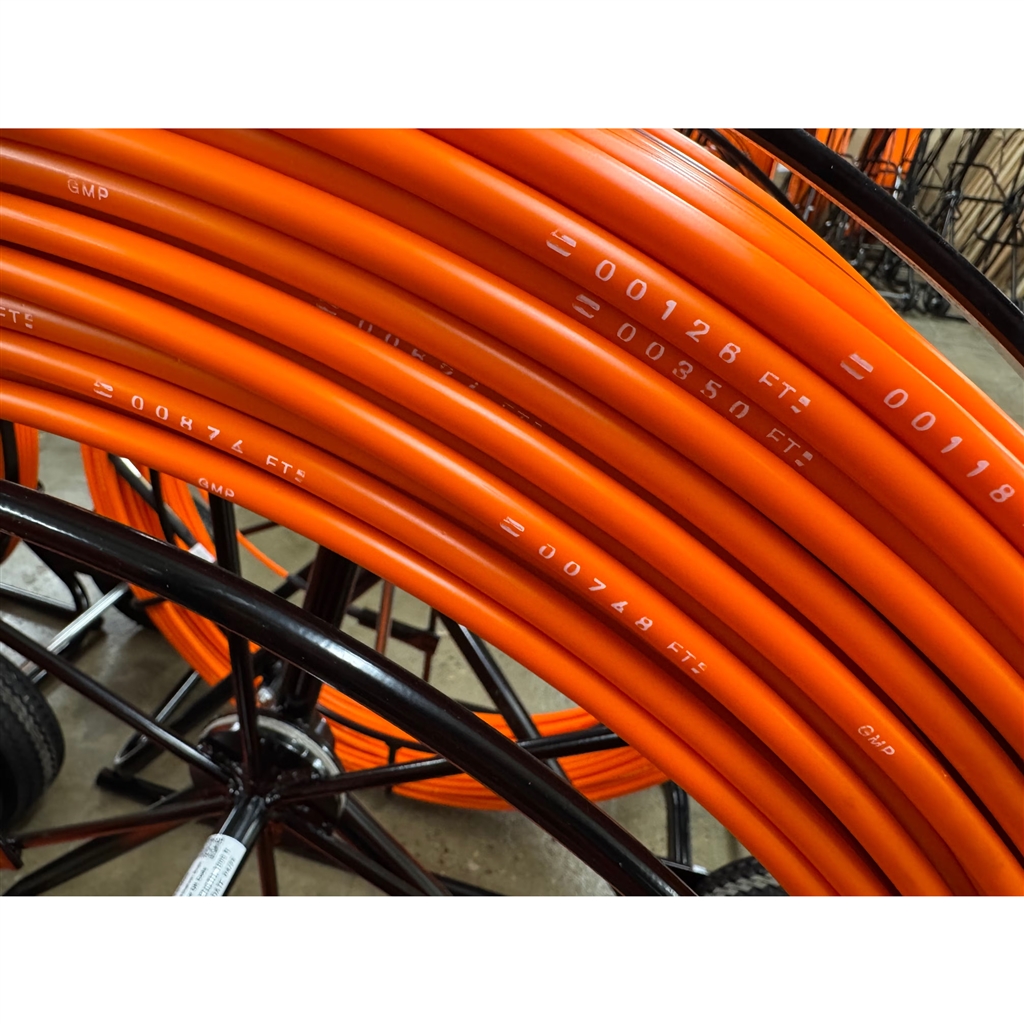

• 1/2 in. (12 mm) fiberglass rod marked every 2 ft for accurate length measurement
• 1000 ft (305 m) total rod length for extended underground conduit runs
• High-visibility orange fiberglass construction ensures safety and visibility on site
• Powder-coated tubular steel carrier resists corrosion and impact damage
• Large airless tires provide superior stability on rough or uneven surfaces
• Hand-operated brake allows controlled payout and retrieval for added precision
• Includes male threaded end fitting with tapered head and female threaded rear fitting
• Optimized stiffness and flexibility for easy navigation through bends and obstacles
• Compatible with all GMP duct rodder accessories and replacement rod assemblies

• Part Number: 90268
• Rod Diameter: 1/2 in. (12 mm)
• Rod Length: 1000 ft. (305 m)
• Weight: 177 lbs. (80 kg)
• Rod Material: High-visibility orange fiberglass with 2 ft interval markings
• Core Type: Standard fiberglass core (detectable copper core version available)
• Carrier Construction: Powder-coated tubular steel alloy
• Brake Type: Hand-operated manual brake
• Wheel Type: Large airless tires for easy transport and superior balance
• End Fittings: Male threaded end with tapered head; female threaded rear fitting
• Rated Tensile Strength: 21,000 lbs.-f (95.2 kN)
• Rated Pull Strength: 1,800 lbs.-f (8.0 kN)
• Minimum Bend Diameter: 18 in. (450 mm)
• Carrier Dimensions: 45 in. Dia × 46 in. L × 18.5 in. W × 52.75 in. H (1143 × 1168 × 470 × 1340 mm)
