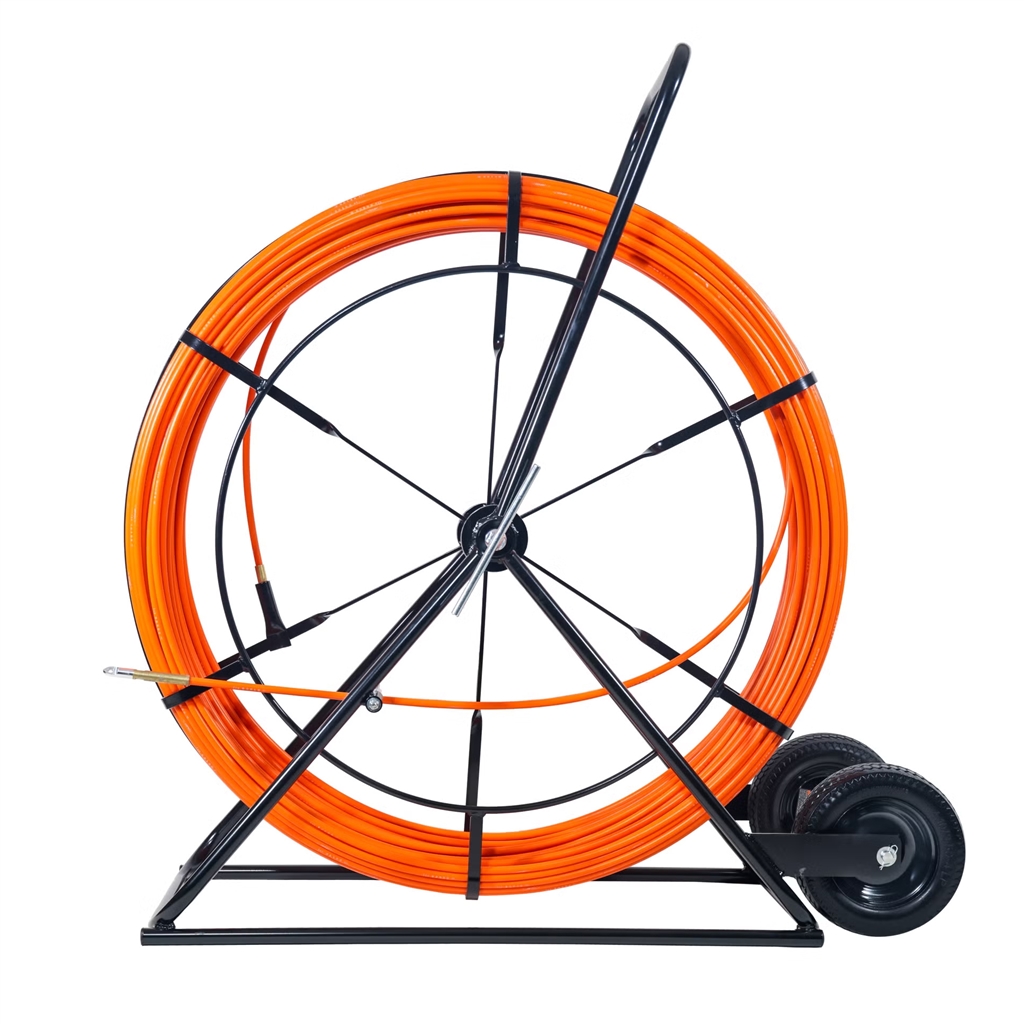

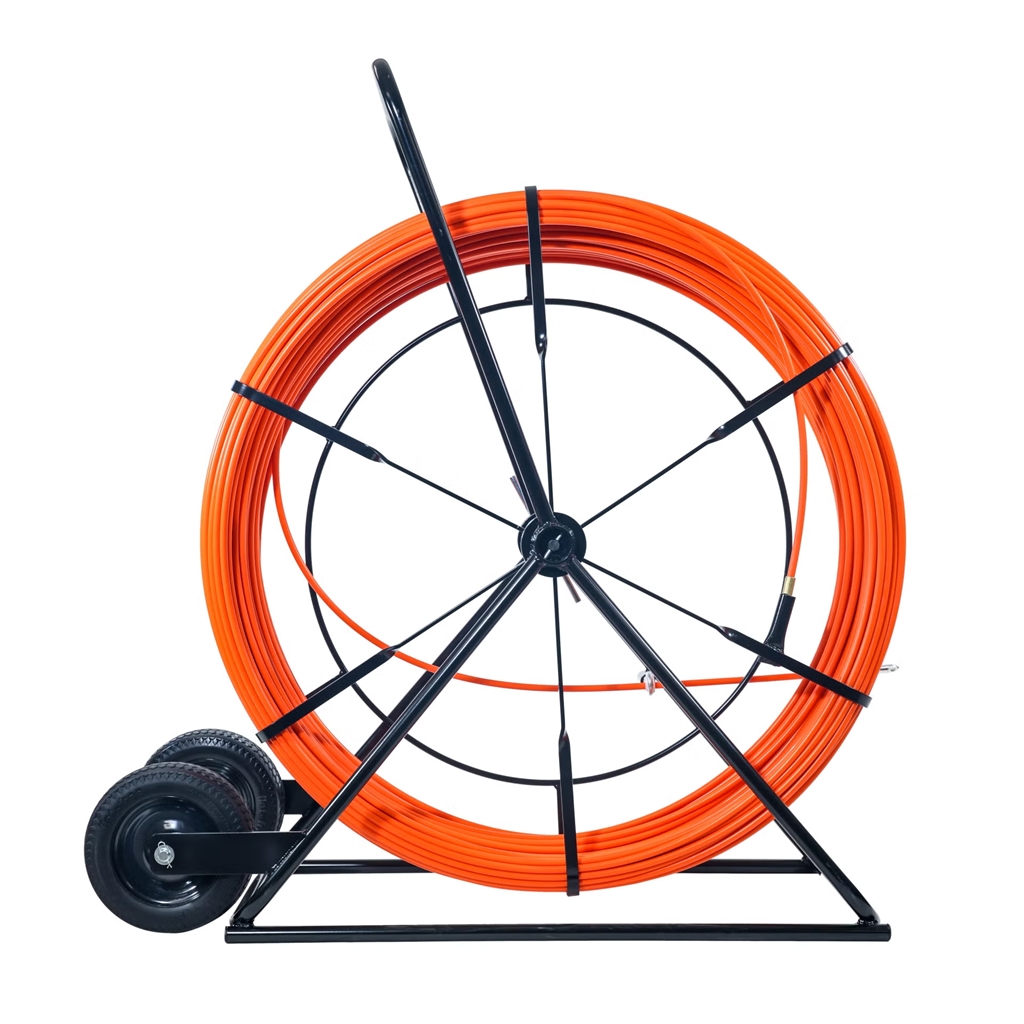

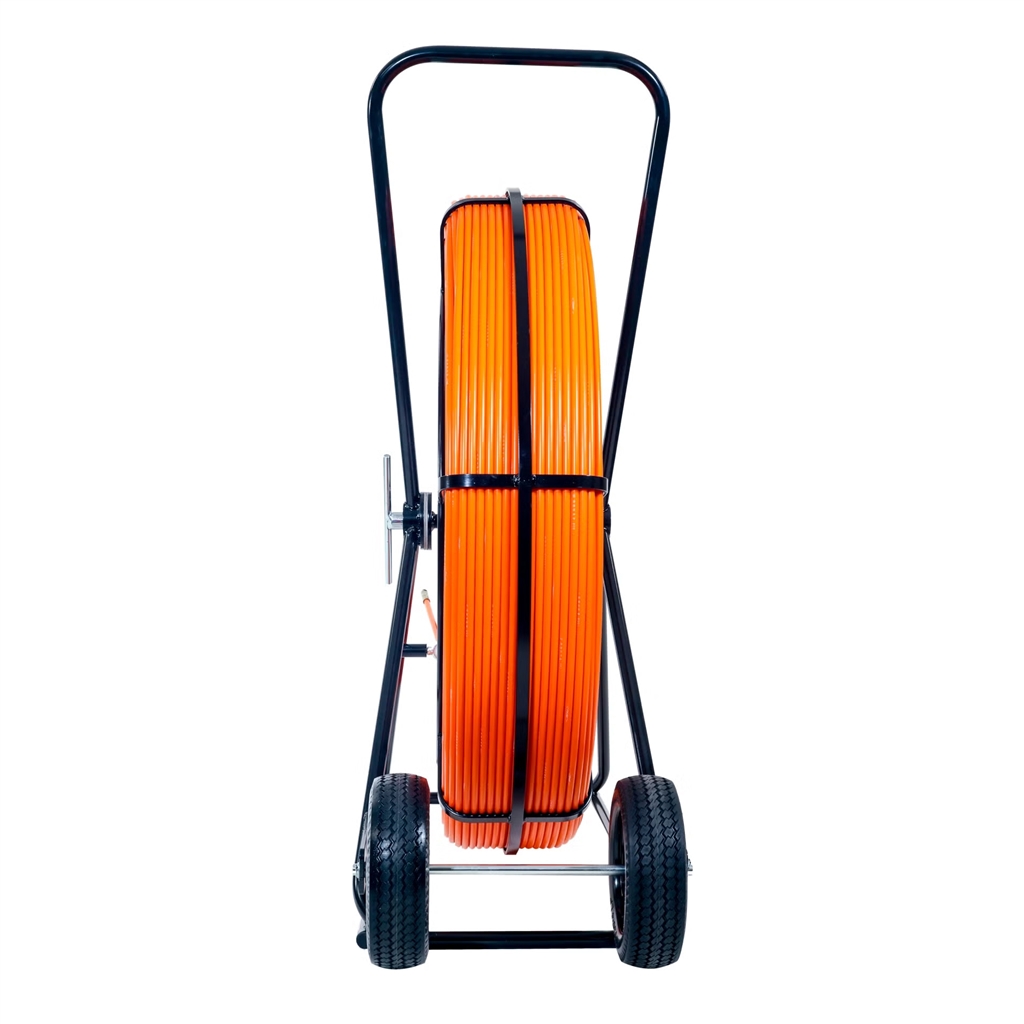

The GMP 91234 Toneable Continuous Duct Rodder provides exceptional strength, flexibility, and traceability for professionals working in underground conduit systems. This 3/8 inch (9 mm) fiberglass rod includes a built-in 18 AWG copper conductor, allowing it to carry a signal for accurate duct tracing and route verification when used with a standard signal transmitter and receiver. With an 800 ft (244 m) rod length, this model is ideal for mid- to long-distance applications in telecommunications, fiber optic, and electrical conduit installations.
Engineered for field reliability, the 91234 features a high-visibility orange fiberglass rod housed in a heavy-duty, powder-coated tubular steel carrier. The rod is marked every 2 feet for quick measurement, while the large airless tires and hand-operated brake ensure smooth, controlled handling on any job site. Built to endure tough environments, this toneable duct rodder combines durability and precision for consistent, long-term performance.
Features:
- 3/8 in. (9 mm) toneable fiberglass rod with integrated 18 AWG copper conductor
- 800 ft (244 m) rod length for extended duct runs

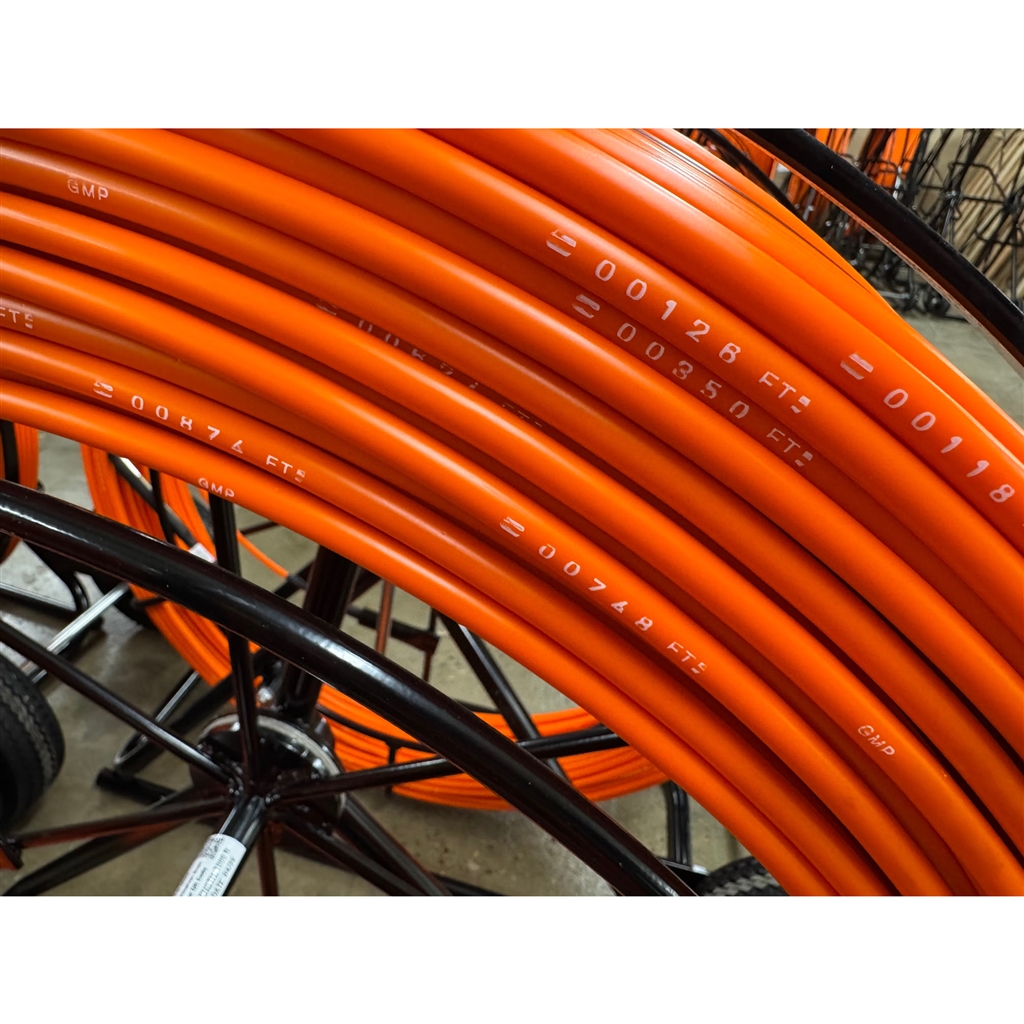

- Rod marked every 2 ft for accurate measurement and distance reference
- Works with signal transmitters and receivers for accurate underground duct tracing
- Rugged powder-coated tubular steel carrier resists corrosion and heavy use
- Large airless tires provide excellent stability and easy transport on uneven terrain
- Hand-operated brake allows precise payout and retrieval control
- Includes male threaded end fitting with tapered head and female threaded rear fitting
- Designed for conduit locating, mapping, and verification applications
Specifications:
- Part Number: 91234
- Rod Diameter: 3/8 in. (9 mm)
- Rod Length: 800 ft. (244 m)
- Weight: 101 lbs. (46 kg)
- Rod Material: High-visibility fiberglass with embedded 18 AWG copper conductor
- Markings: Length marked every 2 ft
- Carrier Construction: Tubular steel alloy with powder-coated finish
- Brake Type: Hand-operated manual brake
- Wheel Type: Large, maintenance-free airless tires
- End Fittings: Male threaded end with tapered head; female threaded rear fitting
- Rated Tensile Strength: 10,000 lbs.-f (45.2 kN)
- Rated Pull Strength: 1,400 lbs.-f (6.2 kN)
- Minimum Bend Diameter: 12.2 in. (310 mm)
- Carrier Dimensions: 33.5 in. Dia × 35 in. L × 13.5 in. W × 40.5 in. H (851 × 889 × 343 × 1029 mm)
