GMP 89283 Duct Rodder - 3/16in x 300ft

Home > Categories > Underground Construction > Duct Rodders >

GMP Duct Rodder - 3/16in x 300ft

Alternative Views:

TTS PRICE: $525.00

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 7-9 DAYS

PRODUCT CODE: GMP-89283

QUANTITY:

PRODUCT DESCRIPTION

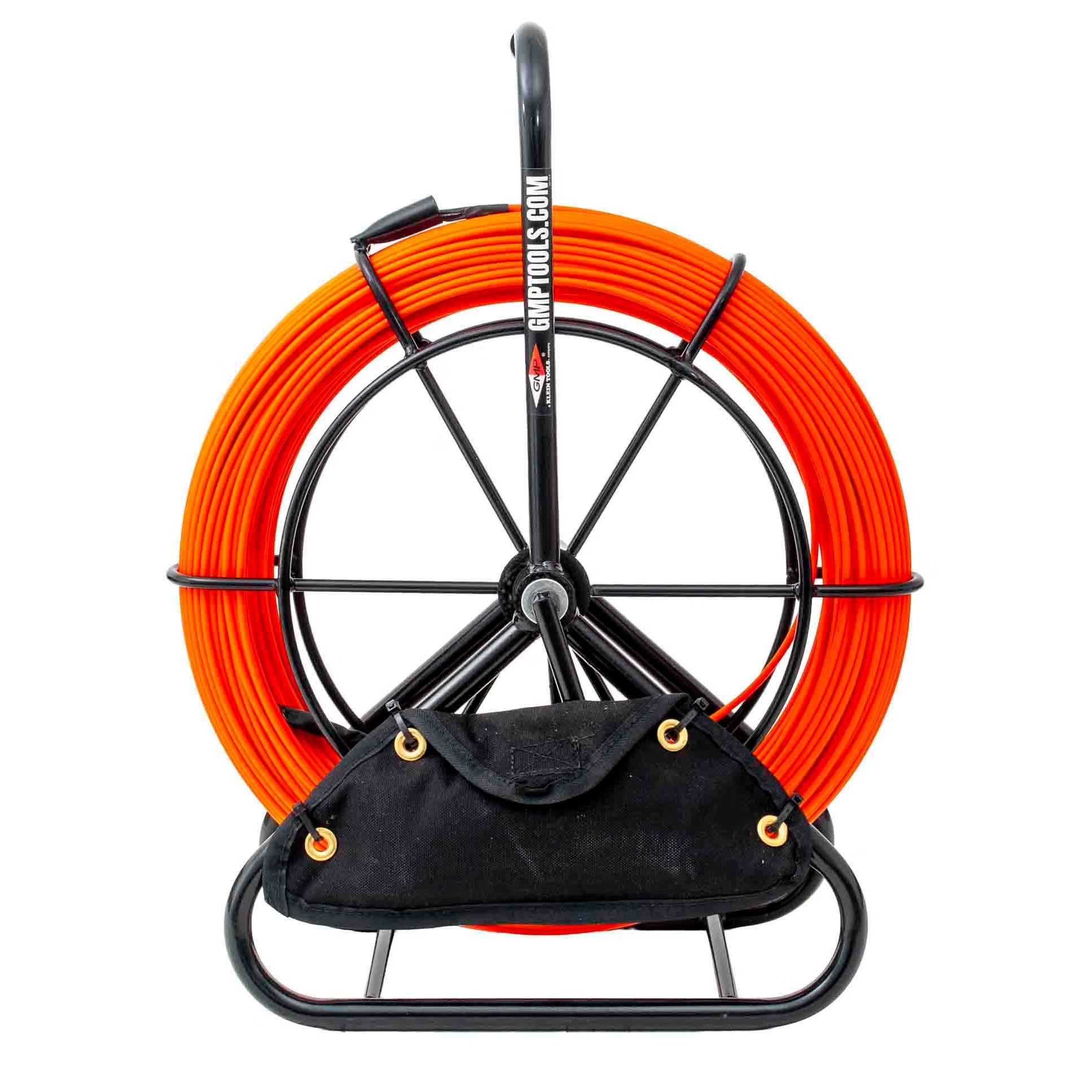

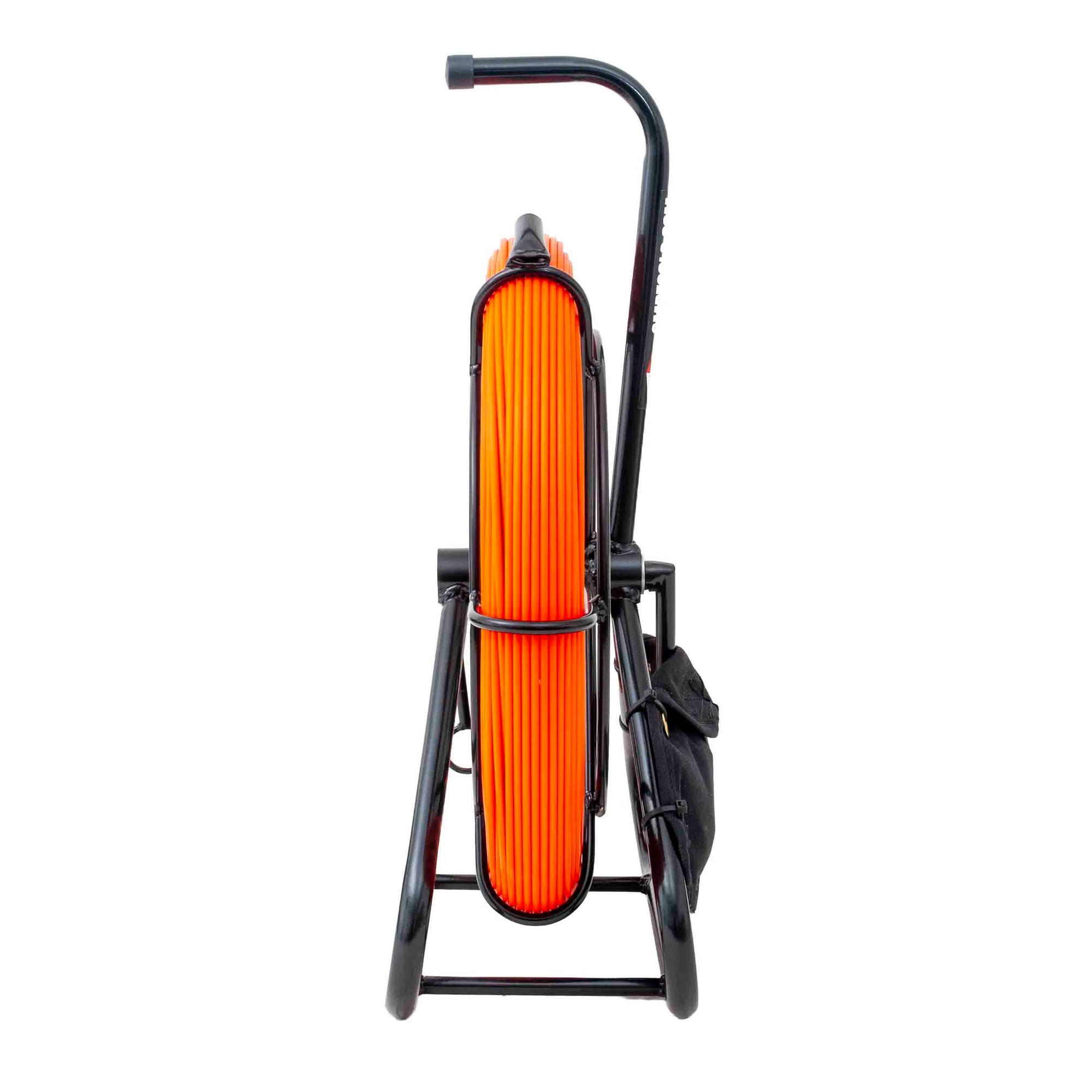

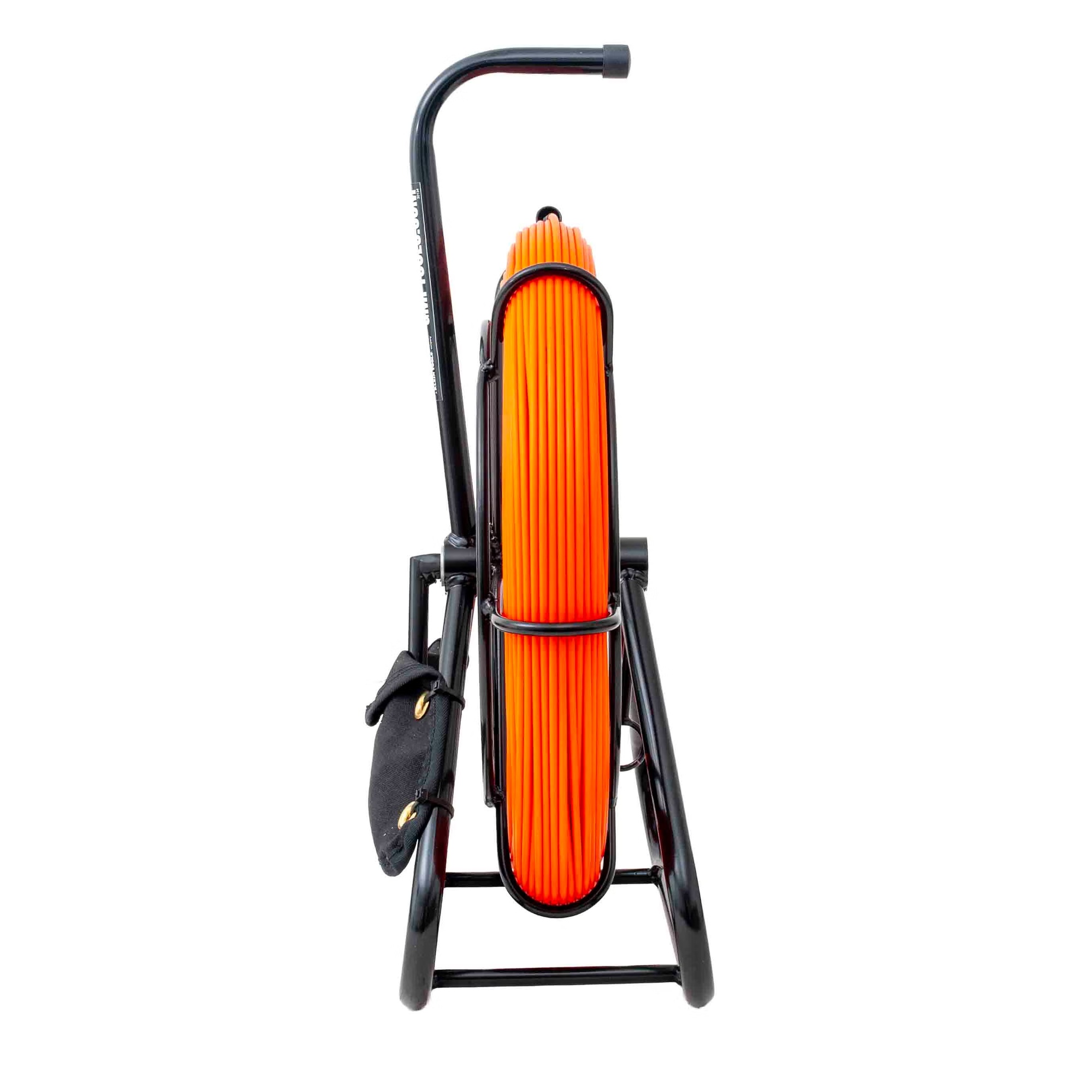

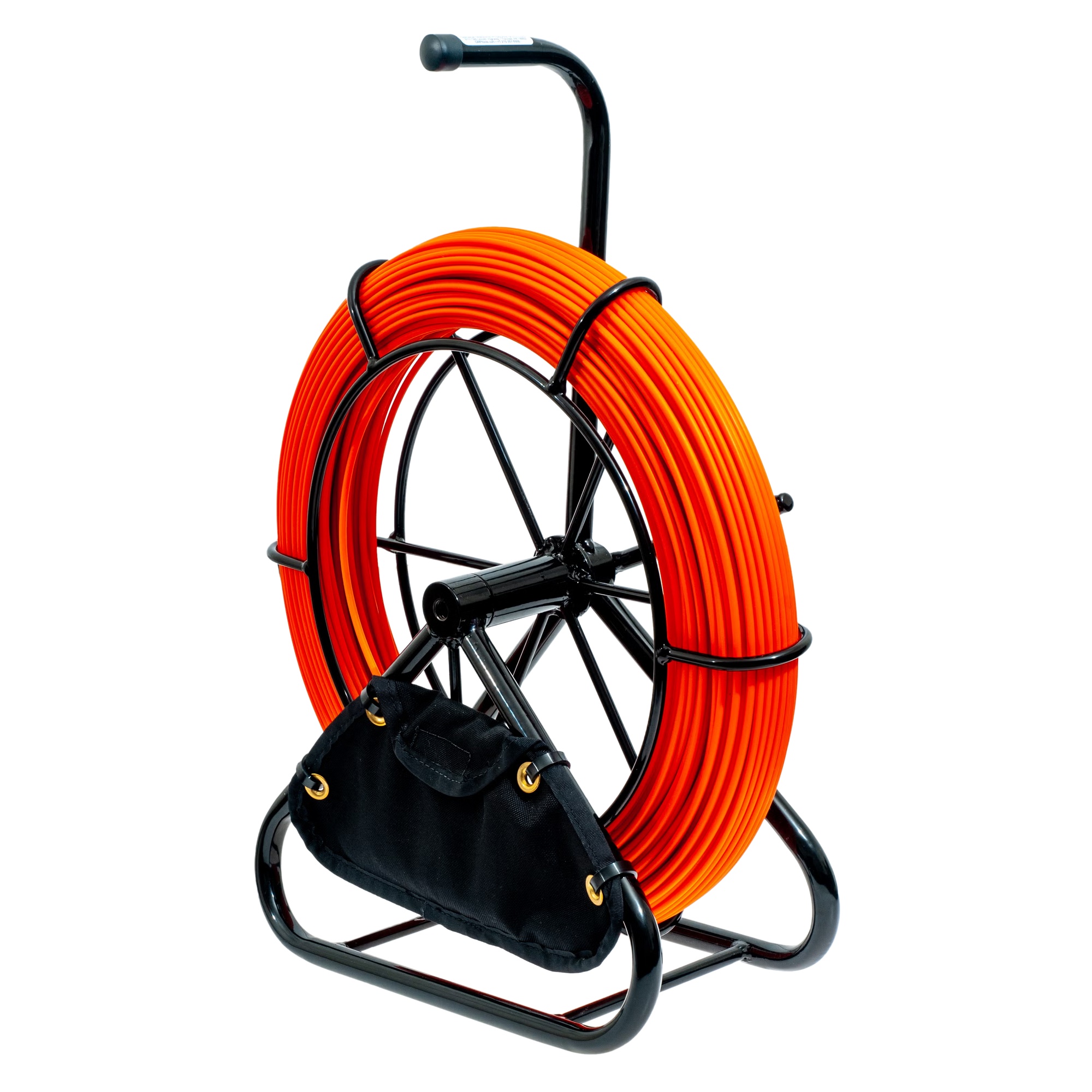

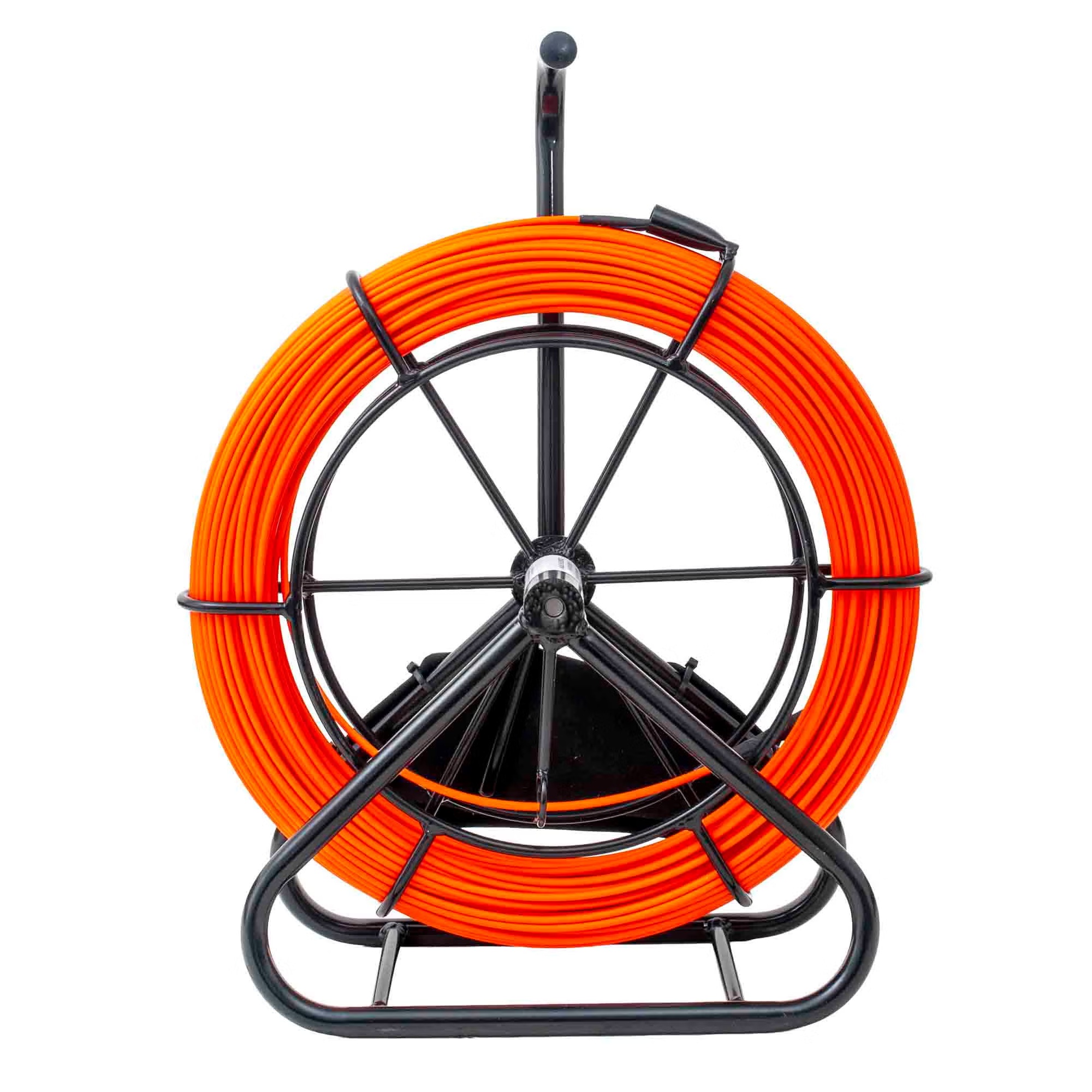

GMP 89283 Duct Rodder - 3/16" (4.5 mm) x 300 ft (91.4 m), Non-Conductive Fiberglass Rod

A light 3/16in fiberglass duct rodder with 300ft of rod for drops, hand-holes and inside runs. The GMP 89283 is built for running conduit inside and out and for home drops from hand-hole boxes to buildings, and it is strong enough to pull duct - rated to 350 lb pull. The non-conductive fiberglass composite rod has a polypropylene outer layer for water, oil and chemical resistance, and the powder-coated tubular steel frame has an integrated brake with the carrier turning on two heavy-duty ball bearings.

Features:

300ft (91.4 m) of 3/16in (4.5 mm) non-conductive fiberglass composite rod

Polypropylene outer layer resists water, oil and chemicals

Rated pull 350 lbf (159 kg); rated tensile 1,400 lbf

Powder-coated tubular steel frame with integrated brake

Rod carrier runs on 2 heavy-duty ball bearings for smooth operation

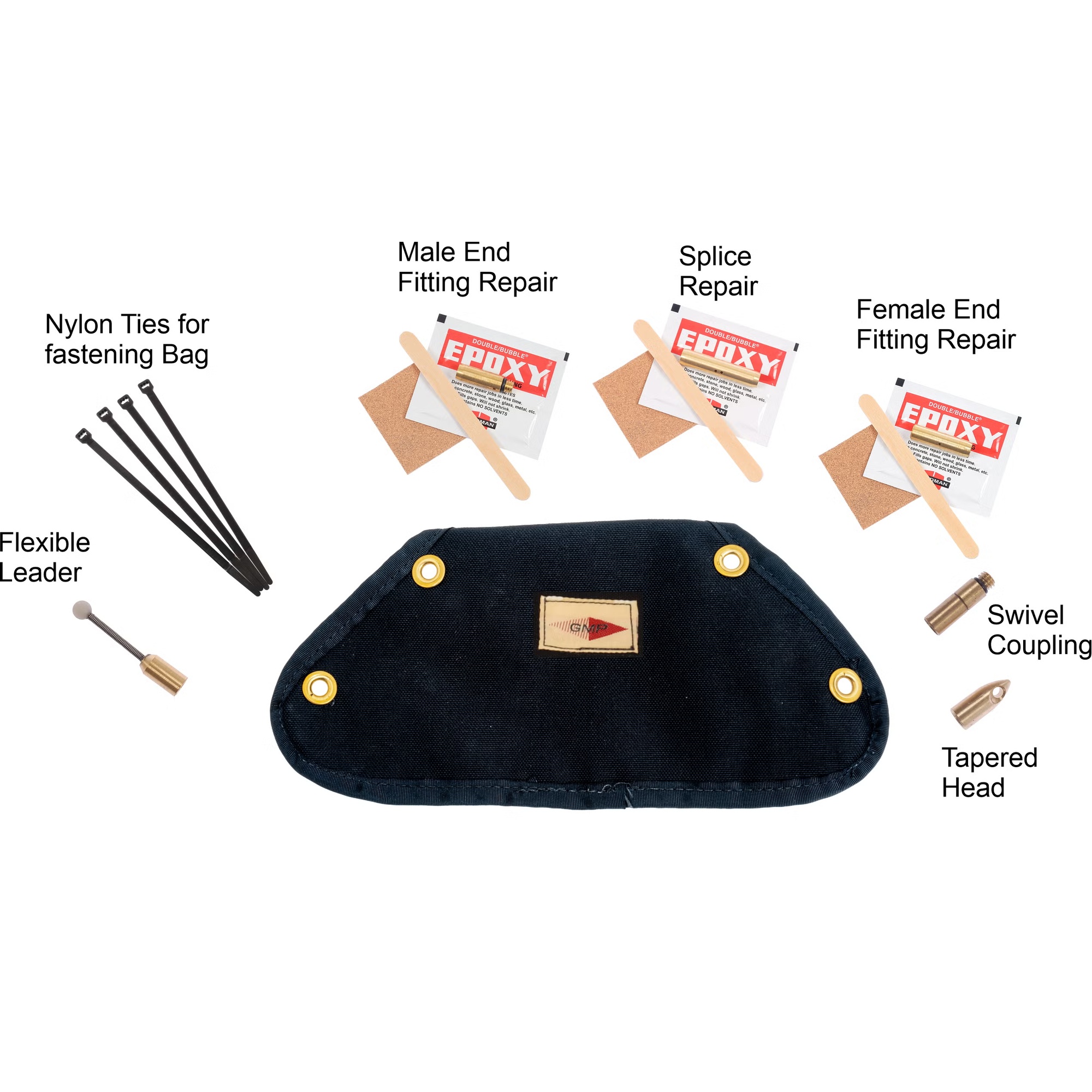

Includes:

Flexible leader

Replacement ends

Swivel coupling

Tapered head

Carrying pouch

Specifications:

Rod: 3/16in (4.5 mm) x 300ft (91.4 m)

End Fitting Threads: 1/4-20

Rated Tensile Strength: 1,400 lbf (6.2 kN)

Rated Pull Strength: 350 lbf (1.6 kN)

Minimum Bend Diameter: 5.3in (135 mm)

Cassette Diameter: 16.25in (413 mm)

Carrier Dimensions: 16.25 x 8 x 21.13in L x W x H (413 x 203 x 537 mm)

Weight: 14.3 lbs.

Model: 89283

Available Lengths:

Part #	GMP #	Rod	Length	Weight
GMP-89280	89280	3/16 in. (4.5mm)	150 ft	11.3 lbs. (3.8kg)
GMP-89281	89281	3/16 in. (4.5mm)	200 ft	12.0 lbs. (4kg)
GMP-89282	89282	3/16 in. (4.5mm)	250 ft	12.8 lbs. (4.4kg)
GMP-89283	89283 (this item)	3/16 in. (4.5mm)	300 ft	14.3 lbs. (5.1kg)

Replacement Parts:

Part #	GMP #	Description
-	89346	Repair fitting, male - 3/16 in. rod
-	89347	Repair splice - 3/16 in. rod
-	89348	Repair fitting, female - 3/16 in. rod
-	89344	Flexible leader - 3/16 in. rod
-	89345	Swivel coupling - 3/16 in. rod
-	89349	Tapered head - 3/16 in. rod
