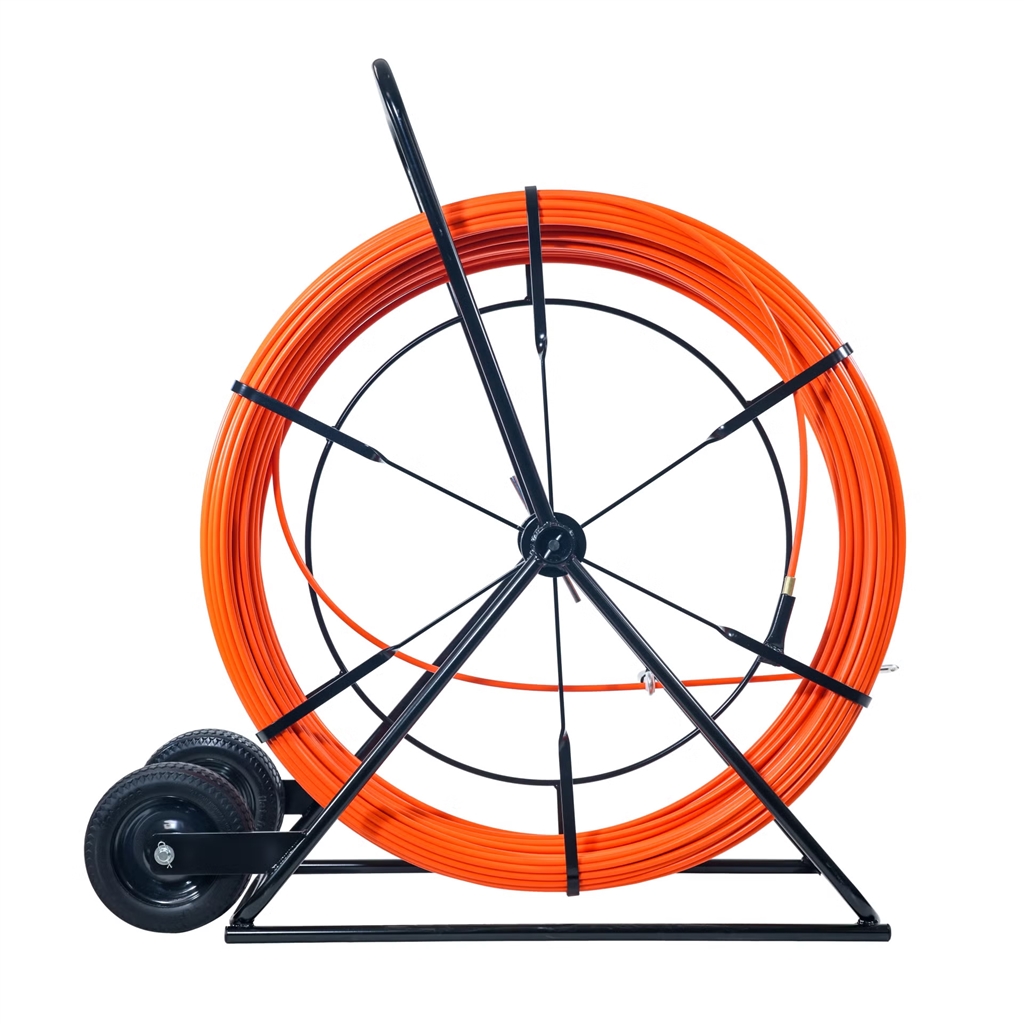

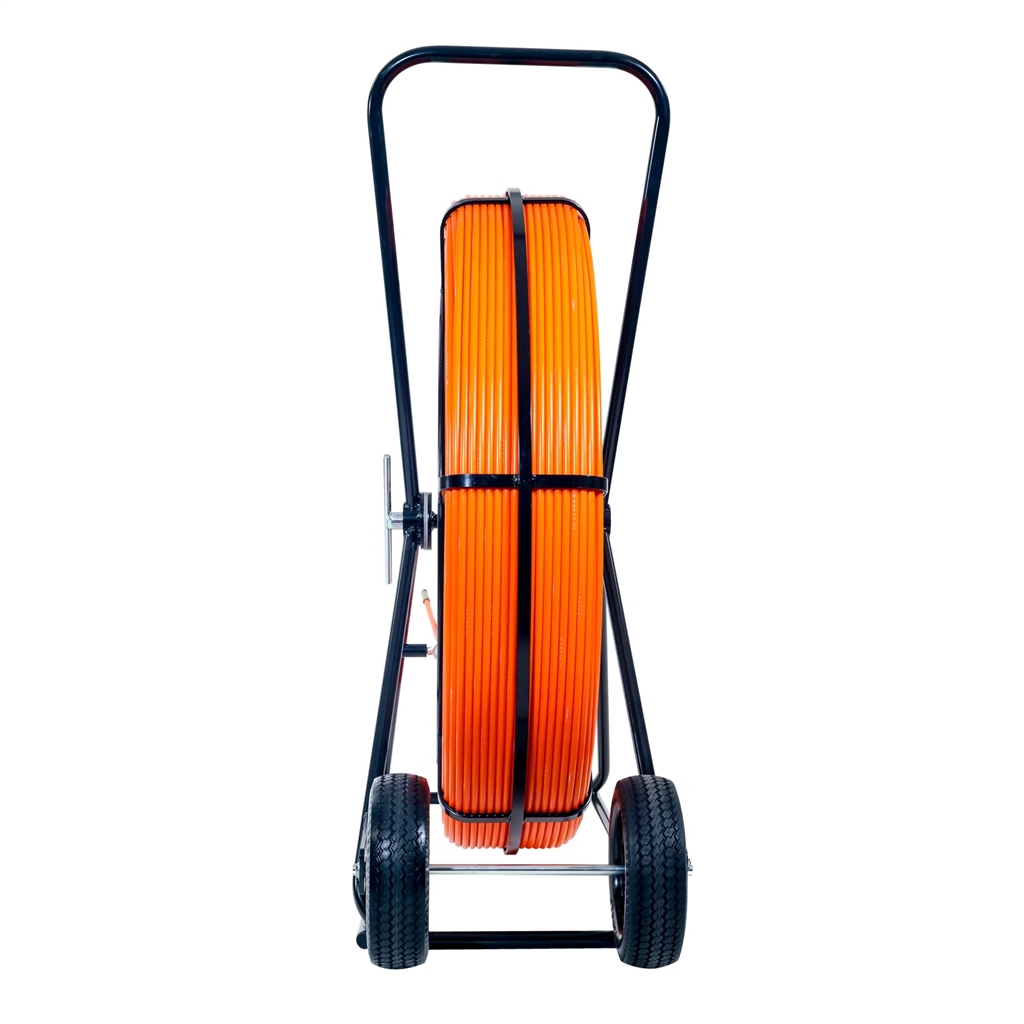

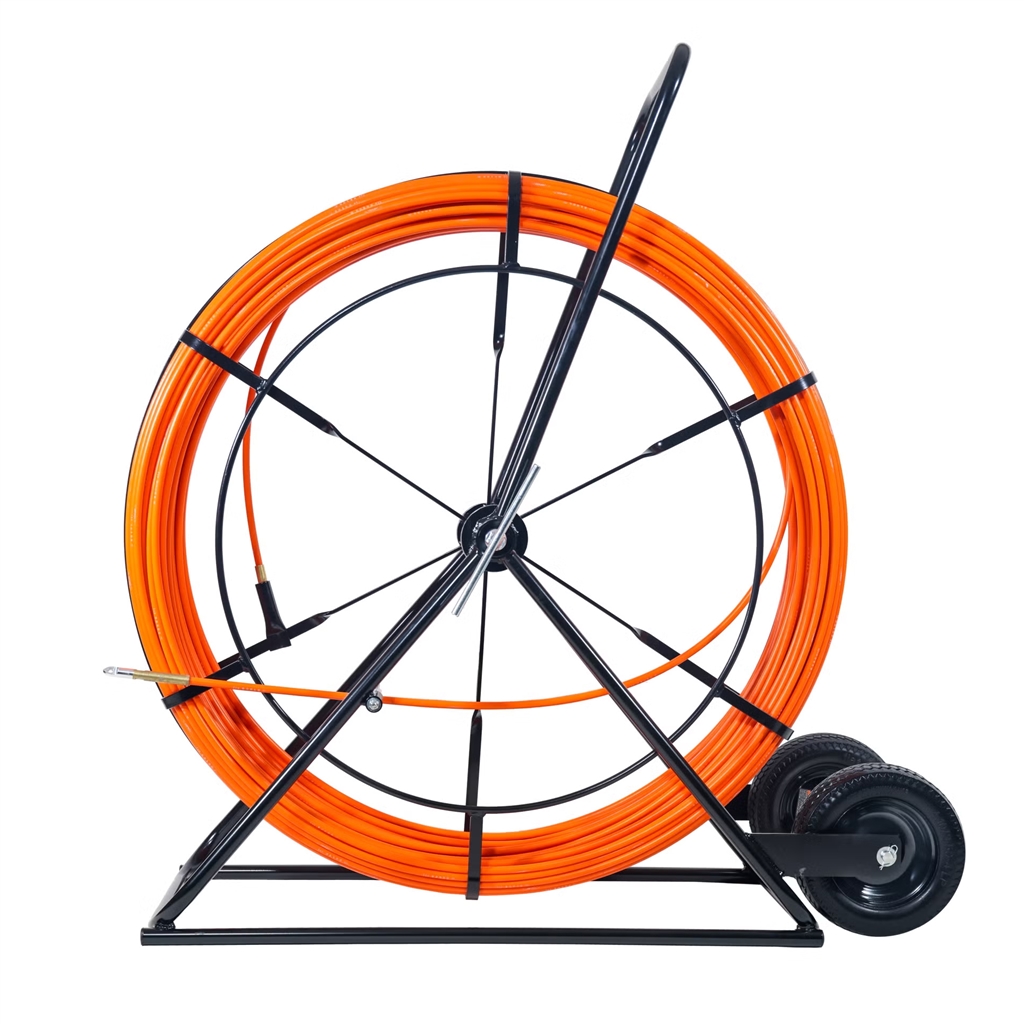

The GMP 91238 Toneable Continuous Duct Rodder delivers precision, durability, and performance for underground cable installation and conduit mapping. Designed with an embedded 18 AWG copper conductor, this 3/8 inch (9 mm) fiberglass rod allows technicians to transmit a traceable signal the entire length of the rod when used with a compatible signal transmitter and receiver. With a 1000 ft (305 m) reach, its the perfect choice for long conduit runs in telecommunications, fiber optic, and power applications.
Constructed from high-visibility orange fiberglass, the 91238 is built for reliability in the toughest environments. Its housed in a rugged, powder-coated tubular steel carrier for long service life and corrosion resistance. The integrated hand brake provides precise control over payout and retrieval, while large, airless tires make transport over uneven terrain effortless. This toneable duct rodder provides unmatched strength, flexibility, and ease of use for professional-grade cable pulling and locating.
Features:
- 3/8 in. (9 mm) toneable fiberglass rod with integrated 18 AWG copper conductor
- 1000 ft (305 m) rod length ideal for long-distance conduit runs

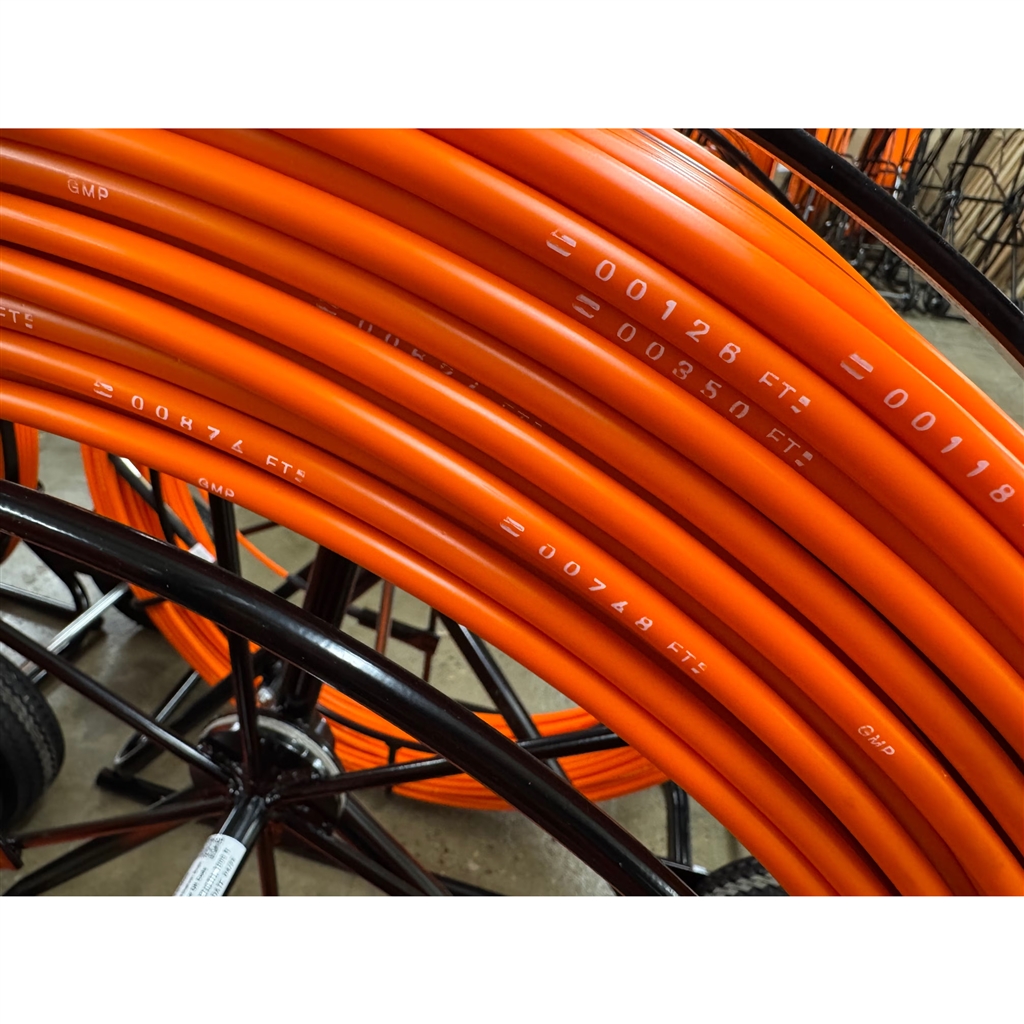

- Rod marked every 2 ft for easy distance measurement and tracking
- Compatible with most standard signal transmitters and receivers for accurate duct tracing
- High-visibility orange rod for increased jobsite safety and visibility
- Rugged tubular steel carrier with corrosion-resistant powder coating
- Large, maintenance-free airless tires for superior mobility on rough terrain
- Hand-operated brake allows smooth payout and controlled retrieval
- Includes male threaded end fitting with tapered head and female threaded rear fitting
- Ideal for conduit mapping, route verification, and locating buried ducts
Specifications:
- Part Number: 91238
- Rod Diameter: 3/8 in. (9 mm)
- Rod Length: 1000 ft. (305 m)
- Weight: 114 lbs. (52 kg)
- Rod Material: High-visibility fiberglass with embedded 18 AWG copper conductor
- Markings: Length marked every 2 ft
- Carrier Construction: Tubular steel alloy, powder-coated for corrosion resistance
- Brake Type: Hand-operated manual brake system
- Wheel Type: Large airless tires for easy transport
- End Fittings: Male threaded end with tapered head; female threaded rear fitting
- Rated Tensile Strength: 10,000 lbs.-f (45.2 kN)
- Rated Pull Strength: 1,400 lbs.-f (6.2 kN)
- Minimum Bend Diameter: 12.2 in. (310 mm)
- Carrier Dimensions: 33.5 in. Dia Χ 35 in. L Χ 13.5 in. W Χ 40.5 in. H (851 Χ 889 Χ 343 Χ 1029 mm)
