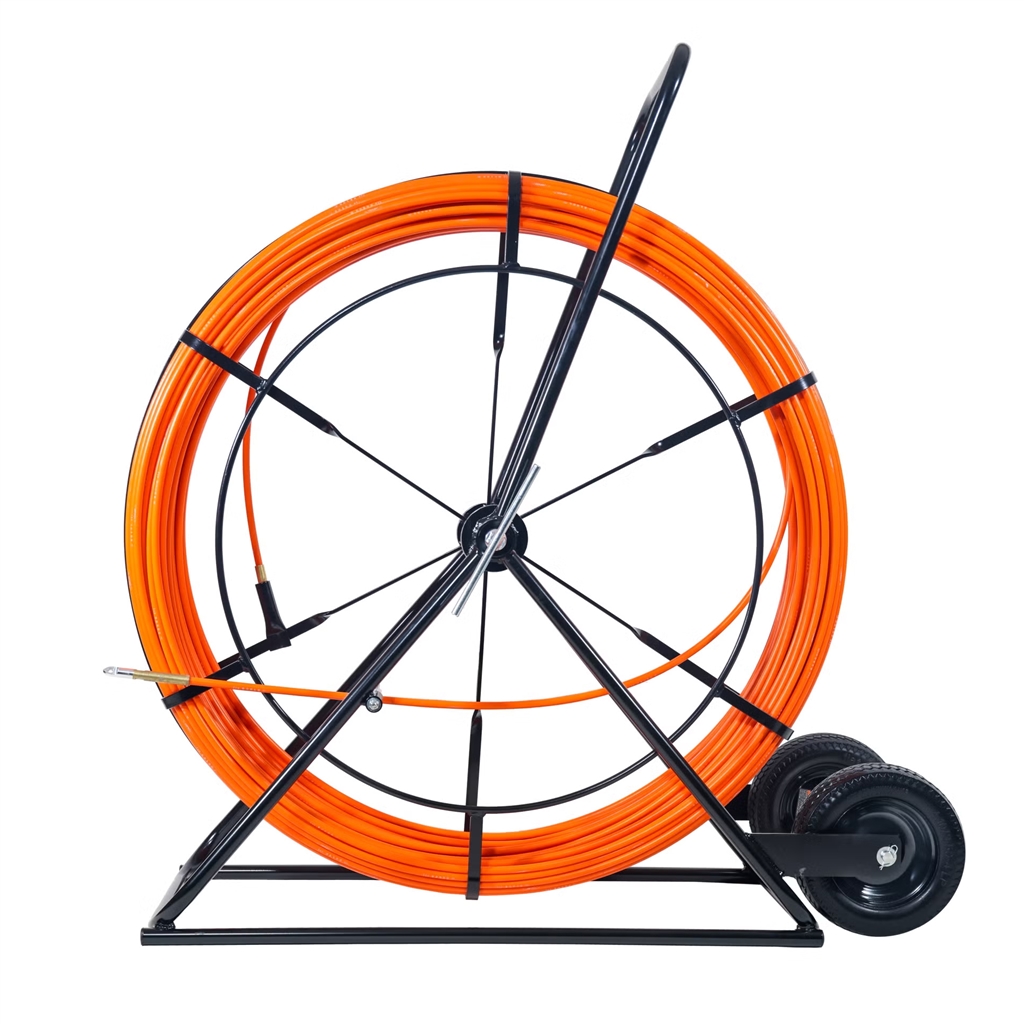

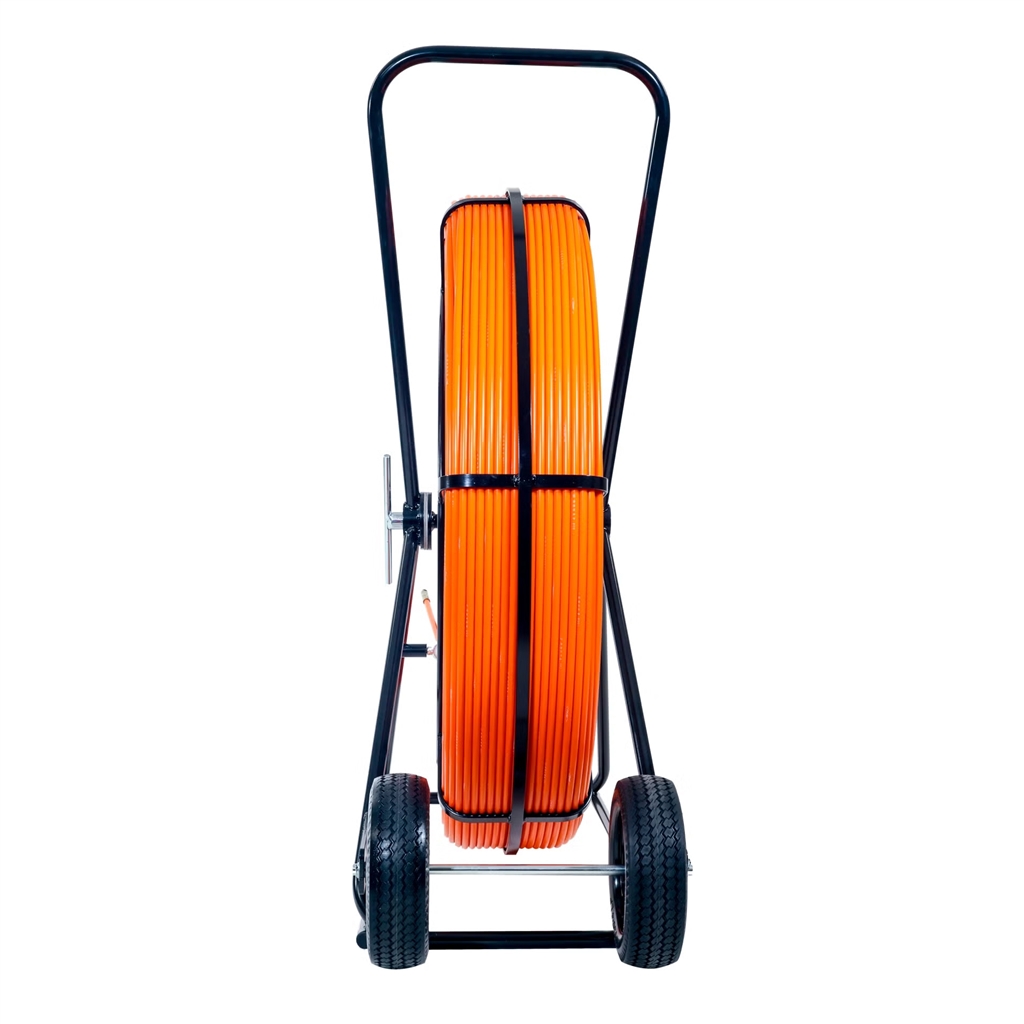

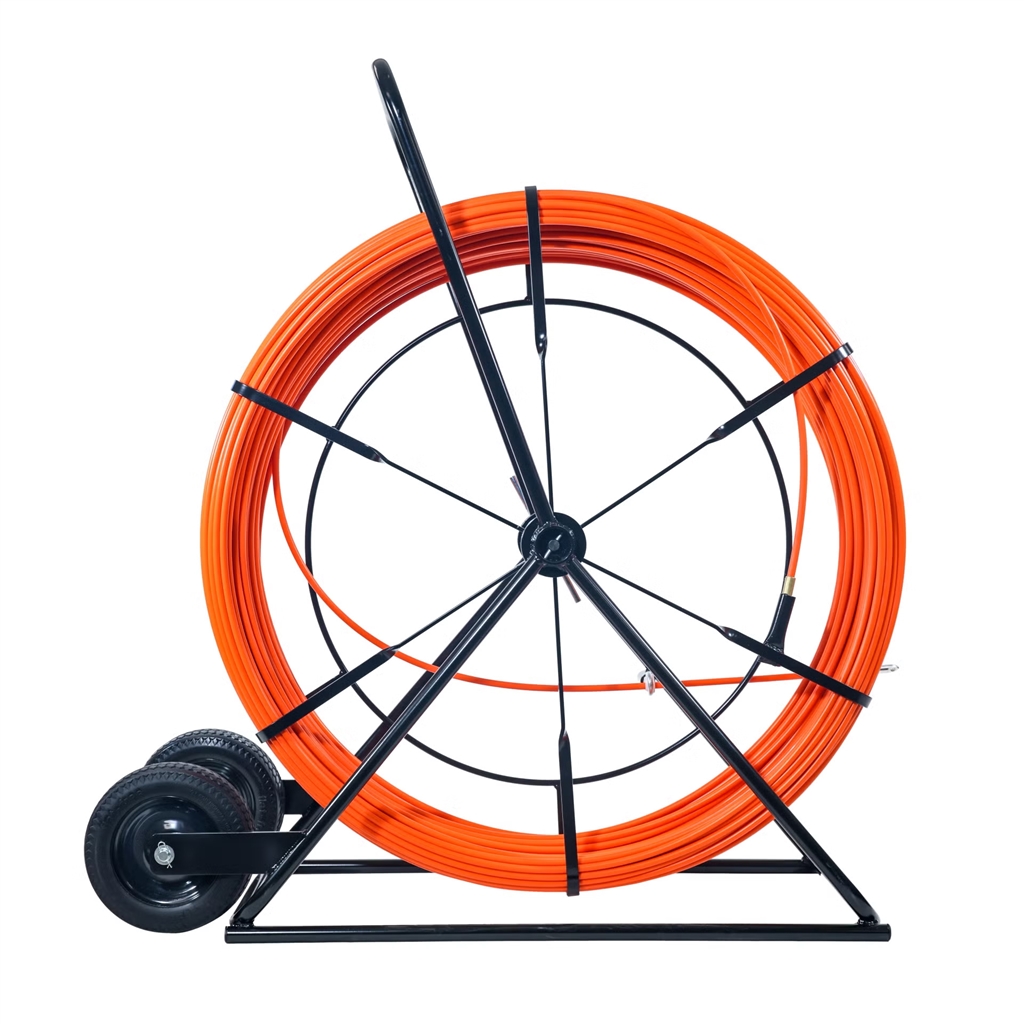

The GMP 90230 Continuous Duct Rodder delivers dependable performance for underground cable pulling, duct cleaning, and locating applications. Designed for efficiency and built to withstand daily field use, this 3/8 inch (9 mm) duct rodder combines strength, flexibility, and stability. Its high-visibility orange fiberglass rod features length markings every 2 feet for fast measurement, while the large airless tires provide enhanced mobility and balance on rough or uneven job sites.

The powder-coated tubular steel frame ensures corrosion resistance and long-term durability. Operators benefit from the smooth rod payout system with a hand-operated brake for precise control. With its compact yet sturdy design, the GMP 90230 is ideal for telecommunications, electrical, and utility professionals who require a reliable, easy-to-use duct rodder capable of maintaining performance in demanding environments.

• 3/8 in. (9 mm) high-visibility orange fiberglass rod with markings every 2 ft for quick distance tracking
• Large airless tires ensure stable handling and easy movement across rough terrain
• Powder-coated tubular steel carrier resists corrosion and stands up to heavy field use
• Equipped with male threaded end fitting and tapered head on the leading end, plus a female threaded fitting on the back
• Hand-operated brake provides smooth, controlled rod payout and retraction
• Compact frame design improves maneuverability and storage efficiency
• Ideal for underground duct cleaning, cable pulling, and locating operations
• Compatible with GMP duct rodder accessories and replacement rods

• Part Number: 90230
• Rod Diameter: 3/8 in. (9 mm)
• Rod Length: 600 ft. (183 m)
• Weight: 89 lbs. (40 kg)
• Core Type: Standard fiberglass core (detectable copper core version available)
• Rod Material: High-visibility orange fiberglass

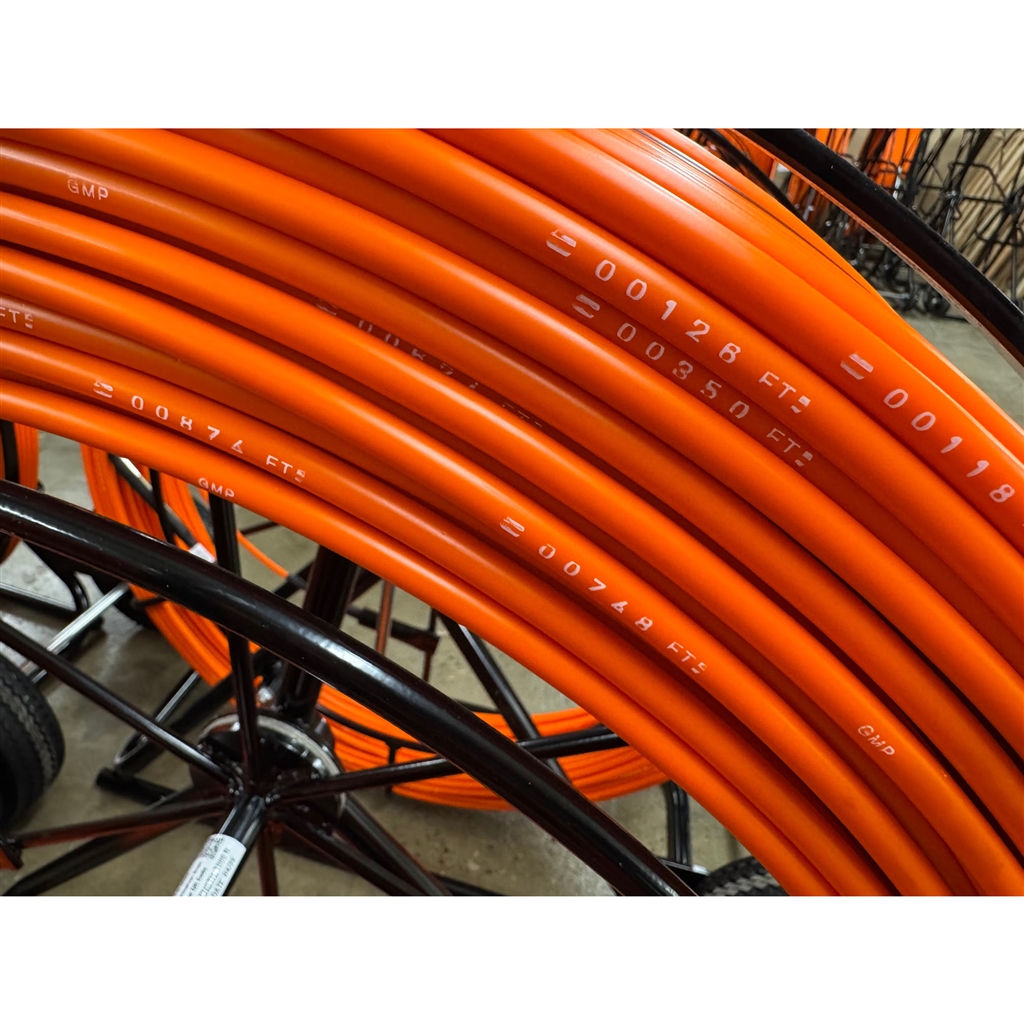

• Length Markings: Every 2 ft (0.6 m)
• Carrier Material: Tubular steel alloy, powder-coated finish
• Brake Type: Hand-operated mechanical brake
• Wheel Type: Large airless tires for stability and easy transport
• End Fittings: Male threaded end with tapered head; female threaded fitting on rear
• Rated Tensile Strength: 10,000 lbs.-f (45.2 kN)
• Rated Pull Strength: 1,400 lbs.-f (6.2 kN)
• Minimum Bend Diameter: 12.2 in. (310 mm)
• Carrier Dimensions: 33.5 in. Dia × 35 in. L × 13.5 in. W × 40.5 in. H (851 × 889 × 343 × 1029 mm)
