GMP 90238 3/8" Continuous Duct Rodder

Home > Categories > Underground Construction > Duct Rodders >

GMP 90238 3/8" Continuous Duct Rodder – 1000 ft (305 m)

Alternative Views:

TTS PRICE: $2,188.09

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 7-9 DAYS

PRODUCT CODE: GMP-90238

QUANTITY:

PRODUCT DESCRIPTION

GMP 90238 3/8" Continuous Duct Rodder - 1000 ft (305 m), Standard Orange Rod

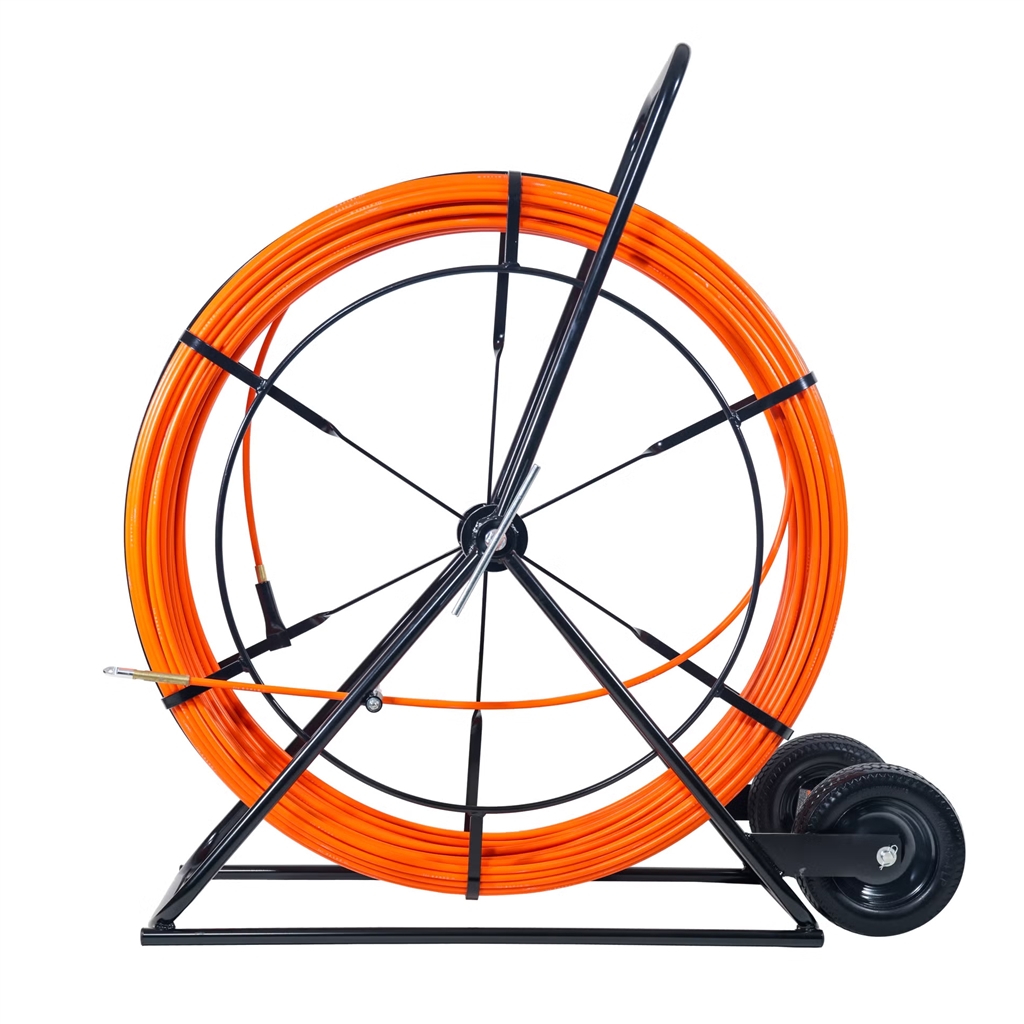

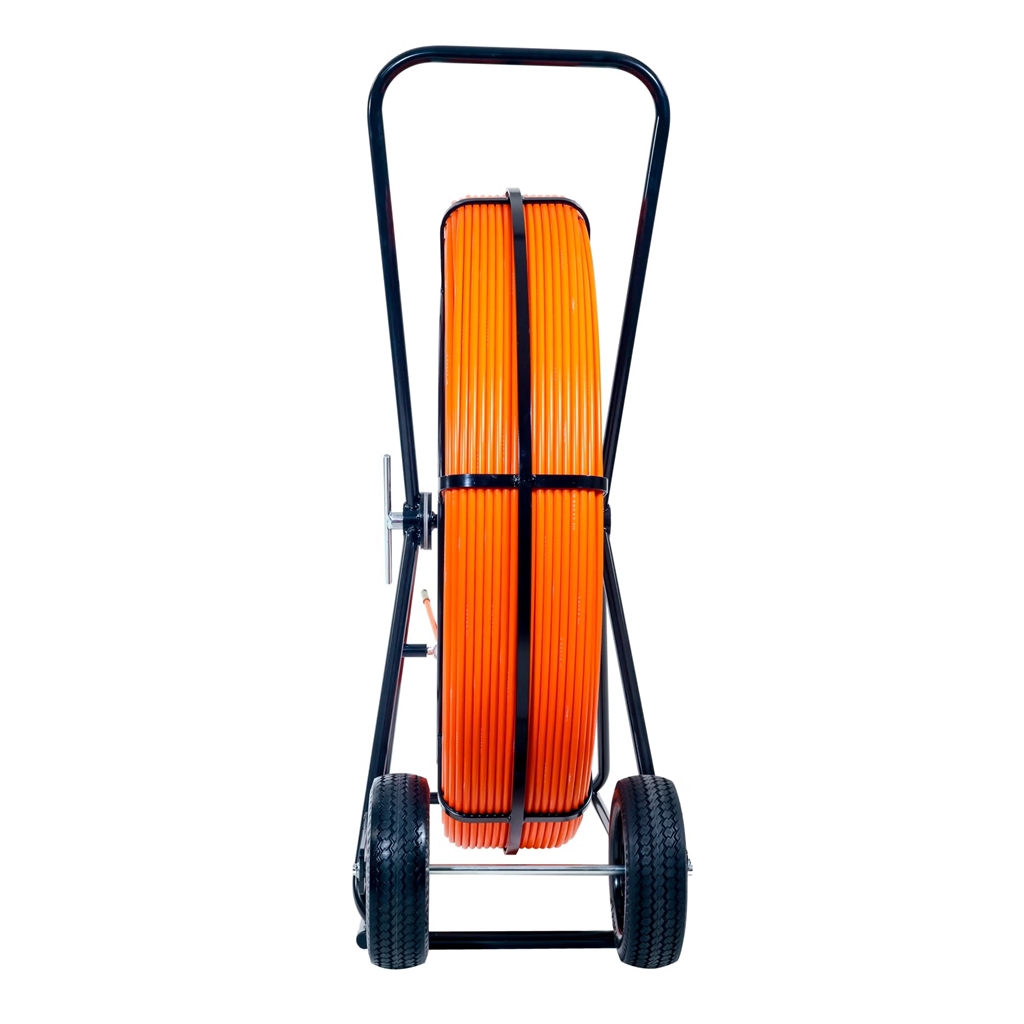

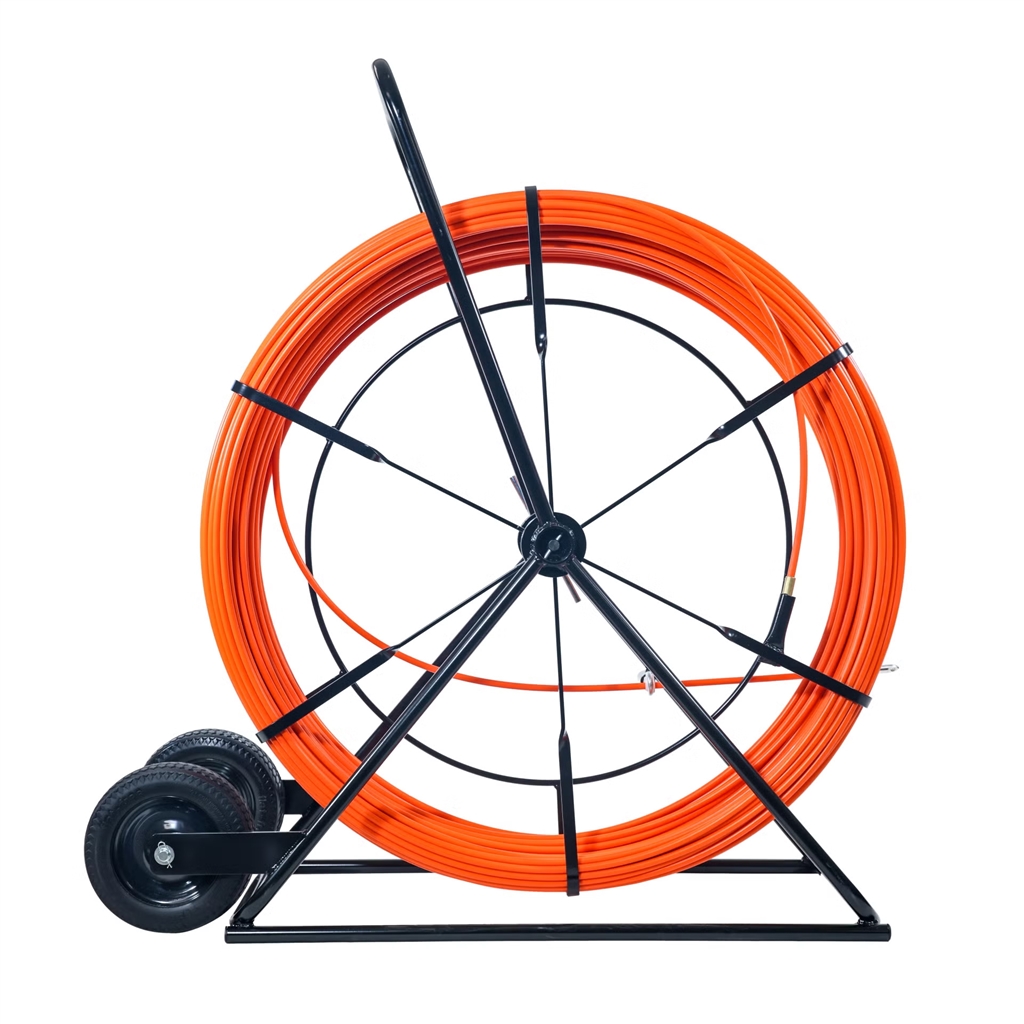

The GMP 90238 Continuous Duct Rodder is a high-capacity, heavy-duty 3/8 inch (9 mm) fiberglass rodder engineered for long duct runs and demanding underground cable installation projects. With a 1000 ft (305 m) length, it offers extended reach for locating, cleaning, and pulling cables through conduits while maintaining exceptional strength and control. Its high-visibility orange fiberglass rod is marked every 2 feet for accurate distance tracking and smooth operation.

Designed for professional use, the GMP 90238 combines a rugged powder-coated tubular steel carrier with large airless tires for excellent stability on uneven or rough terrain. The carrier's integrated hand brake allows precise control during rod payout and retrieval, while the durable fiberglass rod provides the ideal combination of flexibility and stiffness to navigate bends without compromising tensile strength. Trusted by telecom, utility, and electrical professionals, this rodder is built to deliver long-term reliability in tough jobsite conditions.

Features:

Extended 1000 ft (305 m) reach for large-scale underground cable and duct projects

Standard (orange, non-toneable) rod for pushing, pulling and cleaning - for tracing duct routes with a transmitter, choose a toneable (detectable) rodder

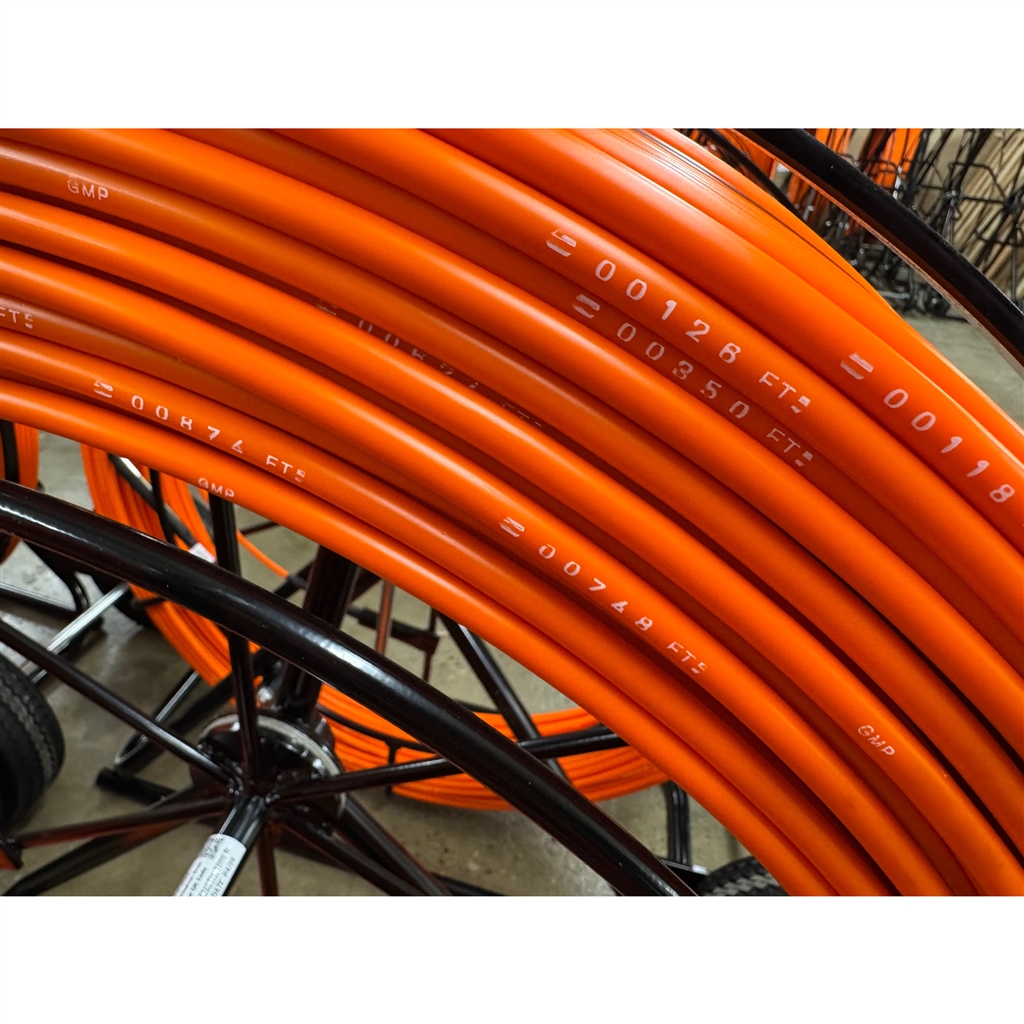

High-visibility 3/8 in. (9 mm) orange fiberglass rod marked every 2 ft for easy measurement

Powder-coated tubular steel frame for superior corrosion resistance and durability

Large airless tires provide excellent mobility and balance on rugged jobsite terrain

Male threaded end fitting with tapered head and female threaded rear fitting for secure connections

Hand-operated brake enables smooth and controlled rod payout

Compact and stable carrier design simplifies transport and storage

Compatible with GMP rodder accessories and replacement rod kits for 3/8 in. standard rod

Specifications:

Rod Diameter: 3/8 in. (9 mm)

Rod Length: 1000 ft. (305 m)

Weight: 113 lbs. (52 kg)

Rod Material: High-visibility orange fiberglass with markings every 2 ft

Core Type: Standard fiberglass core (non-toneable)

Carrier Construction: Tubular steel alloy with powder-coated finish

Brake: Hand-operated manual brake for precise control

Wheel Type: Large airless tires for easy mobility and balance

End Fittings: Male threaded end with tapered head; female threaded fitting on rear

End Fitting Threads: 3/8-16

Rated Tensile Strength: 10,000 lbs.-f (45.2 kN)

Rated Pull Strength: 1,400 lbs.-f (6.2 kN)

Minimum Bend Diameter: 12.2 in. (310 mm)

Carrier Dimensions: 33.5 in. Dia x 35 in. L x 13.5 in. W x 40.5 in. H (851 x 889 x 343 x 1029 mm)

Model: 90238

Available Lengths:

Part #	GMP #	Rod	Length
GMP-90228	90228	3/8 in. (9mm) standard	500 ft (152m)
GMP-90230	90230	3/8 in. (9mm) standard	600 ft (183m)
GMP-90238	90238 (this item)	3/8 in. (9mm) standard	1000 ft (305m)
GMP-90242	90242	3/8 in. (9mm) standard	1200 ft (366m)
GMP-90248	90248	3/8 in. (9mm) standard	1800 ft (549m)

Replacement Parts:

Part #	GMP #	Description
-	88308	Replacement 3/8 in. standard rod, 1000 ft

Accessories:

Part #	GMP #	Description
-	89425	Duct rodder accessory kit for 3/8 in. standard rod, with canvas pouch
GMP-89418	89418	Splice repair kit for 3/8 in. standard (orange) rod

Related Products:

Part #	GMP #	Description
GMP-91238	91238	3/8 in. x 1000 ft toneable (detectable) duct rodder
