GMP Civitella Cable Lasher - Wires Up to 2.25in

GMP Civitella Cable Lasher - Wires Up to 2.25in




Alternative Views:
TTS PRICE: $5,800.00
Sale Price: $4,999.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: GMP-CIVITELLA
QUANTITY:

PRODUCT DESCRIPTION

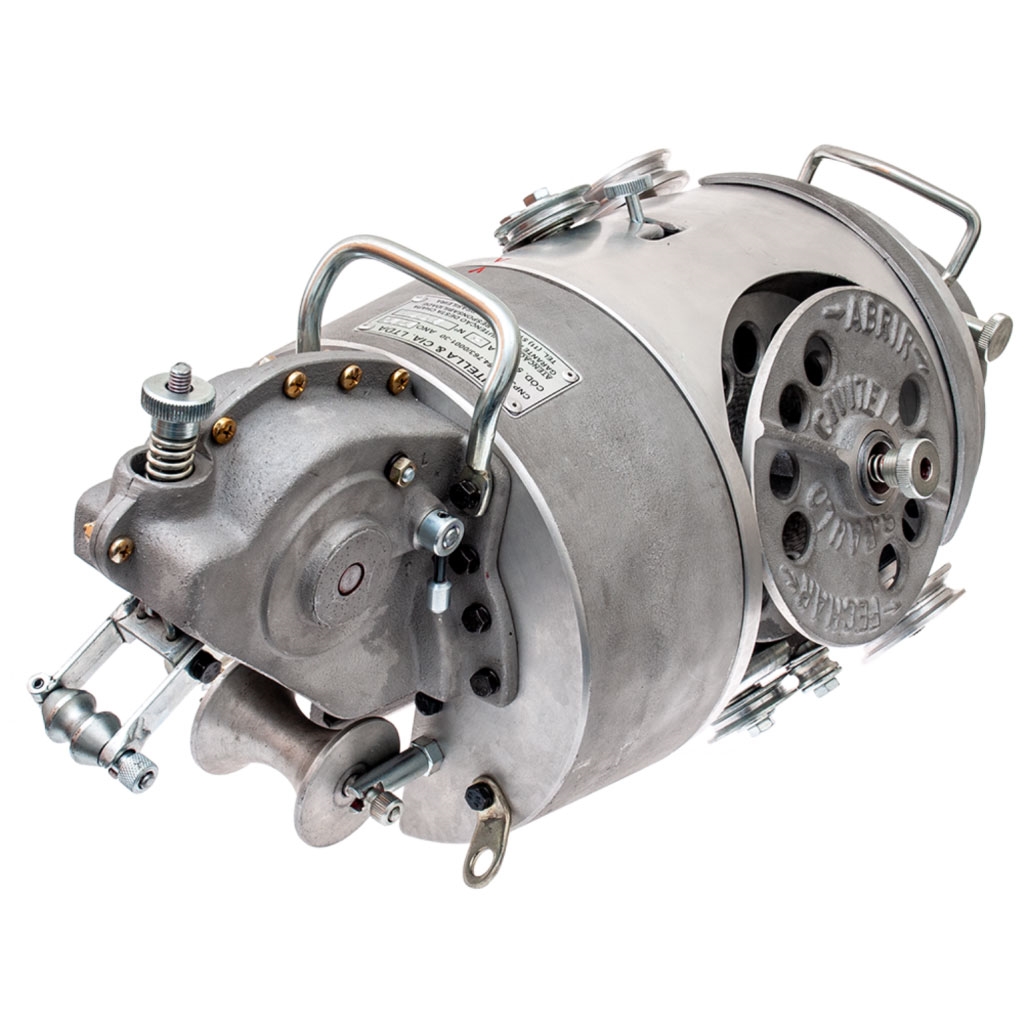

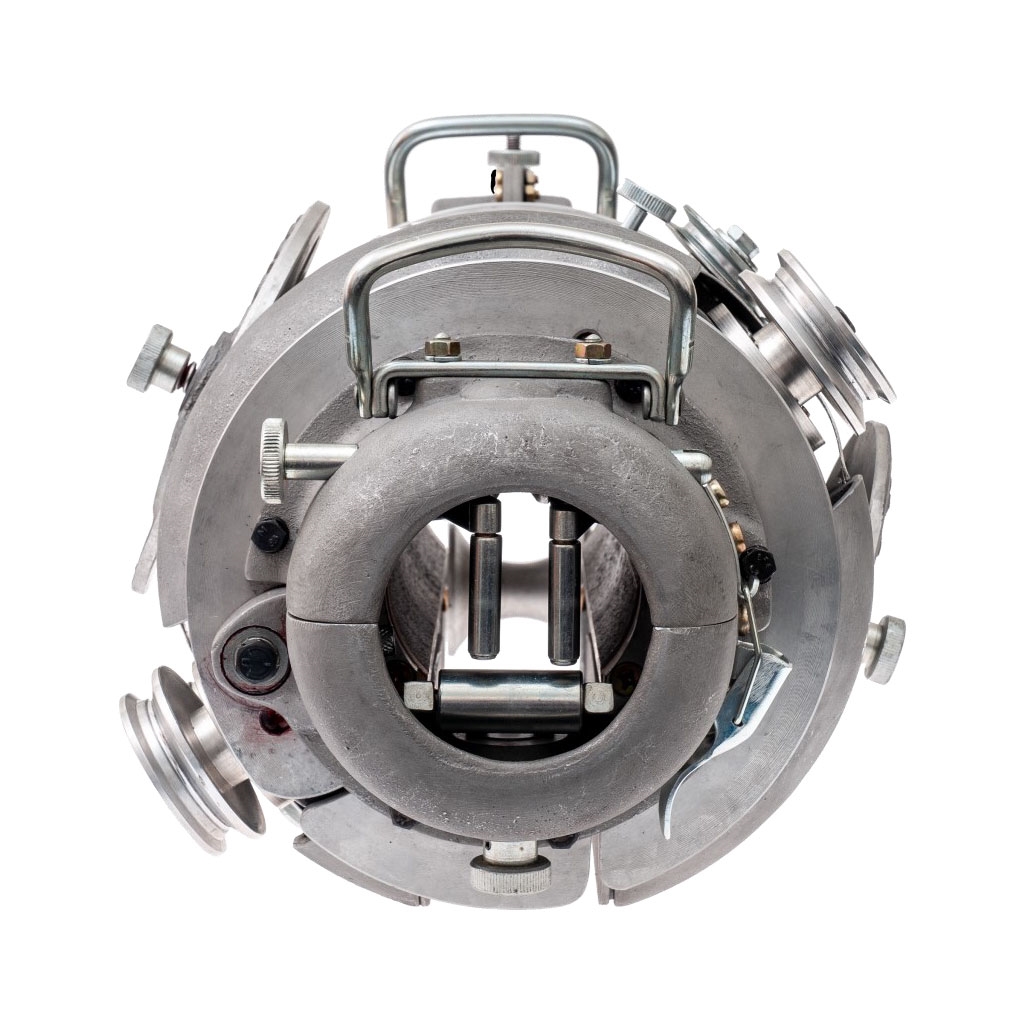

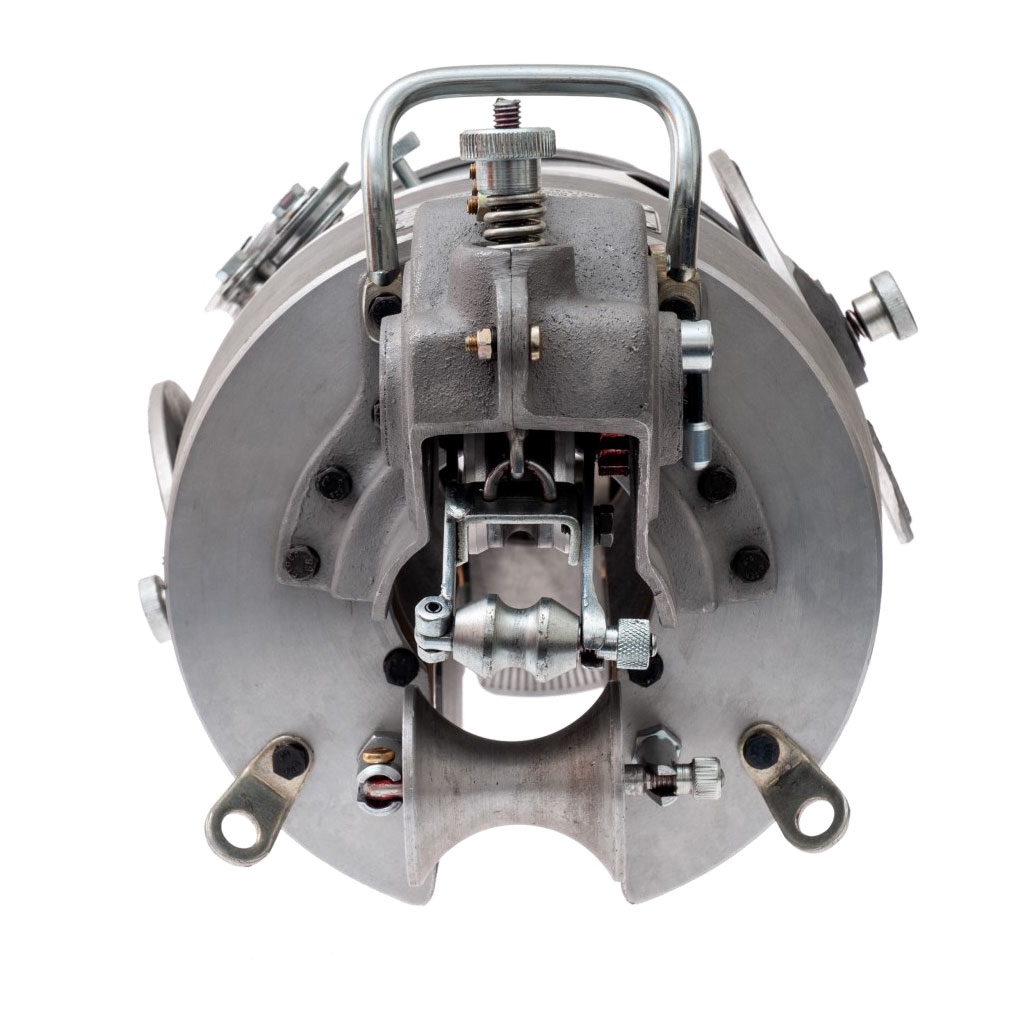

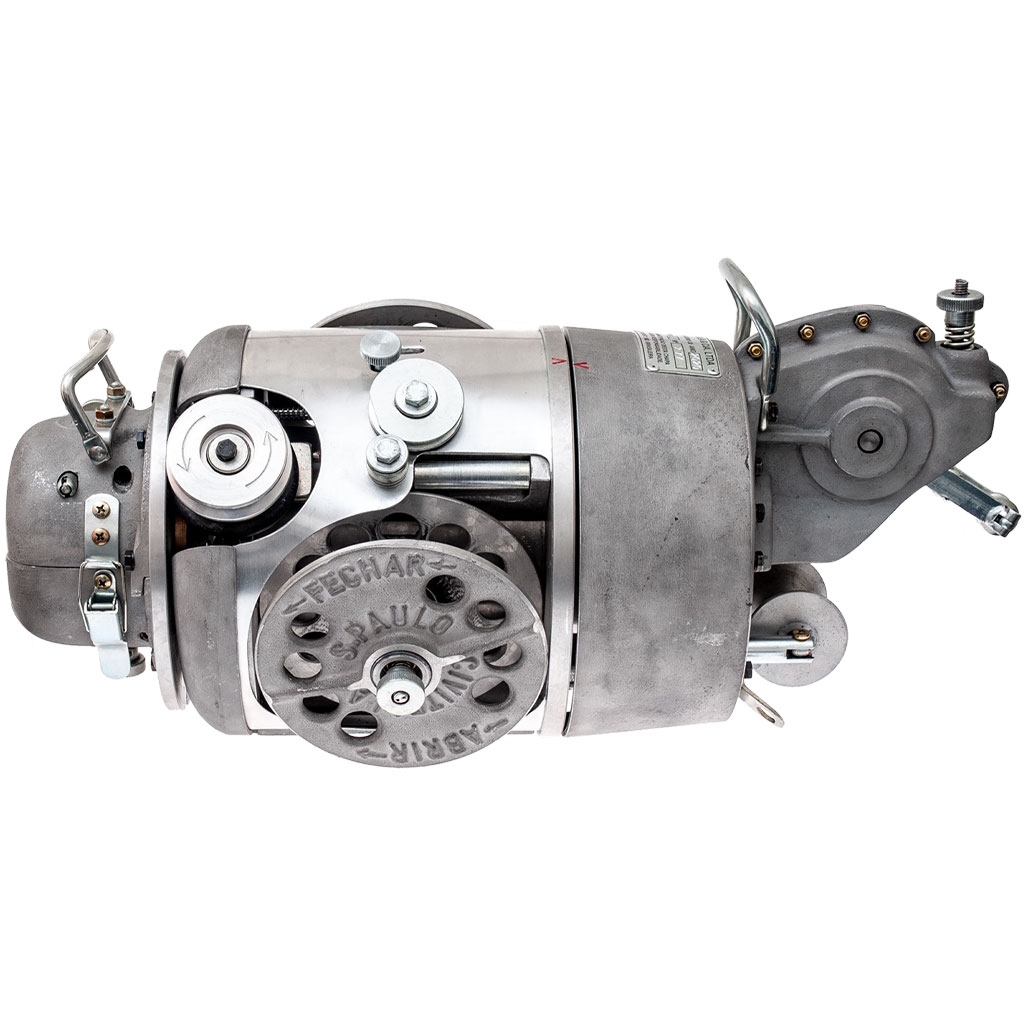

The Civitella cable lasher from General Machine Products has been designed for stringing cable quickly and easily with its lightweight and parallel-pull capability. It can be used for new installs or with existing cables in place.

Features:
  • Lashes single or bundled cables up to 2.2 in. (56mm) onto strand sizes 1/4 in. to 1/2 in. (6-12mm) diameter
  • A simple capstan drive yields a reliable, smooth, and quiet machine
  • Dual wire magazines for loading two coils of stainless steel lashing wire
  • Lightweight and compact: Unloaded weight 40 lbs (34kgs.); only 10.6 in. O.D. x 22.5 in. long (26 x 57cm)
  • Furnished with a sturdy wooden carry case, a bridle pull rope with snap hooks, a screwdriver, a wrench, and an instruction manual

    • Specifications:
  • Max Bundle Size: 2.2 in. (56mm)
  • Strand Size: 1/4 - 1/2 in. 6.6M, 5/16M, 10M
  • Overlashing: Yes
  • Drive: Parallel Pull Wire Drive
  • Wire Size: .038, .045
  • Coil Capacity: 1 or 2 depending on whether single or double lashing
  • Length: 22.5 in. (570mm)
  • Width: 10.6 in. (270mm)
  • Weight: 40 lbs. (34kgs)

    • Includes:
  • 1x Civitella Cable Lasher by GMP
  • 1x Sturdy Wooden Carrying Case
  • 1x Bridle Pull Rope
  • 1x Snap Hook (pre-installed on above)
  • 1x Screwdriver
  • 1x Wrench

    • Operations Manual
