New!  GMP Hydraulic Puller w/ Vehicle Receiver

GMP Hydraulic Puller w/ Vehicle Receiver


Alternative Views:
TTS PRICE: $11,197.99


STATUS: ON ORDER


Availability:
SHIP ESTIMATE 7-9 DAYS

PRODUCT CODE: GMP-70484
QUANTITY:

PRODUCT DESCRIPTION

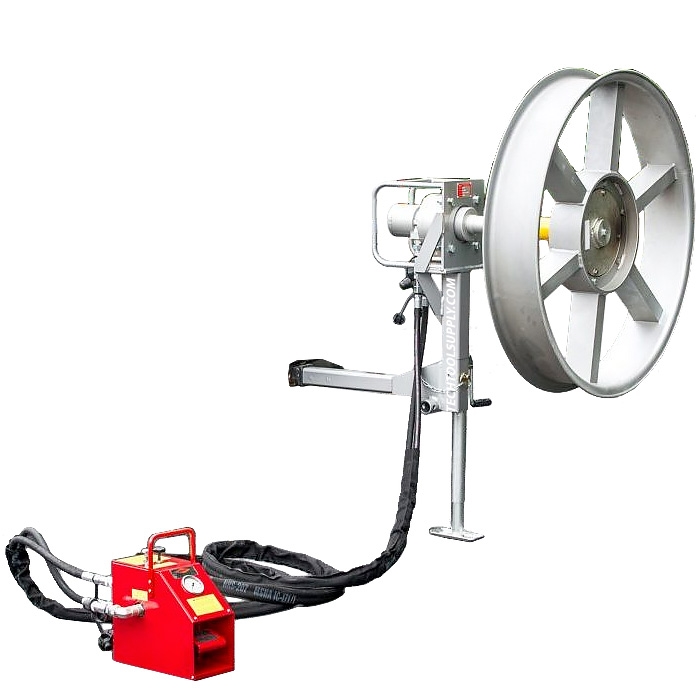

GMP 71484 Hydraulically Limited Cable Puller with Vehicle Receiver Mount (formerly 70484)

The Hydraulically Limited Cable Puller is designed to offer exceptional value while providing critical speed control and overload protection. It is simple to set up and easy to operate. GMP's Cable Puller has all of the features contractors demand, plus GMP quality and durability you can rely on . . . year after year.

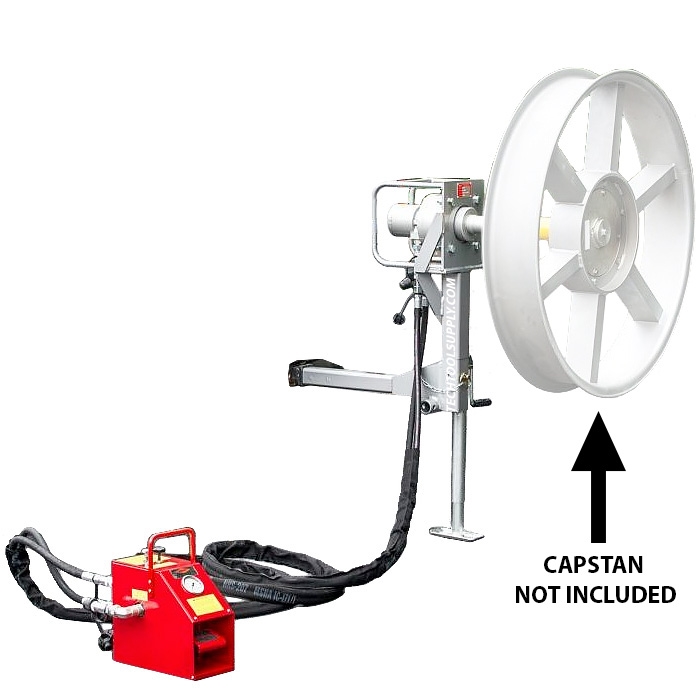

This is GMP part 71484 (formerly 70484), the version with a vehicle receiver mount and support jack. The capstan and the hydraulic power source are not included.

Features:
  • Adjustable pull control, up to 1000 lbs. (453kg) maximum on a 42 in. (107cm) diameter capstan @ 2350 PSI (162 bar) - capstan NOT INCLUDED
  • Speeds up to 425 ft/min @ 15 gpm flow

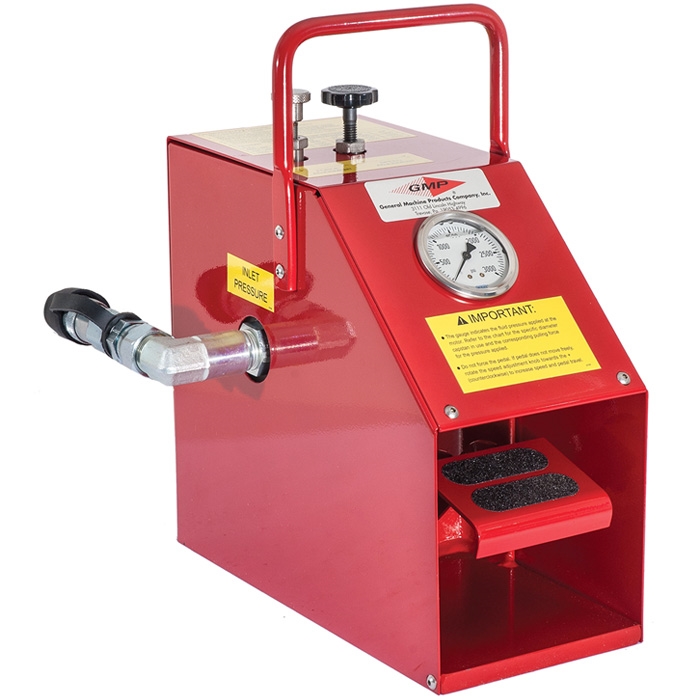

  • Control panel with pressure gauge, pressure adjustment knob and directional foot control valve
  • 1/2 in. (12.7mm) non-spill quick-disconnect fittings for 2500 psi maximum hydraulic source input
  • Vehicle receiver mount with support jack
  • Capstan mounts on a 2-7/16 in. (62mm) drive shaft with bayonet or cross pin

    • Includes:
  • 1 x Hydraulically Limited Cable Puller Motor with Vehicle Receiver Mount
  • 1 x Support Jack
  • 1 x Foot Control Valve
  • 2 x Hydraulic hoses

    • Specifications:
  • Part: GMP 71484 (formerly 70484)
  • Max Pull: 1000 lbs. (453kg) on a 42 in. (107cm) capstan @ 2350 PSI (162 bar)
  • Speed: Up to 425 ft/min @ 15 gpm
  • Hydraulic Input: 2500 psi max, 1/2 in. (12.7mm) non-spill quick-disconnect fittings
  • Capstan Drive Shaft: 2-7/16 in. (62mm), bayonet or cross pin
  • Mount: Vehicle receiver with support jack
  • Model: 71484


    • Replacement Parts:
    Part #GMP #Description
    -37706Hydraulic motor assembly
    -37740Foot control valve
    -31219Vehicle receiver mount with support jack (for 2 in. receiver)
    -31210Support jack (replacement)
    -30901Hydraulic hoses (2), 1/2 in. dia. x 20 ft

    Accessories:
    Part #GMP #Description
    -70487Stanley hydraulic power unit - 8 gpm @ 2000 psi, with (2) 1/2 in. x 20 ft (6 m) hydraulic hoses
    -15470Mid-assist fiber optic capstan - 25 in. working dia., 5 in. width, 86 lbs
    -70472Mid-assist fiber optic capstan - 32 in. working dia., 7.5 in. width, 86 lbs
    -71474Mid-assist fiber optic capstan - 42 in. working dia., 7.5 in. width, 110 lbs
    -31260Swiveling hitch mount stand kit

    Related Products:
    Part #GMP #Description
    -71483Cable puller with self-support frame, foot control valve and (2) hoses
    -71486Cable puller with foot control valve and (2) hoses for 2-1/2 in. square socket mount
    Hydraulically Limited Cable Puller Operating Instructions
