GMP 71130 Rope to Rope Connector

Home > Categories > Underground Construction > Pulling >

GMP Rope to Rope Connector - 15,000 lb

TTS PRICE: $353.99

STATUS: ON ORDER

Availability:

SHIP ESTIMATE 7-9 DAYS

PRODUCT CODE: GMP-71130

QUANTITY:

PRODUCT DESCRIPTION

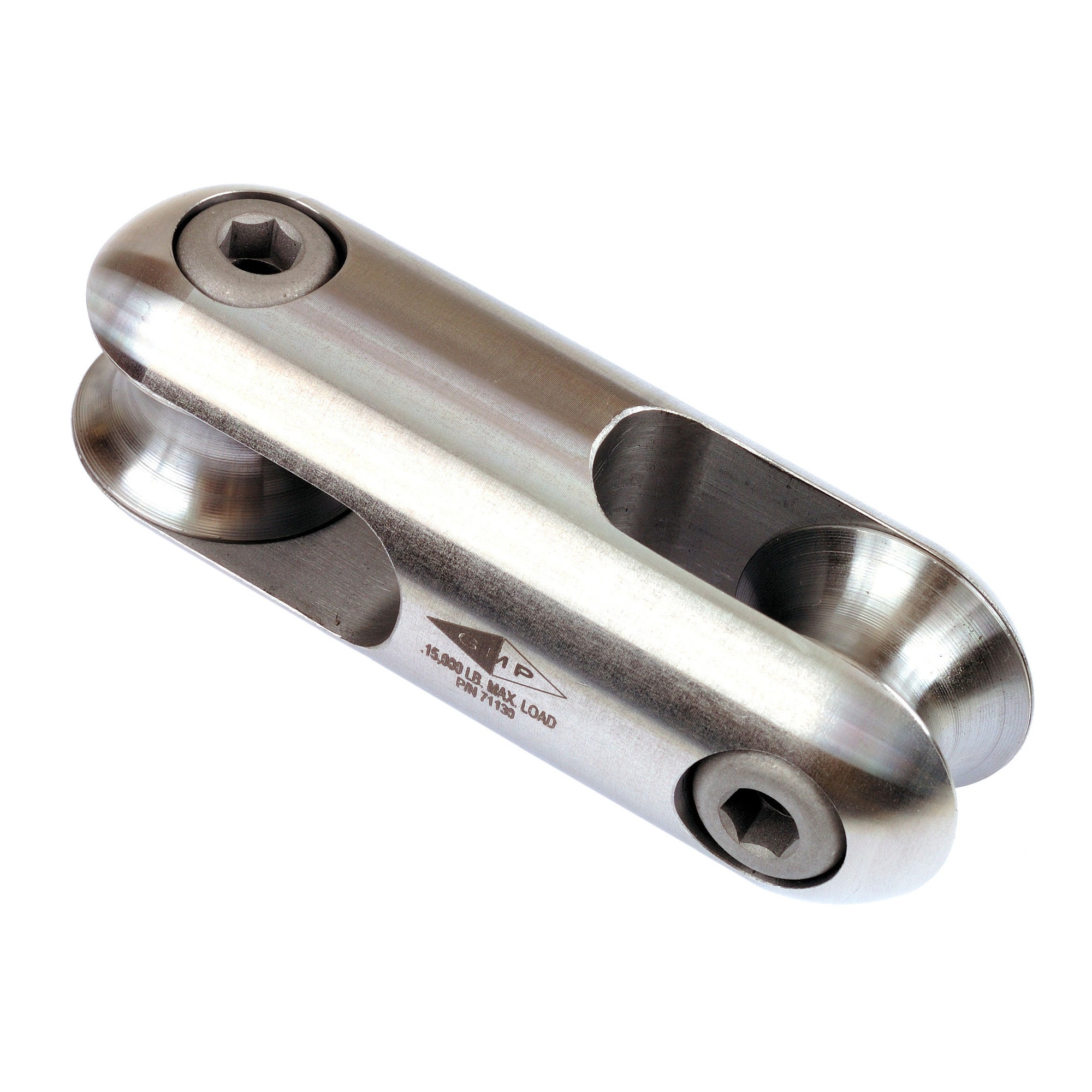

GMP 71130 Stainless Steel Rope to Rope Connector - Ropes up to 7/8", 15,000 lb Rated

The GMP 71130 joins two pulling ropes up to 7/8in (22mm) diameter, rated to 15,000 lb. Use it to extend a pull line or couple ropes on long underground and aerial pulls. It is made entirely from stainless steel and comes in one size, since it also works on smaller ropes. For a rope to swivel connection, GMP also makes the 71131 (1/2in, 7,000 lb) and 71132 (21/32in, 15,000 lb).

Features:

Connects two ropes up to 7/8in diameter

Rated 15,000 lb (6804 kg) max. load

Made entirely from stainless steel

One size also handles smaller ropes

Safety factor 3:1 (horizontal pull only)

Specifications:

Product: GMP 71130 Rope to Rope Connector

Rope Size: Up to 7/8in (22mm) diameter

Rating: 15,000 lb (6804 kg) max. load

Safety Factor: 3:1 (horizontal pull only)

Material: Stainless steel

Weight: 2.7 lb (1.2 kg)

Model: 71130

Related Products:

Part #	GMP #	Description
-	71131	1/2 in. rope to swivel connector - 7,000 lb (3175 kg); use with GMP swivel 70137 or 70138
-	71132	21/32 in. rope to swivel connector - 15,000 lb (6804 kg); use with GMP swivel 70139
