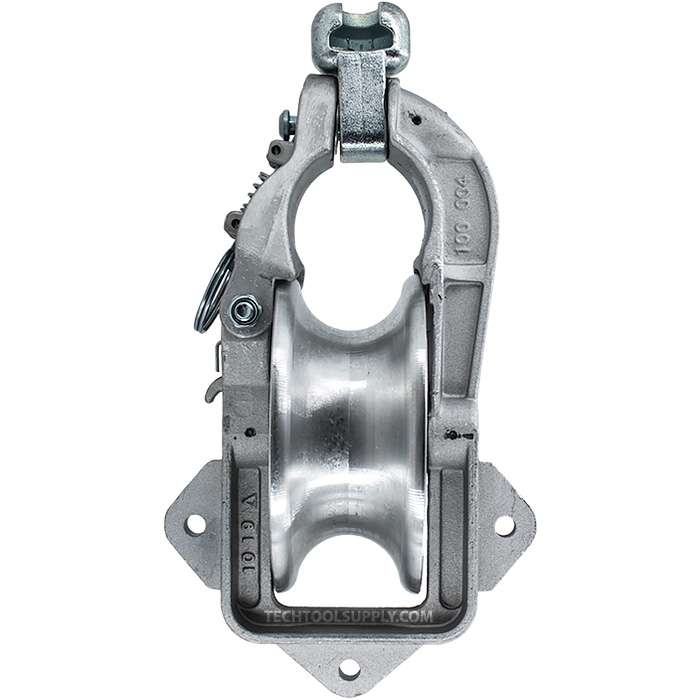

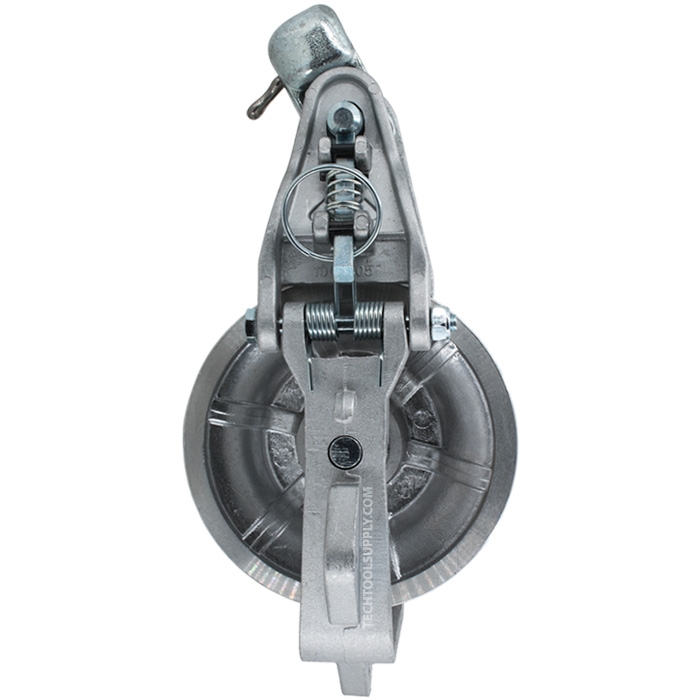

A lightweight, versatile, and dependable engineer’s sheave. The Bethea UB-1-A Universal Roller delivers the perfect balance of strength and portability for demanding stringing operations. At just 9.4 lbs, it’s easy to handle in the field, yet rugged enough to withstand tough conditions while supporting heavy conductor loads. Designed for compatibility, the UB-1-A can be intermixed with similar stringing blocks and mounting attachments from other manufacturers without affecting conductor sag or tension.
Built for long-term reliability, the UB-1-A uses aluminum parts cast from high-strength A356 alloy, heat-treated to the T6 condition. This ensures durability under rough treatment and adverse jobsite environments while maintaining performance under load. Permanently lubricated ball bearings and precision machining provide smooth, efficient operation across a wide temperature range.
Key Features:
- Lightweight design (as low as 8.1 lbs) for easier handling
- Compatible with similar blocks and attachments from other brands
- Profile-machined groove ensures concentricity and smooth cable travel
- Cast from A356 aluminum and heat-treated to T6 for superior strength
- Permanently lubricated for operation from -5°F to 250°F
- Double-shielded, deep groove ball bearings for durability
Specifications:
- Weight: 8.1–13.0 lbs depending on configuration
- Working load limit: 2,500 lbs
- Block outer diameter: 7"
- Sheave rim width: 3"
- Throat width: 3-1/8"
- Material: A356-T6 aluminum alloy
- Temperature range: -5°F to 250°F
✅ Strong, lightweight, and compatible with existing equipment — Get Yours Now!
