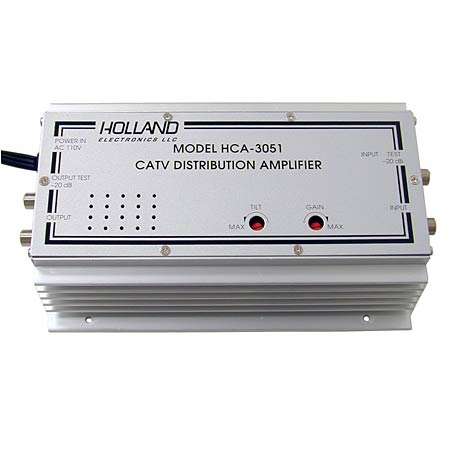

Holland HCA-3051 30dB CATV Distribution Amplifier

Home > Categories > RF Distribution > Amplifiers > Analog Cable Amplifiers >

Holland HCA-3051 30dB Amplifier

TTS PRICE: $245.99

STATUS: ON ORDER

Availability:

PRODUCT CODE: HCA-3051

QUANTITY:

PRODUCT DESCRIPTION

The HCA Series amplifiers incorporate high quality push-pull hybrid modules to provide the highest output and lowest distortion levels possible. A regulated power supply along with an extra large heatsink case provide the reliability required for operation in the most hostile environments.

Features:

Low Distortion Hybrid Amplifiers

High Output

Spike Protection

Large Heatsink Case

Adjustable Gain & Slope

Specifications:

Frequency Range: 50-550MHz

Gain: 30dB

Gain Adjust Range: 18 dB

Maximum Input: 15 dBmV (77 Ch.)

Maximum Output: 45 dBmV (77 Ch.)

Slope: 15 dB (Adj.)

Flatness: ±1 dB

Noise Figure: 6.5 dB

Input Return Loss (Min.): 12 dB

Output Return Loss (Min.): 12 dB

Cross Modulation (XMOD): -58 dB

Composite Second Order (CSO): -75 dB

Composite Triple Beat (CTB): -60 dB

Power Requirements: 117VAC, 60Hz, 8 W

Operating Temperature: -20° to 60 ̊ Celsius

Dimensions: 8 x 5.375 x 2

Weight: 3.5 lbs.
