Holland HCA-5051 50dB Amplifier

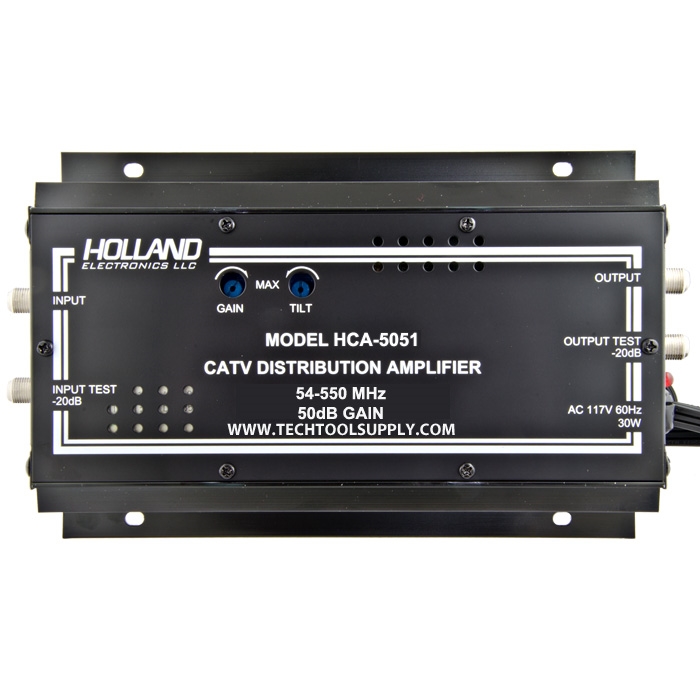

Holland HCA-5051 50dB Amplifier


TTS PRICE: $251.99

STATUS: ON ORDER

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: HCA-5051
QUANTITY:

PRODUCT DESCRIPTION


The HCA Series amplifiers incorporate high quality push-pull hybrid modules to provide the highest output and lowest distortion levels possible. A regulated power supply along with an extra large heatsink case provide the reliability required for operation in the most hostile environments.

Features:
  • Low Distortion Hybrid Amplifiers
  • High Output
  • Spike Protection
  • Large Heatsink Case
  • Adjustable Gain & Slope

    • Specifications:
  • Frequency Range: 54-550MHz
  • Gain: 50dB
  • Gain Adjust Range: 18dB
  • Maximum Input: -5 dBmV **
  • Maximum Output: 45 dBmV (77 Ch.)
  • Slope: 12 dB (Adj.)
  • Flatness: ±1 dB
  • Noise Figure: 6.5 dB
  • Input Return Loss (Min.): 12 dB
  • Output Return Loss (Min.): 12 dB
  • Cross Modulation (XMOD): -58 dB
  • Composite Second Order (CSO): -75 dB
  • Composite Triple Beat (CTB): -60 dB
  • Power Requirements: 117VAC, 60Hz, 8 W
  • Operating Temperature: -10 ̊ to 50 ̊ Celsius
  • Dimensions: 7.75 x 3 x 1.75
  • Weight: 2.55 lbs.

    • ** Maximum input specified at full channel capacity
