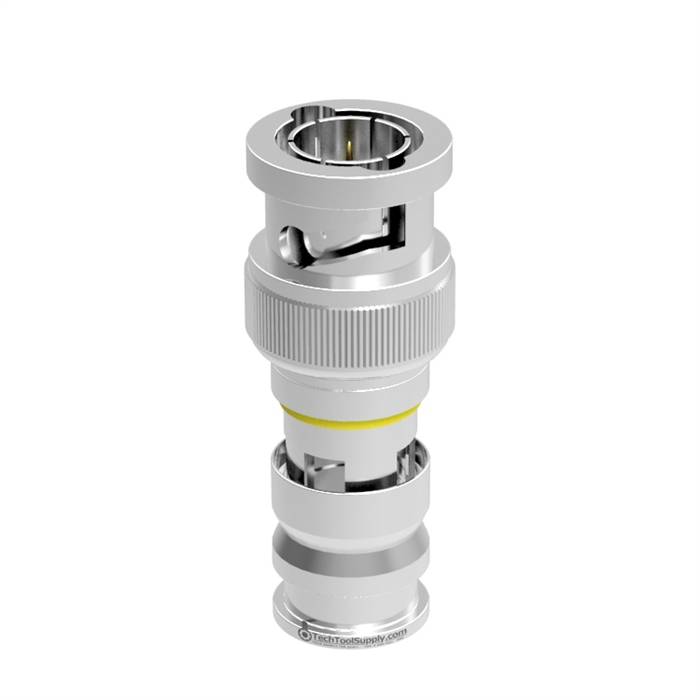

Super-Fast MCV RG59 BNC Compression Connector - 1pc

Super-Fast MCV RG59 BNC Compression Connector - 1pc




TTS PRICE: $1.89

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: HOL-BNC59-MCV
QUANTITY:

PRODUCT DESCRIPTION


If you install compression connectors, you know that folding the braid back on your cable can be time consuming, and often times painful. Holland Electronics new MCV connectors do NOT require you to fold the braided shielding back! You are not going to believe how fast and simple these connectors are to install!

Holland Electronics created this compression connectors with the Commercial AV Installer in mind. The MCV Universal Compression Connectors fits a wide variety of coaxial cables that vary in size between manufacturers. Some differences often include thickness of jacket or diameter of insulation depending on variance in materials used in the cable manufacturing process.

Features:
  • Easy insertion
  • All metal construction
  • Optimized for digital video applications
  • Patented viewing window
  • Accommodates color-coded application bands (Found Here)

  • Specifications:
  • Quantity: 1
  • Cable Type: RG59
  • Connector: BNC
  • Frequency Range: DC - 3,000 MHz
  • Return Loss (1 GHz): > -27dB
  • Return Loss (3 GHz): > -21dB
  • Insertion Loss (1 GHz): < .15 dB Max
  • Jacket O.D. Range: 5.8 - 6.1
  • Pull Force: 55 lbs. typical

  • Feature Sheet & Sizing Info

    Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 3 WRITE A REVIEW

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Better Compression Connector August 4, 2017
    Reviewer: Phillip Smith from Arlington, TX United States
    I have wasted money on lots of compression connectors only to be disappointed for bad contact with center pins.  These connectors are perfect and easy to crimp.

    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 New BNC January 29, 2017
    Reviewer: Calvin Williams from Jackson, MI United States
    First time using them took me a while to get the hang of it
    Swept them at 2.4g not bad.
    I  recommend them in for every job.


    Was this review helpful to you?

      So far, this Product Review was helpful to 0 TTS Customers.

    5 of 5 Different January 24, 2016
    Reviewer: Arthur21743@yahoo.com from Wylie, TX United States
    Not the usual long-necked jobbies I was used to.  You will probably have to shorten up the travel on your compression tool to adapt it to this shorter version.  Every one I put in is working fine, though.

    Just be sure to squeeze until you hear a "snap!".

    Was this review helpful to you?
