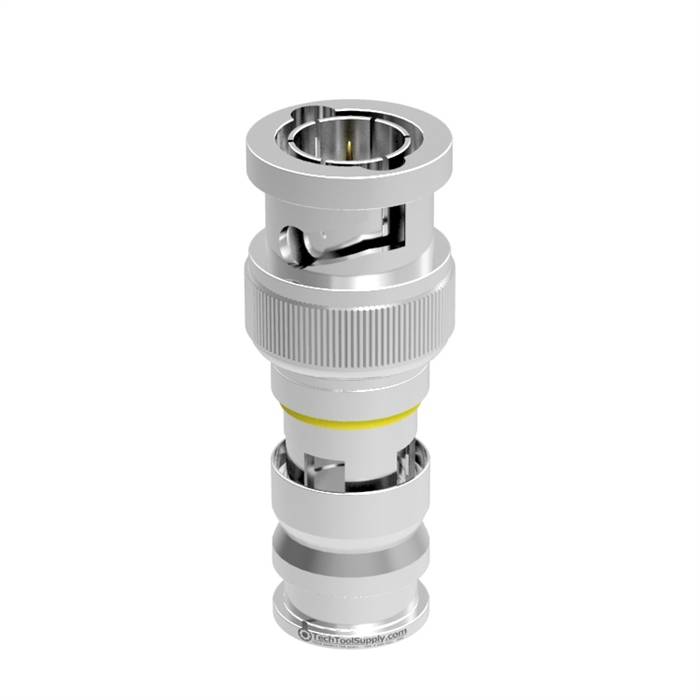

If you install compression connectors, you know that folding the braid back on your cable can be time consuming, and often times painful. Holland Electronics new MCV connectors do NOT require you to fold the braided shielding back! You are not going to believe how fast and simple these connectors are to install!
Holland Electronics created this compression connectors with the Commercial AV Installer in mind. The MCV Universal Compression Connectors fits a wide variety of coaxial cables that vary in size between manufacturers. Some differences often include thickness of jacket or diameter of insulation depending on variance in materials used in the cable manufacturing process.
All metal construction
Optimized for digital video applications
Patented viewing window
Accommodates color-coded application bands (Found Here)
Cable Type: RG59
Frequency Range: DC - 3,000 MHz
Return Loss (1 GHz): > -27dB
Return Loss (3 GHz): > -21dB
Insertion Loss (1 GHz): < .15 dB Max
Jacket O.D. Range: 5.8 - 6.1
Pull Force: 55 lbs. typical
Feature Sheet & Sizing Info
