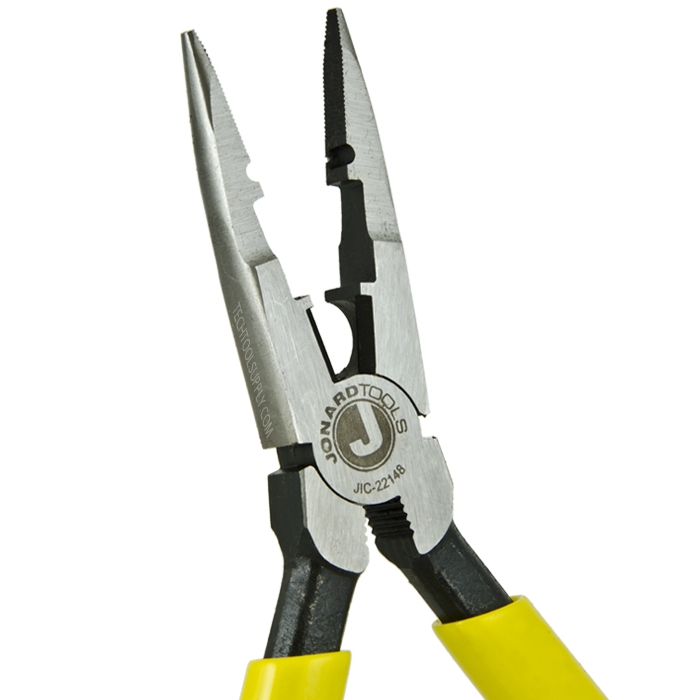

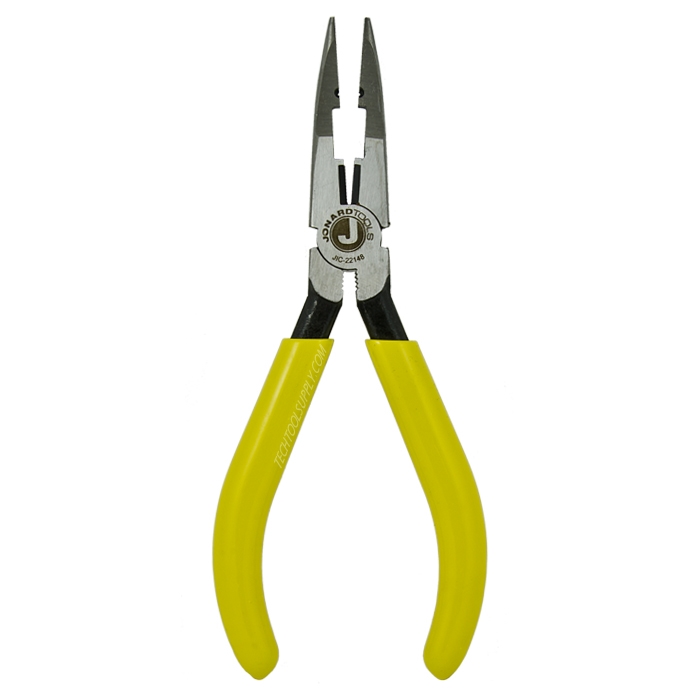

Jonard JIC-22148 Combo Crimper Long Nose Pliers - 5-in-1, UR/UY/UG & 709 Connectors
CIFA# 23977. Jonard's JIC-22148 is five tools in one: it combines a crimper for UR/UY/UG connectors (such as the UR-25 and UY2-25), AMP Tel-Splice connectors, 709 series connectors and "B" type connectors with a long nose plier. With a crusher, side cutter, 0.030" stripping hole for 22 AWG wire, and yellow plastic-dipped handles. Made of heat-treated chrome vanadium steel with induction hardened cutting edges.
Features:
5-in-1 tool: long nose plier, crimper, stripper, cutter and crusher
Crimps UR/UY/UG connectors (UR-25, UY2-25), AMP Tel-Splice connectors, 709 series connectors and "B" type connectors
0.030" stripping hole strips 22 AWG wire
Heat-treated chrome vanadium steel with induction hardened cutting edges
Dipped plastic grips for comfort and torque
Lifetime warranty
Specifications:
Functions: Long nose plier, crimper, stripper, cutter, crusher
Cut Type: Side-Cut
Cutter Length: 13/32" (10.318mm)
Jaw Length: 1-7/8" (47.63mm)
Jaw Thickness: 3/8" (9.53mm)
Jaw Width: 13/16" (20.64mm)
Stripping Hole: 0.030" (0.762mm) - 22 AWG
Material: Chrome Vanadium Steel
Length: 6-7/8" (174.623mm)
Weight: 0.37 lb (169 g)
CIFA #: 23977
Model: JIC-22148
Data Sheet - Combo Crimper, Long Nose Pliers - JIC-22148
|
|
|
