Jonard TK-DC08 Data Center Fiber Installation Kit - Strip, Prep, Terminate & Verify Fiber
The Jonard TK-DC08 Data Center Fiber Installation Kit outfits technicians for installing fiber in data center environments - stripping and preparing cable, terminating runs, and verifying the finished link. From pulling new trunks during a buildout to landing pigtails in a high-density panel, the installation workflow is covered in one organized, field-ready kit.
The JIC-375 three-hole fiber stripper handles the 1.6-3.0 mm jacket, 600-900 micron buffer, and 250 micron coating down to bare 125 micron glass, with side-cutting pliers and Kevlar shears backing up the prep work. Then prove the run: the VFL-150 visual fault locator lights up breaks and macrobends in single and multimode fiber up to 3 miles out, and the FPM-50S optical power meter confirms loss across 800-1650 nm at 0.01 dB resolution. Wet fiber wipes and cleaning supplies keep every termination contamination-free.
Features:
Complete fiber installation workflow: strip, prep, terminate, verify
Armored cable slitting and ringing plus round cable stripping across a wide range of outer diameters
JIC-375 three-hole stripper takes jacket, buffer, and coating to bare 125 micron fiber
Kevlar shears, high-leverage cable cutter, splicer's knife and ratcheting duct and cable slitter
VFL-150 visual fault locator finds breaks and bends up to 3 miles
FPM-50S optical power meter: 800-1650 nm, 0.01 dB resolution
Purpose-built for data center trunk and panel installation work

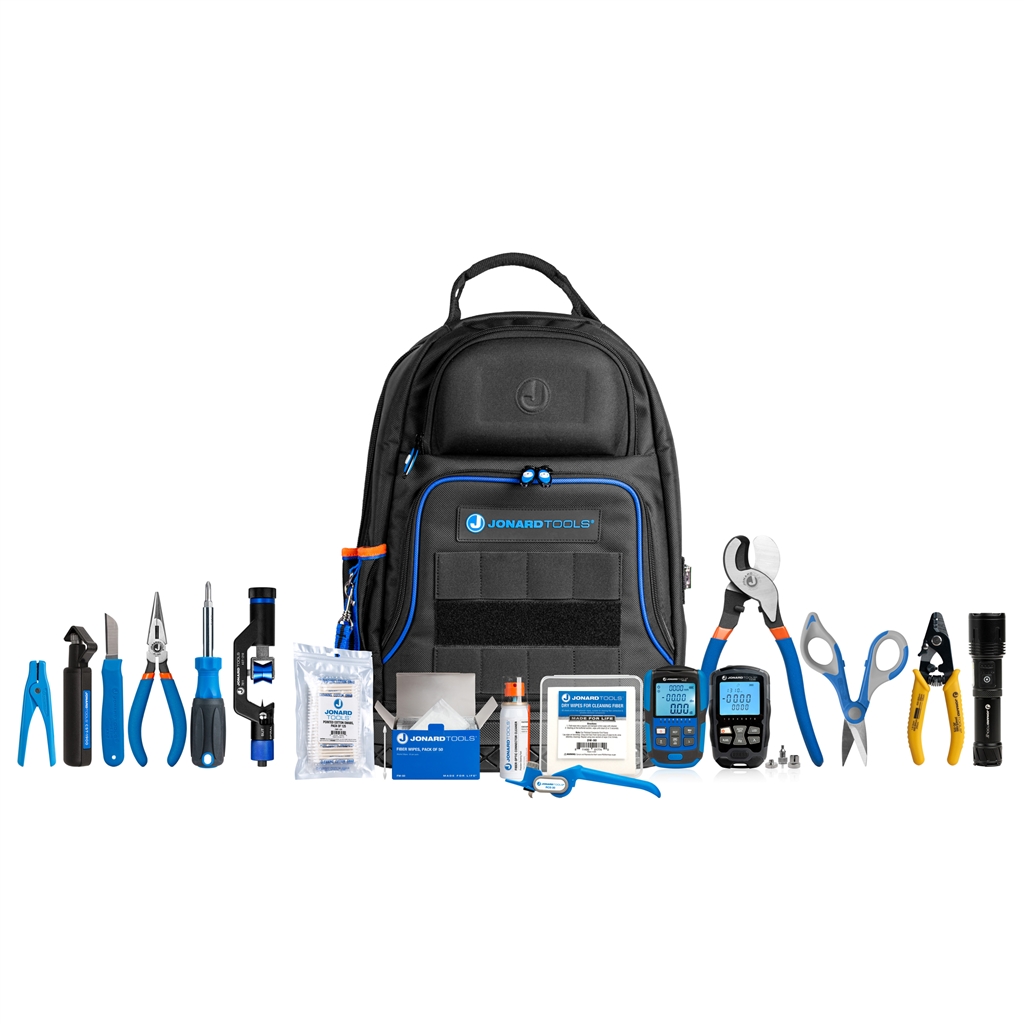

Kit Includes:
1 x VFL-150 Visual Fault Locator Kit with LC Adapter
1 x FPM-50S Mini Optical Power Meter (-50 to +26 dBm)
1 x JIC-375 Fiber Optic Stripper, Three Hole
1 x AST-210 CableSaber+ Armored Cable Slitter
1 x CST-1900 Round Cable Strip & Ring Tool
1 x JIC-186 Wire & Kevlar Cutting Shears
1 x JIC-63050 High Leverage Cable Cutter
1 x KN-7 Cable Splicer's Knife
1 x RCS-30 Ratcheting Duct and Cable Slitter
1 x JIC-842 Long Nose and Side Cutting Pliers
1 x FW-50 Fiber Wipes, Wet (Pack of 50)
1 x SOL-F1 Solis Rechargeable Tactical Flashlight
1 x BP-100 Technician's Tool Bag Backpack
Plus additional Jonard fiber installation tools
Specifications:
Data Center Type: Traditional (Edge, Enterprise, Colocation), Hyperscale (Cloud, Large-Scale), AI Network (Campus/GPU Clusters)
Environment Type: Inside Plant (ISP) & Outside Plant to Inside Plant (OSP-to-ISP)
Solutions Focus: Cabling Infrastructure - Fiber
Lifecycle Phase: Prep & Install, Cleaning & Inspection, Testing & Commission, Repair & Maintenance
Cutting: Serrated cut Kevlar and wire; side-cut high strength wire, bolts, nails; diagonal cut wire; shear cut 2/0 copper, 4/0 aluminum, 100-pair (24 AWG) cable up to 13/16" (20.64 mm); slice cut cable jackets
Drivers: Phillips #1 x 4", #2 x 4"; Cabinet Slotted 3/16" x 4", 9/32" x 4"; Hex 1/4" x 4", 5/16" x 4"
Fiber Testing: Insertion loss 1310/1550 nm; optical power 800-1650 nm, -50 to +26 dBm; visual fault location 2 mW
Cleaning: Wet and dry wiping
Illumination: 250-1500 lm, 4-8 hrs
Kit Weight: approx. 17.1 lb
Manufacturer: Jonard Industries
Model: TK-DC08
TK-DC08 - Data Center Fiber Installation Kit - Data Sheet
|
|
|
 |
|
 |
|
