Jonard TK-182 Fiber Optic Connector Cleaning Kit - LC, MU, SC, ST & FC, Dry and Wet-to-Dry
The Jonard TK-182 is a purpose-built connector cleaning kit for techs who install, patch and troubleshoot LC, MU, SC, ST and FC links - in a telecom closet, a central office, an FTTH drop or a data center rack. It covers both methods the standards call for: a dry pass for everyday dust, and a wet-to-dry pass for oils and residue a dry cleaner cannot lift.
Connector contamination is the leading cause of fiber link failures. A fingerprint or a speck of dust on the end-face raises insertion loss and back reflection, and it does not wipe itself off when the connector is mated - clean every connector, every time it is unmated.
Features:
One-click cleaners for 1.25 mm (LC, MU) and 2.5 mm (SC, ST, FC) connectors, each good for over 800 cleanings
Cleaners work on connector ends and inside bulkhead adapters/ports
Each push turns the cleaning tip against the end-face and advances fresh tape; a window shows how much tape is left
Fiber splice and connector cleaning fluid: quick-drying and static dissipative, 650+ cleanings per 3 oz. can
Lint-free dry wipes for wet-to-dry cleaning: wet a spot on the FCF-3 cap, then draw the end-face from wet to dry in one pass
H-20 Rugged Carrying Case holds the whole kit

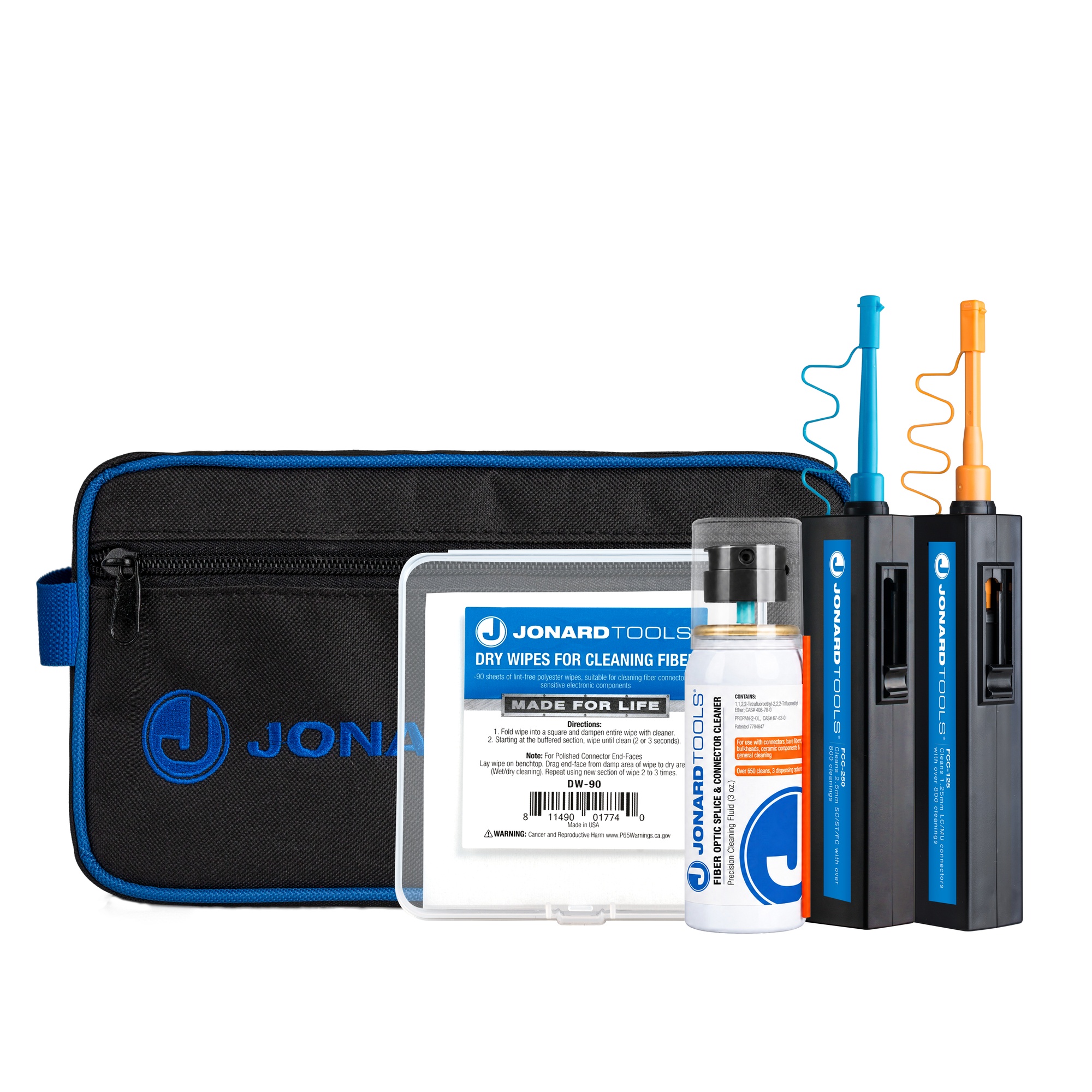

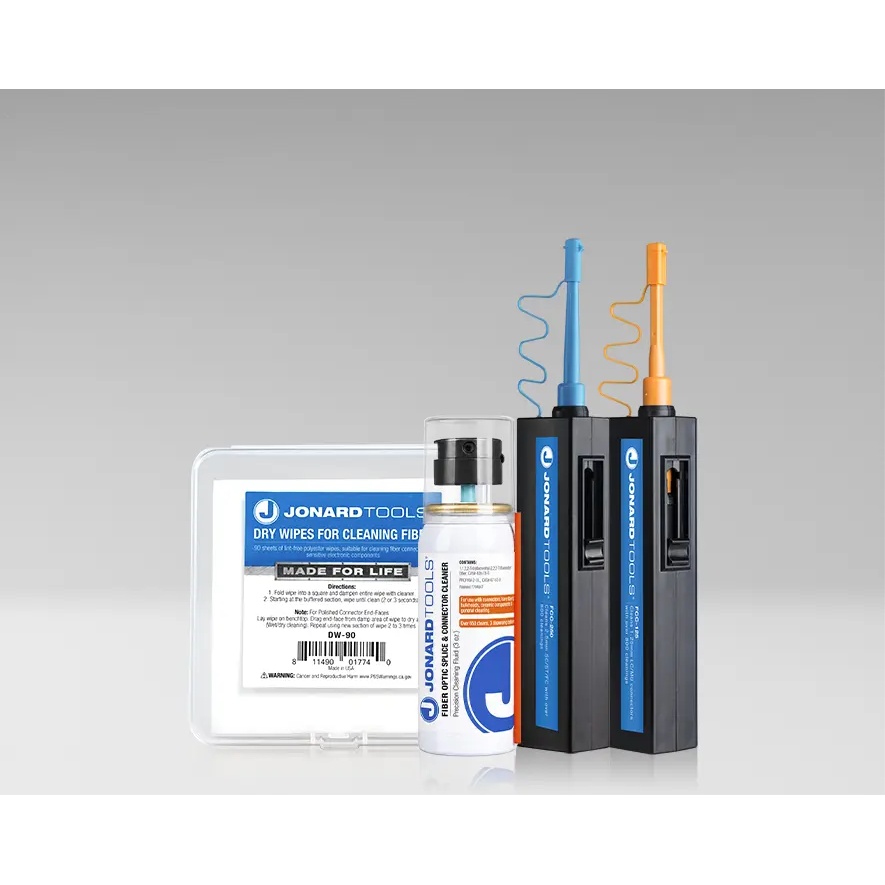

Kit Includes:
1 x DW-90 Dry Wipes for Cleaning Fiber
1 x FCC-125 Fiber Connector Cleaner, 1.25 mm
1 x FCC-250 Fiber Connector Cleaner, 2.5 mm
1 x FCF-3 Fiber Optic Splice & Connector Cleaner
1 x H-20 Rugged Carrying Case
Specifications:
Connectors: LC, MU, SC, ST, FC
Ferrule Sizes: 1.25 mm, 2.5 mm
Dimensions: 9.75 x 4.5 x 5.25in (24.77 cm x 11.43 cm x 13.34 cm)
UPC: 811490017733
Model: TK-182
Related Products:
| Part # | Jonard # | Description |
|---|
| - | TK-182RF | Refill kit - restocks the TK-182 consumables |
TK-182 - Fiber Optic Cleaning Kit & Refill Kit - Data Sheet
|
|
|
 |
|
 |
|
