Jonard TK-DC03 Data Center Operations & Maintenance Kit - Fiber, Copper & Power O&M Tools
The Jonard TK-DC03 Data Center Operations and Maintenance Kit is purpose-built for technicians responsible for keeping fiber, copper, and power infrastructure running in every data center type - edge and enterprise, hyperscale, colocation, and AI networks. It addresses the full range of routine O&M work: inspecting and cleaning LC, SC, MPO 12-core, and MPO 16-core fiber connectors, testing copper cable runs, validating continuity, and performing live electrical work safely around data center power distribution.
Whether you are troubleshooting a degraded fiber link, tracing an unlabeled copper run, or working around live grounding buses and PDU panels, the TK-DC03 has the right tool organized and ready. The FCT-100 safely removes fiber connectors from high-density panels and ports, while the WFM-100 inspects LC, SC, MPO 12-core, and MPO 16-core connector end-faces so contamination gets caught before it becomes an outage.
Features:
Purpose-built O&M kit for fiber, copper, and power maintenance in live data centers
Inspect and clean LC, SC, MPO 12-core, and MPO 16-core fiber connectors
FCT-100 safely extracts connectors from high-density panels and ports
WFM-100 fiber microscope inspects connector end-faces
Optical power meter and light source for insertion loss checks at 1310/1550 nm
Copper testing and continuity validation for tracing and troubleshooting runs
Insulated tools for safe work around live grounding buses and PDU panels

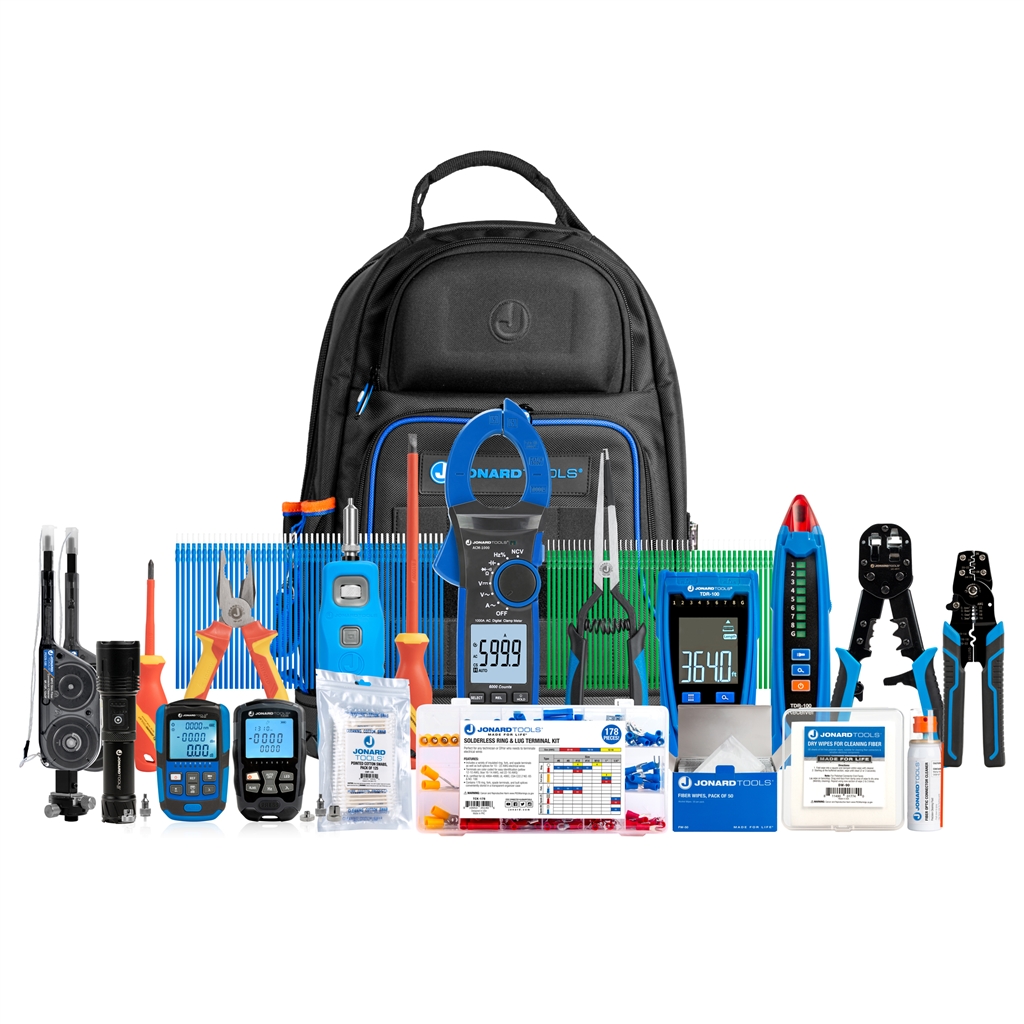

Kit Includes:
1 x BP-100 Technician's Tool Bag Backpack
1 x ACM-1000 1000A Digital Clamp Meter
1 x CLS-125/50 Cleaning Sticks for 1.25 mm Fiber Connectors
1 x CLS-250/50 Cleaning Sticks for 2.5 mm Fiber Connectors
1 x CWP-125 Pointed Cotton Swabs, Pack of 125
1 x DW-90 Dry Wipes for Cleaning Fiber
1 x FCF-3 Fiber Optic Splice & Connector Cleaner
1 x FCCS-120 Slim Fiber Connector Cleaner, MPO 12 Core
1 x FCCS-160 Slim Fiber Connector Cleaner, MPO 16 Core
1 x FCT-100 Fiber Connector Tool for LC, SC Connectors
1 x FLS-50S Mini Optical Light Source with FC/LC/SC Adapters
1 x FPM-50S Mini Optical Power Meter (-50 to +26 dBm)
1 x FW-50 Fiber Wipes, Wet (Pack of 50)
1 x INP-1072 Insulated Lineman's Combo Pliers, 7 1/2in
1 x INS-180 Phillips Insulated Screwdriver, #1 x 3in
1 x INS-8175 Cabinet Slotted Insulated Screwdriver, 5/16in x 7in
1 x TCC-1416 Electric Lug and Terminal Crimper
1 x TCK-178 Solderless Ring and Lug Terminal Kit, 178 Pcs
1 x TDR-100 Network Cable Tester and TDR
1 x WFM-100 Wireless Fiber Inspection Microscope
1 x SOL-F1 Solis Rechargeable Tactical Flashlight
1 x UC-4511 RJ45 & RJ11/12 Modular Pass-through Crimper
Specifications:
Data Center Type: Traditional (Edge, Enterprise, Colocation), Hyperscale (Cloud, Large-Scale), AI Network (Campus/GPU Clusters)
Environment Type: Inside Plant (ISP) & Outside Plant to Inside Plant (OSP-to-ISP)
Solutions Focus: Operations
Cable Testing: Tone & probe, wire mapping, TDR, continuity
Cleaning: Wet and dry wiping; click cleaning MPO/MTP 8, 12, 24 (12x2), 16, 32 (16x2) connectors & ports; cleaning sticks for 1.25 mm LC & MU and 2.5 mm FC, SC, ST connectors
Fiber Testing: Insertion loss 1310/1550 nm; optical power 800-1650 nm, -50 to +26 dBm; visual fault location 2 mW
Inspection: 1.25 mm LC (PC/UPC) & 2.5 mm FC/SC/ST (PC/UPC) connectors
Network Crimping: RJ11, RJ12 and RJ45 pass-through, shielded and unshielded, CAT3 to CAT7
Electrical Crimping: Insulated butt connectors, telephone spade lugs, open barrel connectors, non-insulated lugs/terminals
Terminating: Ring, Fork, Spade & Butt-Splice, 10-22 AWG (2.6-0.64 mm)
Drivers (up to 1000V live): Phillips #1 x 3"; Cabinet Slotted 5/16" x 7"
Illumination: 250-1500 lm, 4-8 hrs
Kit Weight: approx. 20.4 lb
Manufacturer: Jonard Industries
Model: TK-DC03
TK-DC03 - Data Center Operations & Maintenance Kit - Data Sheet
|
|
|
 |
|
 |
|
