Jonard FC-500 Precision Fiber Cleaver - 250 µm & 900 µm Fiber, <0.5° Cleave Angle

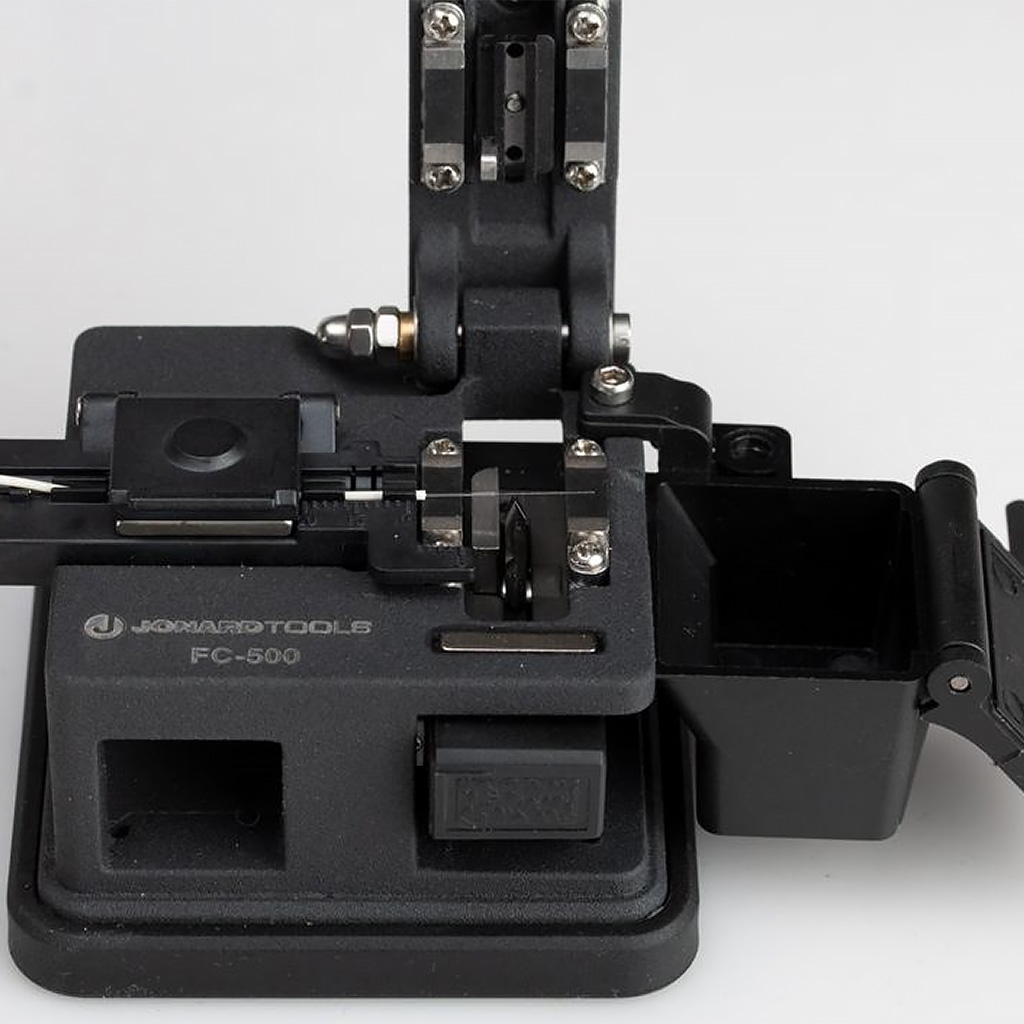

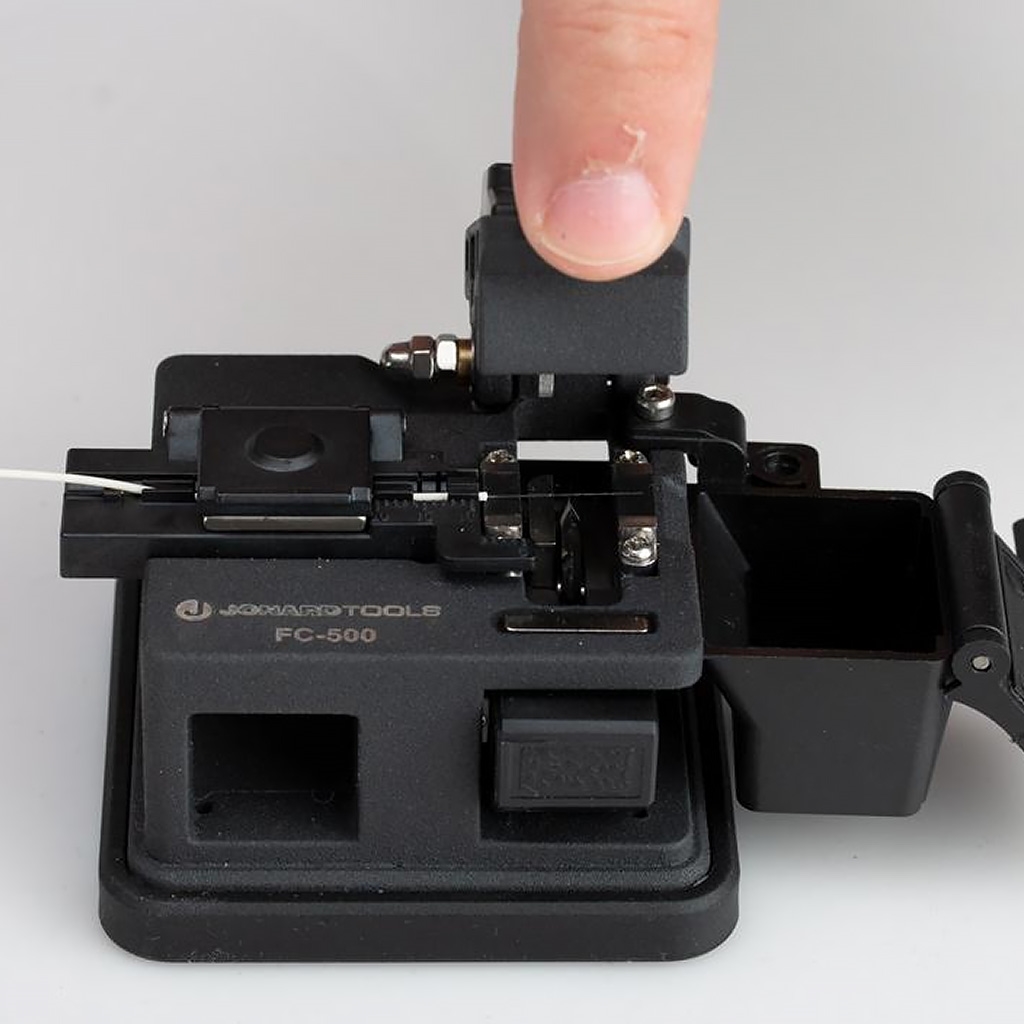

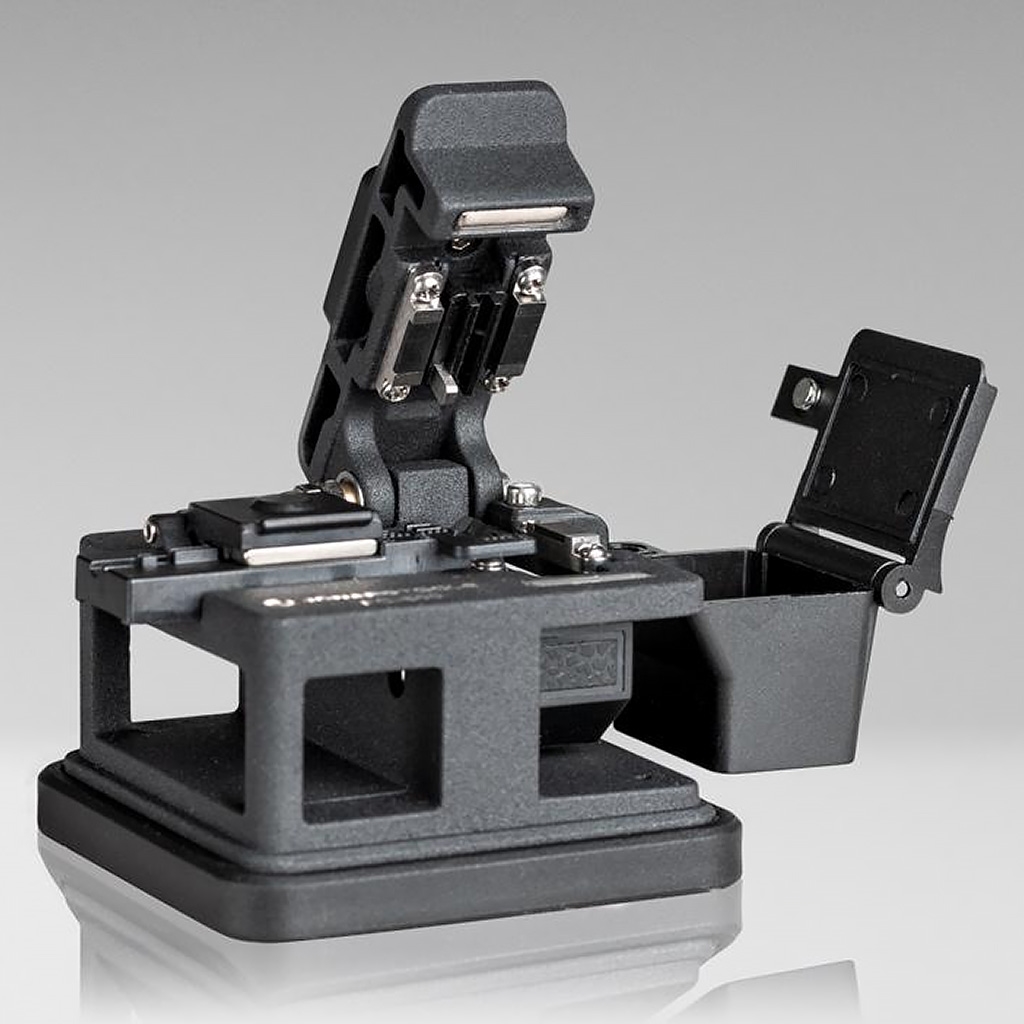

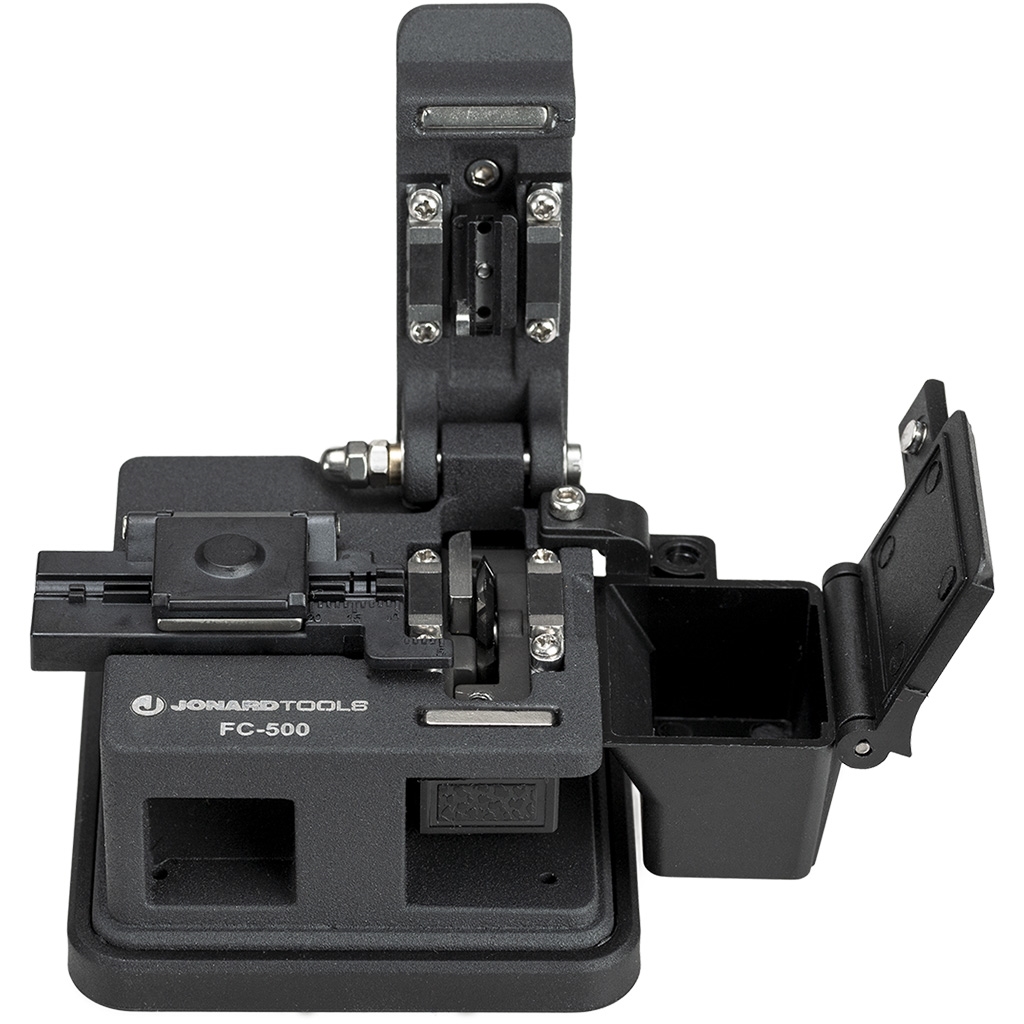

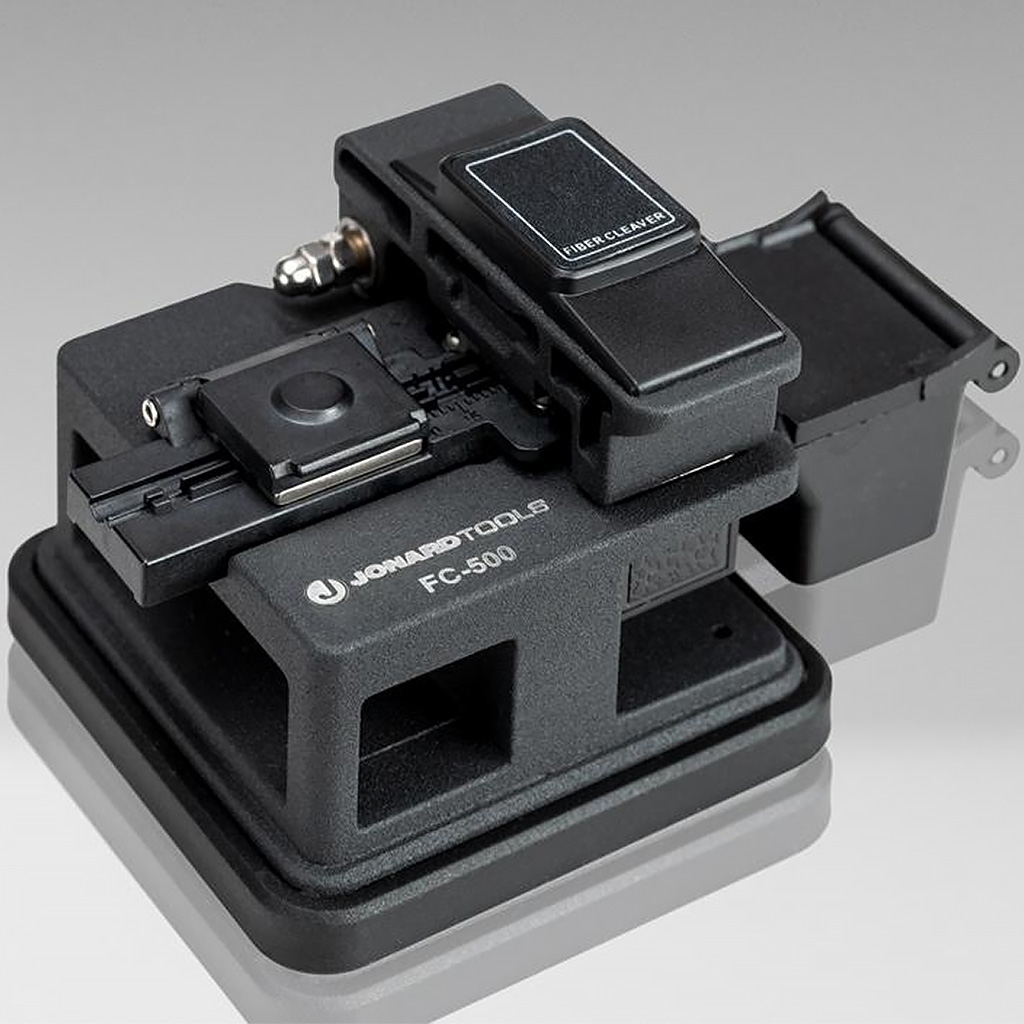

Jonard Tools FC-500 precision fiber cleaver is designed to provide a precise cleave and prepare a fiber to be fusion spliced for 250 µm and 900 µm coated optical fiber. The scaled holder sets the cleave length to match what your splicer or connector calls for, and fiber scraps go into the built-in trash can instead of onto the bench.

Features:

Provides a cleave with a cutting angle of less than 0.5° for optimal fiber preparation for fusion splicing

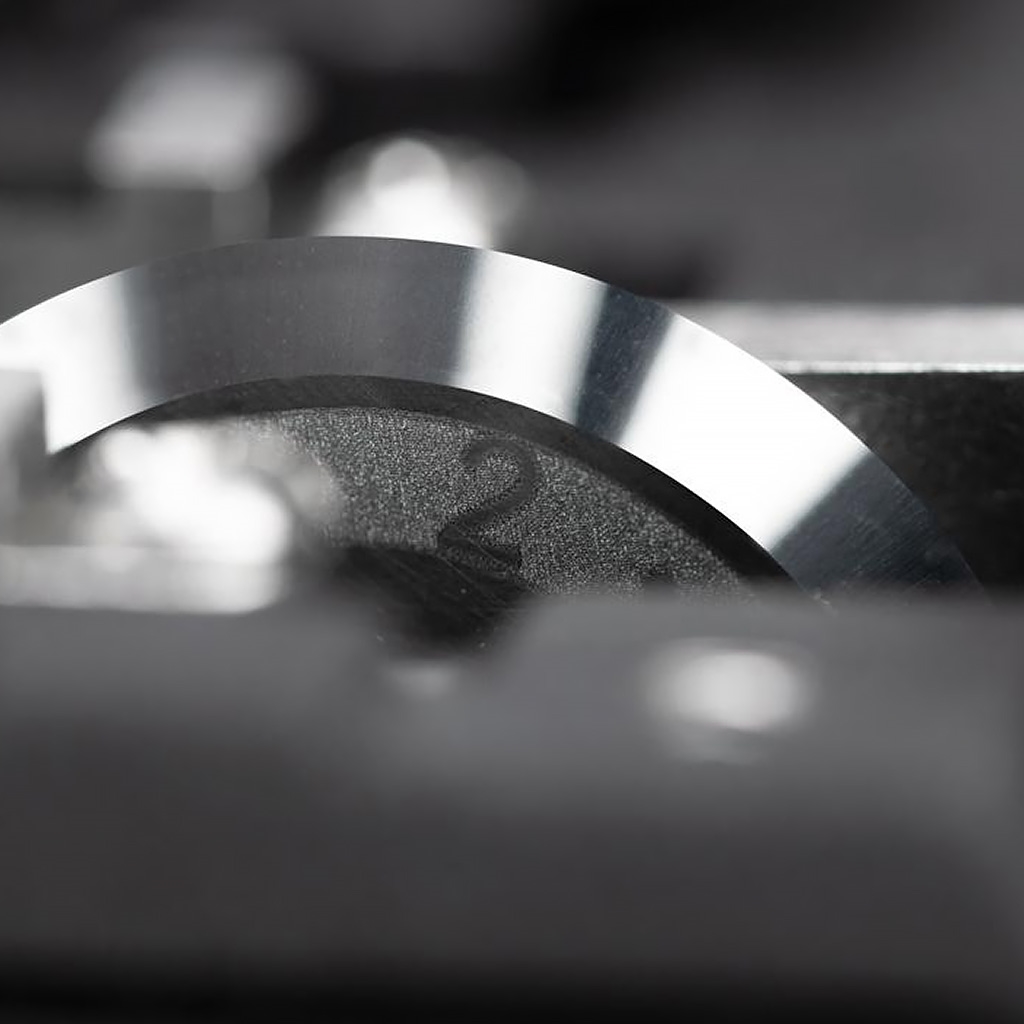

Long life of 48,000 cuts with 16 position blades (3,000 cleaves per position)

Lightweight and rugged design for long term durability

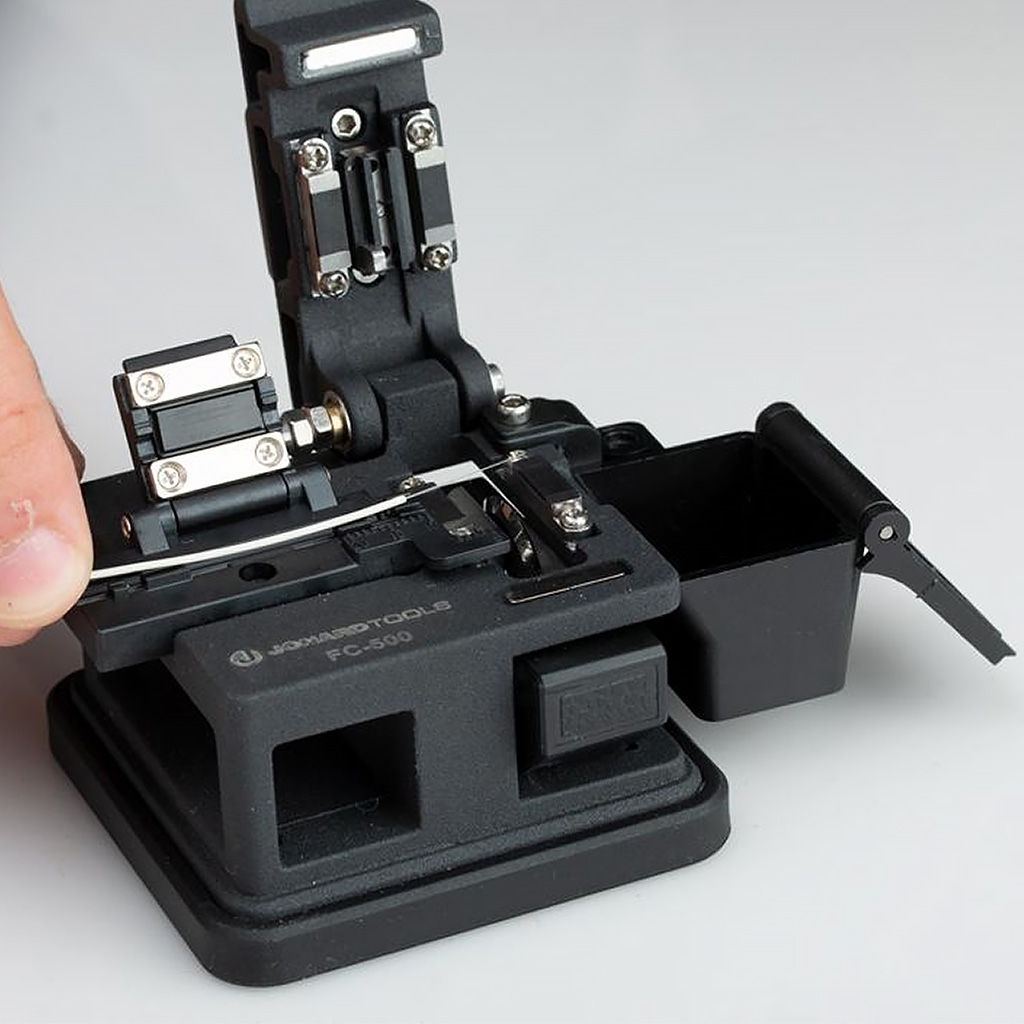

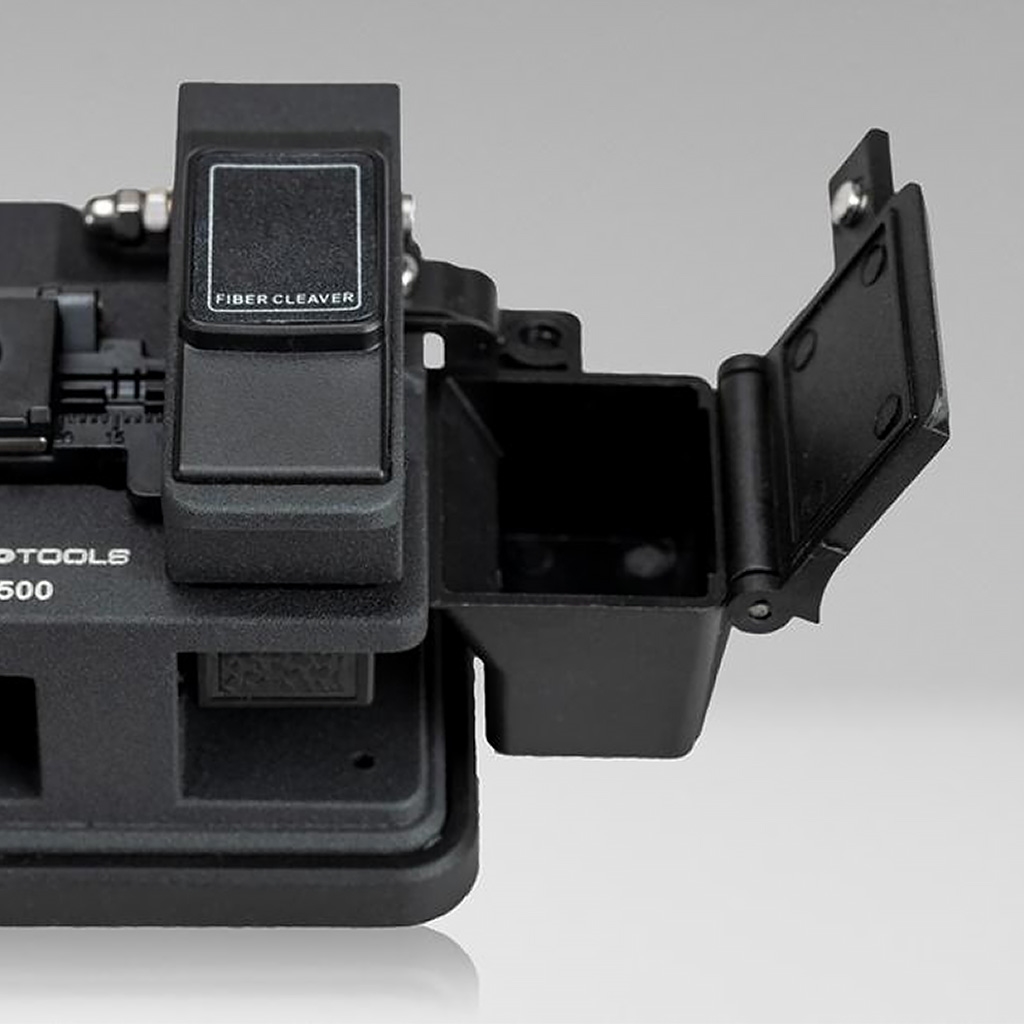

Holds 250 µm and 900 µm fiber and comes with built-in fiber trash can

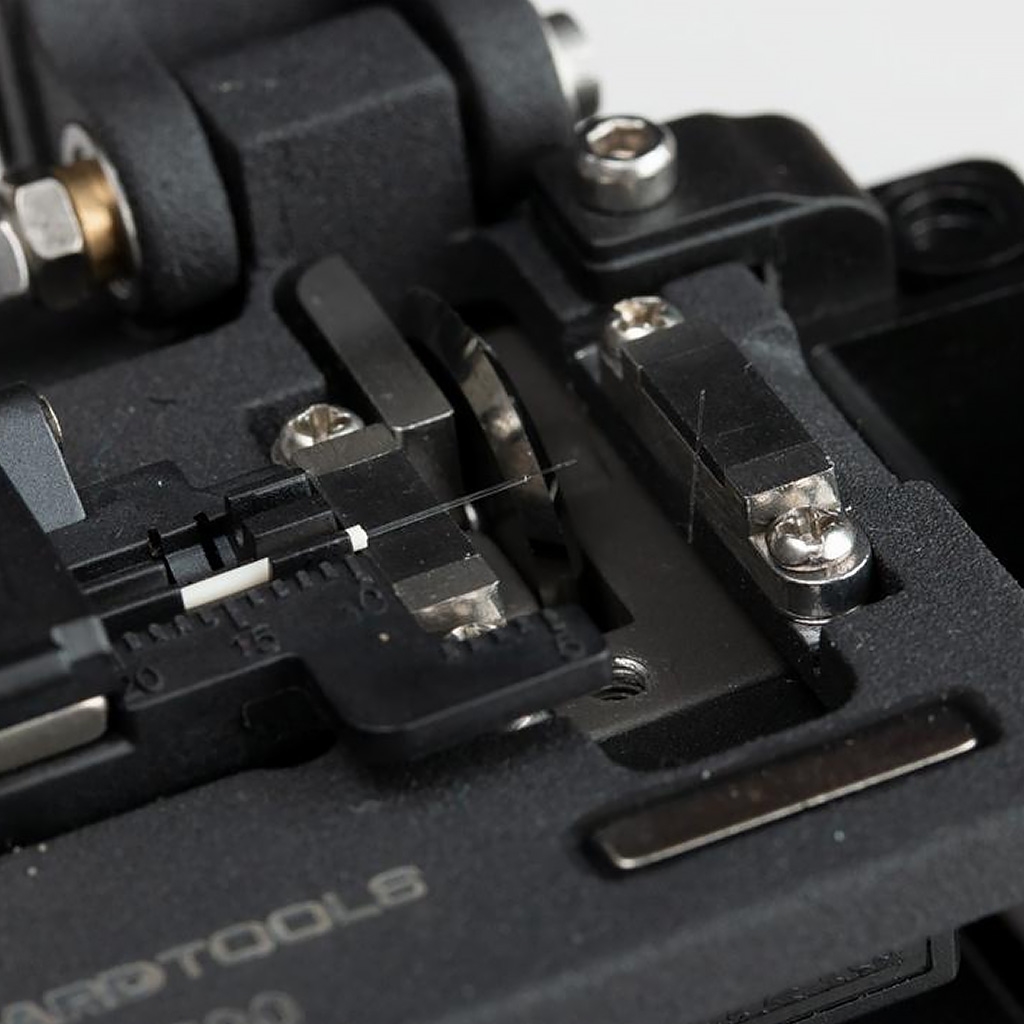

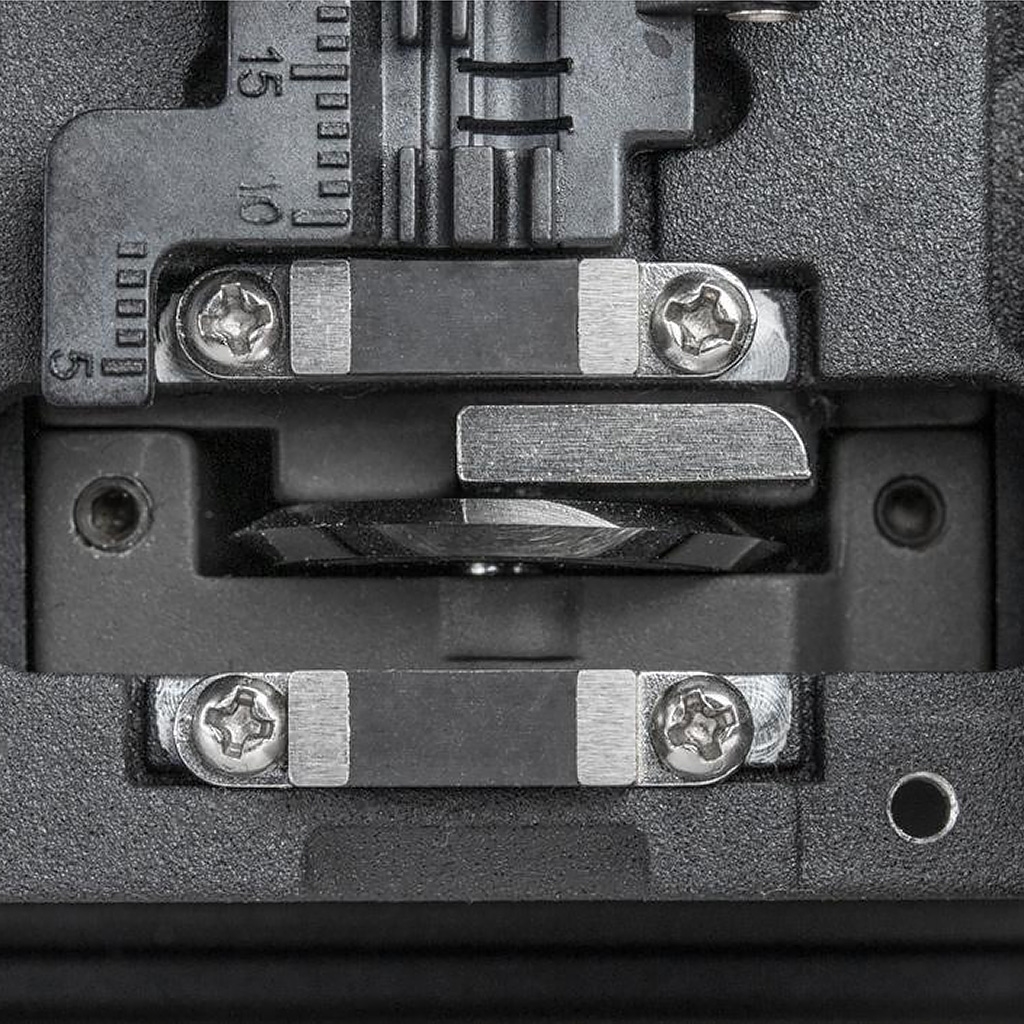

Scaled holder for accurate cleave lengths from 5 to 20 mm (0.20" to 0.79")

Ideal for fiber technicians, fiber splicers, and anyone that needs to cleave a fiber optic cable prior to performing a fusion splice

Lifetime Warranty

Specifications:

Cleave Length: 5 mm-20 mm (Single Fiber 0.25 mm Coating), 12 mm-20 mm (Single Fiber 0.9 mm Coating)

Cleave Angle: Less than 0.5°

Blade Life: 48,000 cleaves (3,000 per blade position)

Fiber Coating: 250 µm, 900 µm

Dimensions: 3" x 2" x 2" (7.6 cm x 5.1 cm x 5.1 cm)

Weight: 0.57 lb (259 g)

Model: FC-500

Available Models:

Part #	Jonard #	Description	Blade Life
JON-FC-500	FC-500 (this item)	Precision Fiber Cleaver	48,000 cleaves (3,000 per blade position)
JON-FC-600	FC-600	One Step Fiber Optic Cleaver with Auto-Rotating Blade	52,000 cleaves

Replacement Parts:

Part #	Jonard #	Description
JON-FC-500RB	FC-500RB	Replacement blade for the FC-500 - not included

Jonard Tools FC-500 Instructions Data Sheet - Precision Fiber Cleaver - FC-500
