Jonard Fiber Inspection Microscope - 400x

Jonard Fiber Inspection Microscope - 400x




Alternative Views:


TTS PRICE: $181.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: JON-FIM-400
QUANTITY:

PRODUCT DESCRIPTION

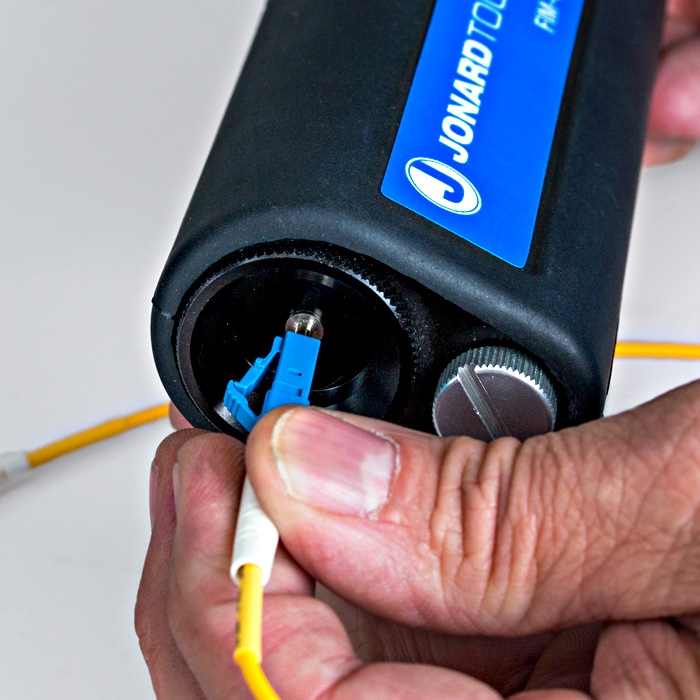

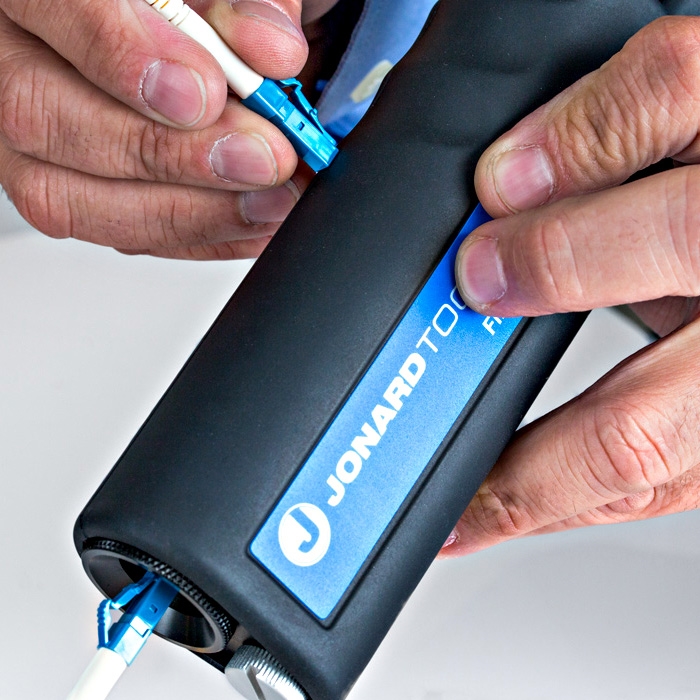

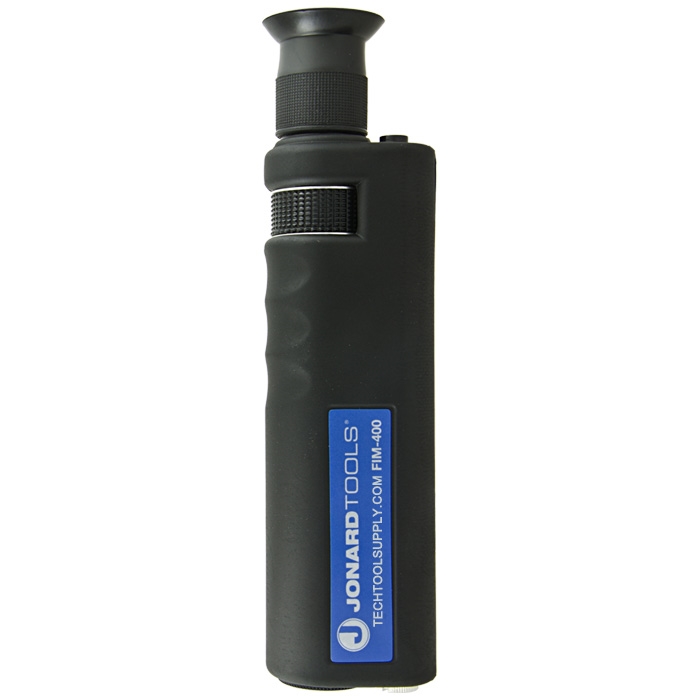

The FIM-400 from Jonard is a hand held microscope used for inspecting fiber terminations, providing a clear view of the fiber and surrounding connector ferrule. The white light LED light source used for coaxial illumination in the FIM-200 provides high quality detail of contamination and/or scratches on the fiber end face.

Jonard's FIM-400 Fiber inspection microscope has 400x magnification, a focus wheel and features 2.5mm and 1.25mm adapters for use on most fiber connectors. The achromatic lens offers excellent imaging and integrated laser filters for safety (not intended for use with illuminated fibers).

Features:
  • LED light for longer battery life, includes port for illuminating fiber

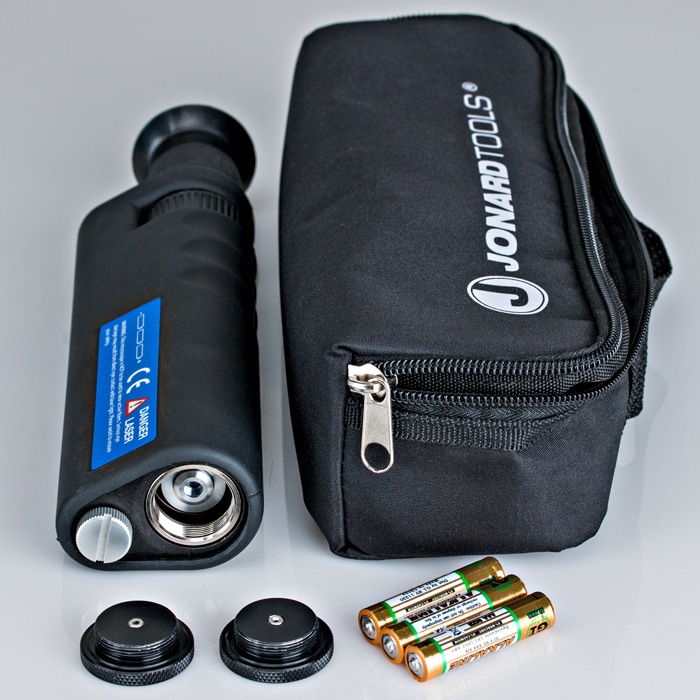

  • Rugged cushioned nylon case with belt loop and carry strap
  • Includes three AAA batteries

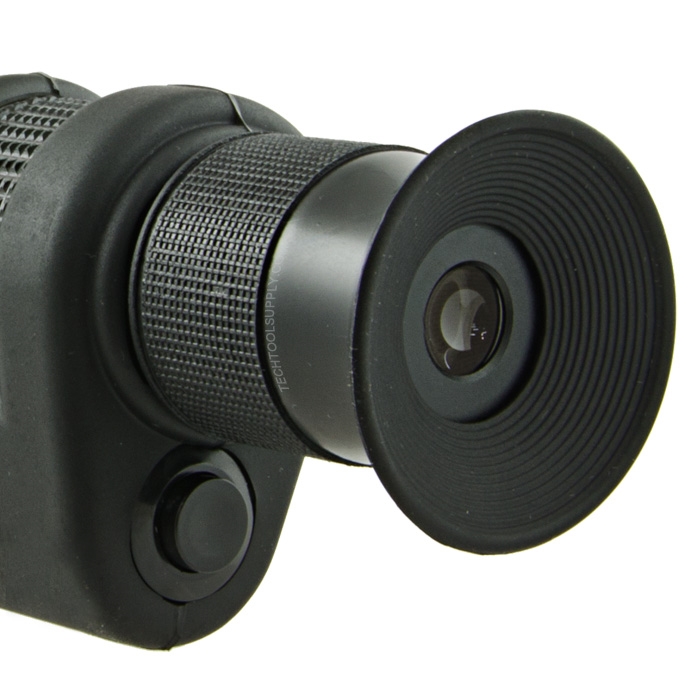

  • Microscope has rubber cover for protection

  • Specifications:
  • Magnification: 400x
  • Adapters Included: 2.5mm and 1.25mm
  • Power Source: 3 AAA
  • Light Source: White LED 100,000 hour life span
  • Length: 8.76" (222.50 mm)
  • Height: 2.25" (57.15 mm)
  • Width: 1.25" (31 mm)
  • Weight: 1.570 lbs (0.712 kg)
