New!  Jonard Self Adjusting Wire Stripping Tool - 10-24AWG

Jonard Self Adjusting Wire Stripping Tool - 10-24AWG


Alternative Views:


TTS PRICE: $95.95

STATUS: ON ORDER

Free Shipping

Availability:
SHIP ESTIMATE 1-2 DAYS

PRODUCT CODE: JON-WSA-1024
QUANTITY:

PRODUCT DESCRIPTION

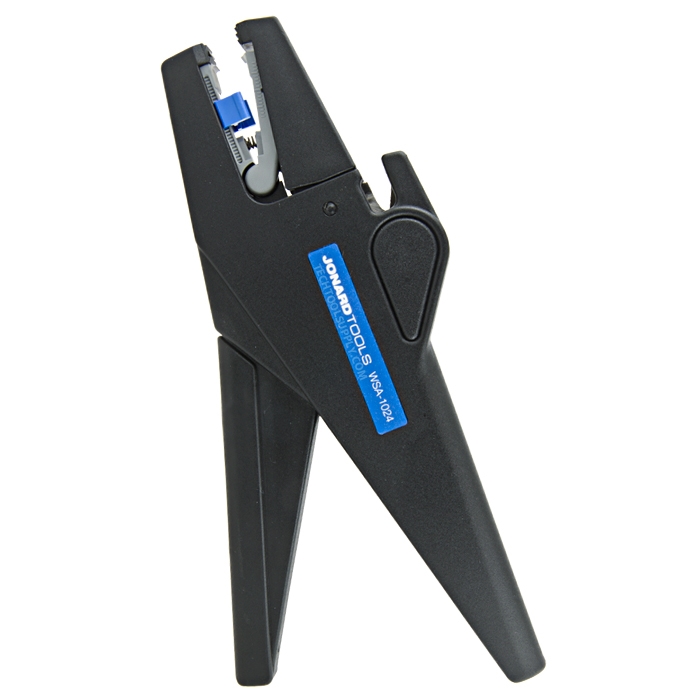

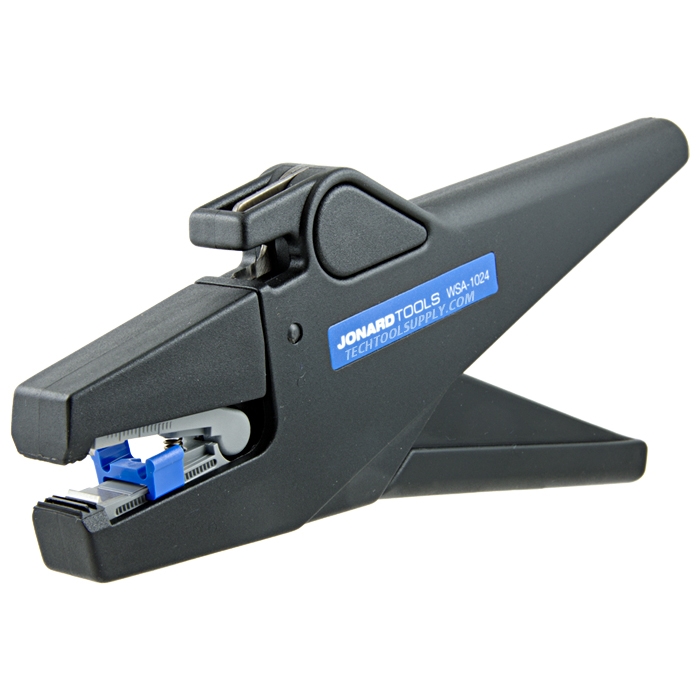

Jonard WSA-1024 Self-Adjusting Wire Stripper Pro - 10-24 AWG, Cut & Strip

Jonard Tools' WSA-1024 is the perfect solution for stripping PVC and other insulated wire sizes from 10 AWG to 24 AWG (6mm² to 0.25mm²). This innovative squeeze and strip design uses precision laminated carbon steel stripping blades that automatically grasp the insulation to provide quick and accurate wire stripping on thick or thin wall insulation. Can be used to strip one wire or several wires of the same gauge at the same time. The patented stripping mechanism is smooth, efficient and ergonomic. The built in adjustable wire stop allows you to set the stripping length up to 15 mm, and a built-in wire cutter makes cutting and stripping even faster. Tool life expectancy over 150,000 cycles. Rugged and made from high strength plastic and the stripping blades are made from high quality laminated carbon steel. Blade life expectancy over 30,000 strips.

Features:
  • Patented self-adjusting stripping mechanism - no adjustments for wire size
  • Strips single and multi-stranded wire; strips multiple wires of the same gauge at once
  • Strip length adjustable up to 15 mm (0.591")
  • Wire cutter cuts wire up to 10 AWG
  • Ergonomic design minimizes hand fatigue
  • Laminated carbon steel blades last over 30,000 strips; tool life over 150,000 uses

  • Specifications:
  • Cut Type: Cut & Strip
  • Wire Gauge: 10-24 AWG (2.6 mm-0.51 mm)
  • Cable Type: Stranded & solid conductors
  • Maximum Strip Length: 0.591" (15 mm)
  • Blade Material: Laminated carbon steel
  • Dimensions: 8.06" x 3.43" x 0.76" (20.48 x 8.7 x 1.93 cm)
  • Length: 8" (203mm)
  • Weight: 0.44 lb (200 g)
  • Model: WSA-1024

  • Available Sizes:
    Part #Jonard #Wire Gauge
    JON-WSA-1024WSA-1024 (this item)10-24 AWG (2.6 mm-0.51 mm)
    JON-WSA-1430WSA-143014-30 AWG (1.63 mm-0.25 mm)
    Data Sheet - Self-Adjusting Wire Stripping Tools
