Jonard Singlemode Fiber Optic Launch Cable SC/APC-LC/APC - 1000m

Jonard Singlemode Fiber Optic Launch Cable SC/APC-LC/APC - 1000m


TTS PRICE: $274.95

STATUS: ON ORDER

Free Shipping

Availability:
Normally Ships Same Day

PRODUCT CODE: JON-FLC-1007
QUANTITY:

PRODUCT DESCRIPTION

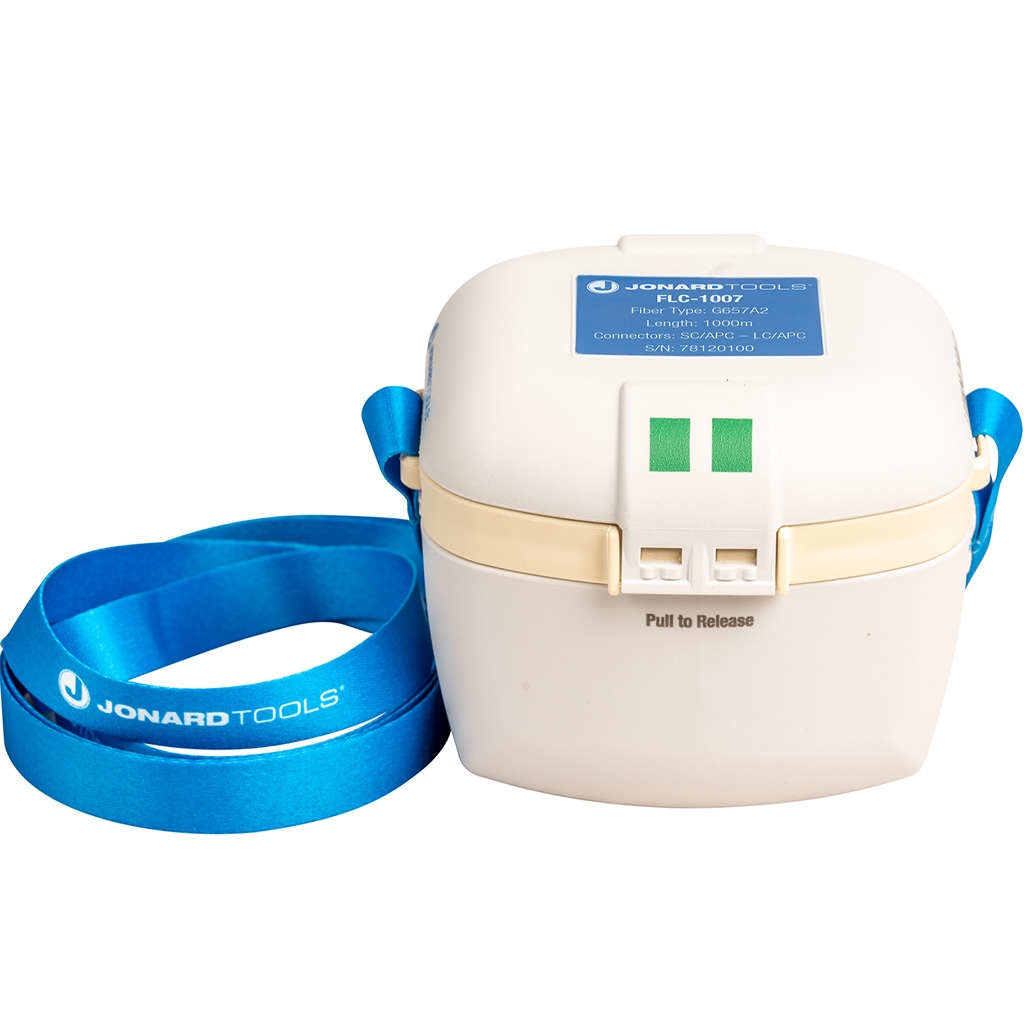

Jonards FLC-1007 is designed with unique compact housing and 1000 meters of fiber. This launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR.

Features:
  • Compact housing and shoulder strap make this perfect for on-the-go use
  • 6.56 ft (2 m) long pigtails are terminated with an SC/APC connector on one side and an LC/APC connector on the other side for versatility
  • Polishing types are color coded for quick and easy identification of the launch cable
  • Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
  • 3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications

    • Specifications:
  • Cable Length: 3280.84 ft (1000 m)
  • Connector Types: SC/UPC, LC/APC
  • Input/Output Length: 4.9 ft (1.5 m)
  • Max Insertion Loss @ 1310 nm: ≤ 0.35 dB/km
  • Max Insertion Loss @ 1550 nm: ≤ 0.22 dB/km
  • Max Insertion Loss @ 800 nm: ≤ 2.50 dB/km
  • Max Insertion Loss @ 1300 nm: ≤ 0.70 dB/km
  • SM Connector Insertion Loss: ≤ 0.1 dB
  • MM Connector Insertion Loss: ≤ 0.15 dB
  • Return Loss: ≥ 65 dB
  • Weight: 0.78 lb (354.12 g)
    •
