Jonard Solar+ Clamp Meter CAT III 1500 V

Home > Categories > Test & Measurement > Multimeters > Clamp Meters >

TTS PRICE: $603.60

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: JON-ACM-1500DC

QUANTITY:

PRODUCT DESCRIPTION

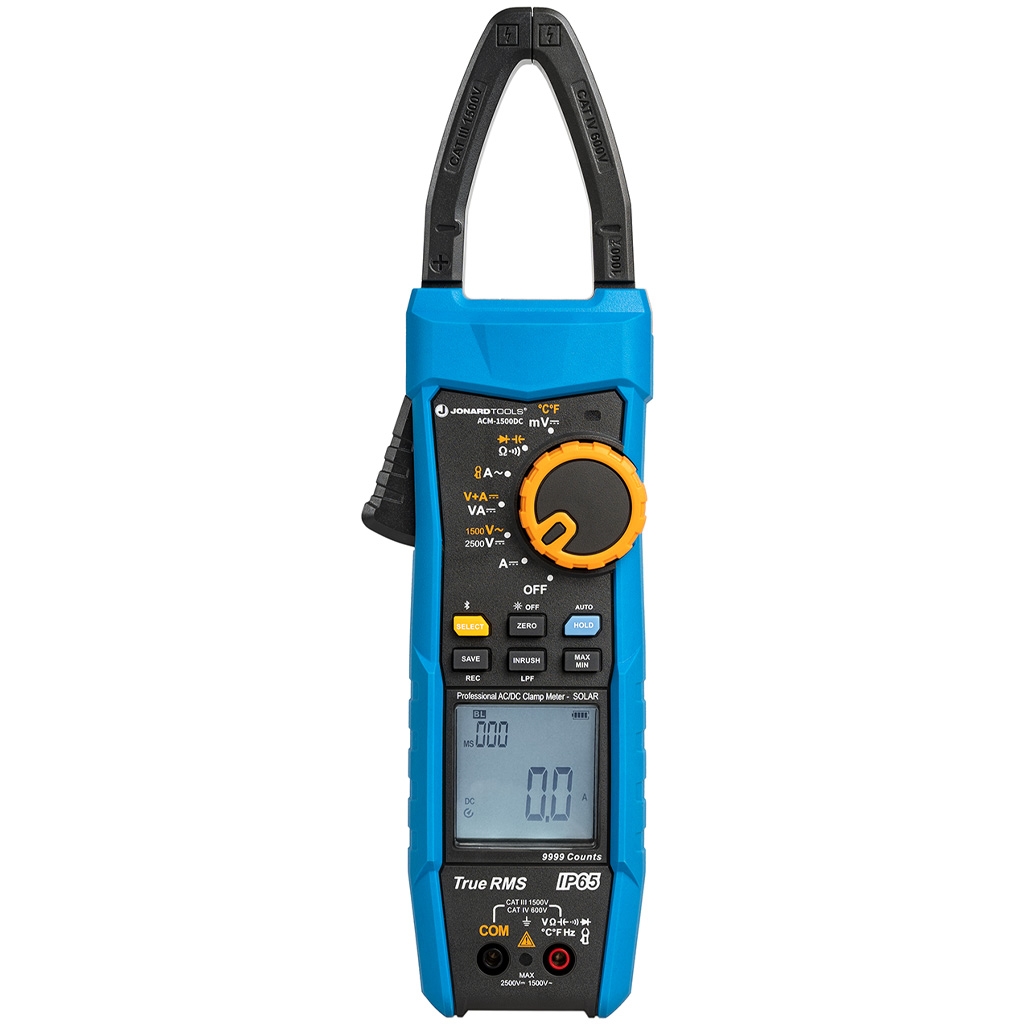

Elevate your high voltage DC work with the Jonard ACM-1500DC CAT III 1500 V True-RMS Clamp Meter. This versatile device is tailor-made for professionals working in solar arrays, wind power farms, electric railways, data centers, and uninterruptible power supplies. It excels in precision, measuring up to 2500 V DC, 1500 V AC, and up to 999.9 A DC or AC through the clamp jaws. The slim jaw design ensures access to even the most congested combiner boxes, and the test leads are CAT III 1500 V DC rated for peace of mind.

Features:

Measures up to 2500 V DC and 999.9 A DC or AC through its slim tip clamp jaws

CAT IV 600V, CAT III 1500V, Class 2, Double Insulation Safety Rating to protect from electrical shocks

Jaw opening is perfect for cables, such as solar cables, whose conductors are a maximum of 1.38" (35 mm) in diameter

Test results can be saved onto onboard storage and can be transferred via Bluetooth

IP 65 rating for dust and water resistance for ultimate protection while working outdoors

Specifications:

Max AC Current: 999.9 A

Max DC Current: 999.9 A

Max AC Voltage: 1500 V

Max DC Voltage: 2500 V

Power (DC): 999.9 kVA/2500 kVA

Resistance: 999.9 Ohm/9.999 kOhm/99.999 Mohm

Capacitance: 100.0 uF/1000 uF

Temp: '-40°C~400°C/-40°F~752°F

Jaw Opening: 35 mm

Overvoltage Category: CAT III 1500V/CAT IV 600V

Bluetooth App: BT 5.0

Inrush Current: Yes

PEAK: Yes

LPF: Yes

True RMS: Yes

Dimensions: 12.25 in x 5.2 in x 2.5 in (31.12 cm x 13.21 cm x 6.35 cm)

Weight: 2.04 lb (924.344 g)
