Klein Tools Open Jaw Fork Meter AC Auto

Klein Tools Open Jaw Fork Meter AC Auto




Alternative Views:


TTS PRICE: $79.99

STATUS: ON ORDER



Availability:
Normally Ships Same Day

PRODUCT CODE: KLN-CL360
QUANTITY:

PRODUCT DESCRIPTION

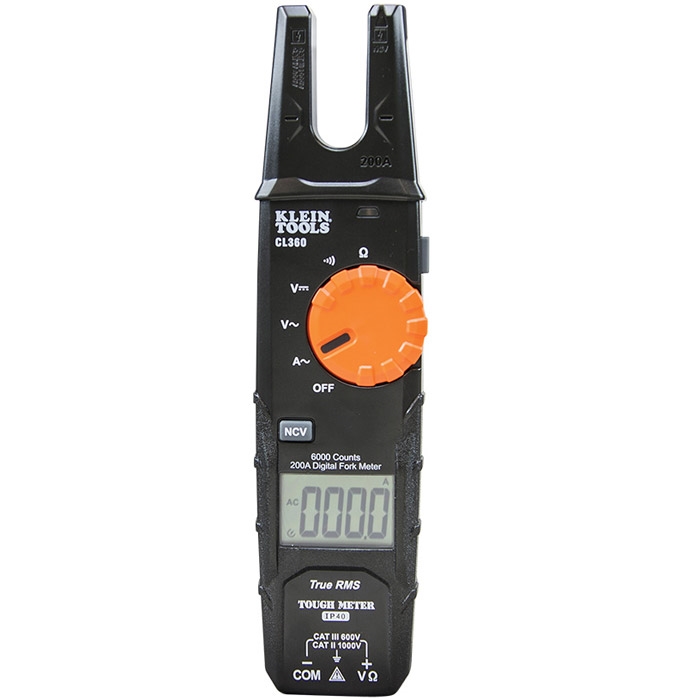

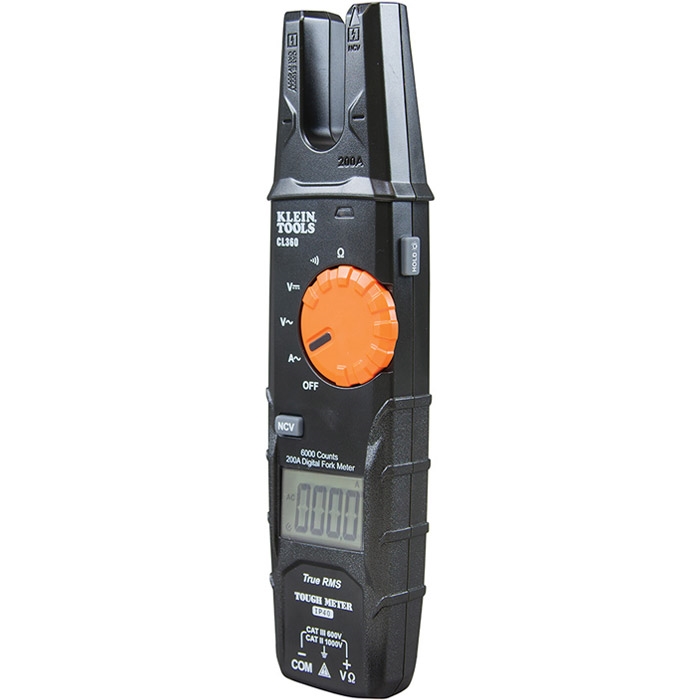

The CL360 from Klein Tools is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester.

Features:
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy

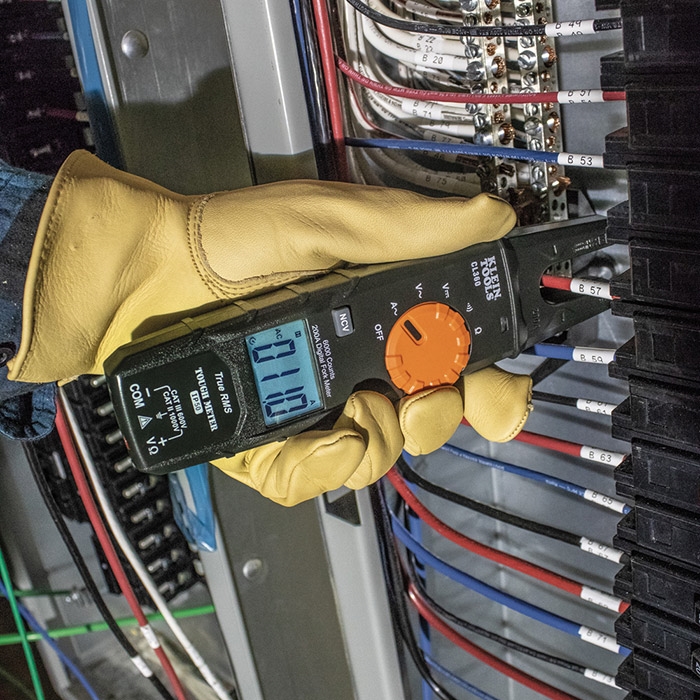

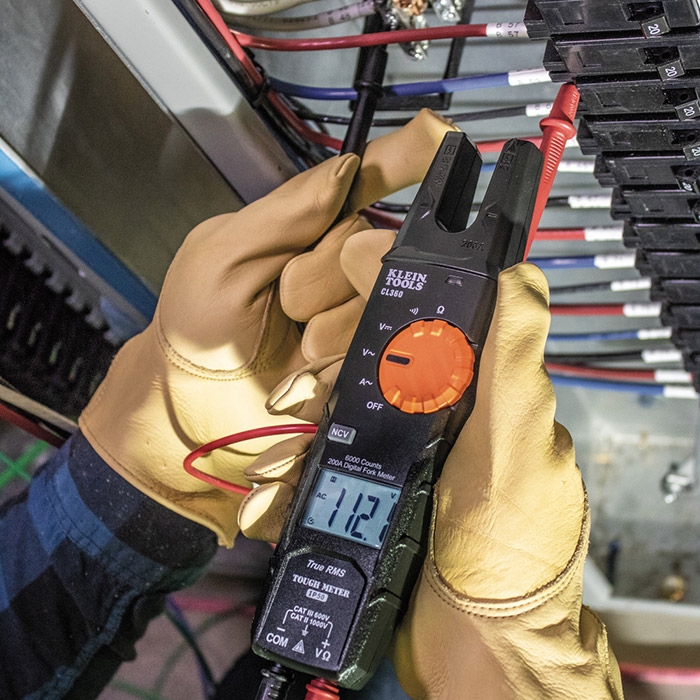

  • Measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads
  • Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (14.7mm)

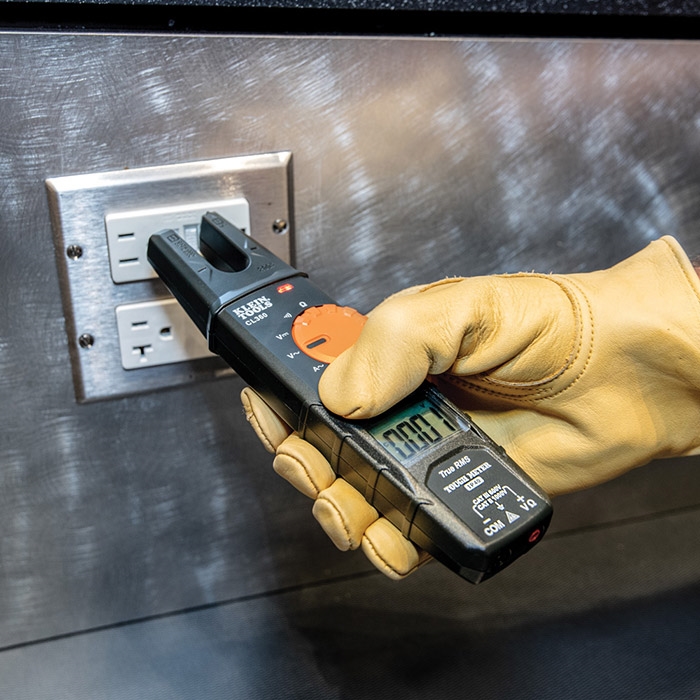

  • Non-contact voltage tester integrated into the jaw
  • Includes a carrying case, test leads and 2 x AAA batteries
  • Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation
  • Backlit display for clear readings
  • Powers off automatically after 15 minutes of non-use to conserve battery life
  • Rugged Klein "TOUGH METER" is built to withstand a 9.9-Foot (3m) drop
  • Low battery indicator and easily accessible battery compartment
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

  • Specifications:
  • Type: Open Jaw Fork Current Meter
  • Application: Measures AC Current, AC/DC Voltage, Continuity, Resistance
  • Special Features: Low Battery Indicator, Built-in Test Lead Holders, Backlit Display
  • Material: Plastic/Electronics
  • Batteries: 2 Alkaline 1.5V AAA
  • Auto-Power Off: Y
  • Jaw Size: 0.58" (14.7mm) Opening
  • Drop Protection: 9.9' (3m)
  • Display: 6000 Count LCD
  • Functions: AC Current, AC/DC Voltage, Continuity, Resistance
  • Voltage: 600V AC, 1000V DC
  • Current: 200A AC
  • Ohms (Resistance): 60MΩ
  • AC Voltage: 600V
  • DC Voltage: 1000V
  • DC Polarity Indicator: Yes
  • Ingress Protection: IP40
  • Standard: Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation

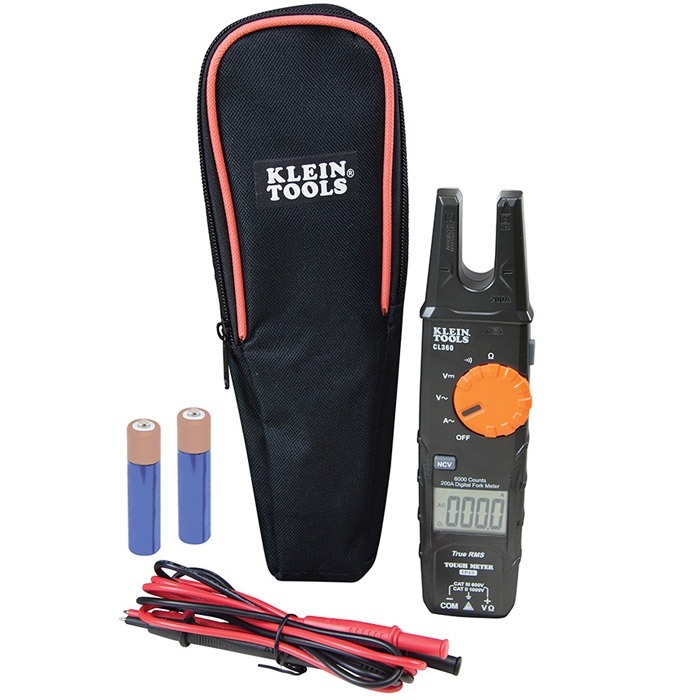

  • Included: Carrying Case, Instruction Manual, Straight Input Test Leads, and 2 x AAA Batteries
  • Weight w/Batteries: 7.3oz (208g)
  • Overall Length: 8.39" (213.1 mm)
  • Overall Height: 1.38" (35.1 mm)
  • Overall Width: 2.12" (53.8 mm)
  • Weight: 6.40 oz (180.0g)

  • Klein CL360 Instructions
