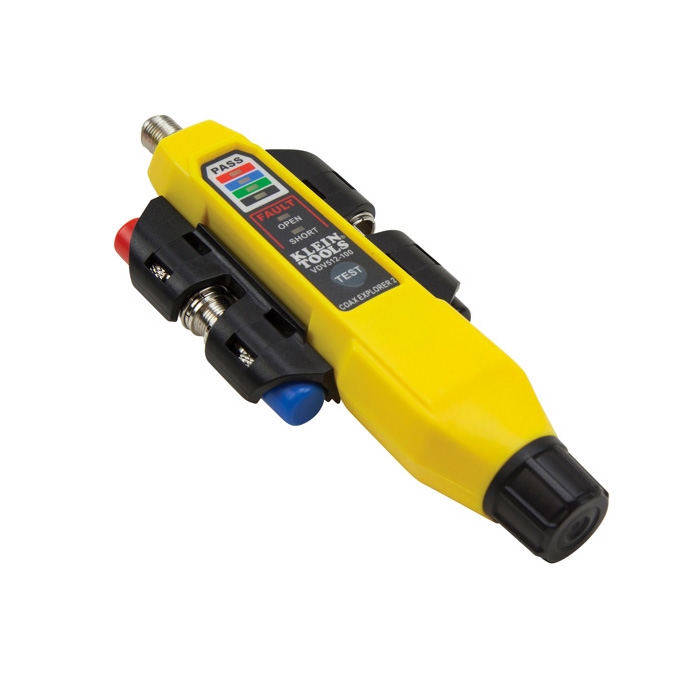

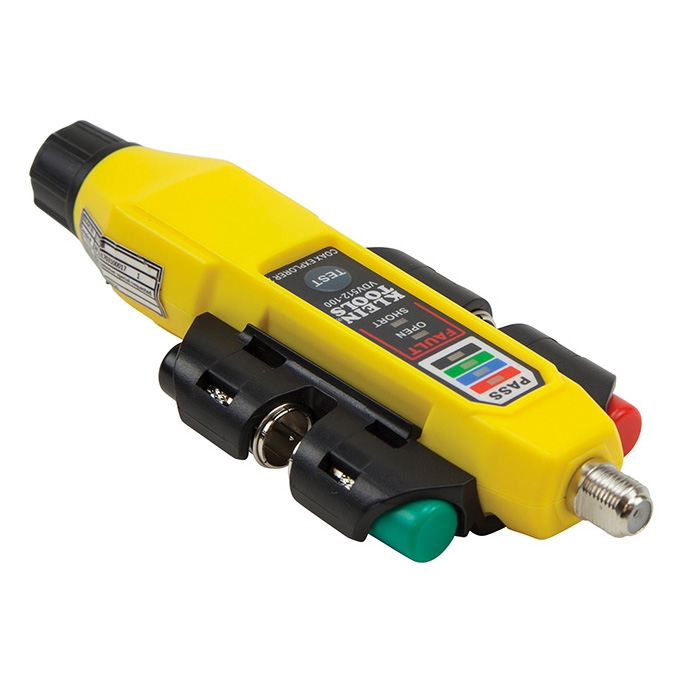

Klein Tools VDV512-101 Coax Explorer® 2 Tester with Remote Kit - Maps up to 4 Locations
The Klein Tools Coax Explorer 2 (VDV512-101) verifies proper continuity of F-connector coaxial cables and maps their location. The color-coded remotes allow for up to four cables to be tested and mapped, displaying cable status via LED indicators - PASS, OPEN, or SHORT - that also identify the cable/remote location. This compact tester fits in your pocket.
Features:
Tests coaxial cable and maps up to 4 locations
Works with RG59, RG6/6Q, RG7 and RG11 coaxial cable

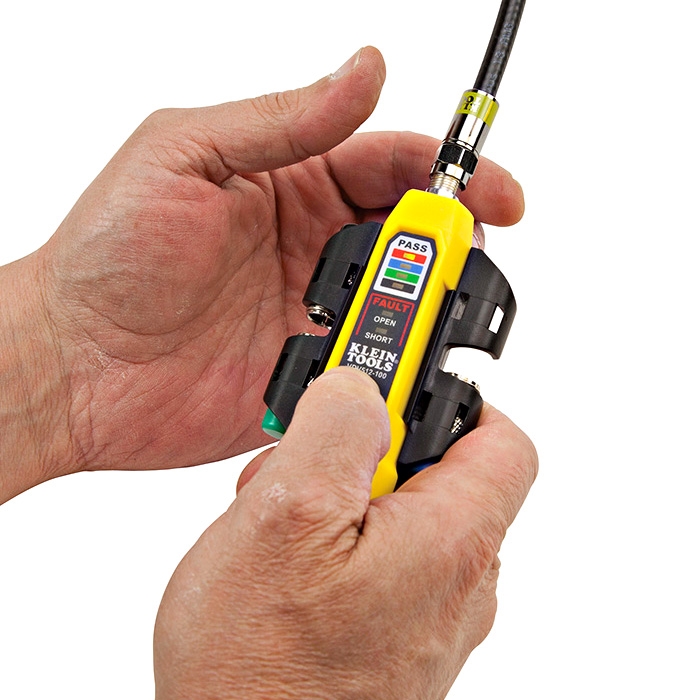

Simple push button operation

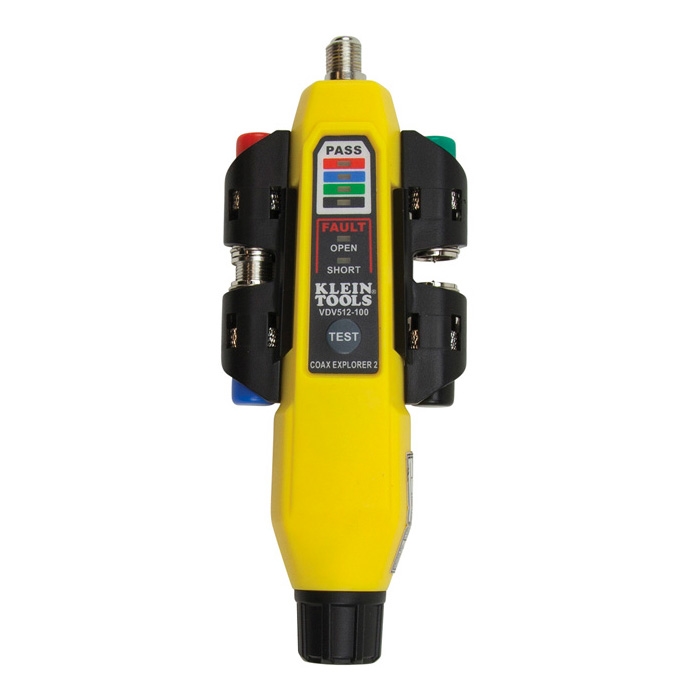

Easy-to-read LED panel indicates PASS, OPEN or SHORT conditions, simplifying cable identification
Color-coded push-on remotes allow for up to four cables to be tested and mapped

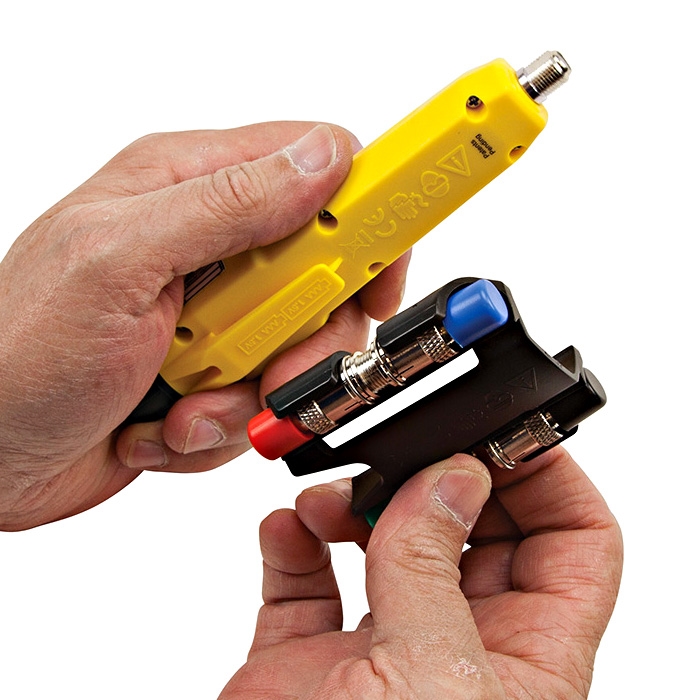

The test remotes and F-adapter conveniently snap into the remote holder for storage; the remote holder clips onto the tester
Uses 2 replaceable AAA batteries; carrying clip for easy transport
Note: Does not work through cable splitters
Includes:
1 x Coax Explorer® 2 tester
4 x Color-coded push-on remotes
1 x F-adapter
1 x Removable snap-on remote holder
2 x AAA batteries
Specifications:
Type: Cable Tester
Application: Wire Tracing of Coaxial Cables
Special Features: 4 Color-Coded Push-on Remotes
Cable Type: RG59, RG6/6Q, RG7, RG11
Test-n-Map ID Remotes: 4 (Included)
Location ID: 4
Connection & Adapter Types: Coax F Adapters
Batteries: 2xAAA
Overall Length: 5.75" (14.6 cm)
Overall Height: 1" (2.5 cm)
Overall Width: 2.313" (5.9 cm)
Weight: 4.8 oz (136 g)
Model: VDV512-101
Replacement Parts:
| Part # | Klein # | Description |
|---|
| KLN-VDV512-110 | VDV512-110 | Replacement remote kit - holder, 4 color-coded remotes and F-adapter |
Related Products:
| Part # | Klein # | Description |
|---|
| KLN-VDV512-100 | VDV512-100 | Coax Explorer® 2 tester with red remote only |
