Klein Tools VDV501-853 Scout® Pro 3 Tester with Test + Map™ Remote Kit - Remotes #1-#6
The Scout® Pro 3 Tester with Test + Map™ Remote Kit from Klein Tools is a versatile cable tester that locates and tests voice, data, and video cables. Use the self-storing remote and Test + Map™ remotes #2 - #6 for fast, accurate identification. Identify POE, POE+, A wiring, B wiring, and voltage. This tester also measures cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.
Features:
Tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
Backlit LCD screen displays cable length, wiremap, cable ID and test results

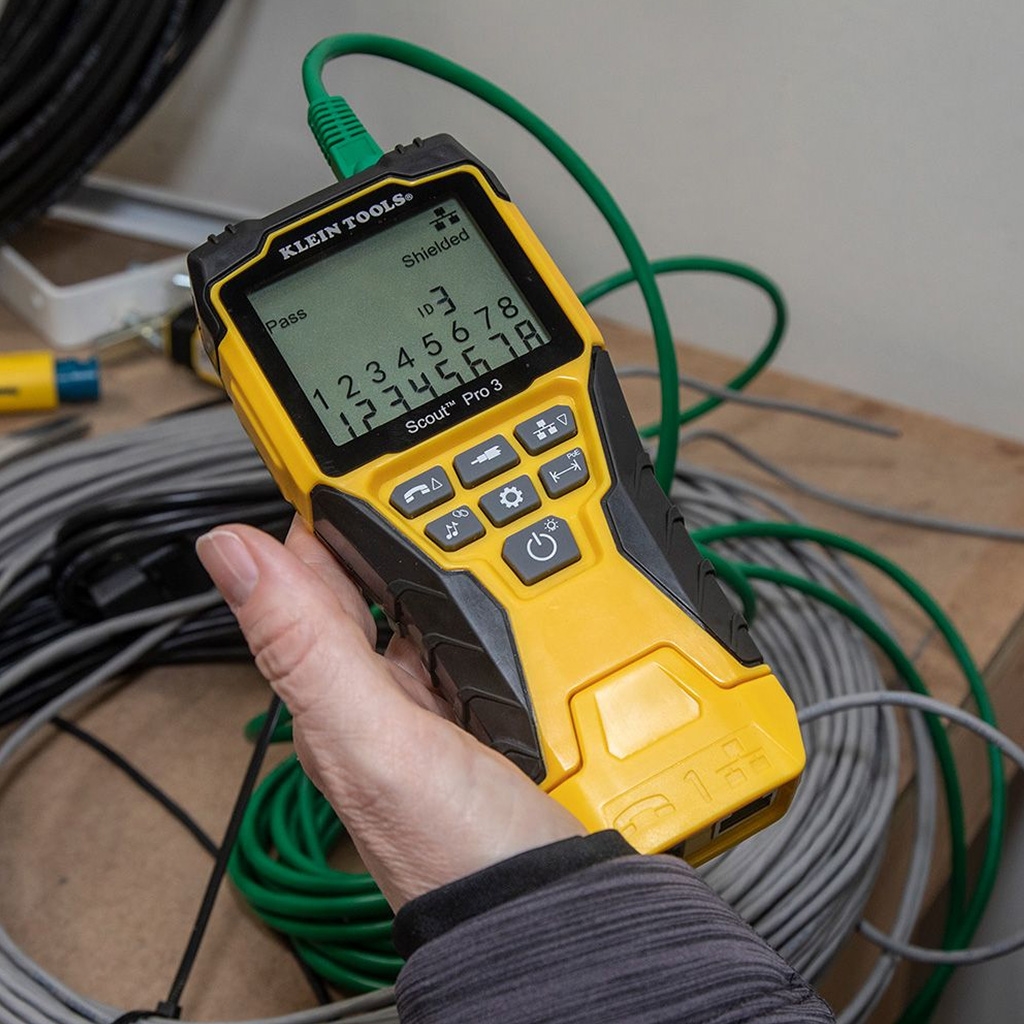

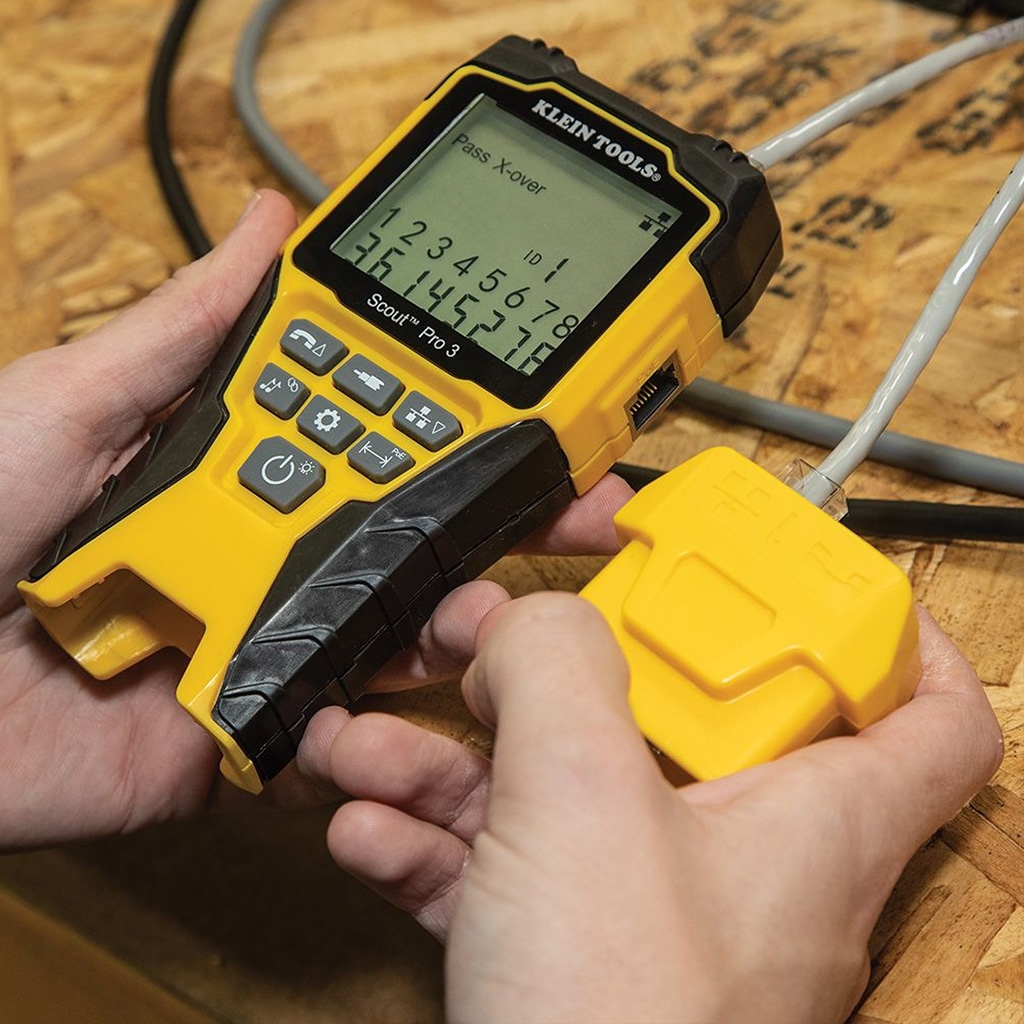

Wiremap testing, testing for Miswires, Split Pairs, Short Faults, Open Faults, and Shield

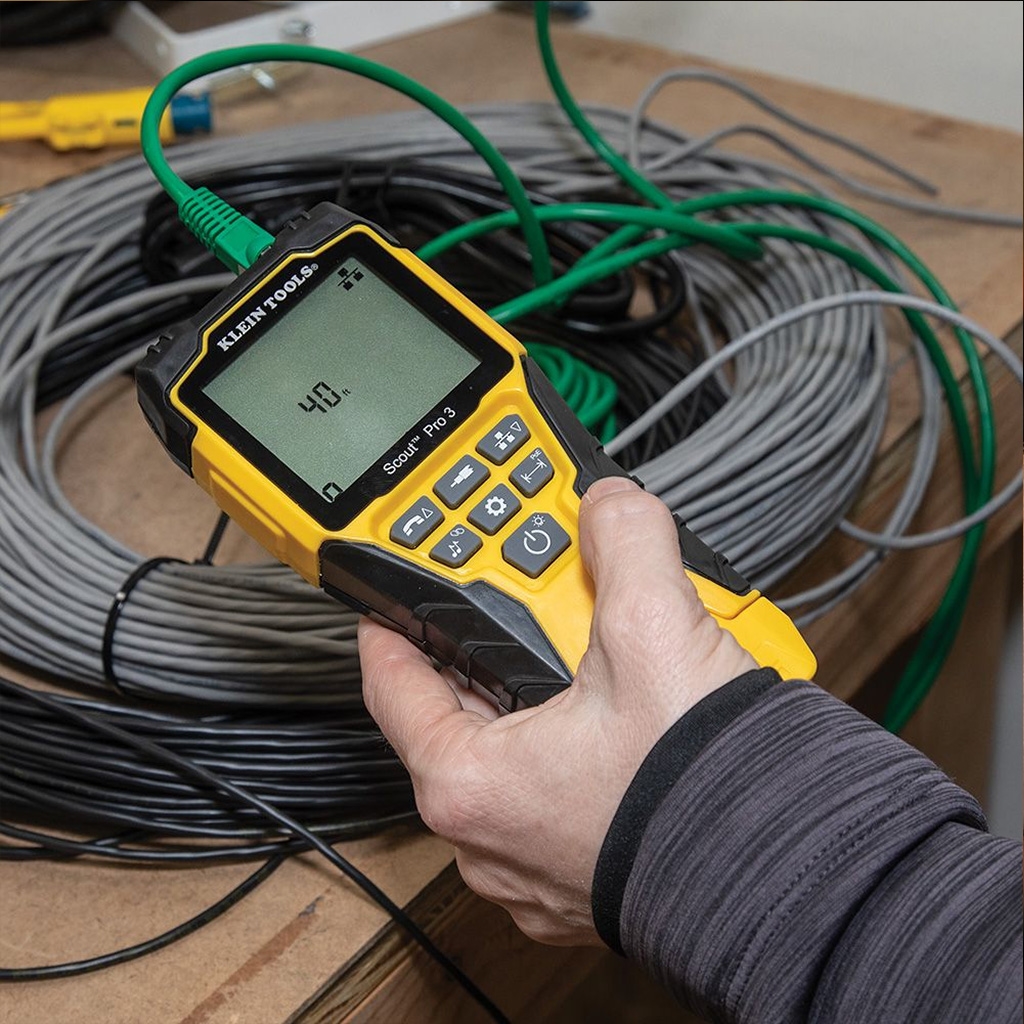

Measures cable length up to 2000 feet
Trace cables, wire pairs and individual conductor wires with a multi-style tone generator (requires analog tracing probe; sold separately)

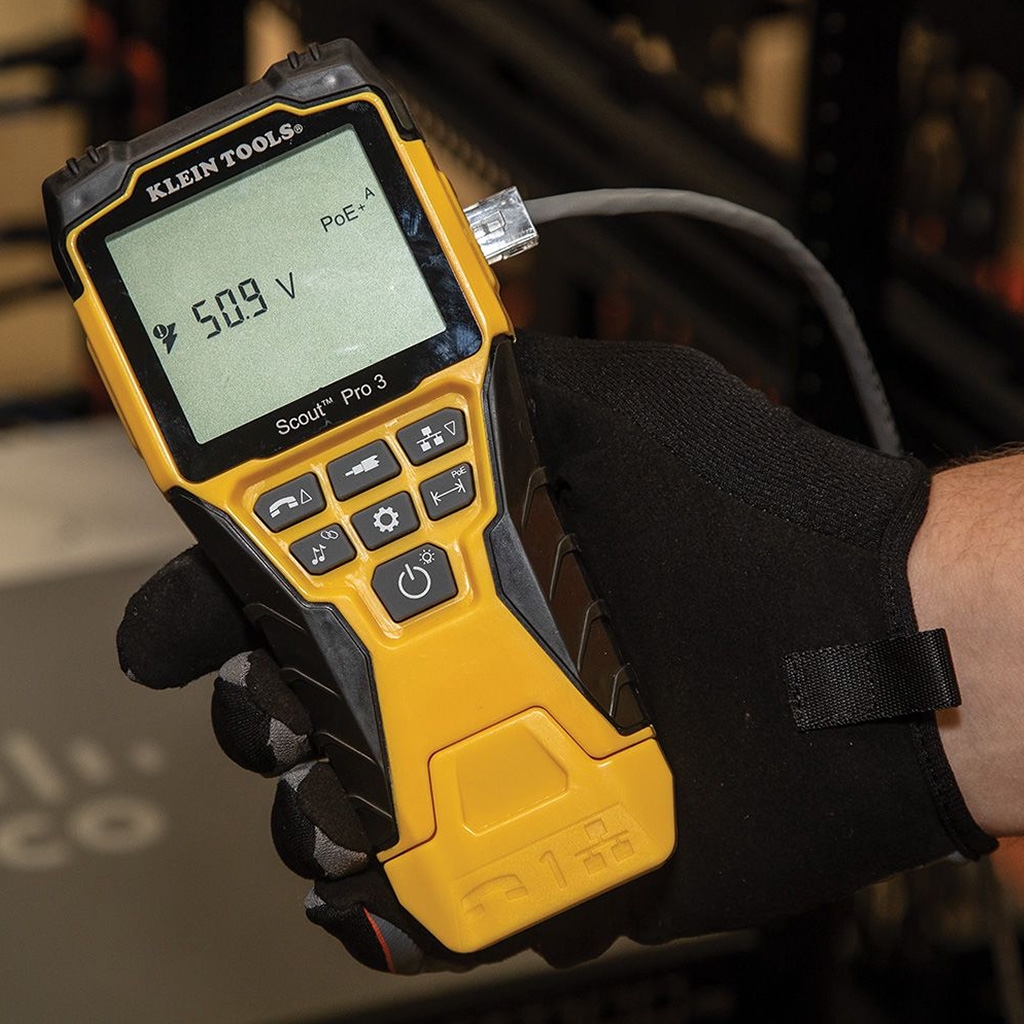

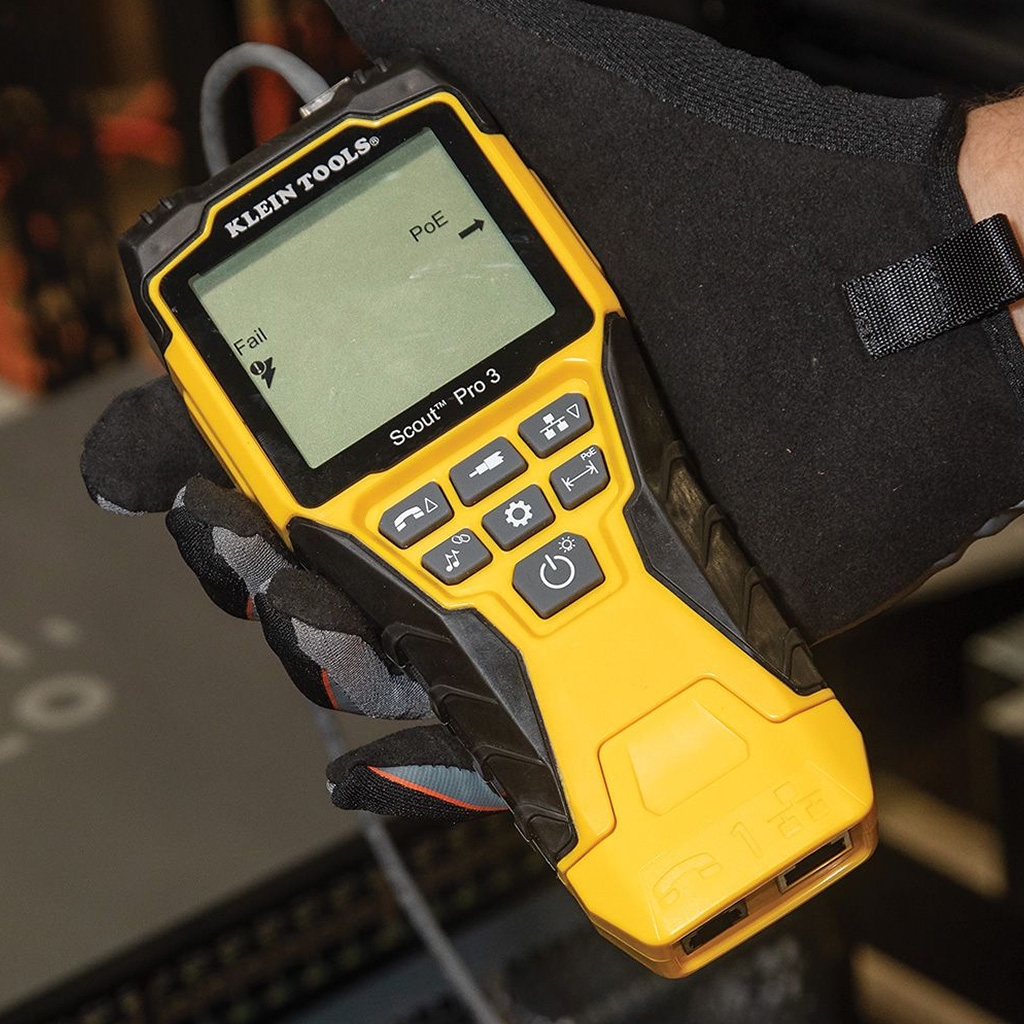

Detect, identify and test Power over Ethernet (PoE)
Identify multiple cable runs with location-mapping remotes

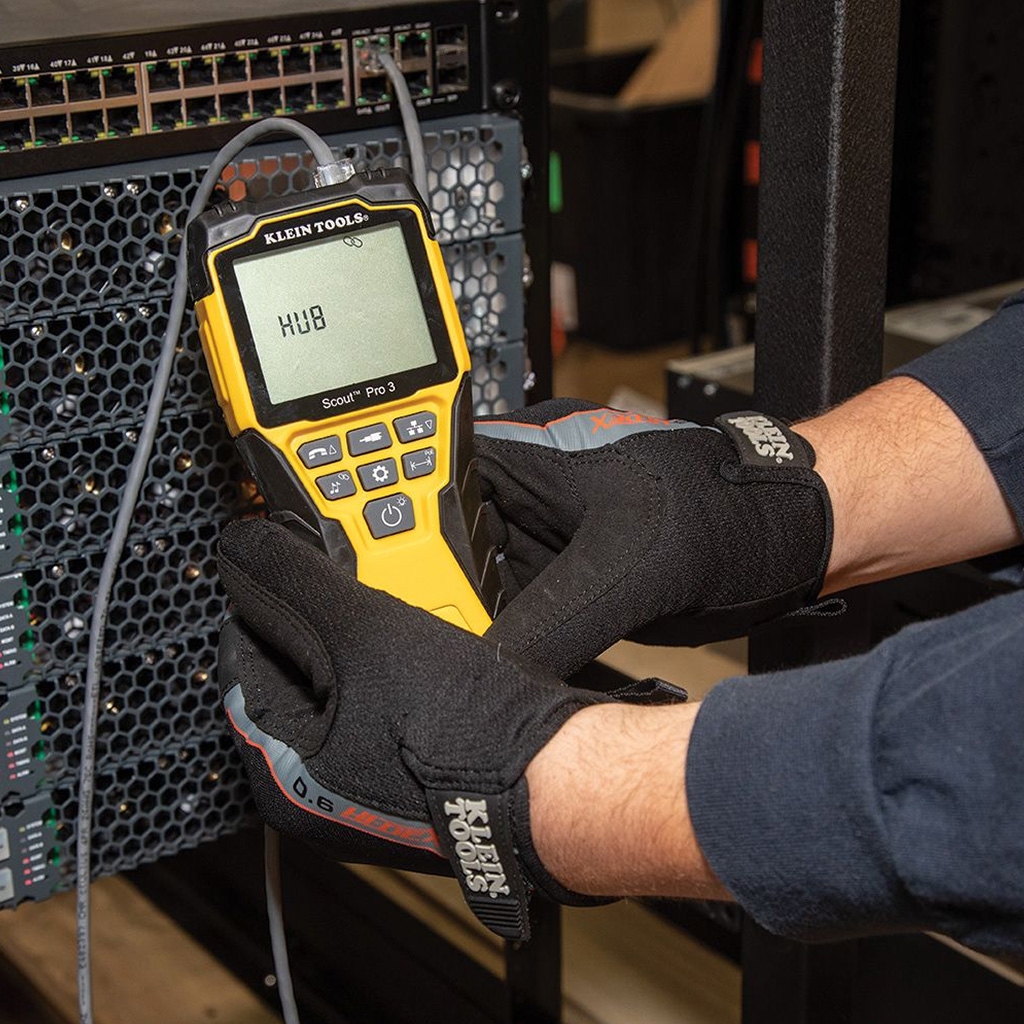

Hub blink mode to identify port location on a hub or a switch

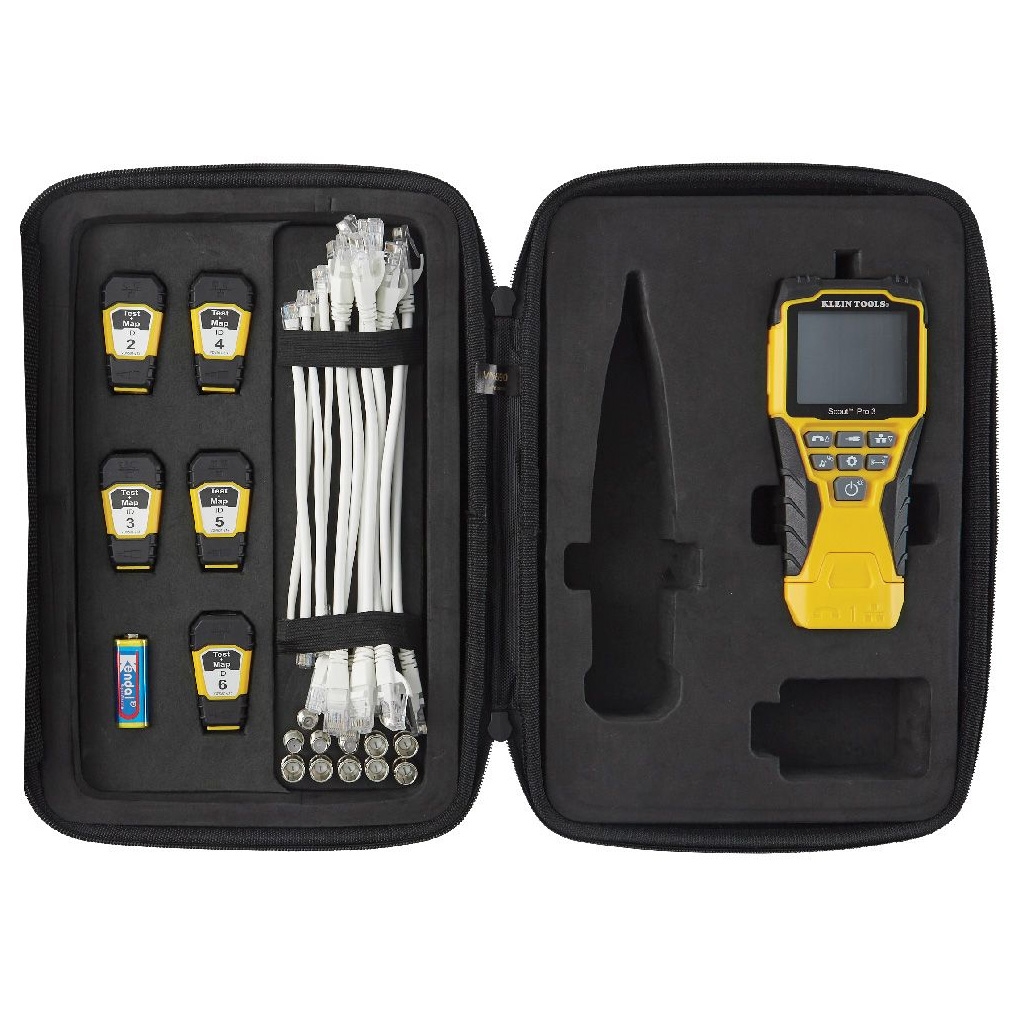

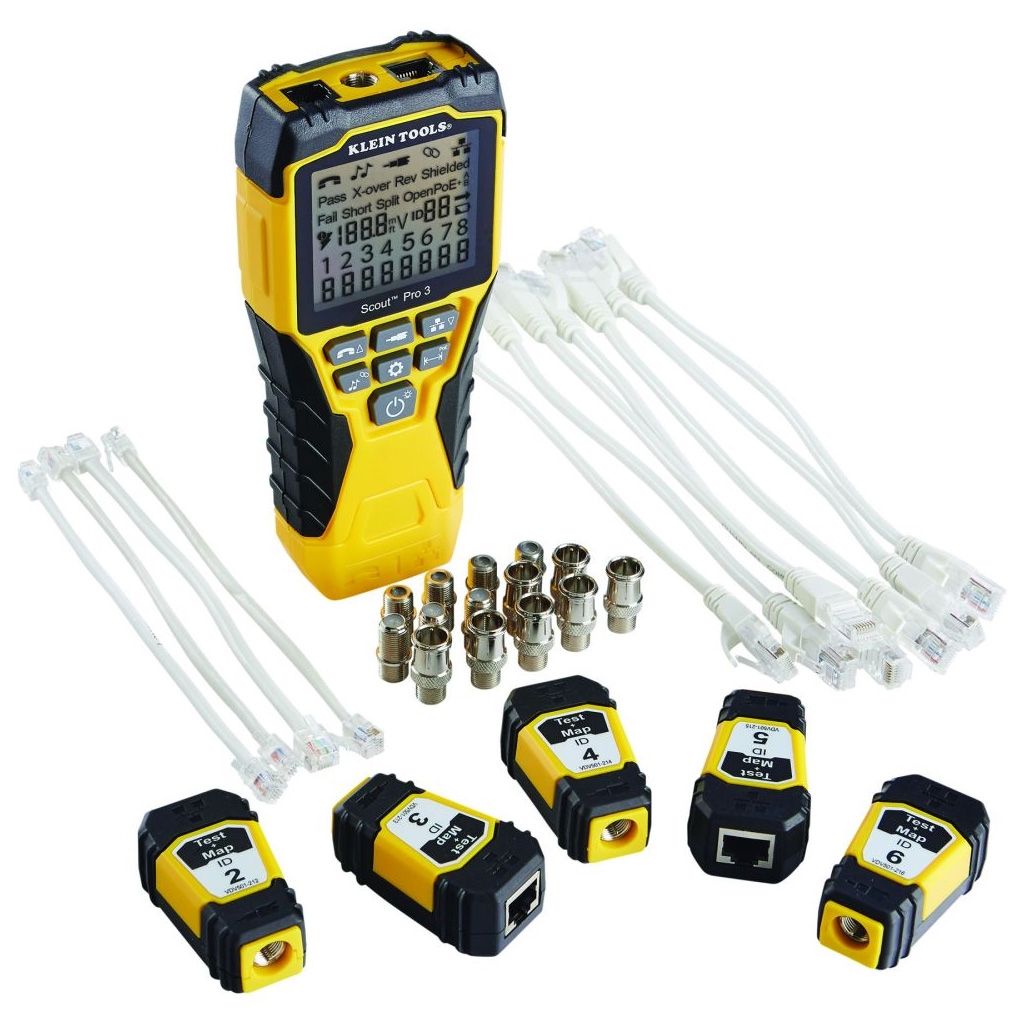

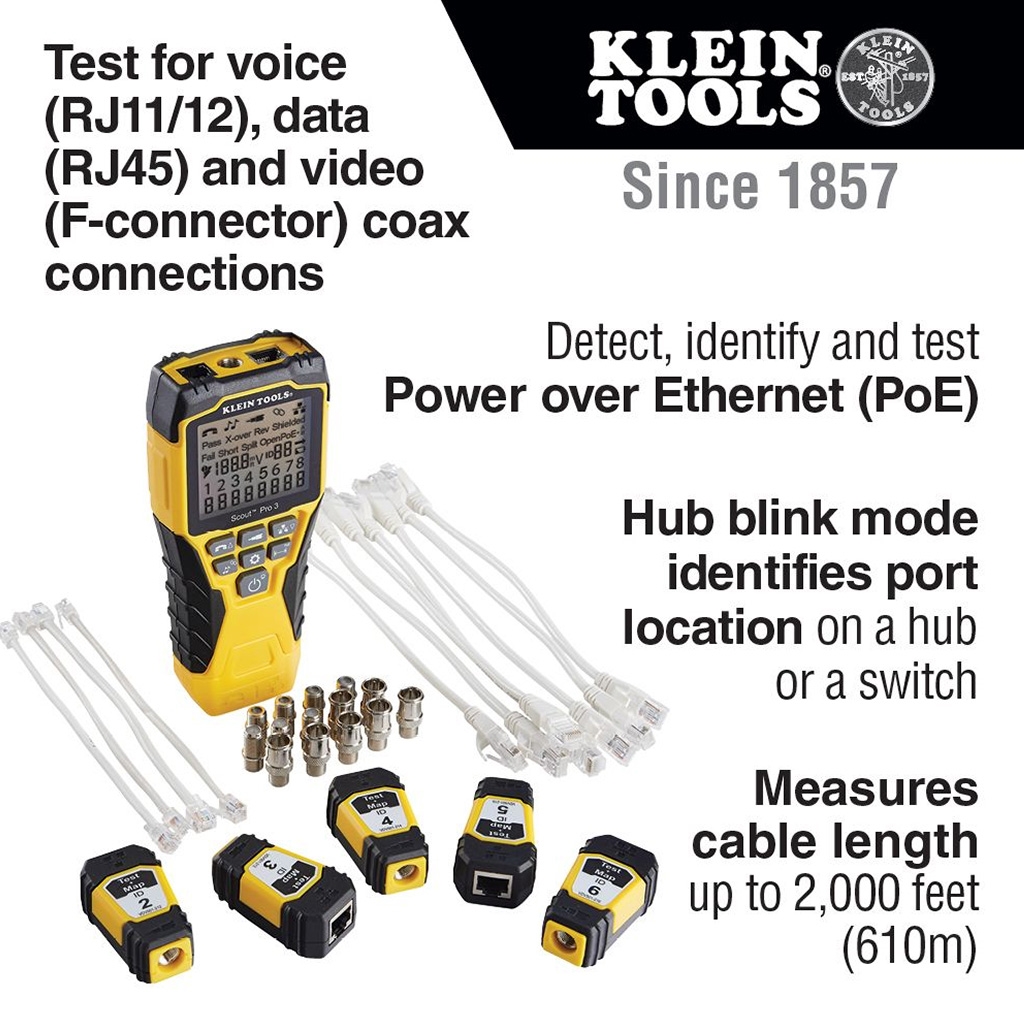

Kit Includes:
1 x Scout® Pro 3 tester
1 x Self-storing Test + Map™ Remote (#1)
5 x Test + Map™ Remotes (#2 - #6)
7 x Coaxial barrel adapters (female-to-female)
7 x Coaxial barrel adapters (male-to-female)
7 x RJ45 jumper cables (6")
2 x RJ11 jumper cables (6")
2 x RJ12 jumper cables (6")
1 x Carrying case
1 x 9V alkaline battery
Specifications:
Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
Application: Cable Testing
Special Features: Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
Cable Type: DATA: Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
Overall Length: 7" (17.8 cm)
Overall Height: 3.2" (8.1 cm)
Overall Width: 1.5" (3.8 cm)
Material: Plastic and Metal
Test-n-Map ID Remotes: (1) Self-Storing, (5) Test + Map™ Remotes (#2 - #6)
Batteries: 9V Alkaline
Battery Life: Active: 50 hr
Drop Protection: 2 m
Supported Remotes: 18

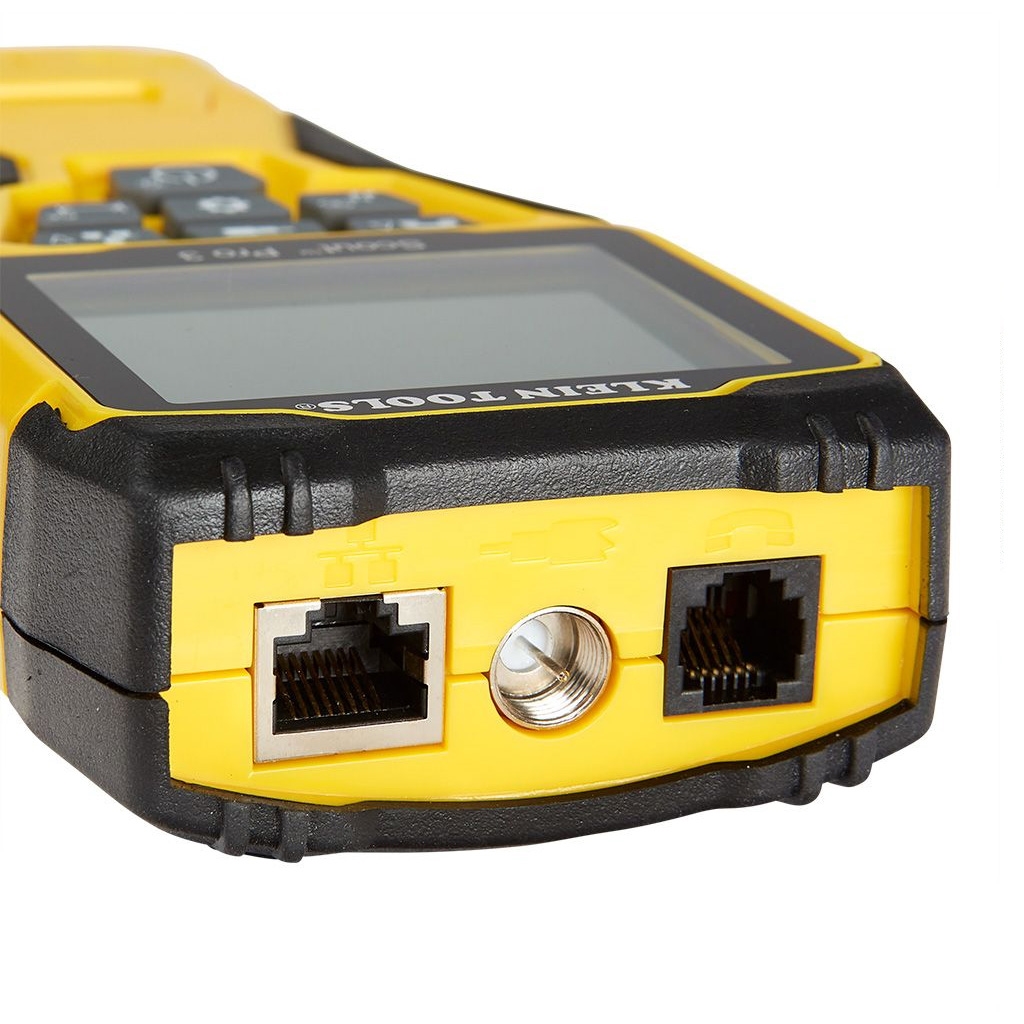

Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
Display: Backlit LCD
Multiple Style Tone Generator: Yes (5); Requires Tracing Probe; Sold Separately

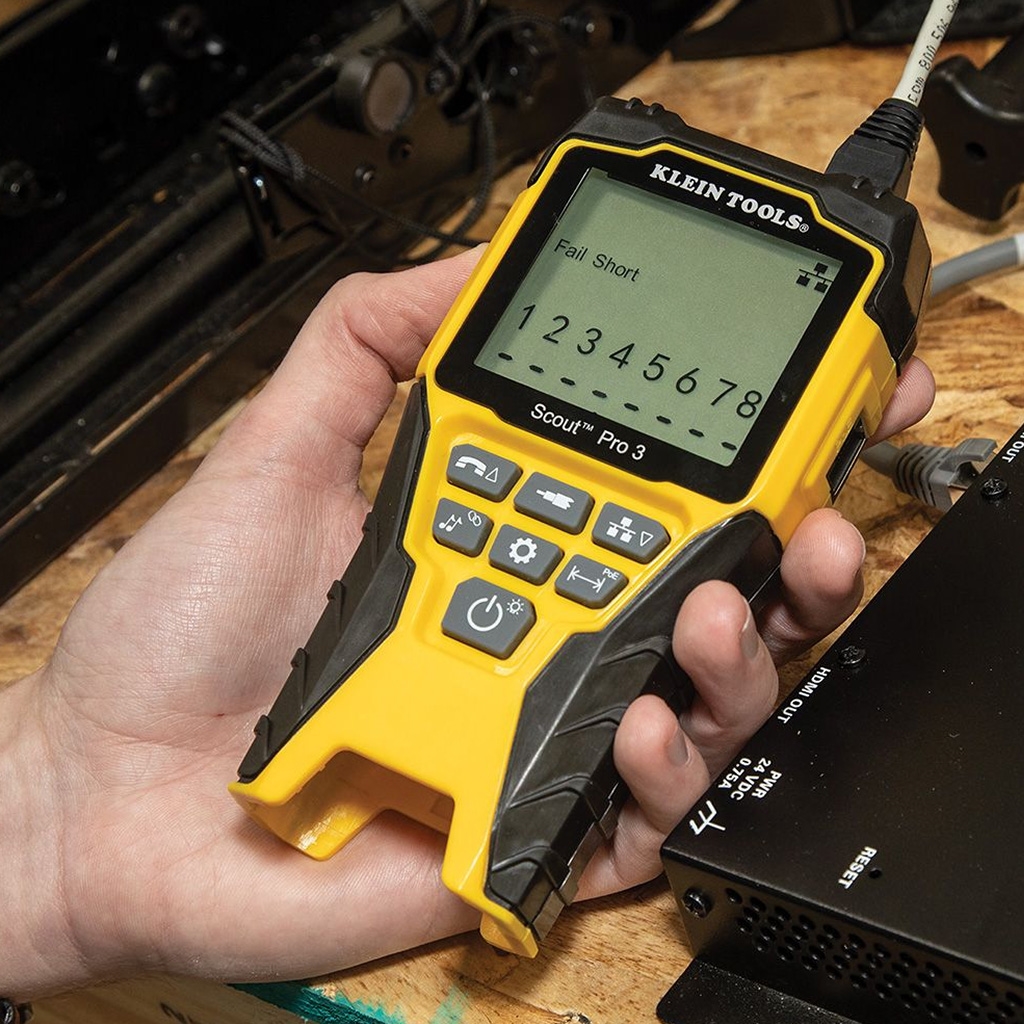

Faults Detected: Open, Short, Miswire
Test & Measure Types: Ethernet, Data, Coaxial
Length Measurement Accuracy: +/- 5%
Standard: CE
Weight: 19.2 oz (544 g)
Model: VDV501-853
Accessories:
| Part # | Klein # | Description |
|---|
| KLN-VDV500-123 | VDV500-123 | Probe-PRO tracing probe - required for tone tracing (sold separately) |
Related Products:
| Part # | Klein # | Description |
|---|
| KLN-VDV501-852 | VDV501-852 | Scout® Pro 3 tester with 18 RJ45 + 18 coax locator remotes |
| KLN-VDV501-851 | VDV501-851 | Scout® Pro 3 tester starter kit with remotes and adapter |
