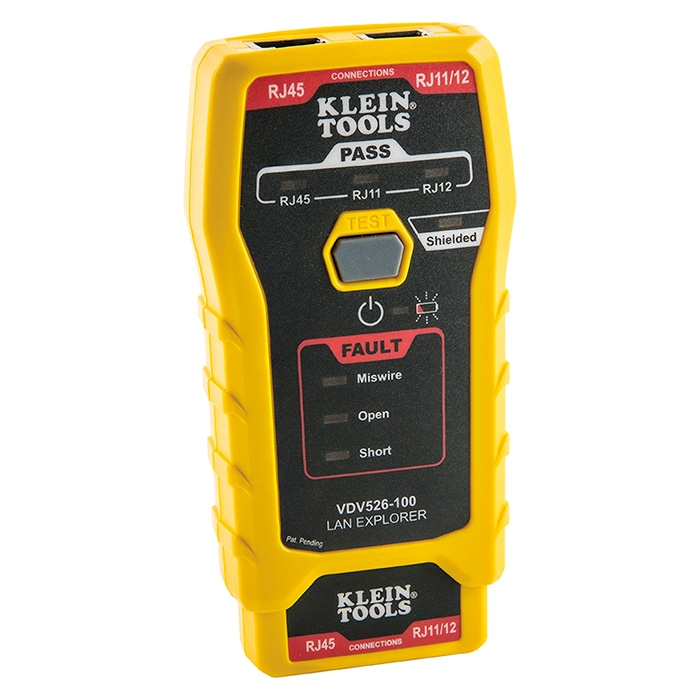

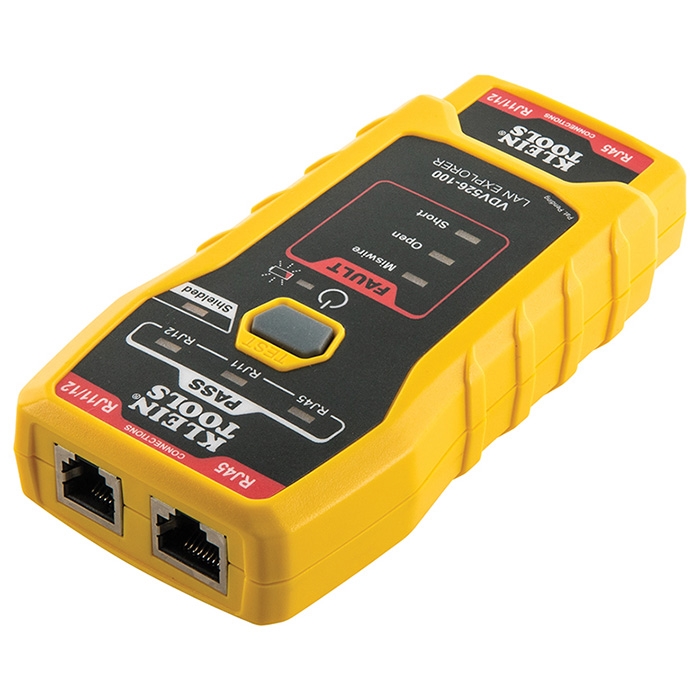

Klein Tools VDV526-100 LAN Explorer® Data Cable Tester with Remote - RJ11, RJ12 & RJ45
The VDV526-100 from Klein Tools is a simple, compact data cable tester for RJ11, RJ12, and RJ45 terminated voice and data cables for Miswires, Open-Faults, Short-Faults, and Shield. Instant LED responses indicate cable status. The test remote stores securely in the tester body. The Auto Power-Off feature shuts the tester down automatically to save the 9V battery (included).
Features:

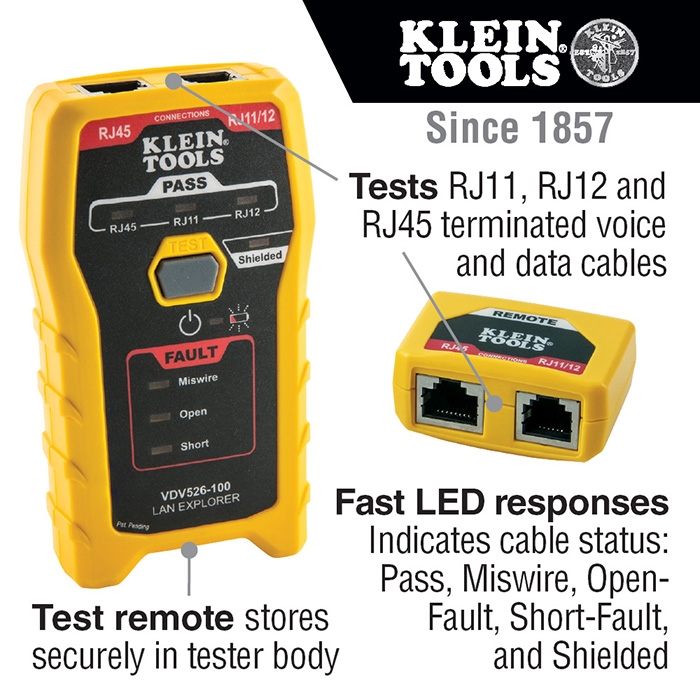

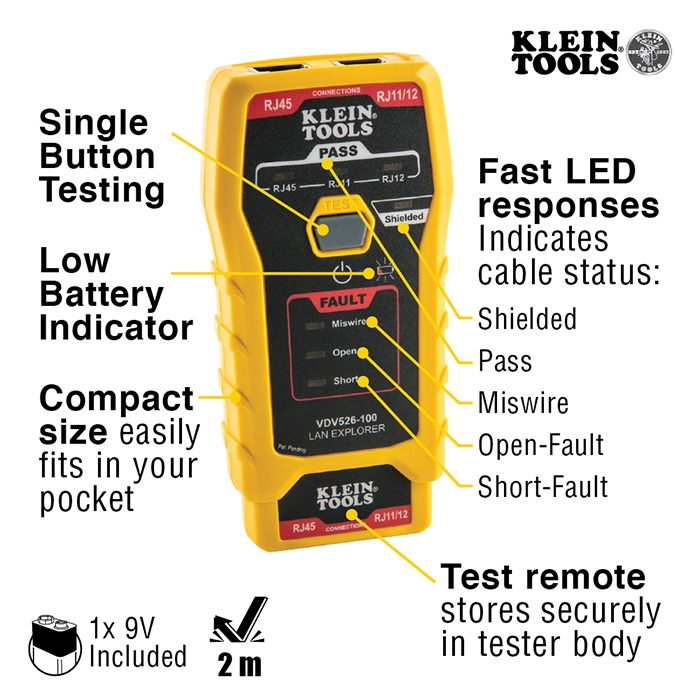

Cable tester with single button testing of RJ11, RJ12 and RJ45 terminated voice and data cables
Tests CAT3, CAT5e and CAT6/6A cables
Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)

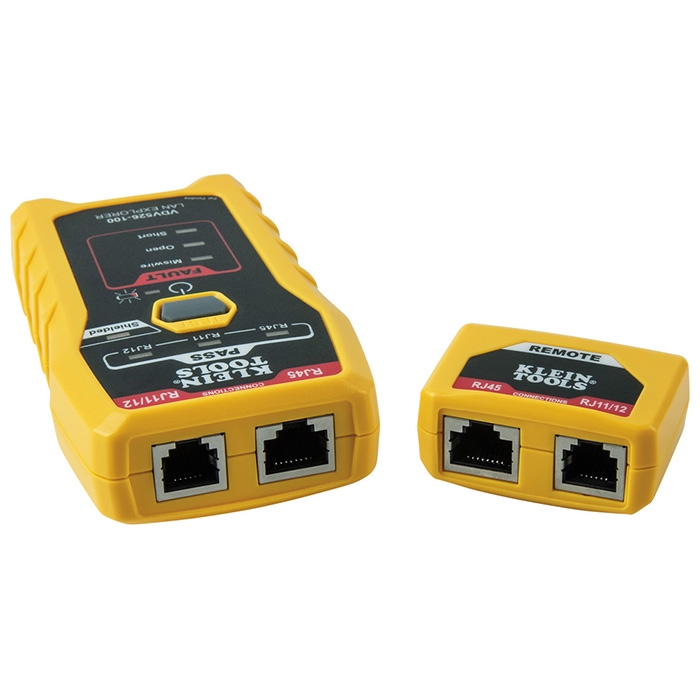

Test remote stores securely in tester body
Compact tester easily fits in your pocket
Auto Power-off feature to conserve battery life (9V included)
Low battery indicator
Replacement remote available (sold separately)
Includes:
1 x LAN Explorer® tester
1 x Test remote
1 x 9V battery
Specifications:
Type: Twisted Pair, DATA, Voice, LAN
Application: Cable Testing to 1000' (305 m)
Special Features: LED response
Cable Type: CAT3, CAT5e, CAT6/6A
Overall Length: 5" (12.7 cm)
Overall Height: 1.25" (3.2 cm)
Overall Width: 2.5" (6.4 cm)
Material: Plastic and Stamped Metal
Test-n-Map ID Remotes: 1
Batteries: 1 x 9V
Battery Life: Active: 80 hr; Standby: 3.5 yr
Drop Protection: 2' (0.6 m)
Connection & Adapter Types: RJ11, RJ12, RJ45
Display: LED
Multiple Style Tone Generator: No
Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, and Shield
Test & Measure Types: Voice, Data, RJ45, RJ11
Weight: 4 oz (113 g)
Model: VDV526-100
Replacement Parts:
| Part # | Klein # | Description |
|---|
| - | VDV999-150 | Replacement test remote (Klein supported remote VDV999150) - sold separately |
