PRODUCT DESCRIPTION

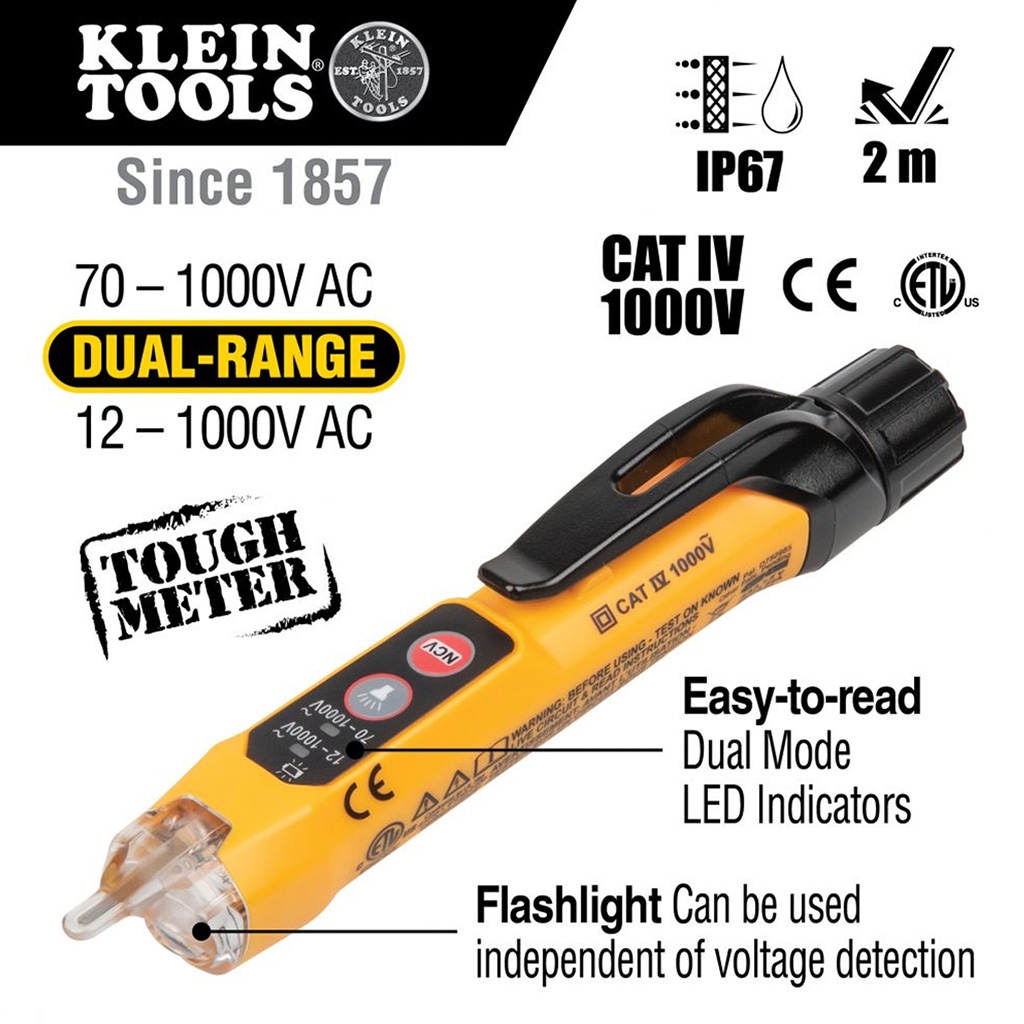

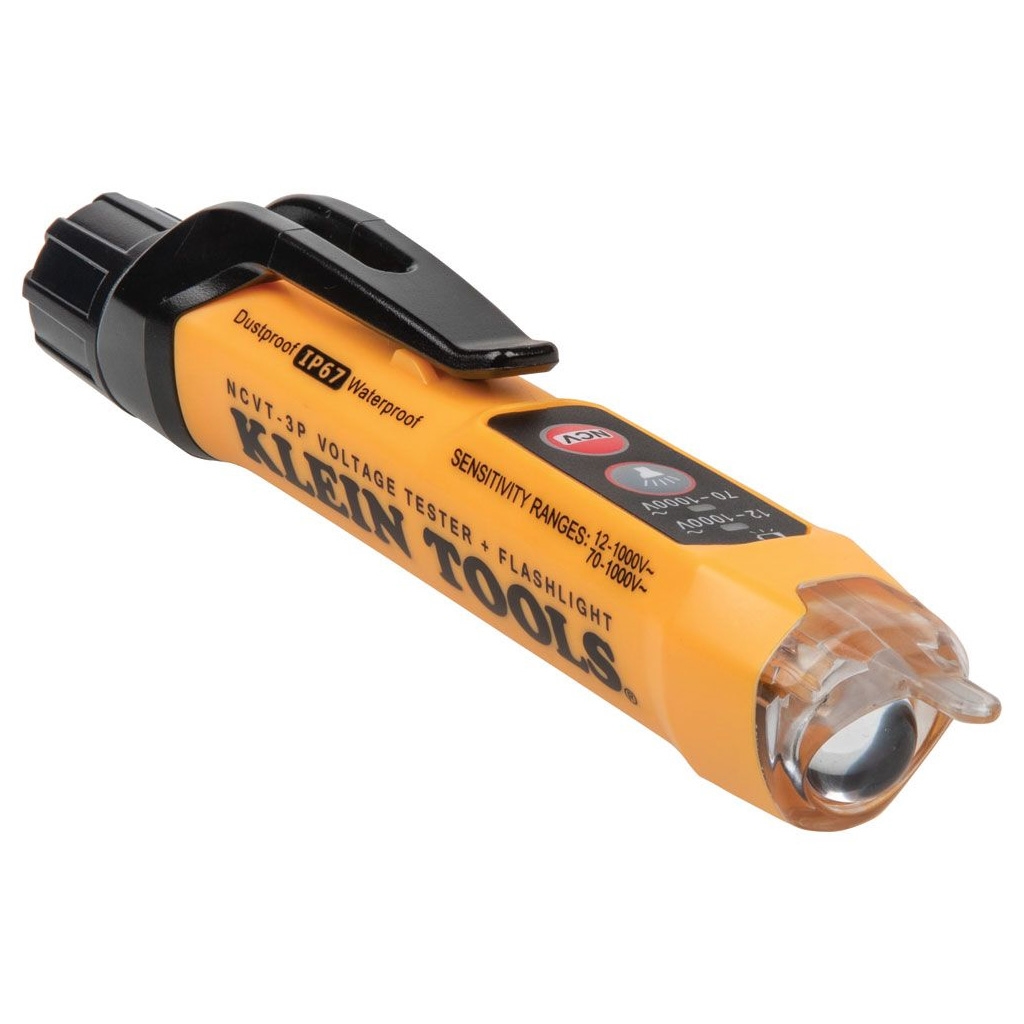

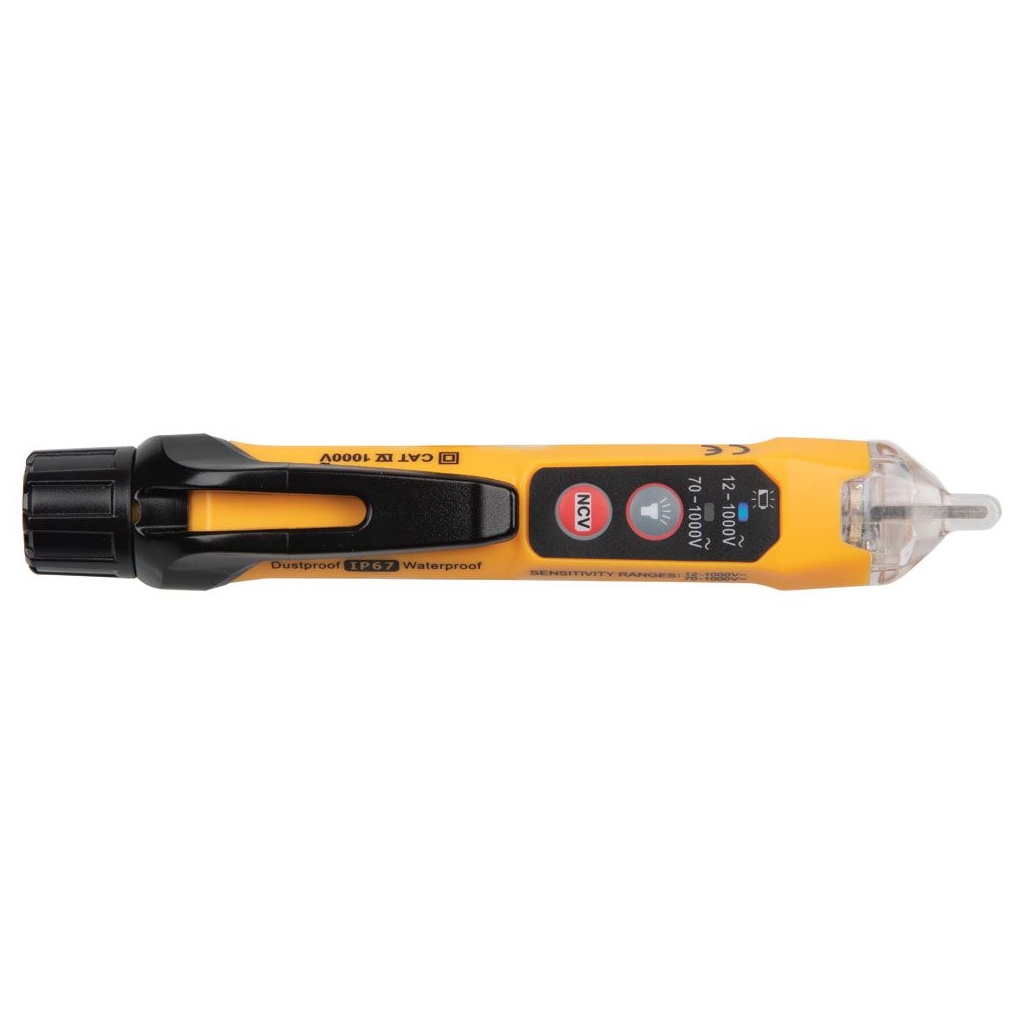

Klein NCVT-3P Dual-Range Non-Contact Voltage Tester with Flashlight - 12 to 1000V AC

The NCVT-3P from Klein Tools is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12-1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals.

Features:

Provides non-contact detection of AC voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems

Dual modes indicate low voltage (12 to 70V AC) and standard voltage (70 to 1000V AC)

Detects 12 - 1000V AC with simultaneous visual and audible voltage indicators

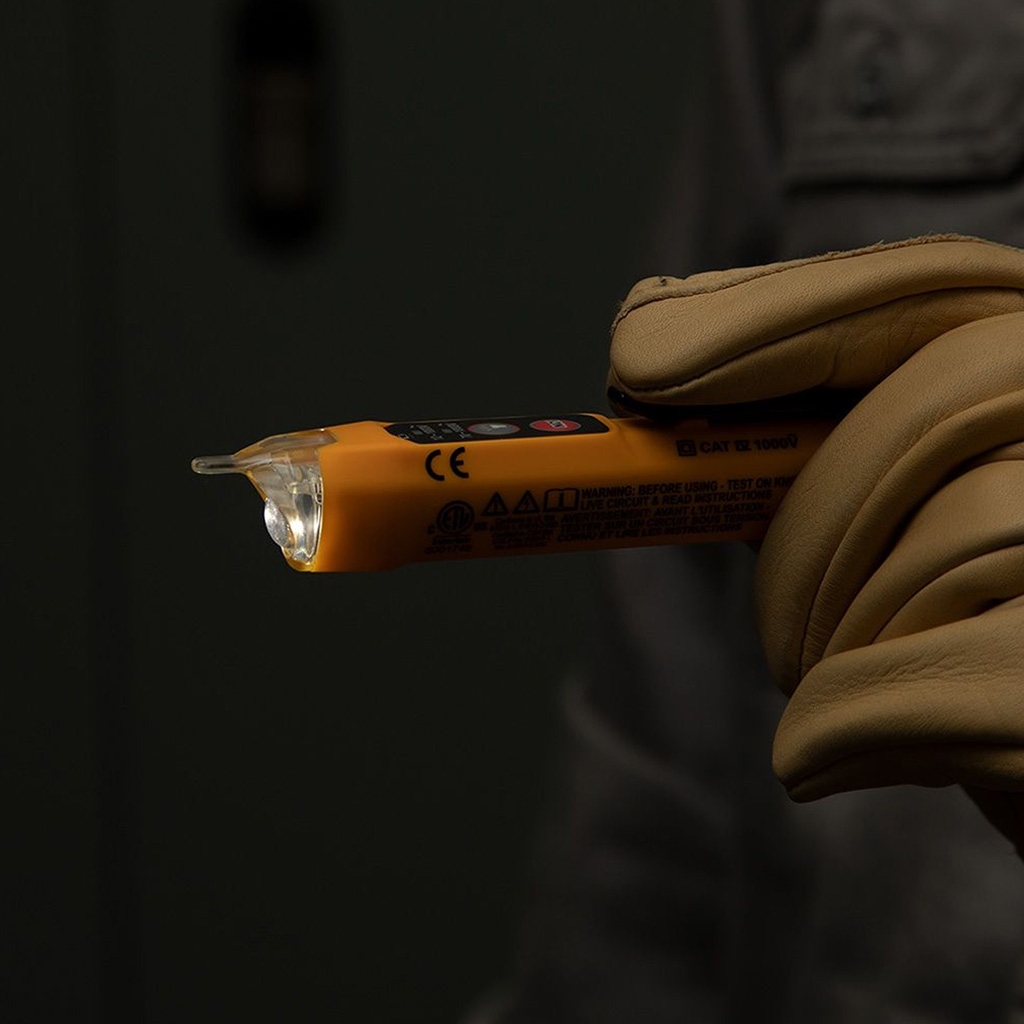

Bright flashlight illuminates work area and may be used independent of voltage detection function

Green light indicates no voltage

Visual LED bar graph indicates the presence of voltage - the higher the voltage sensed, or the closer to the voltage source, the more LEDs light up

Bar graph visual voltage indicator utilizes up to five vibrant LEDs for easy interpretation/viewing

Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source

"Auto Power-Off" conserves and extends battery life

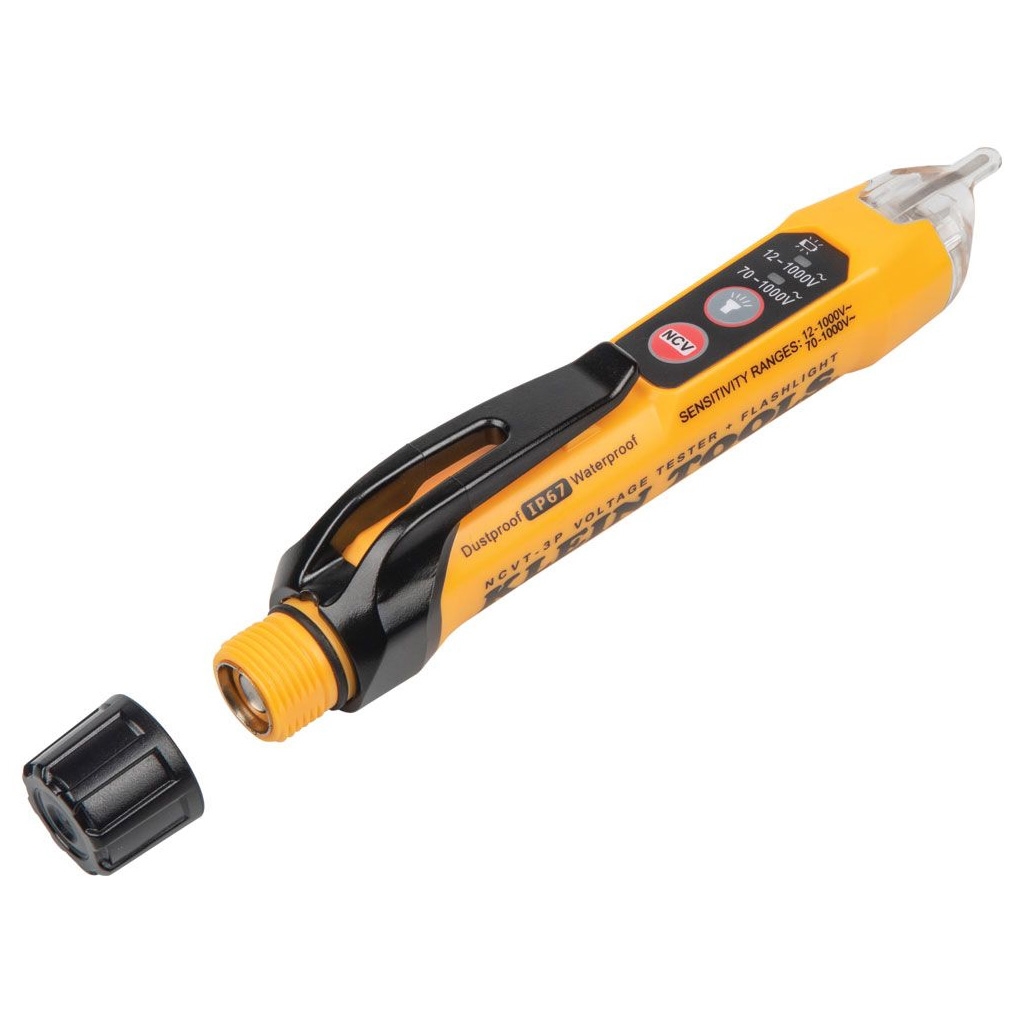

Screw-thread battery cap with O-ring ensures dustproof and waterproof ingress protection

Lightweight, compact tool with pocket clip provides convenient storage and quick access

US Patent 10,073,142, D750,985 and other patents pending

Includes:

1 x NCVT-3P tester

2 x AAA batteries

Specifications:

Type: Dual Range with Flashlight

Voltage: 12 - 1000V AC; 70 - 1000V AC

Frequency: 50 - 500 Hz

Ingress Protection: IP67: Dustproof and waterproof

Drop Protection: 6.6' (2 m)

Standard: CAT IV 1000V

Conforms to CE requirements

Material: Polycarbonate

Pollution Degree: 2

Batteries: 2 x AAA

Battery Life: 125 hr

Overall Length: 5.7" (14.5 cm)

Overall Height: 0.93" (2.4 cm)

Overall Width: 1.09" (2.8 cm)

Weight: 1.9 oz (54 g)

Model: NCVT3P

Instructions
