The UtilityTool UA01-7086 Longhorn PV Wire Stripping Kit pairs a WS 22 SNAP power-driven end stripper with bushings for 4/0 AWG, 250, 300, 350, 400, 500, 600, 750 and 1000 kcmil 2kV aluminum PV (solar) wire.
It is a precise, repeatable stripping setup for solar feeder cable, in a 16 x 16 x 4in double-lock case.

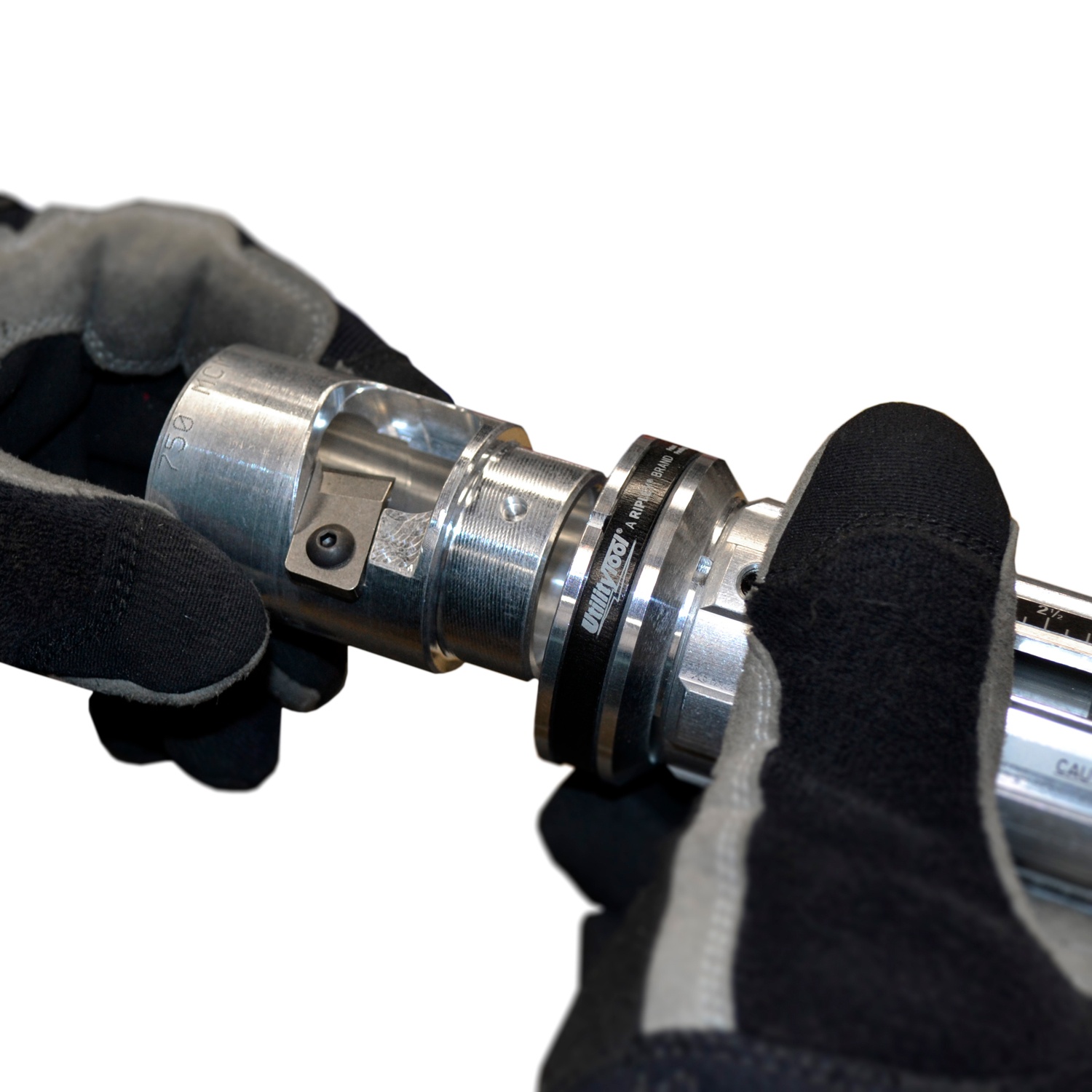

A quick-release collar swaps bushings fast, and the adjustable strip stop and scale set strip lengths from 1.5 to 5.25in (38.1-133.3 mm).

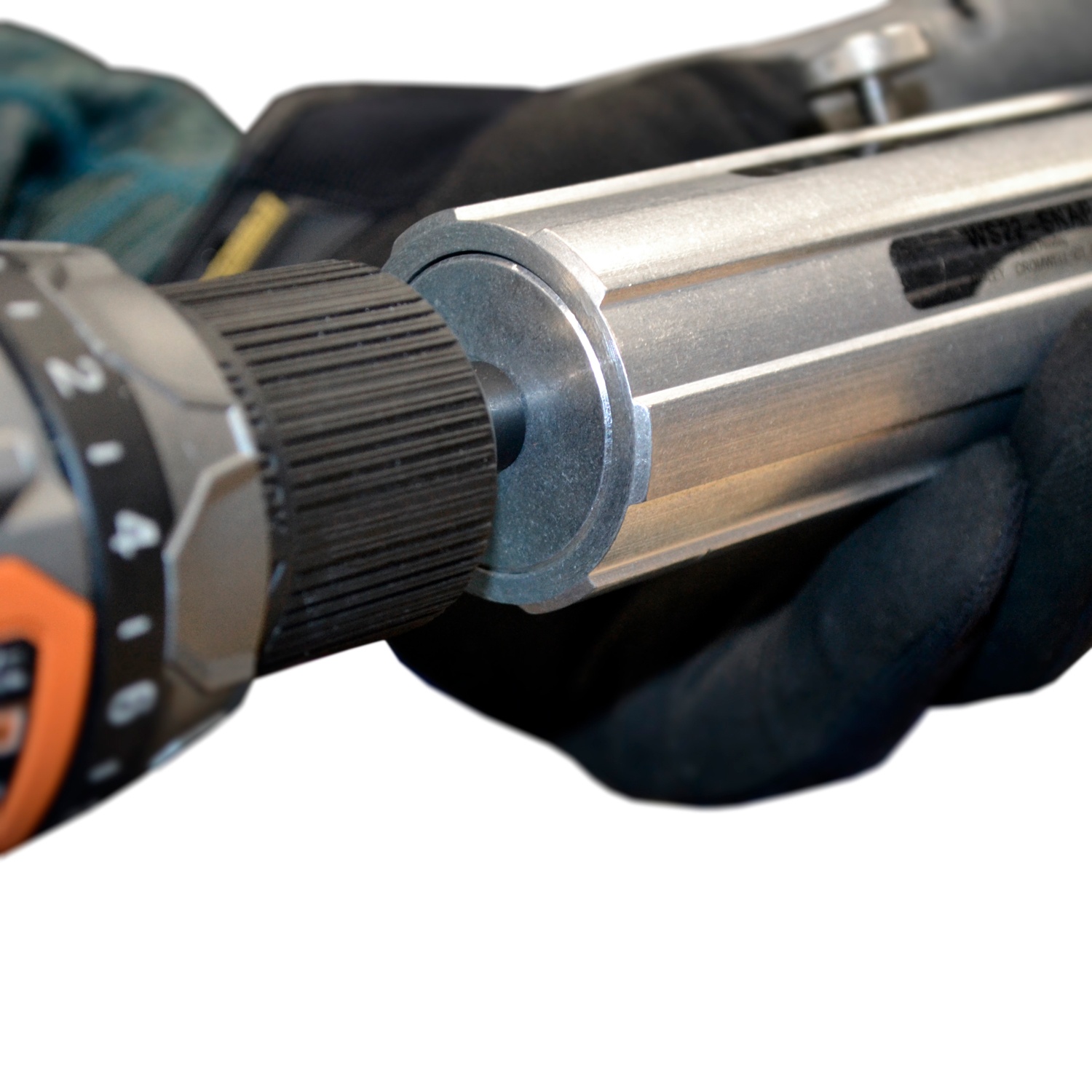

The drill adapter fits 3/8in (9.5 mm) chucks, and the tool accepts all US08 and 15 series bushings.
Features:
- WS 22 SNAP drill-operated end stripper for 2kV aluminum PV wire
- Bushings included: 4/0 AWG, 250, 300, 350, 400, 500, 600, 750 and 1000 kcmil
- Quick-release collar for fast bushing change
- Adjustable strip stop and scale: 1.5-5.25in (38.1-133.3 mm)
- Fits 3/8in (9.5 mm) drill chucks

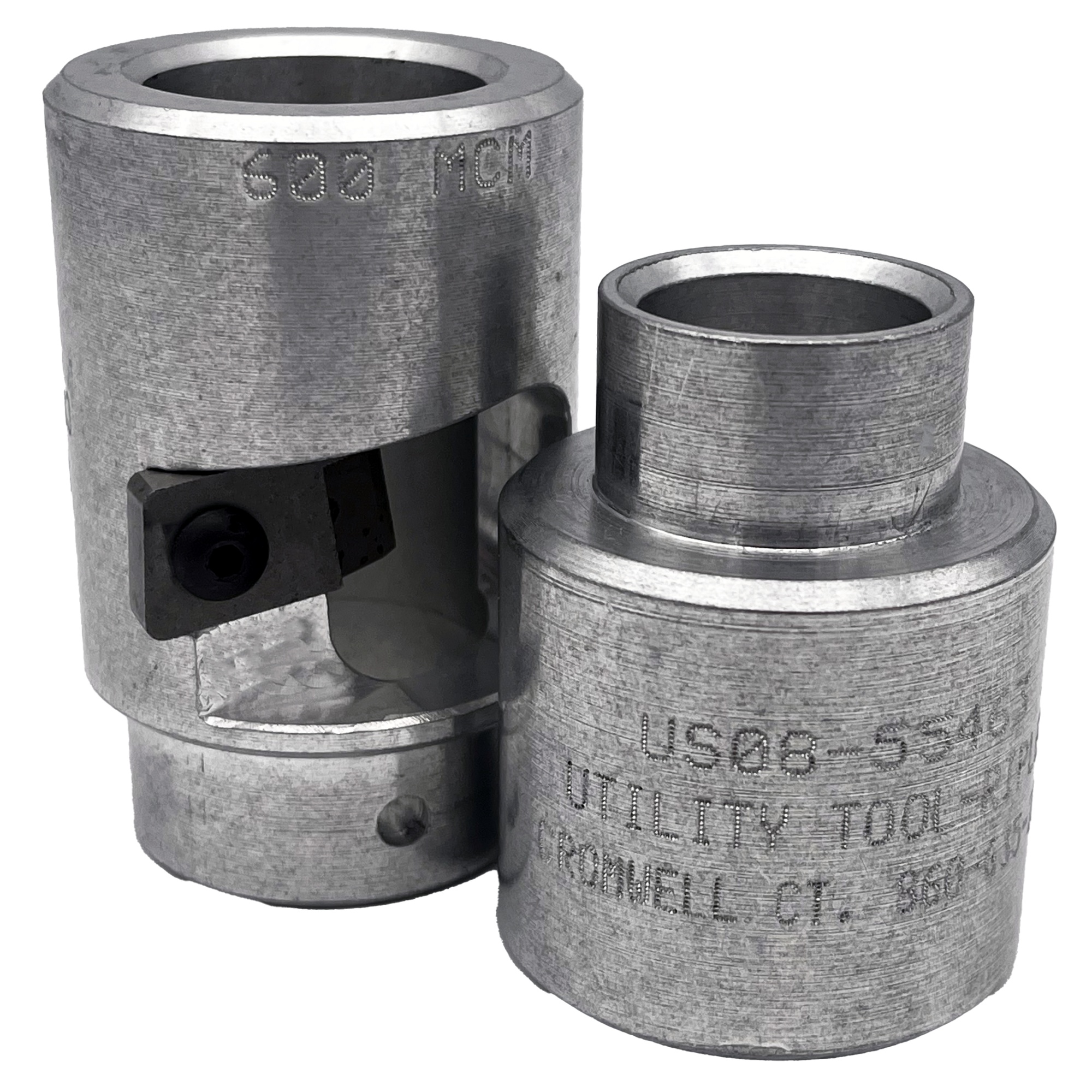

- Accepts all US08 and 15 series bushings

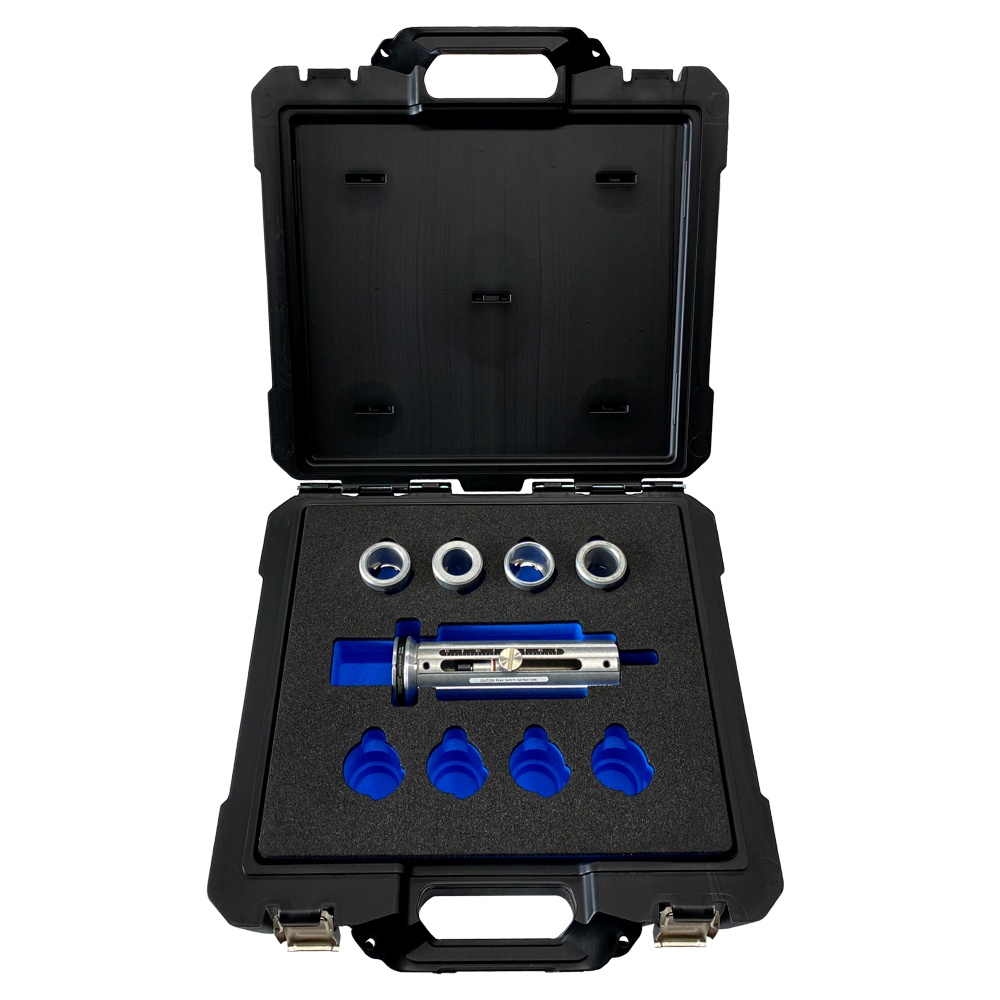

- Durable 16 x 16 x 4in double-lock case
Specifications:
- Model: Ripley UtilityTool UA01-7086 Longhorn PV Kit
- Wire: 2kV aluminum PV wire
- Bushings: 4/0 AWG, 250, 300, 350, 400, 500, 600, 750 and 1000 kcmil
- Open Bushing Slots: No slots free
- Case: 16 x 16 x 4in (406.4 x 406.4 x 101.6 mm)
PV Kit Versions:
| Kit | Part # | Bushings Included | Open Slots |
|---|
| The Original PV Kit | UA01-7010 | 500, 600, 750, 1000 kcmil | Can accept 5 more bushings |
| The Longhorn PV Kit | UA01-7086 | 4/0 AWG, 250, 300, 350, 400, 500, 600, 750, 1000 kcmil | No slots free (this item) |
| The Atlantic PV Kit | UA01-7087 | #2, #1, 1/0, 2/0, 3/0, 4/0 AWG, 250, 350 kcmil | Can accept 1 more bushing |
| The Complete PV Kit | UA01-7088 | 1/0, 2/0, 4/0 AWG, 250, 350, 500, 600, 750, 1000 kcmil | No slots free |
|
|
|
 |
|
 |
|
