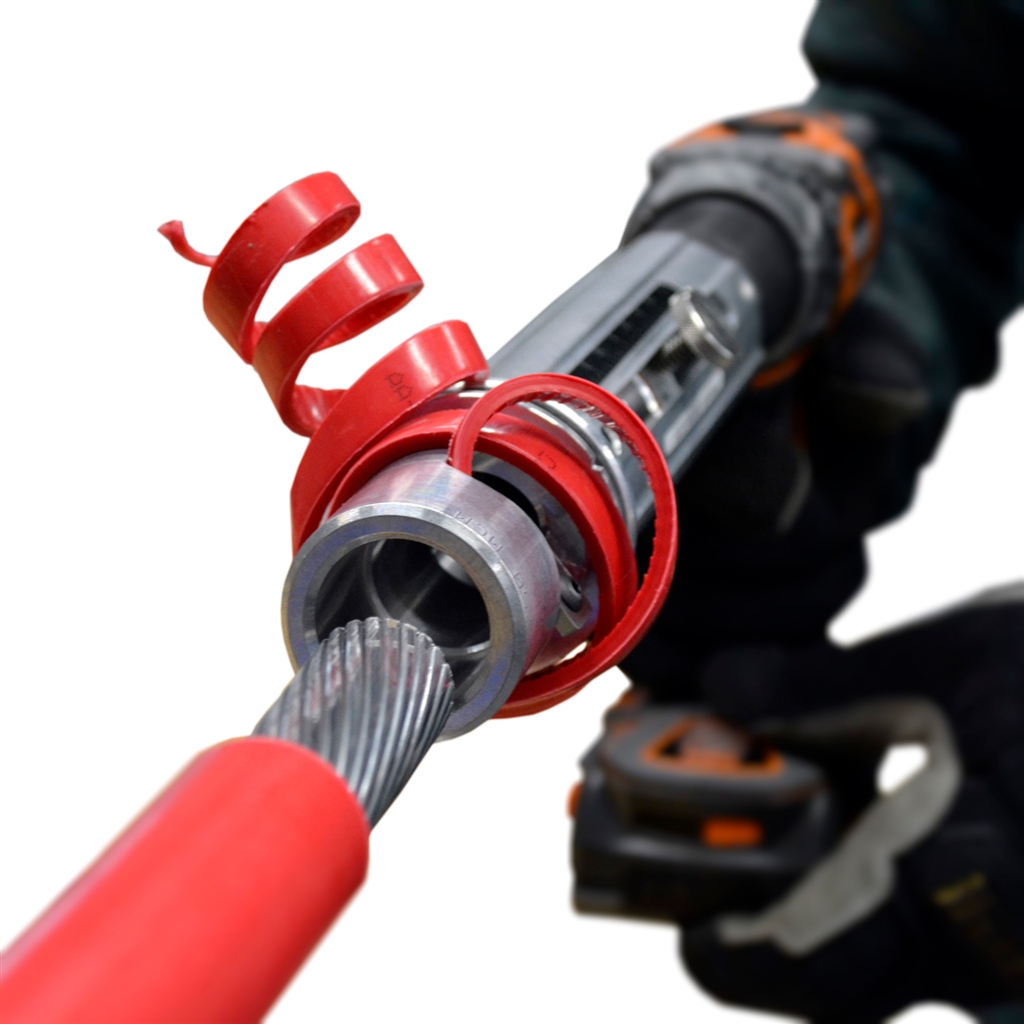

The Ripley UA01-7010 PV Wire Stripping Kit is engineered as the go-to solution for installers tackling heavy-gauge feeder cable stripping on solar and utility-scale DC installations. Built around the WS 22 SNAP Power-Driven End Stripper, the kit pairs the tool with four custom US08-series bushings sized specifically for 500, 600, 750, and 1000 kcmil 2kV aluminum PV wire, giving technicians a dedicated bushing for each conductor size to ensure clean insulation removal without nicking or damaging the underlying aluminum conductor.

The WS 22 SNAP features a quick-release collar for fast bushing changeover between conductor sizes, plus an adjustable strip stop and scale that allows precise strip-length setup from 1.5 to 5.25 inches (38.1 to 133.3 mm). A drill adapter fits standard 3/8-inch (9.5 mm) drill chucks, letting installers power the tool with a common cordless drill for repeatable, low-effort stripping in the field. The stripper also accepts the full US08 series and 15-series bushing lines, so the kit can be expanded with additional bushings for other conductor sizes as jobsite needs grow.

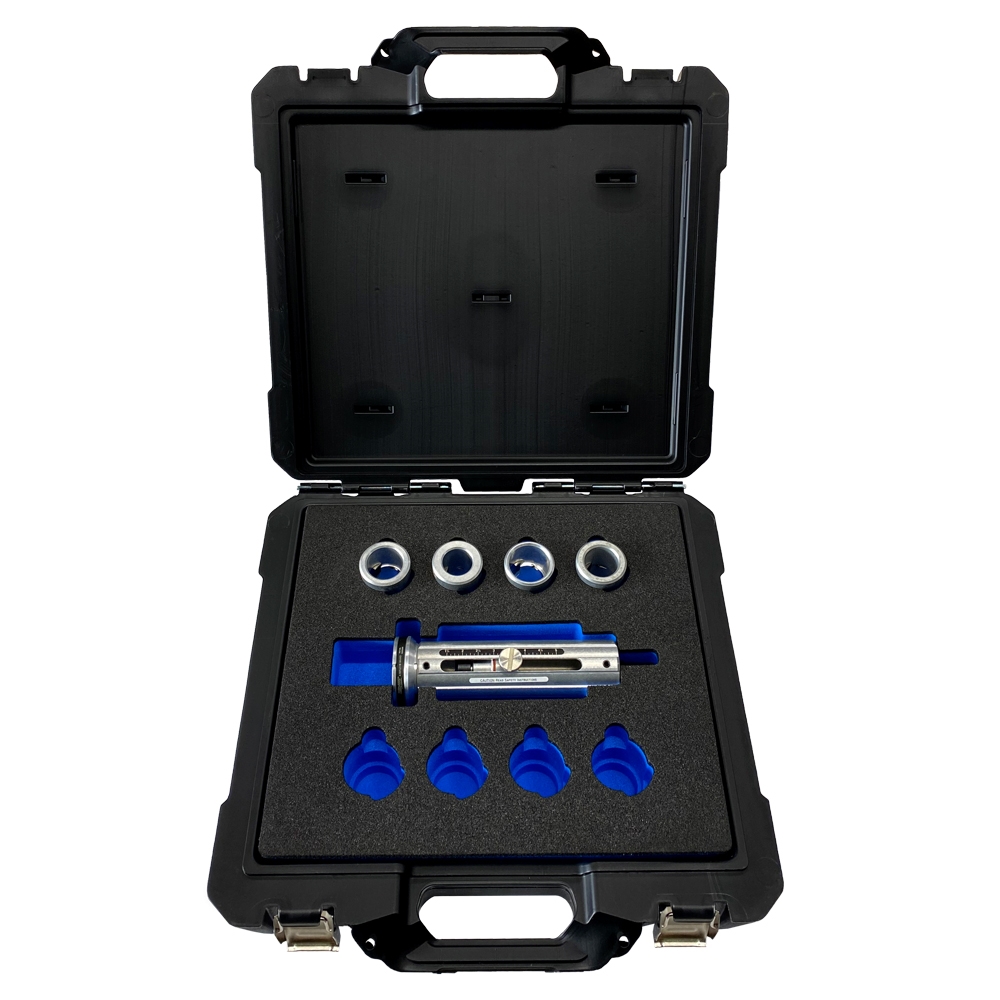

Everything ships in a durable 16 x 16 x 4-inch double-lock hard case with room for up to nine bushings, keeping the tool and accessories organized and protected during transport between job sites. This kit is designed for solar installers, cable jointers, and electrical contractors who need a reliable, repeatable method for preparing large aluminum PV feeder conductors on utility-scale solar projects.

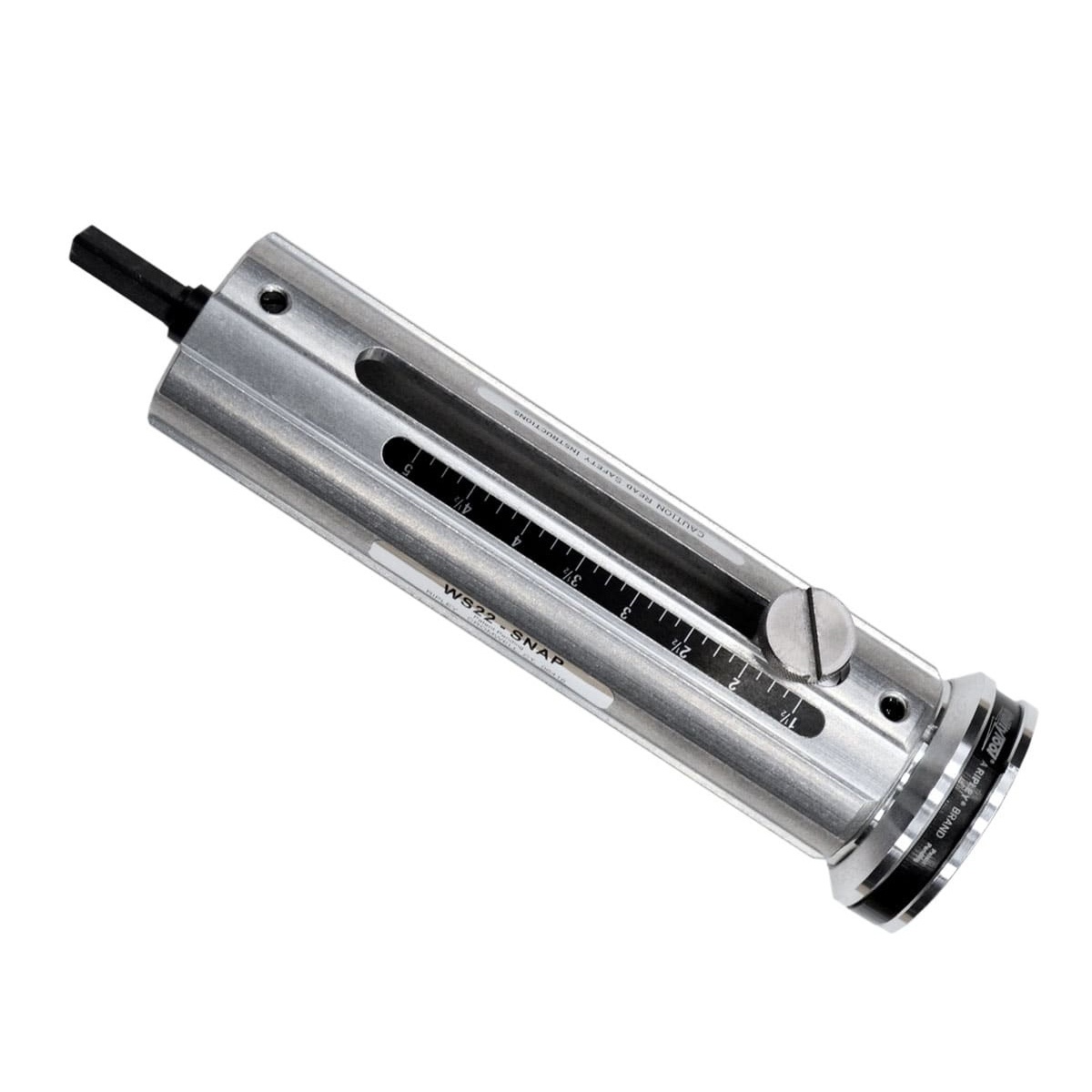

• WS 22 SNAP power-driven end stripper for fast, ergonomic operation
• Four dedicated stripping bushings for 500, 600, 750, and 1000 kcmil 2kV aluminum PV wire

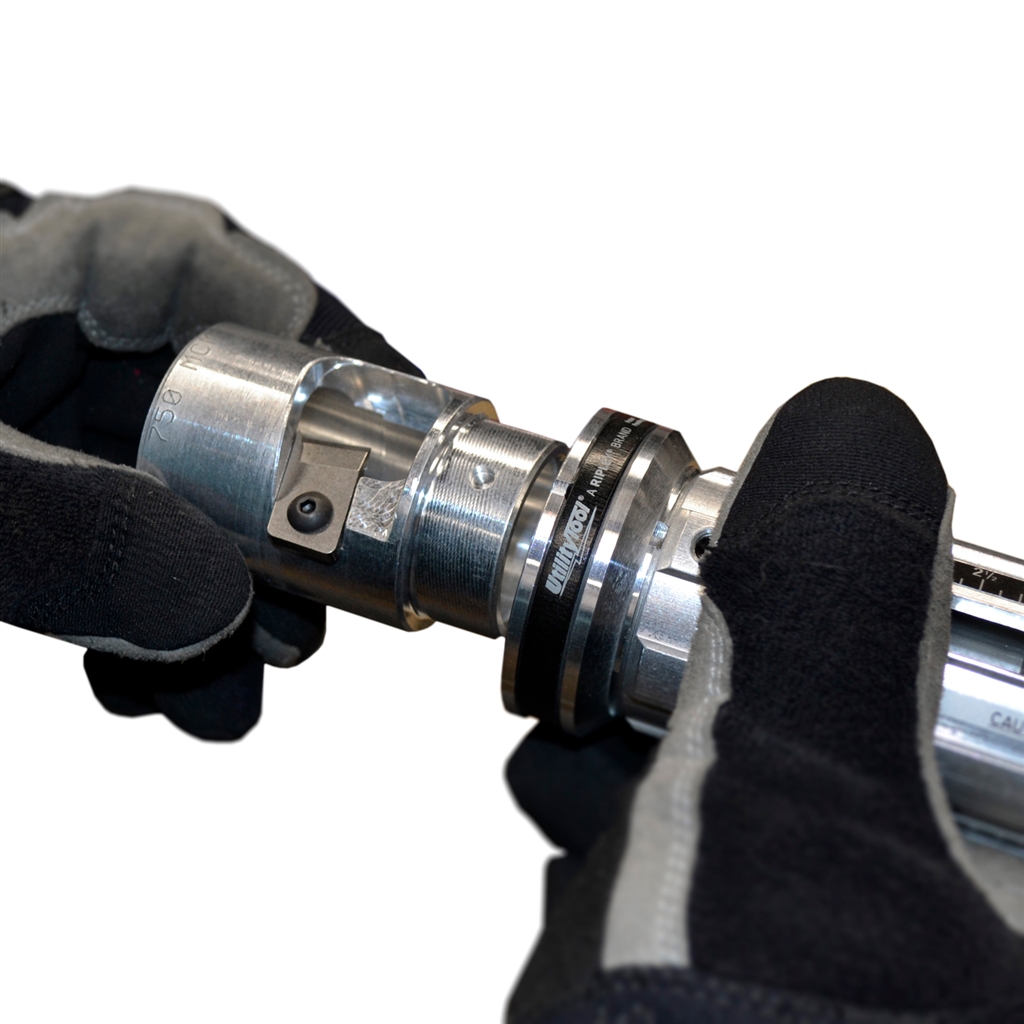

• Quick-release collar for fast bushing change over

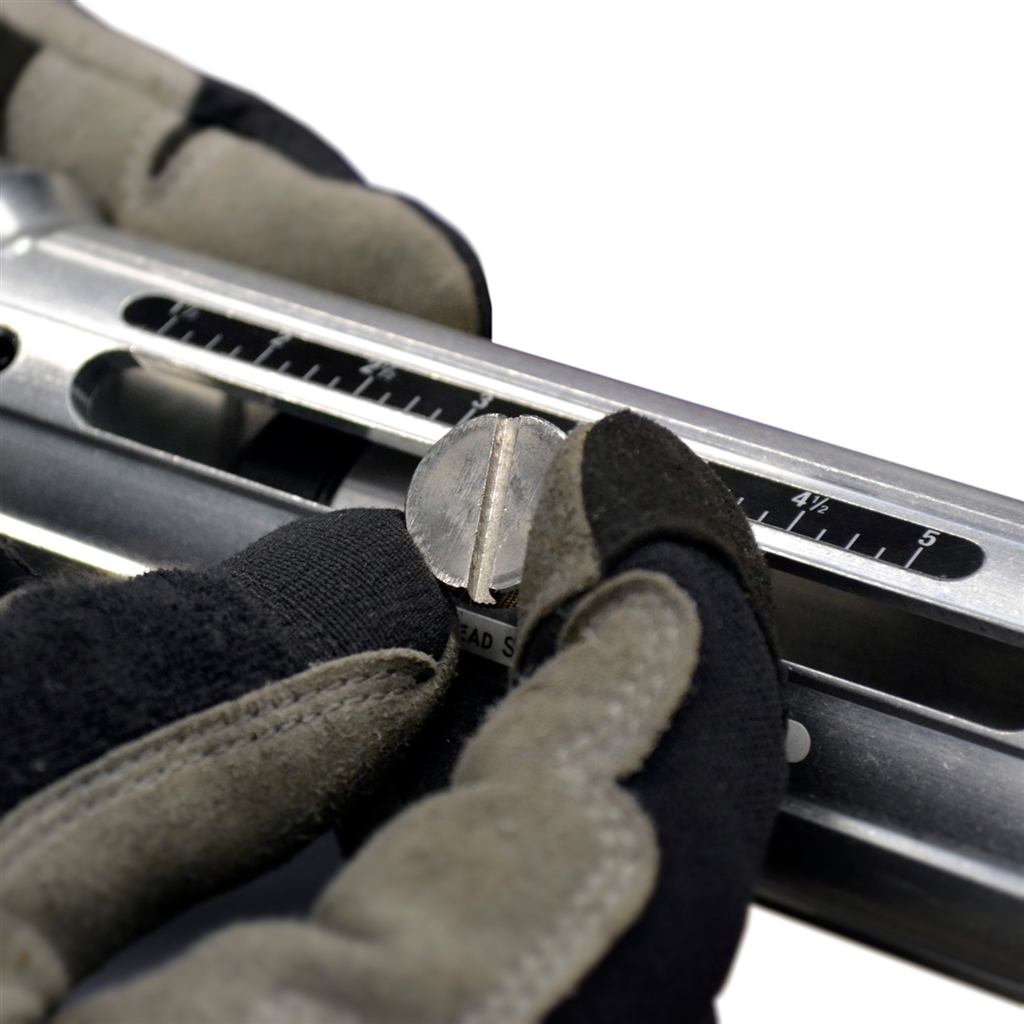

• Adjustable strip stop and scale for precise strip lengths from 1.5 - 5.25 in (38.1 - 133.3 mm)

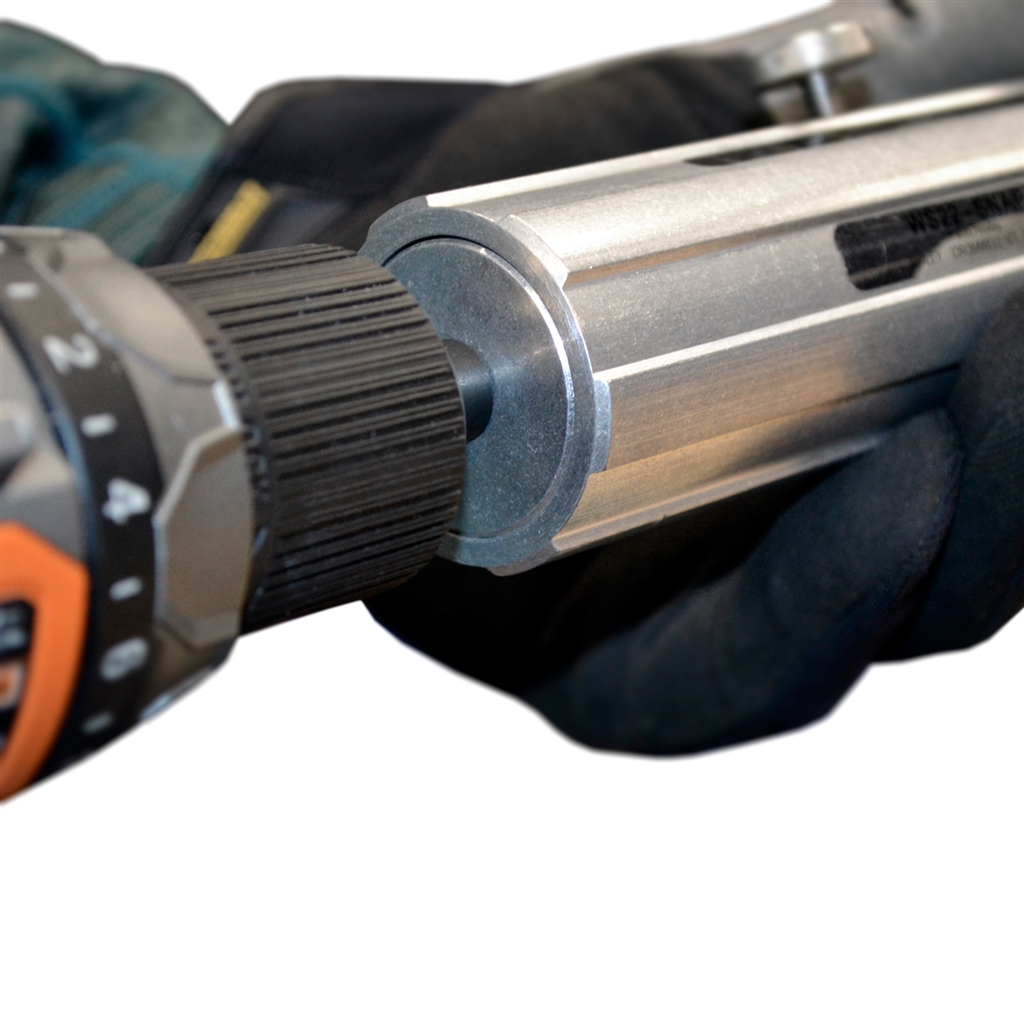

• Drill adapter fits 3/8 in (9.5 mm) drill chucks
• Accepts all US08 series and 15 series bushings for future size expansion
• Durable 16 x 16 x 4 in double-lock case holds up to 9 bushings
