Miller 39470 UTP & STP Data Cable Strip Tool for CAT5/6/7

Home > Categories > Hand Tools > Strippers >

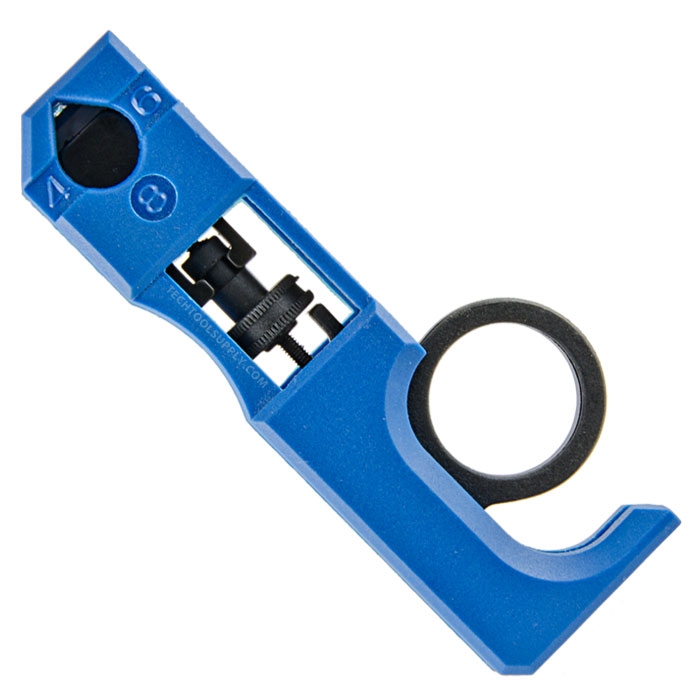

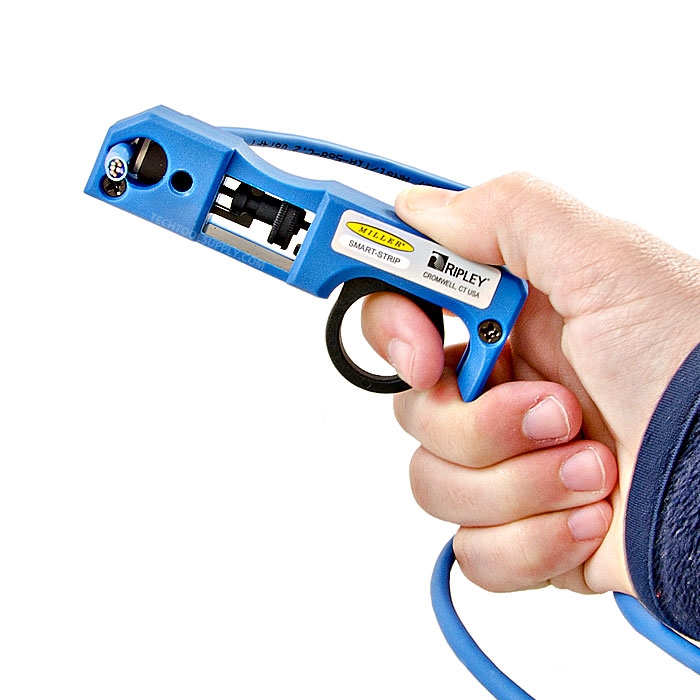

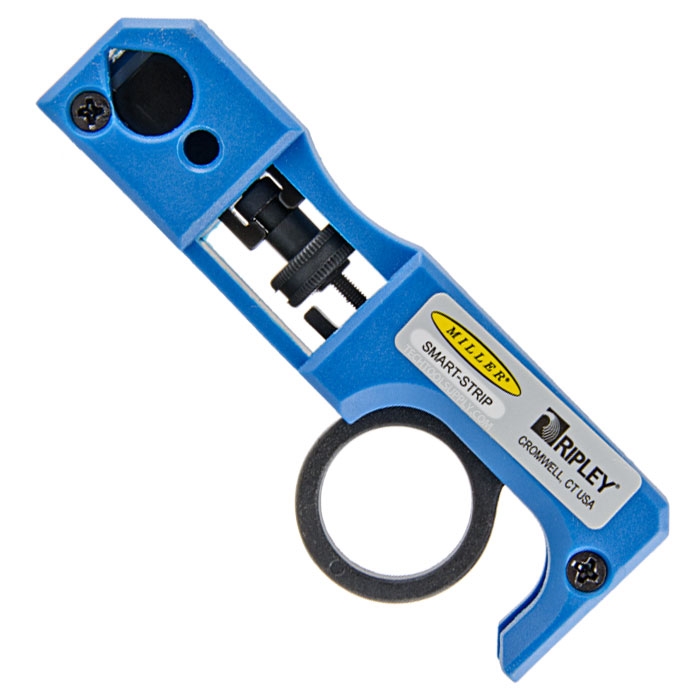

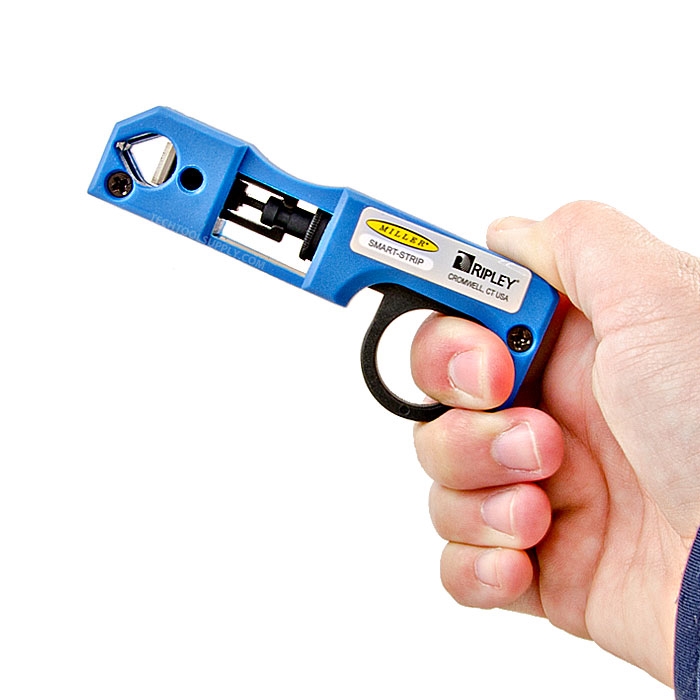

Miller UTP & STP Data Cable Strip Tool for CAT5/6/7

Alternative Views:

TTS PRICE: $14.99

STATUS:

IN STOCK

Availability:

IN STOCK & READY TO SHIP

PRODUCT CODE: RIP-39470

QUANTITY:

PRODUCT DESCRIPTION

Miller Smart-Strip Data Cable Jacket Stripper - 0.03" to 0.39" (0.75 to 10 mm), UTP & STP

When our Ripley (Miller) sales rep stopped in to show us their new SMART-STRIP, we knew immediately our customers were going to love it. We couldn't wait to get this tool in their hands. The Miller SMART-STRIP is simple to adjust, simple to operate, made really well, and more importantly your co-workers are going to be jealous when they see you using it.

The SMART-STRIP from Ripley is an insulation cutting tool for various insulated wire or cable in the 0.03" - 0.39" range. The tool typically works on soft vinyl jackets found on CAT5, CAT6, CAT7, or other data network cable. The stripping blade of the SMART-STRIP is adjustable for depth of cut from 0 - 1/8" max.

Features:

Versatile and compact tool suitable for all types of standard insulation

Smart-Strip produces an accurate depth of cut to any standard insulated size of wire or cable in the 0.03" to 0.39" (0.75 - 10 mm) range

Strips UTP & STP data network cable

Also handles delicate and shielded multi-core cables

Detailed depth adjustment mechanism allows the operator to change settings across standard insulations and a variety of delicate and irregular shielded multicore cables

Spring loaded action

Please Note:

If this is your first time using an adjustable stripper, make sure you adjust the tool so the blade is barely visible. The goal is to lightly score the jacket and break it off.

Specifications:

Cable Size: 0.03" - 0.39" (0.75mm - 10mm)

Cable Access: End

Depth of Cut: 0 - 1/8" max

Weight: 1.4 oz (40 g)

Dimensions: 3.8 x 0.75 x 1.5 in (97 x 19 x 38mm)

Model: 39470

SMART-STRIP Instructions Sheet

Average Customer Review: Average Customer Review: 4.5 of 5

4.5 of 5 Total Reviews: 9 WRITE A REVIEW

So far, this Product Review was helpful to 0 TTS Customers.

Works great!	Tuesday, May 7, 2024
Reviewer: GT from Ridgeville Corners, OH United States

I like the fine depth of cut adjustment.

Was this review helpful to you?

So far, this Product Review was helpful to 0 TTS Customers.

Telecom tech	Sunday, April 18, 2021
Reviewer: willyan turruellas from Orlando, FL United States

I gave it a 4 because we can’t use it for thicker cables like the gamechanger osp . For cat5 or cat6 regular is great . If you can make a tool with an open head to accommodate for thinker cable will be great . This way I don’t have to carry two different ones. Thank you

Was this review helpful to you?

So far, this Product Review was helpful to 0 TTS Customers.

Added to the collection :-)	Tuesday, December 31, 2019
Reviewer: Erwin Stull from Paulsboro, NJ United States

I purchased this during a sale. It's not the best, but pretty good. One feature that I like is that it is adjustable.

Was this review helpful to you?

So far, this Product Review was helpful to 1 TTS Customers.

Surprisingly good for the price, but unrefined.	Monday, July 30, 2018
Reviewer: Nate B from Royal Oak, MI United States

The good:

It's incredibly adjustable, and can take a super shallow cut, with fine control over the depth, better than any other tool I've used.

The adjustment doesn't seem to drift, even without an explicit locking or friction mechanism.

It's also fairly compact, light, and cheap.

The bad:

The plastics' fit and finish is poor, sharp edges everywhere. Everything works, but it's uncomfortable to adjust because your fingers are scraping an unbroken edge. I spent a minute with a deburring tool and it's a lot more comfortable to use now.

The cutting blade isn't quite centered inside the body, and there's no edge-on view of the cable during insertion, so it's hard to place the strip precisely. Not a big deal for cat-5, but obnoxious for coax prep.

There's no graduation to record and recover depth settings. So if you want to prep several cable types, you have to eyeball it and then dial it in each time, or just have several copies of the tool.

Was this review helpful to you?

So far, this Product Review was helpful to 0 TTS Customers.

Miller UTP & STP Data Cable Strip Tool	Friday, March 16, 2018
Reviewer: Jeffrey Gack from Springboro, PA United States

I wish I had this tool years ago.
Tool works great, works on lots of different types of cable and doesn't cut the inner insulation if adjusted properly.

Was this review helpful to you?
