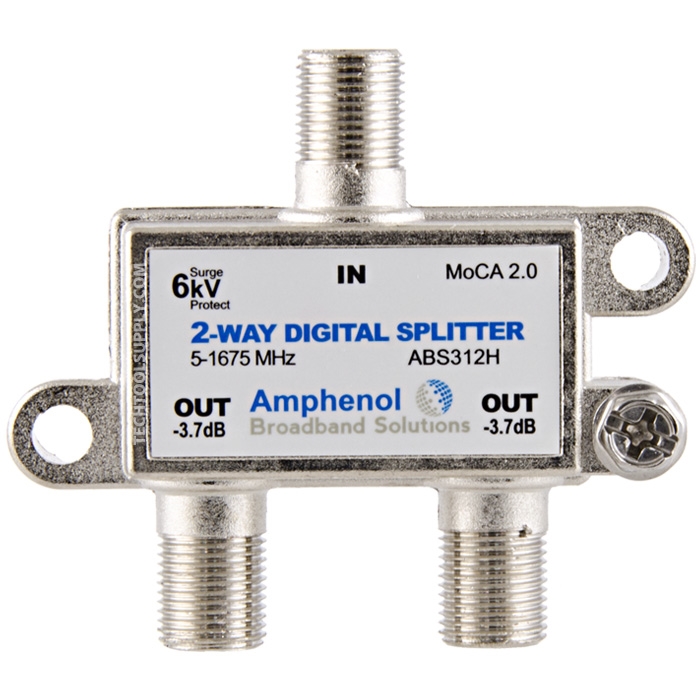

MoCA Broadband Digital 2-Way Splitter

Home > Categories > RF Distribution > Splitters > Digital Cable Splitters >

TTS PRICE: $3.39

STATUS: ON ORDER

Availability:

Normally Ships Same Day

PRODUCT CODE: HOL-ABS312H

QUANTITY:

PRODUCT DESCRIPTION

MoCA technologically continues to evolve and advance as the broadband home networking standard of choice. ABS312H digital splitters are MoCA-optimized for delivering HD media and broadband data throughout the 1125 – 1675 MHz frequency range.

Choose the ABS312H for splitting new and pre-existing coaxial cable runs in SDU’s, MDU’s and small business networks. The ABS312H splitters maintain system integrity and reliability throughout the full 5 – 1675 MHz bandwidth - while maintaining low passive intermodulation. High EMI shielding effectiveness protects against ingress. The ABS312H splitter also ensures mechanical and environmental reliability through pressure-sealed and machined F-ports and 6kV surge withstand.

Features:

5 - 1675 MHz Performance

MoCA Network Optimized

Low Intermodulation Design

6kV Ring Wave Surge Withstand

UL Listed Ground Block

Nickel Plated Zinc Die-Cast Housing

15 PSI Pressure-Sealed F-Ports

Machine Threaded F-Ports

Soldered Back Plate for High EMI Shielding Effectiveness

Insertion Loss Frequency (Typical/QC):

5 - 400 MHz: 3.2 / 3.5

401 - 600MHz: 3.5 / 3.7

601 - 1002MHz: 3.8 / 4.0

1125 - 1675MHz: 6.0 / 6.5

Isolation Frequency (Typical/QC):

5 - 10 MHz: 27 / 25

11 - 65 MHz: 35 / 35

66 - 870 MHz: 27 / 25

871 - 1002 MHz: 25 / 23

1125 - 1675 MHz: 23 / 25

Return Loss In Frequency (Typical/QC):

5 - 10 MHz: 22 / 20

11 - 65 MHz: 27 / 25

66 - 870 MHz: 25 / 20

871 - 1002 MHz: 23 / 20

1125 - 1675 MHz: ≥10

Return Loss Out Frequency (Typical/QC):

5 - 10 MHz: 22 / 20

11 - 65 MHz: 27 / 25

66 - 870 MHz: 25 / 20

871 - 1002 MHz: 23 / 20

1125 - 1675 MHz: ≥10

RFI Frequency (Typical/QC):

5 - 1675: 110

Bonding:

8-14AWG Ground Wire

Surge Protection (Input/Output):

6kV/200A Ring Wave

Specifications are subject to change without notice per Amphenol Broadband Solutions.
