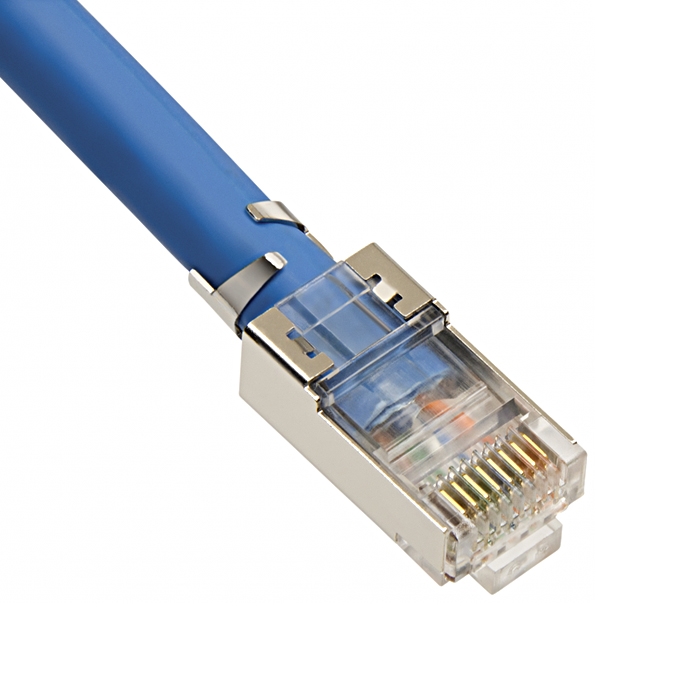

Platinum Tools 106190 Cat6A 10Gig Shielded RJ45 Connector - With Liner, External Ground, 100-Pack
Streaming media whether data, audio or video, is on a sharp rise and users are demanding more bandwidth. That means bigger cable, commonly referred to as CAT6e, CAT6A and CAT7, and usually shielded. For maximum performance, connector and crimp tool choice is critical. Platinum Tools CAT6A/10Gig termination system not only meets, but exceeds these requirements.
Connector is only compatible with Platinum Tools Tele-Titan Xg and Tele-Titan Xg 2.0 Crimp Tools.
Features:
RJ45 CAT6A modular plug for round solid cable
Shielded with external ground
Designed for both shielded and unshielded cabling
2-piece system with plug and liner
3 prong contact design
Specifications:
Connector Type: RJ45 (8P8C) Modular Plug, 10Gig
Category: CAT6A
Max cable OD: 8.5mm/0.335"
Max conductor OD: 1.35mm/0.053"
Individual conductor OD range: 0.042" - 0.053" (1.07mm-1.35mm)
Wire Gauge Range: 24-22 AWG
Contacts: 50µ Gold
Material: Polycarbonate
Color: Metal
Compliance: UL and RoHS compliant
Quantity: 100
Packaging: Bulk bag
Model: 106190
Fits These Tools:
| Part # | Platinum # | Description |
|---|
| PLA-12515 | 12515C | Tele-Titan Xg Cat6A/10Gig crimp tool - compatible crimper for this connector |
| PLA-12516 | 12516C | Tele-Titan Xg 2.0 Cat6A/10Gig crimp tool - compatible crimper for this connector |
Platinum Tools 10Gig Instruction Sheet
