Simply45 Shielded Cat6/6a (external ground) - 50pc

Simply45 Shielded Cat6/6a (external ground) - 50pc




Alternative Views:


TTS PRICE: $103.99

STATUS:  IN STOCK


Availability:
Normally Ships Same Day

PRODUCT CODE: S45-1750P
QUANTITY:

PRODUCT DESCRIPTION

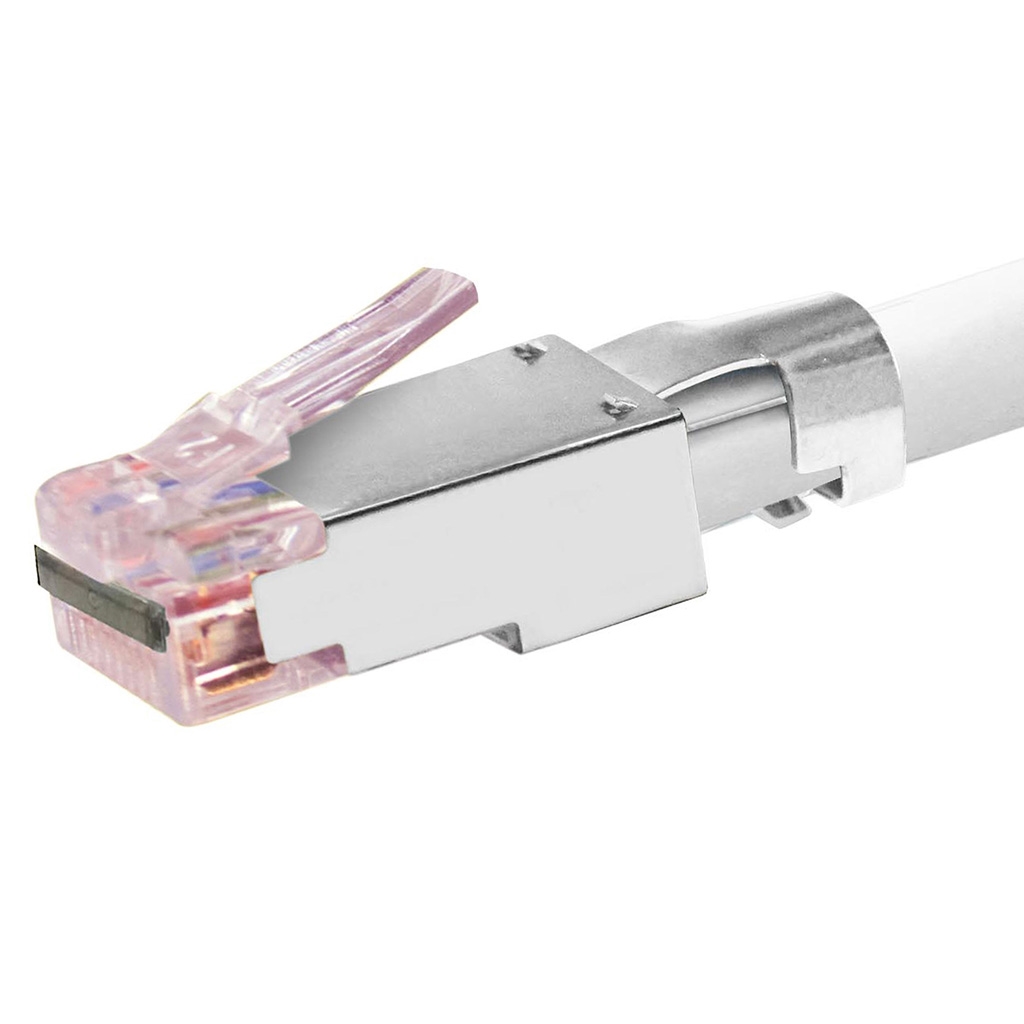

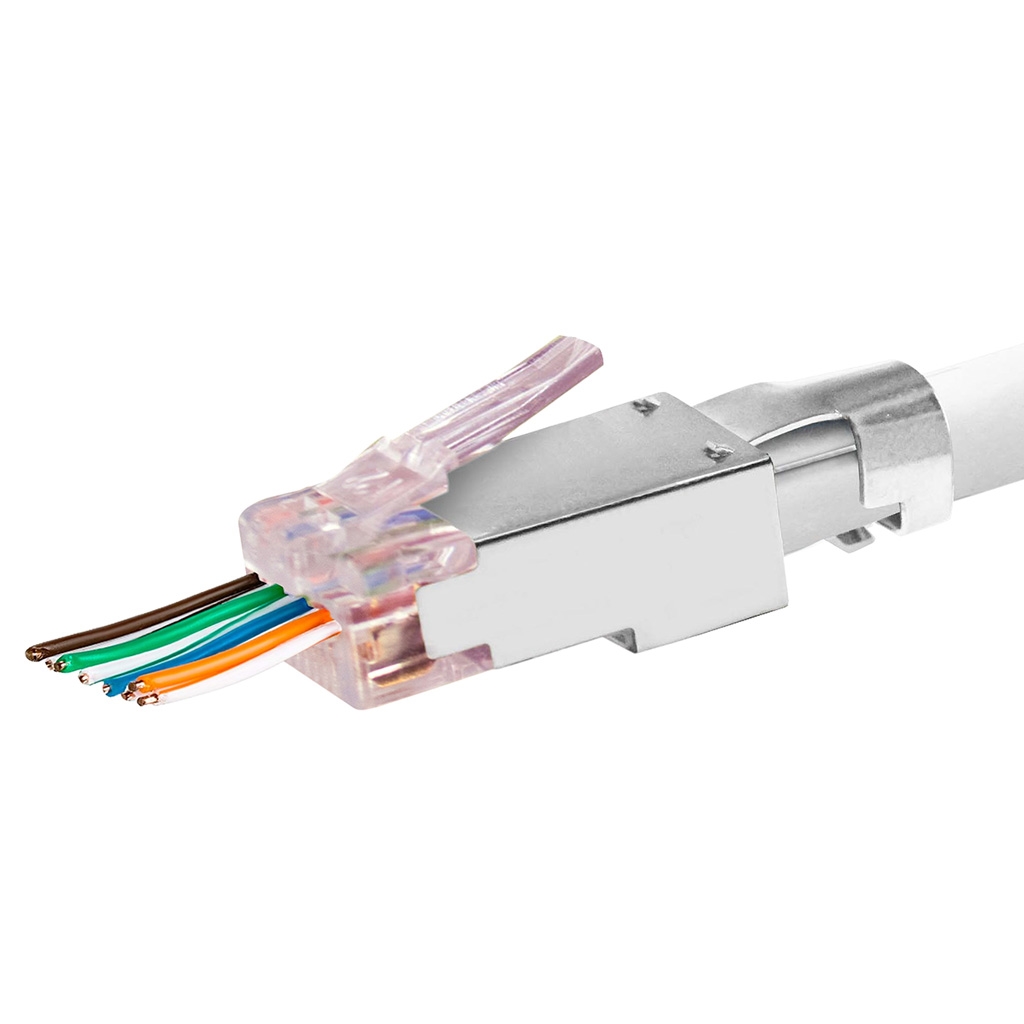

Simply45, the industry-leading brand for RJ45 modular plug innovation and performance solutions, introduces their ProSeries Shielded with External Ground Pass Through RJ45 Modular Plug, S45-1750P. The uniquely designed and patented Simply45 ProSeries S45-1750P simplifies and improves the terminated plug performance for shielded Cat6 LAN cables. The Simply45 ProSeries S45-1750P Pass Through RJ45 modular plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate Cat6 Shielded STP and Cat6a F/UTP LAN cables.

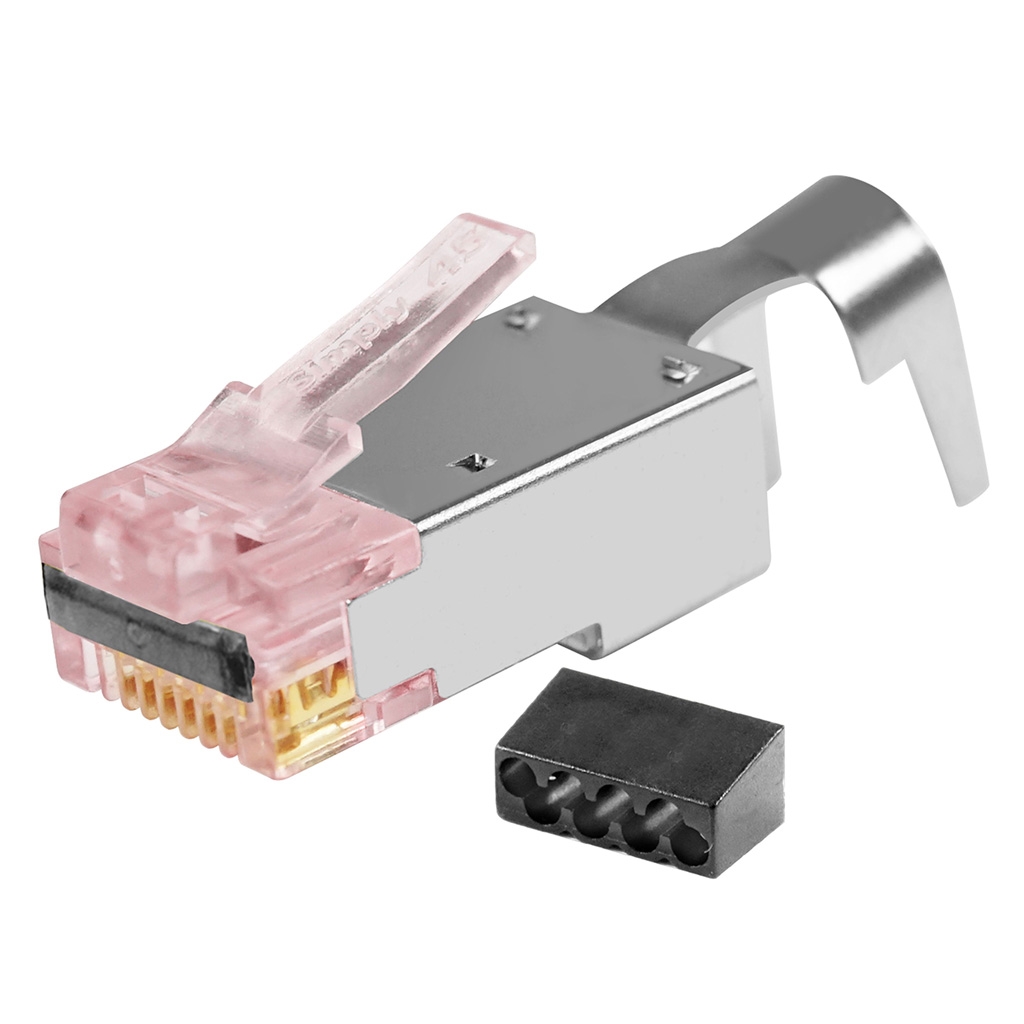

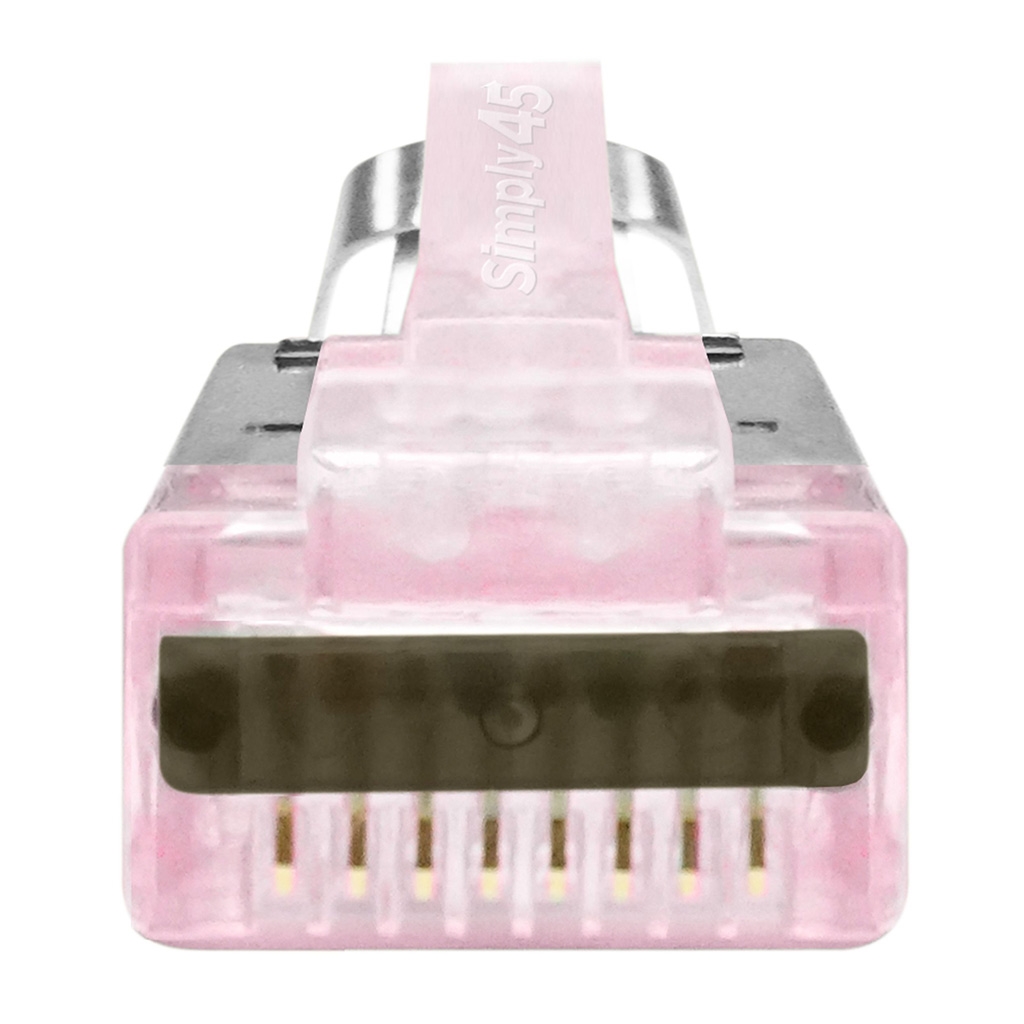

Simply45 ProSeries introduces the exclusive Cap45 (PATENT: 10,811,831 B1). Cap45 is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45 prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45, any electrical risks associated with exposed wire ends are now completely eliminated.

  • Cap45 is an isolation cap/bar that snaps onto the front of the pass through RJ45 plug after termination, covering the exposed wire ends

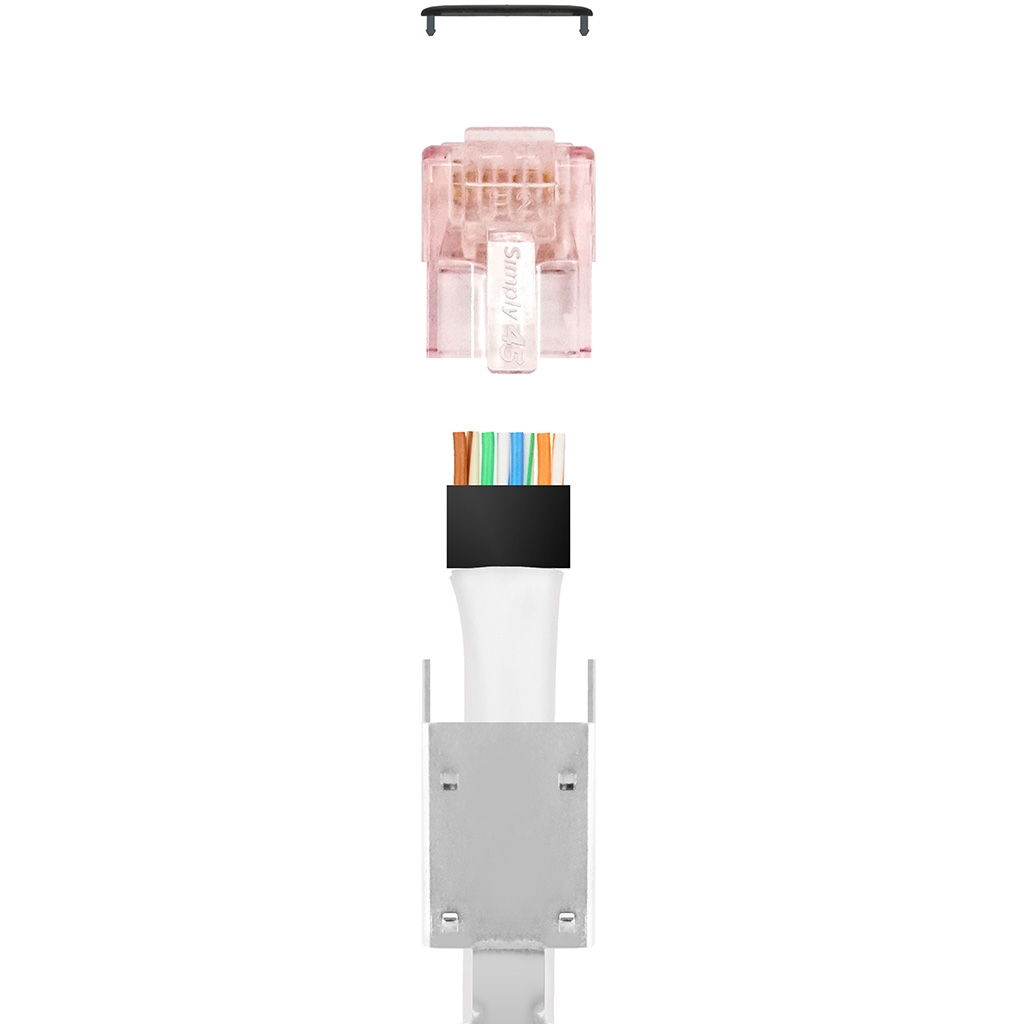

  • Bar45 combined with Simply45s internal RJ45 design innovations allows the LAN cable itself to be inserted further into the plug, reducing the length of untwisted wires
  • 3 Prong Pin Design with 50 of True 24ct Gold Plating
  • Ideal for Solid and Stranded LAN Cables
  • Improved Crosstalk Performance
  • Commercial Rated
  • Color Tinted RJ45 Modular Plugs

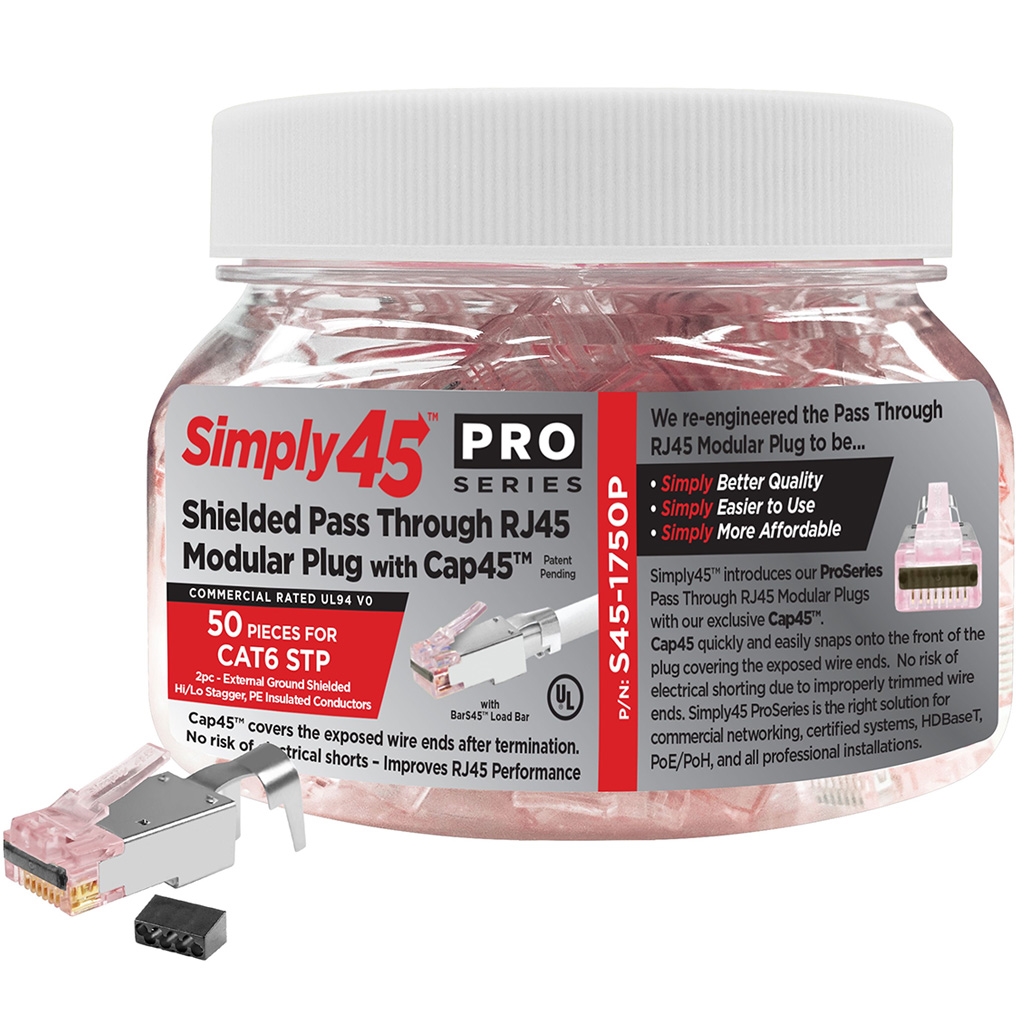

  • Wide Mouth Jar for Easy Hand Access
  • Color-Coded Jar Caps
  • UL Listed
  • PoE/PoH Rated
  • Compliant with Industry Standards
  • Lifetime Warranty

  • Specifications:
  • Quantity: 50 connectors
  • Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
  • Wire Cond(s) OD: 23AWG: 1.10mm - 1.20mm (0.043 - 0.047)
  • Max LAN Cable OD: 8mm (0.315)
  • Supports PoE/PoH: Yes
  • Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
  • Flame Autoextinguish: UL94 V0, IEC 60695-11-10
  • Contact Material: Phosphor Bronze - .012" thick
  • Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Plug Material: Polycarbonate
  • Shielded Material: Hard Brass
  • Shielded Plating: 80 Micro-Inch minimum Nickel Plating
  • Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
  • Conductor Type(s): Solid and Stranded
  • Operating Temperature: -40 C to +70 C
  • Insertion/Extraction Life: 2000 Minimum Cycles
  • Contact Resistance: 20 Milli-Ohms maximum
  • Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
  • Compliance: UL Listed, RoHS, FCC, NEC
