Platinum Tools 100028C ezEX44 RJ45 Connectors - Cat6, Unshielded, 50 Pack

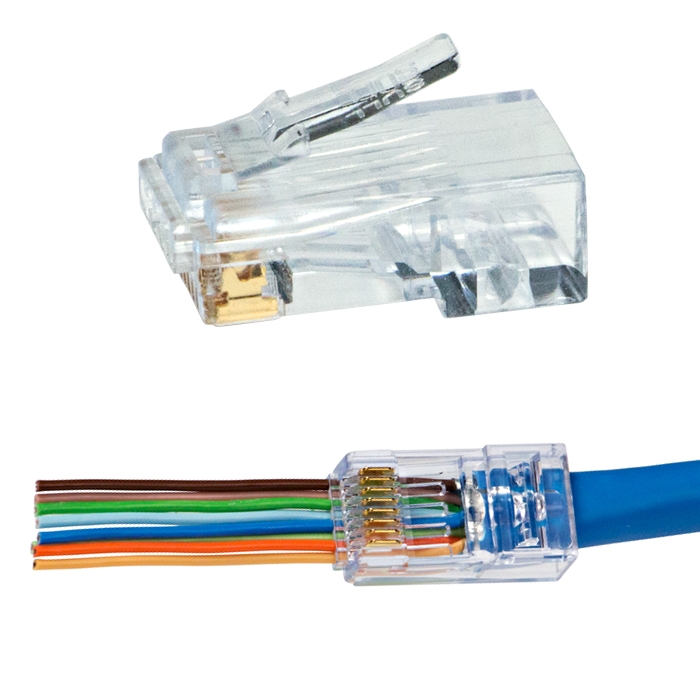

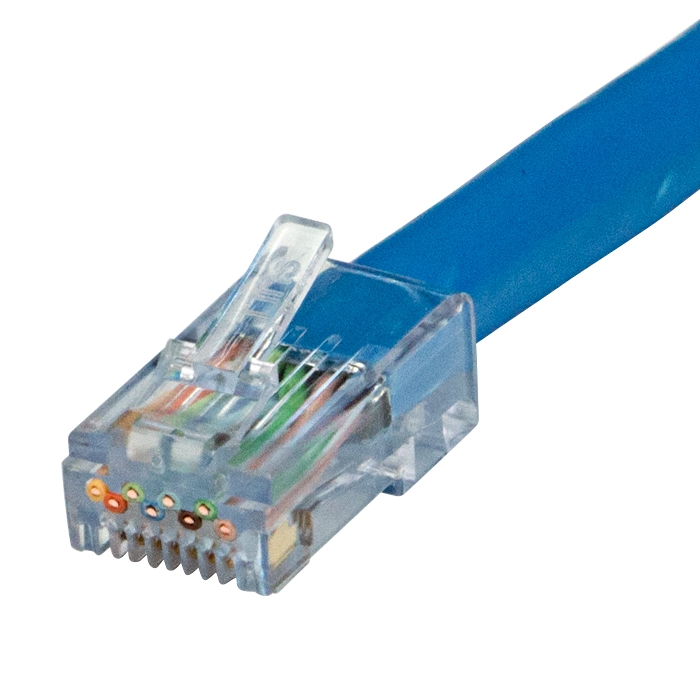

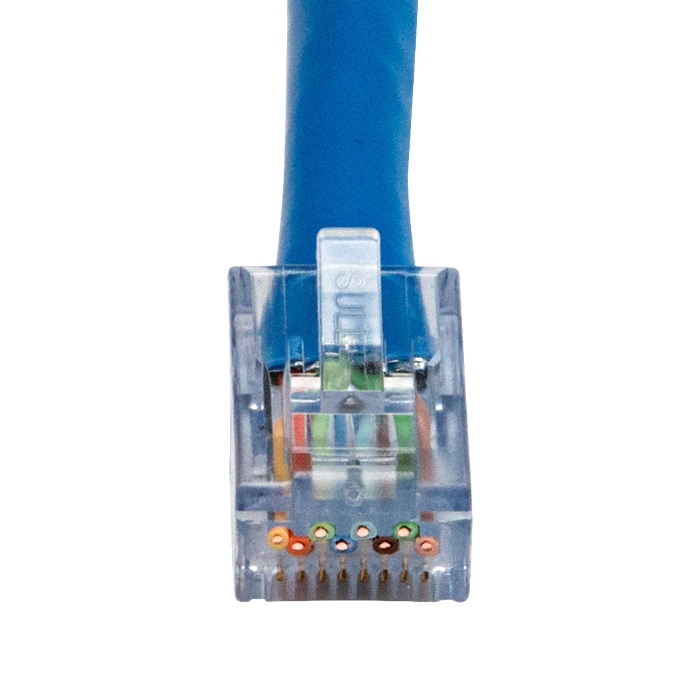

The ezEX44 RJ45 connectors from Platinum Tools are designed for larger diameter conductors (typically Cat6). They feature a unique integrated Hi-Lo stagger that allows 'big' conductors to pass through the front end of the connector, making it easy to verify the wiring sequence before terminating.
These connectors can ONLY be terminated with the EXO Crimp Frame and EXO-EX Die (PLA-100061C).
Features:
ezEX-RJ45 (ezEX44 series) pass-through RJ45 connectors
Hi-Lo stagger isolates each conductor for higher performance
Simple one piece/pass-through design, no bars or liners
Unshielded
Made in the USA
Specifications:

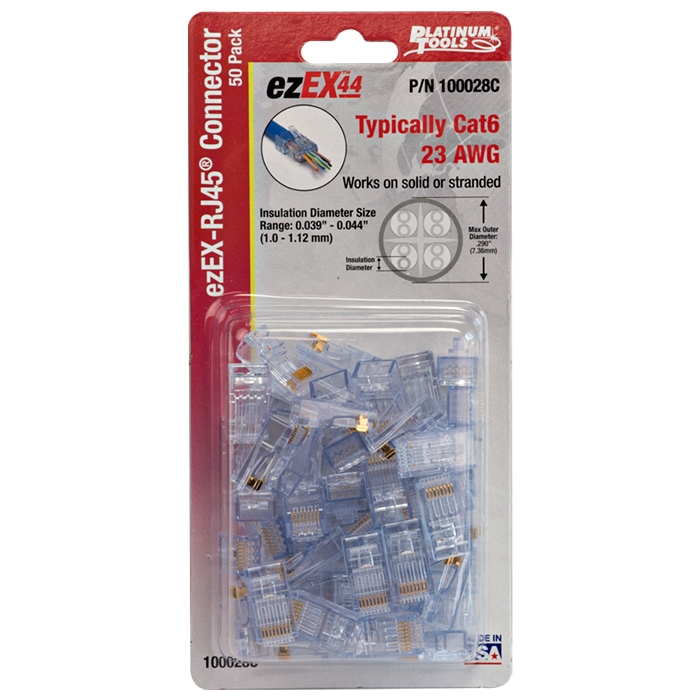

Quantity: 50 connectors
Connector Type: RJ45, unshielded
Insulation Diameter (Conductor) Size Range: 0.039" - 0.044" (1.0 - 1.12mm)
Max Outer Diameter: 0.290" (7.36mm)
Solid or Stranded: 22-24 AWG
Material: Polycarbonate
Color: Clear
Compliant: 5e/6/6A, RoHS 2, UL & FCC
Model: 100028C
Related Products:
| Part # | Platinum # | Description |
|---|
| PLA-100061C | 100061C | EXO Crimp Frame with EXO-EX Die - required to terminate ezEX44 connectors |
| PLA-100071C | 100071C | EXO-EX Die for the EXO Crimp Frame |
| PLA-202044J | 202044J | ezEX44 connectors, unshielded - 100 piece |
Platinum Tools ezEX-RJ45 Termination System Spec Sheet
