Arlington 8141 Siding Mounting Kit with Built-in Box - 1/2" Lap Siding, White

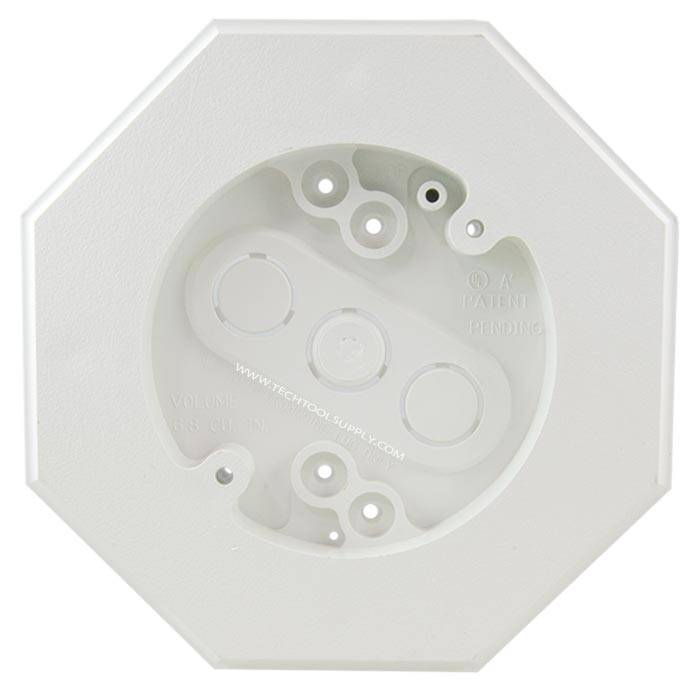

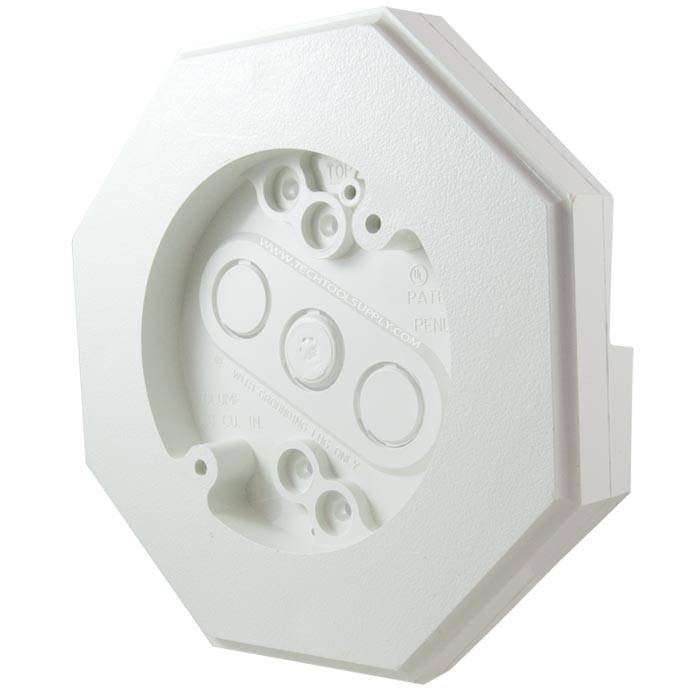

For smooth vertical mounting of light fixtures on all siding types rely on Arlington's Siding Mounting Kit. This kit includes mounting block with built-in electrical box, NM cable connector, and 4 screws.
Features:
Paintable UV rated plastic for long outdoor life

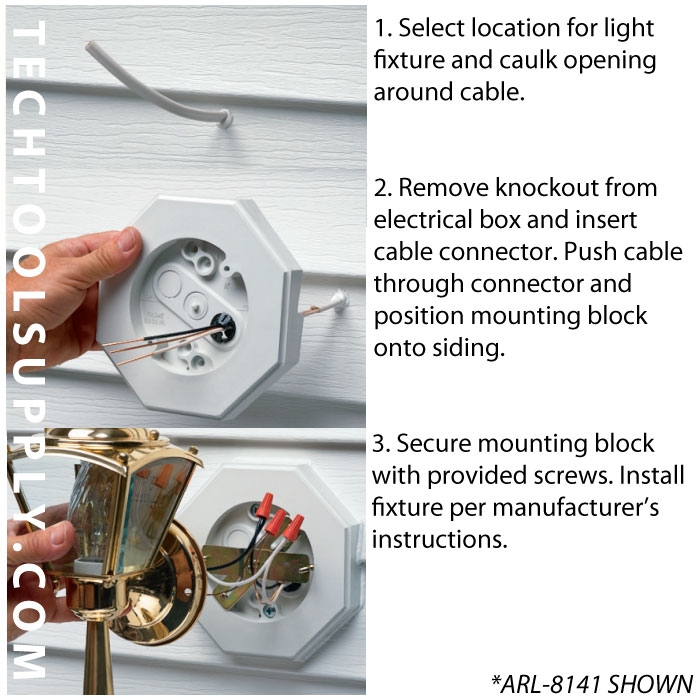

Fast and easy to install... after siding is up
Mounts light fixtures on siding types, including T-111, HardiePlank Lap Siding, and flat surfaces
Built-in electrical box design ensures a UL listed installation
Includes:
1 x Mounting block with built-in electrical box
1 x NM94 NM cable connector
2 x #8-32 x 5/8" screws
2 x #12 x 2" screws
Specifications:
Type: Siding Mounting Kit with Built-in Electrical Box
Dimensions: 6.610" x 6.610" (6.6 x 6.6 octagon)

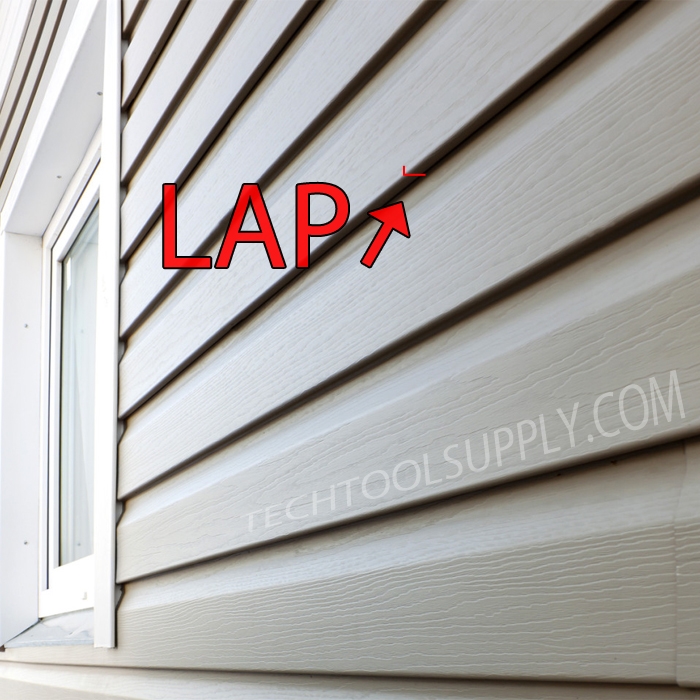

Siding Type: 1/2" Lap
Box Volume: 6.8 cu. in.
Color: White
Material: UV-Rated Plastic
Paintable: Yes
Weight: 0.402 lb
Model: 8141
Related Products:

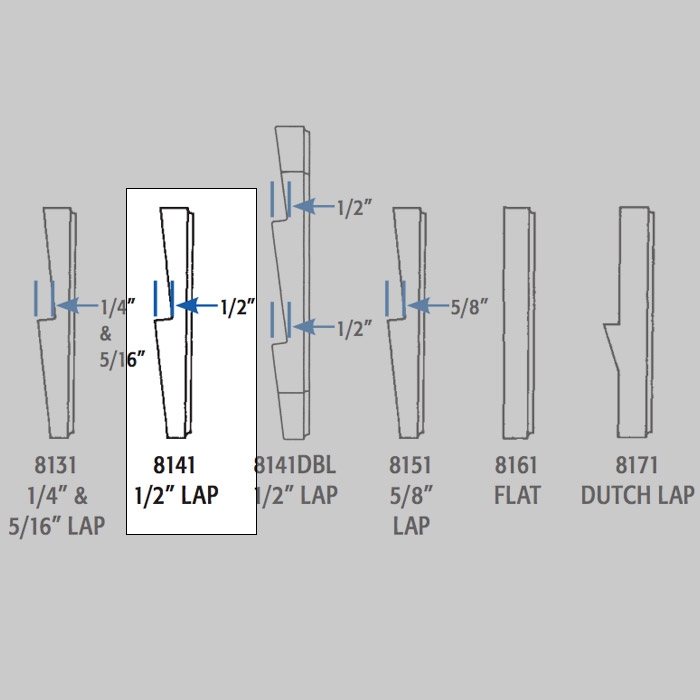

| Part # | Arlington # | Description |
|---|

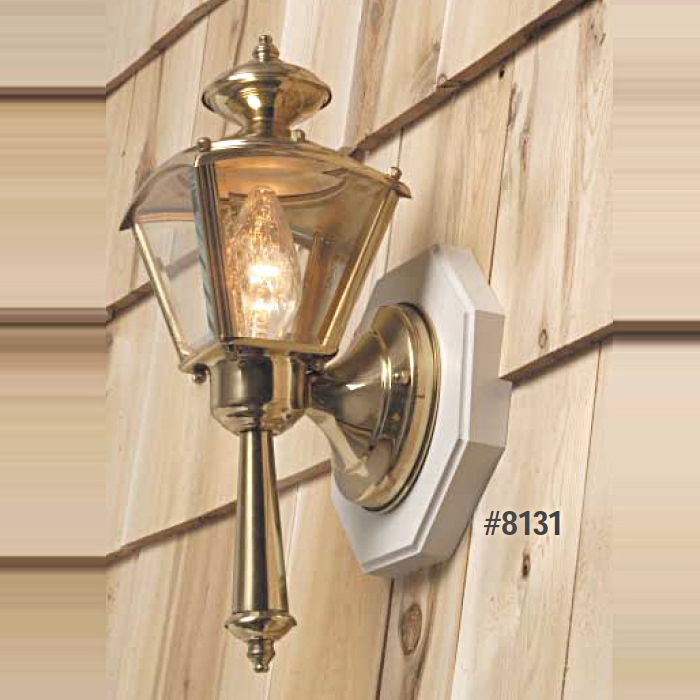

| ARL-8131 | 8131 | Siding mounting kit with built-in box - 1/4" and 5/16" siding and shingles |
| ARL-8141DBL | 8141DBL | Siding mounting kit with built-in box - 1/2" double 4" lap siding, 6.9" x 10.2" |
| ARL-8151 | 8151 | Siding mounting kit with built-in box - 5/8" lap siding |
| ARL-8161 | 8161 | Siding mounting kit with built-in box - flat surfaces |
| ARL-8171 | 8171 | Siding mounting kit with built-in box - Dutch lap siding |
8131 Specification Sheet
