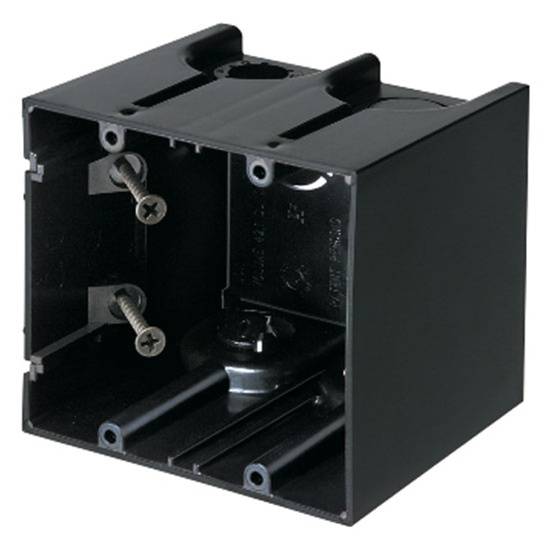

Arlington F102 ONE-BOX Non-Metallic Outlet Box - 2-Gang, 42.1 cu. in., New & Retrofit Work
Arlington's ONE-BOX Non-Metallic Outlet Boxes are versatile, non-conductive outlet boxes for new or retrofit construction. The box mounts directly to a wood or steel stud. The F102 is a 2-gang vertical box with 42.1 cubic inches of capacity.
Features:
Fast and easy to install
Mounts directly to a wood or steel stud for a super secure installation
Angled screws inside the ONE-BOX affix it firmly to the stud - it has no "wings" so there's no wobble
For a variety of wall thicknesses, the ONE-BOX is also removable, adjustable, and remountable - even after the wall is in place
Accepts a voltage divider for power and low voltage applications in the same box
2 hour fire rating
UL listed
Includes:
1 x 2-Gang ONE-BOX
2 x NM95 cable connectors
4 x NM942 cable connectors
2 x NM900 snap-in blanks
2 x #6 x 1-5/8" long screws
Specifications:
Quantity: 1
Type: 2-Gang Vertical ONE-BOX
Trade Size: 2-Gang
Cubic Inch Capacity: 42.1
Knockouts: 4

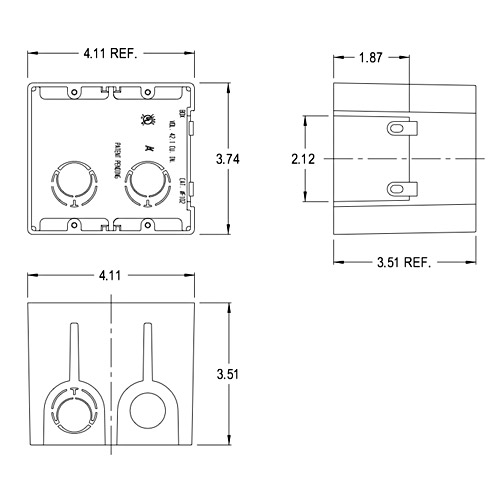

Height: 4.110"
Width: 3.740"
Color: Black
Material: Plastic
Weight: 0.316 lbs
Model: F102
Accessories:
| Part # | Arlington # | Description |
|---|
| - | F102D | Voltage divider - for power and low voltage in the same box (sold separately) |
Related Products:
| Part # | Arlington # | Description |
|---|
| ARL-F101 | F101 | ONE-BOX non-metallic outlet box, single-gang, 22.0 cu. in. |
| ARL-F103 | F103 | ONE-BOX non-metallic outlet box, 3-gang, 61.2 cu. in. |
| ARL-F104 | F104 | ONE-BOX non-metallic outlet box, 4-gang, 80.5 cu. in. |
F101 Specification Sheet
Arlington Low Voltage Cut-Out Guide
|
|
|
