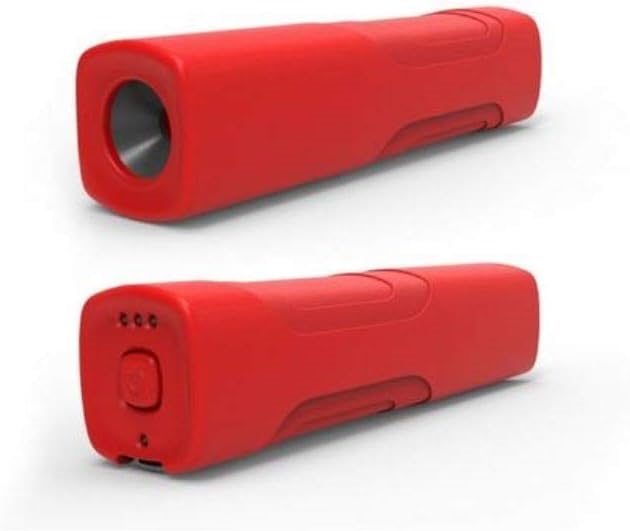

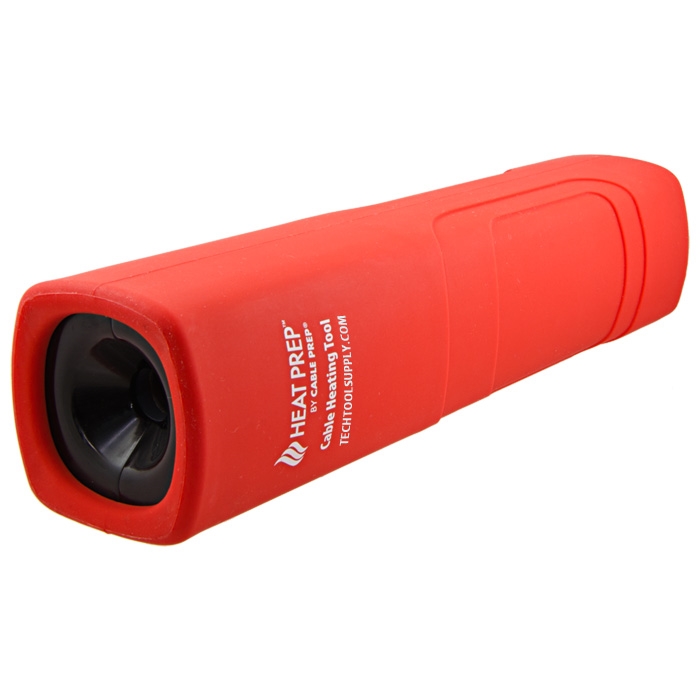

Cable Prep Heat Prep™ CHT Cable Heating Tool - Coax & Cables up to .45" OD, Rechargeable
The Heat Prep Cable Heating Tool CHT heats dry, brittle, cold, or cracked cable in seconds, ensuring solid, reliable connections using significantly less force than traditional methods. Ideal for harsh winter conditions and tough flooded cable types such as direct burial and LMR style cables, the CHT improves installation quality in even the most demanding environments.
Improper coaxial connections are one of the most common causes of repeat service calls and customer downtime. By introducing controlled heat into the cable preparation process, the revolutionary Heat Prep CHT reduces connection failures and helps technicians get the job done right the first time.
Features:
Eliminates faulty connections by delivering consistent, controlled heat for predictable results
Reduces connection force by more than 300 percent, minimizing strain on technicians' hands
Long-lasting rechargeable lithium-ion battery: 15 to 45+ heating cycles per charge and a total life of 10,000 heating cycles
Medical-grade waterproof silicone casing built for extreme environments
Designed to fit standard technician tool pouches; shuts off automatically when the task is complete
Compatible with most cable brands and common gauges from 0.13 to 0.45 inches, including RG-6, RG-11, direct-burial, LMR-style and power cables
Safe, engineered heat delivery - a smart alternative to lighters or torches
Simple one-button operation with color-coded indicator lights that show when the tool is at temperature
Specifications:
Type: Coax Cable Heating Tool
Cable Range: Outer dimension 0.13" to 0.45"
Battery: Rechargeable lithium-ion
Battery Life: 15 to 45+ heating cycles per charge; 10,000 heating cycles total
Casing: Medical-grade waterproof silicone
Length: 8.5" (21.59 cm)
Weight: 1.4 lb (0.62 kg)
Model: HP-VDS2700
Accessories:
| Part # | Cable Prep # | Description |
| CPR-HP-CHARGER | HP-CHARGER | Heat Prep CHT replacement charger |
